Product Details

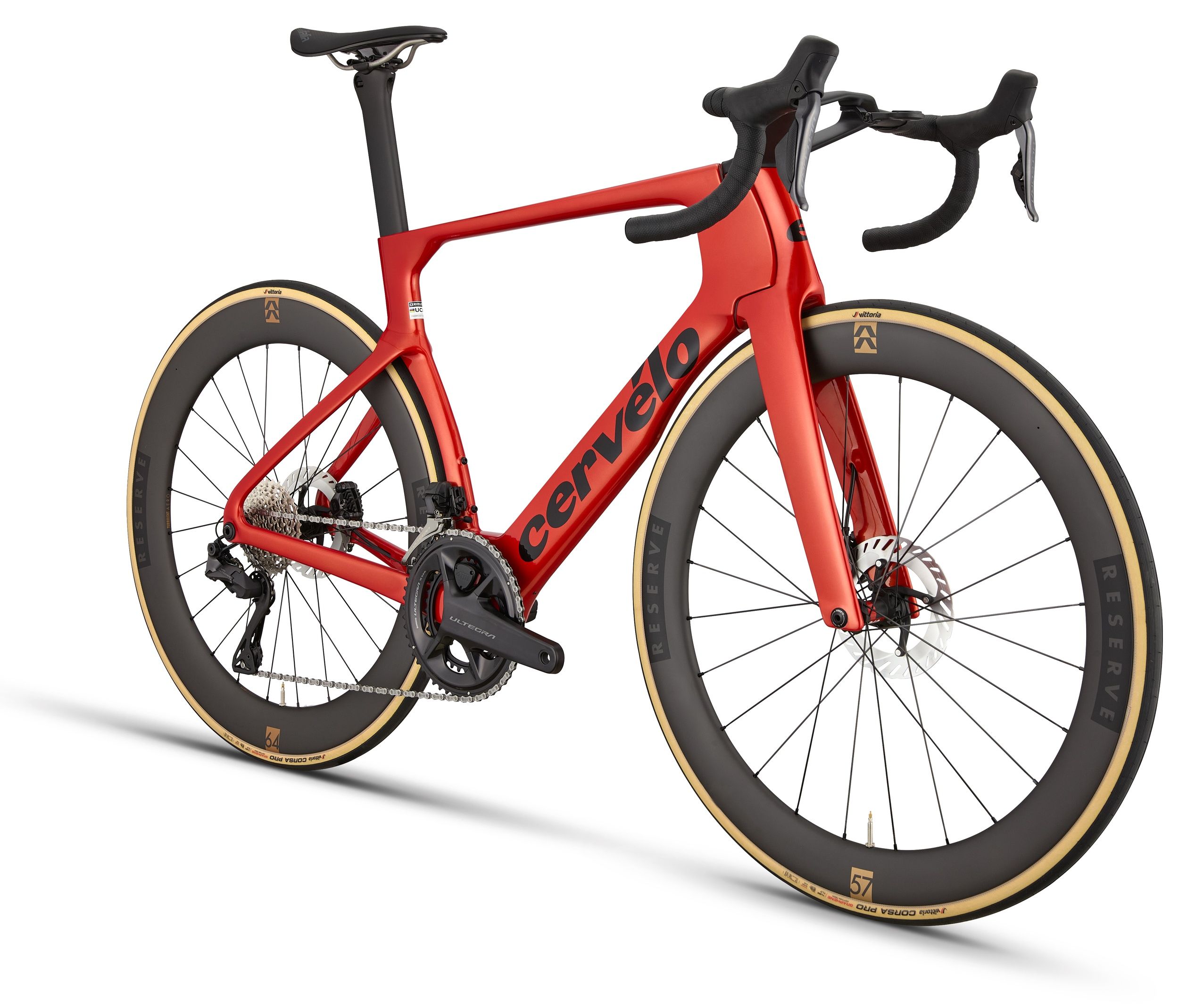

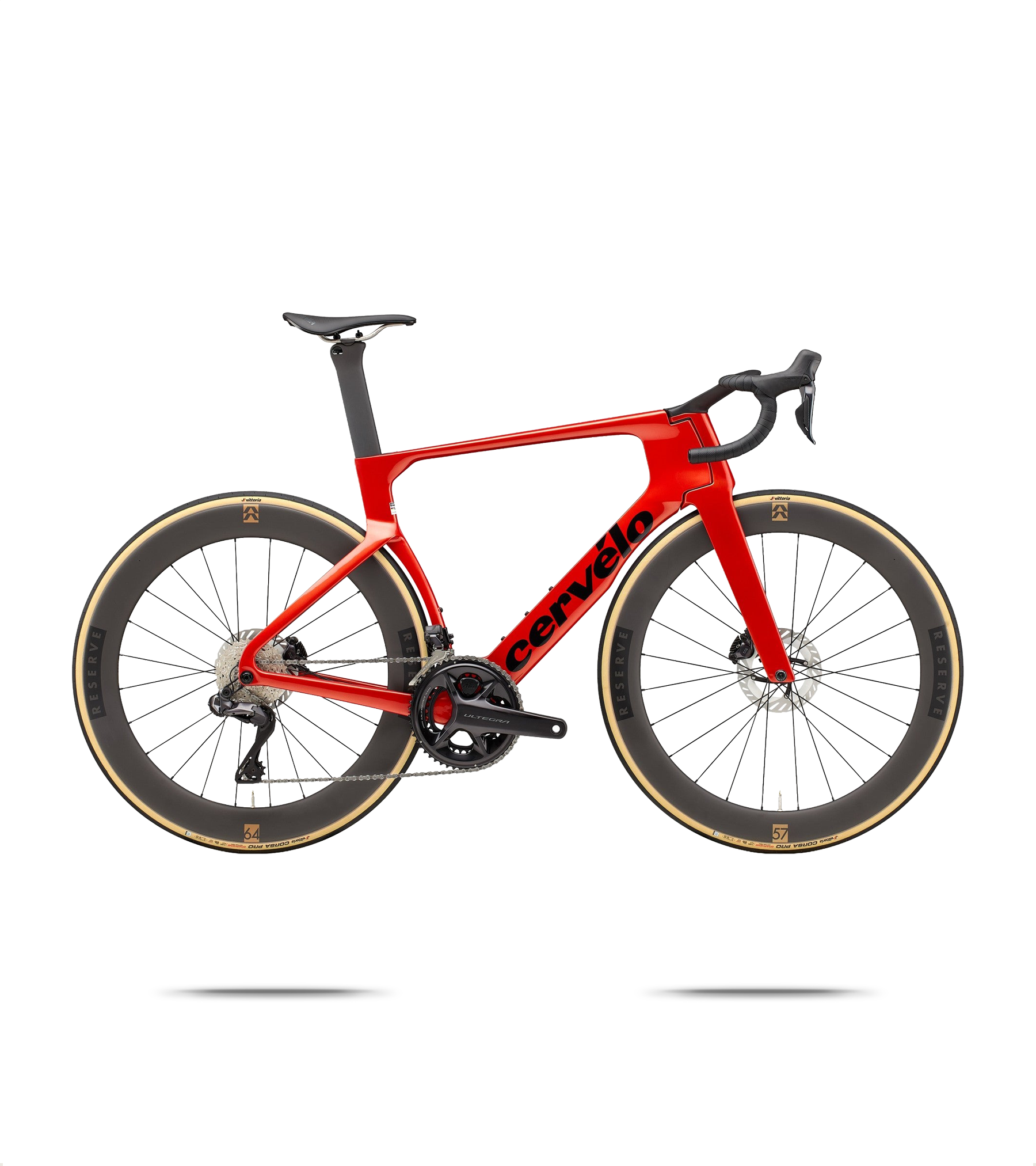

Speed redefined. The Cervelo S5 Ultegra Di2 Road Bike has evolved to be even more aerodynamic, slicing through the wind with refined front-end shaping and the sleek integration of asymmetric seat tube and rear wheel profiles. The result? A gain of 6.3 watts over its predecessor - extra power in reserve for launching a breakaway or delivering a decisive sprint finish. It’s not just quicker, it’s lighter too, shedding 124 grams for added efficiency when the gradient kicks up. While it’s faster and leaner, the S5 still delivers the precise handling, stability, and razor-sharp responsiveness that riders love. This is the S5, reimagined for those who love speed and ride on the edge.

Cervelo x Reserve 57/64 Turbulent Aero

Co-developed by Cervelo and Reserve, the 57/64 Turbulent Aero wheelset has been tuned to work perfectly with this latest iteration of the S5 frame and forks. The asymmetry of the rear wheel matches the seat tube, ensuring smooth and efficient airflow over both. Meanwhile, the added depth of the front rim helps smooth airflow over the wheel in high yaw scenarios. Some 3 watts faster than its predecessor wheelset, the 57/64 still tips the scales at the same weight.

Cervelo HB19 Carbon one-piece cockpit

The distinctive V-shaped bar and stem remain, but it's now a one-piece setup. The “Plus-Four” concept gives a handlebar design where the width at the hoods is 4cm narrower than at the drops - for example, 38cm at the hoods and 42cm at the drops. This innovative setup promotes a more aerodynamic riding position when your hands are on the hoods, while still offering enhanced control and stability in the drops for sprinting and descending. All handlebar sizes comply fully with UCI regulations, including the most recent updates

HB19 Carbon one-piece cockpit sizing:

  • Frame size 48cm: Bar width: 36cm /Stem length: 80mm
  • Frame size 51cm: Bar width: 38cm /Stem length: 90mm
  • Frame size 54cm: Bar width: 40cm /Stem length: 100mm
  • Frame size 56cm: Bar width: 40cm /Stem length: 100mm
  • Frame size 58cm: Bar width: 40cm /Stem length: 110mm
  • Frame size 61cm: Bar width: 40cm /Stem length: 120mm
Features
  • Frame: Cervelo S5 All-Carbon, TrueAero tube profiles, integrated head tube to fork configuration, integrated headset 1” x 1-3/8”, 12x142mm ( M12x1.0mm, 169mm length thru-axle)
  • Fork: Cervelo All-Carbon, tapered Bayonet S5 fork, external head tube nose section, 12x100mm thru-axle (M12x1.5mm, 122mm length)
  • Headset: FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
  • Bottom Bracket: FSA, BBright thread together for 24mm spindle
  • Handlebar and Stem: Cervélo HB19 Carbon one-piece cockpit
  • Bar Tape: Cervelo bar tape
  • Front Brake: Shimano Ultegra hydraulic disc, with 160mm Shimano CL800 Centerlock Disc
  • Rear Brake: Shimano Ultegra hydraulic disc, with 160mm Shimano CL800 Centerlock Disc
  • Brake and Shift Levers: Shimano Ultegra, R8170
  • Front Derailleur: Shimano Ultegra, R8150
  • Rear Derailleur: Shimano Ultegra, R8150
  • Chain: Shimano M8100
  • Cassette: Shimano Ultegra, R8100, 11-34T, 12-Speed
  • Crankset: Shimano Ultegra, R8100, 52/36T
  • Front Wheel: Reserve 57TA, DT Swiss 180 DICUT, 12x100mm, 24H, centerlock, tube less compatible
  • Rear Wheel: Reserve 64TA, DT Swiss 180 DICUT, 12x142mm, HG freehub 24H, center lock, tubeless compatible
  • Front Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
  • Rear Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
  • Saddle: Selle Italia NOVUS BOOST EVO SuperFlow Ti
  • Seatpost: Cervélo SP34 Carbon
  • Powermeter: 4iiii Precision Pro, GEN3+ Dual Sided
  • Pedals: Available to be purchased separately
  • Accessories: Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount
Highlights
  • Cervelo S5 All-Carbon frame with deeper chord-length profiles on headtube and fork - claimed 6.3 watts faster than previous S5
  • Weight savings from the frame, seatpost, and one-piece bar - system weight is down 124g
  • Shimano Ultegra Di2 12-speed electronic drivetrain and Ultegra hydraulic disc brakes
  • Reserve Turbulent Aero 57/64 mm tubeless-ready carbon wheels designed specifically for the S5 frame system
  • Geometry optimised for 29mm wide road tyres
  • Cervelo HB19 one-piece Carbon V-Stem
Specifications
Model
S5 Ultegra Di2
Bottom Bracket [Maker]
FSA
Bottom Bracket Standard
BBRight
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
Shimano
Brakes [Model]
Ultegra
Cassette [Gearing]
11-34
Cassette [Maker]
Shimano
Cassette [Model]
Ultegra R8100
Chain [Maker]
Shimano
Chain [Model]
M8100
Chainring [Gearing]
52–36
Crank [Maker]
Shimano
Crank [Model]
Ultegra R8100
Discipline Compatibility
Road
E-Bike
No
F Hub [Maker]
DT Swiss
F Hub [Model]
180 DICUT
Family
S5
FD [Maker]
Shimano
FD [Model]
Ultegra R8150
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Model]
Bayonet S5
Fork [Wheel Size]
700c
Frame [Hanger Standard]
Brand-Specific
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Cervelo
Handlebar [Material]
Carbon
Handlebar [Shape]
Drop bar
Headset [Maker]
FSA
Headset [SHIS]
IS2
Headset [Upper Headset Fit]
IS2
Power Meter [Maker]
4iiii
Power Meter [Model]
Precision Pro
R Hub [Maker]
DT Swiss
R Hub [Model]
180 DICUT
Rack Mounts
No
RD [Maker]
Shimano
RD [Model]
Ultegra R8150
Saddle [Maker]
Selle Italia
Seatpost [Kind]
Rigid
Seatpost [Maker]
Cervelo
Seatpost [Material]
Carbon
Seatpost [Offset]
0 mm
Shifters [Maker]
Shimano
Shifters [Model]
Ultegra R8170
Shifting
Electronic
Stem [Maker]
Cervelo
Stem [Material]
Carbon
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Tires [Width]
29 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Reserve
Wheelset [Material]
Carbon
Wheelset [Model]
57/64 Turbulent Aero
Product code
1938623 / 54293844984154
Size Guide
Cervelo R-Series Road Bikes Size Guide 2022

All measurements in mm unless otherwise stated.
