Product Details
Performance & Use Case

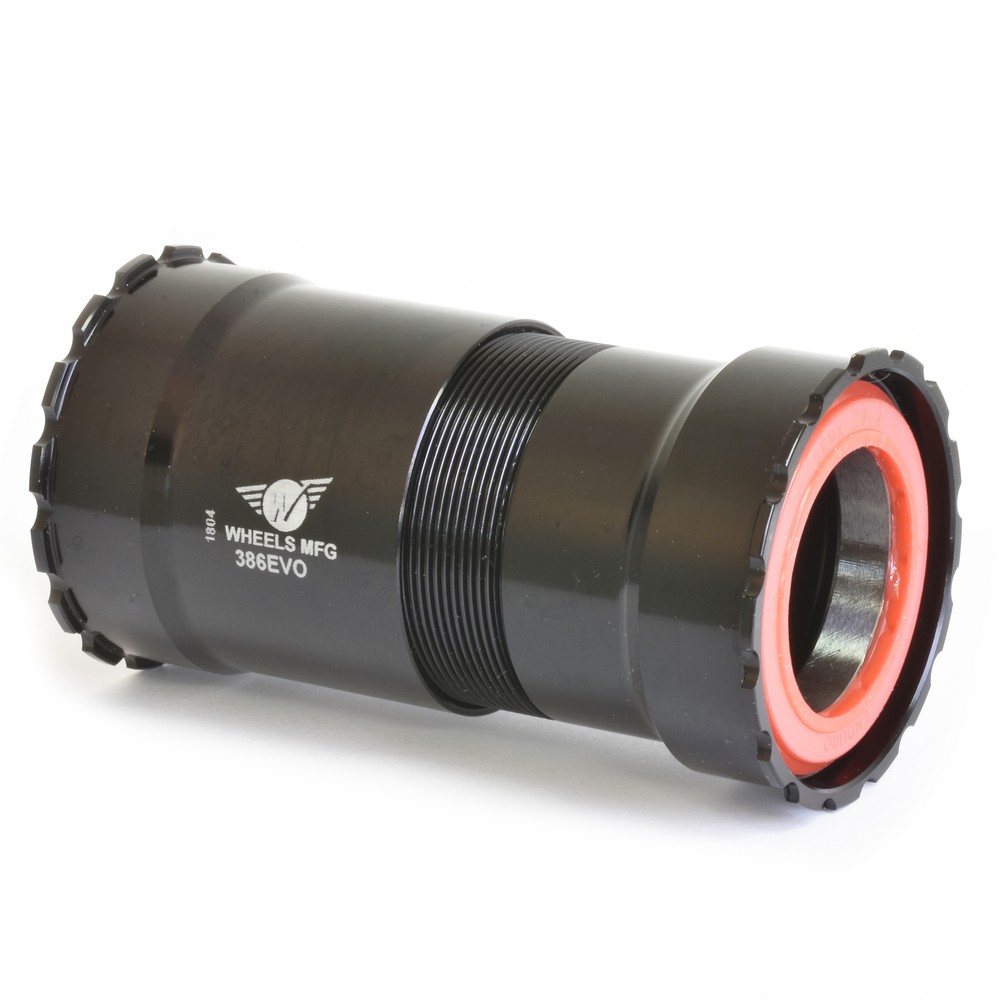

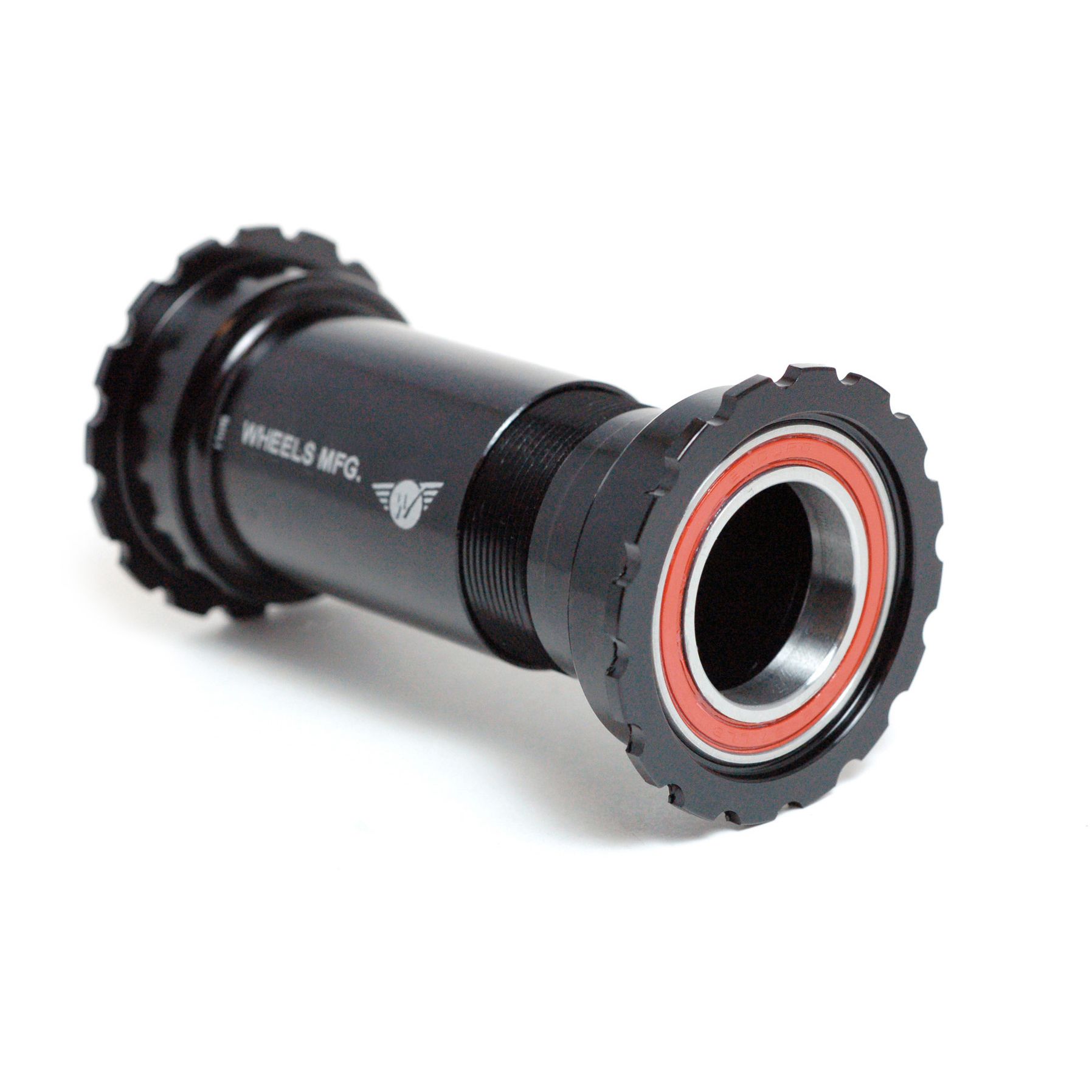

The Wheels Manufacturing 386EVO Bottom Bracket is the durable upgrade for any frame running the BB386EVO press-fit standard. Where OEM bottom brackets wear out and need full replacement, Wheels Manufacturing's design uses serviceable bearings that can be replaced when worn - extending working life and reducing waste. The thread-together cup design adds creak-free stability that press-fit alternatives struggle to match.
Construction & Materials
The shell is machined in the USA from aluminium for precision tolerances and lasting durability. The two cups thread together through the frame for a stable fit. Angular contact bearings disperse load more evenly than standard cartridge bearings, particularly relevant for cranksets under hard pedalling. The SRAM DUB variant uses standard ABEC-3 bearings.
Compatibility
Fits any frameset with a BB386EVO bottom bracket shell. Three spindle-compatibility options: Shimano Hollowtech II (24mm with angular contact bearings), Rotor/FSA (30mm with angular contact bearings) and SRAM DUB (28.99mm with standard ABEC-3 bearings). Installation requires a tool compatible with 16-notch MegoEvo BBs (Park Tool BBT-29 or FSA MegaEvo). Select the variant that matches your crankset.
Features
- USA-machined aluminium shell for superior function and durability
- Threaded cup design - cups screw together for stable, creak-free installation
- BB386EVO frame standard - 46mm shell diameter
- Spindle options cover Shimano (24mm Angular Contact), Rotor/FSA (30mm Angular Contact) and SRAM DUB (28.99mm Standard ABEC-3)
- Serviceable bearings - replace when worn rather than discard the whole unit
- 16-notch tool required for installation (Park Tool BBT-29 or FSA MegaEvo)
- Quick bearing replacement reduces waste
Specifications
- Bottom Bracket Standard
- BB386EVO
- Discipline Compatibility
- Road, Gravel, Mountain Bike
- Spindle Diameter
- 24mm, 30mm, DUB
- Threaded / Press Fit
- press-fit
- Bearing Type
- Steel
- Bottom Bracket [Maker]
- Wheels Manufacturing
- Crank Compatibility
- Shimano Hollowtech II, SRAM DUB, 30mm
- Intended Use
- Performance
- Shell Width
- 86mm
- Sleeved Design
- No
- Product code
- 876237 / 54293033582938
Reviews
5
Value of Product
Quality of Product
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
5 questions answered
Would this BB be able to take GXP cranks?
Hi Chris, No this is for 30mm cranks, Many thanks Joe W
Same Question as the three people below - 30mm or 24 Cranks?
Hi Craig, I can confirm that this is a 30mm bottom bracket. Many Thanks Liam
similar question, for which crank diameter are these? I'm looking for the Dub one (29mm).
Hello, I can confirm that this would not fit a DUB chainset, if you send us an email to customercare@sigmasports.com, then we can set you up an order for the correct bottom bracket. Many Thanks Liam
