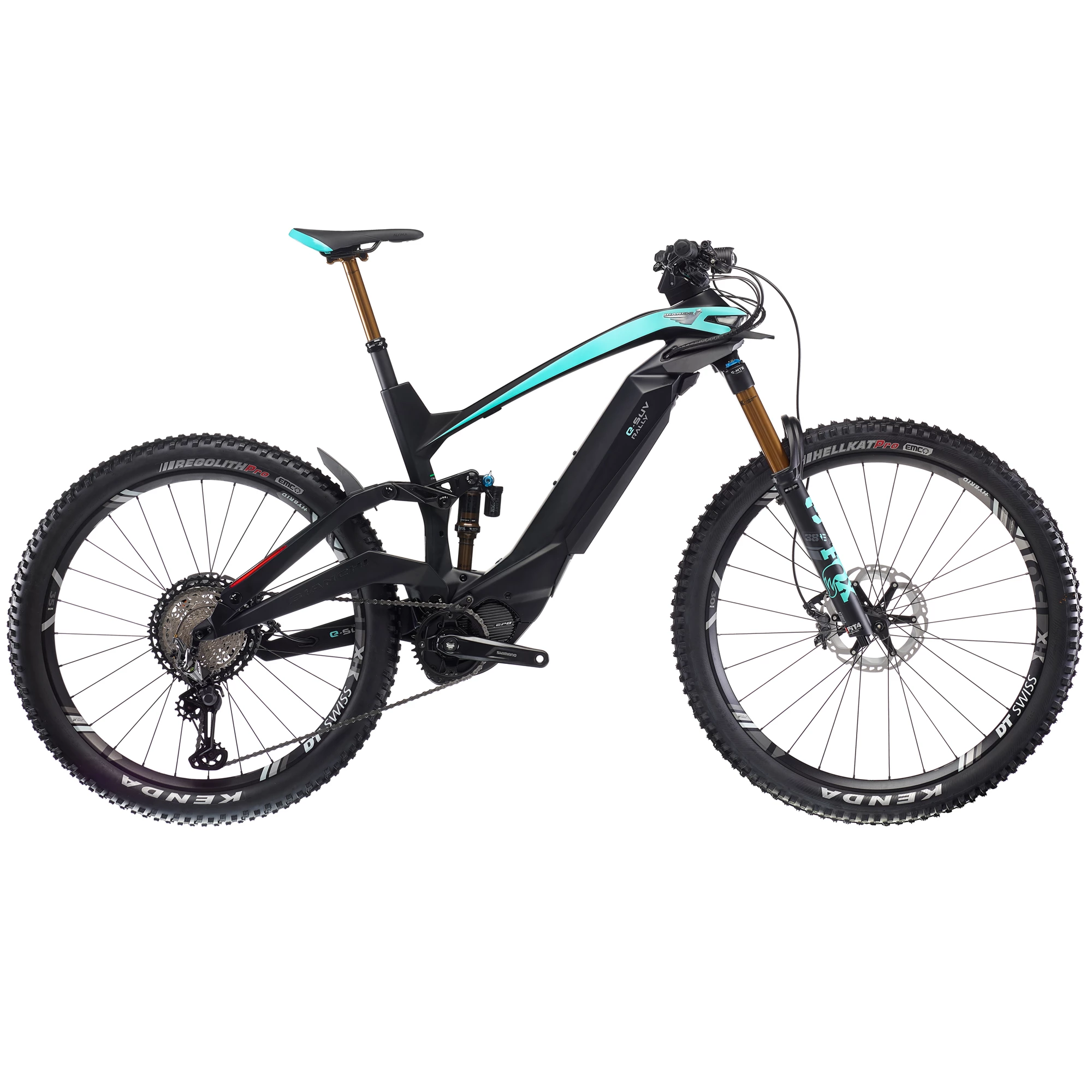

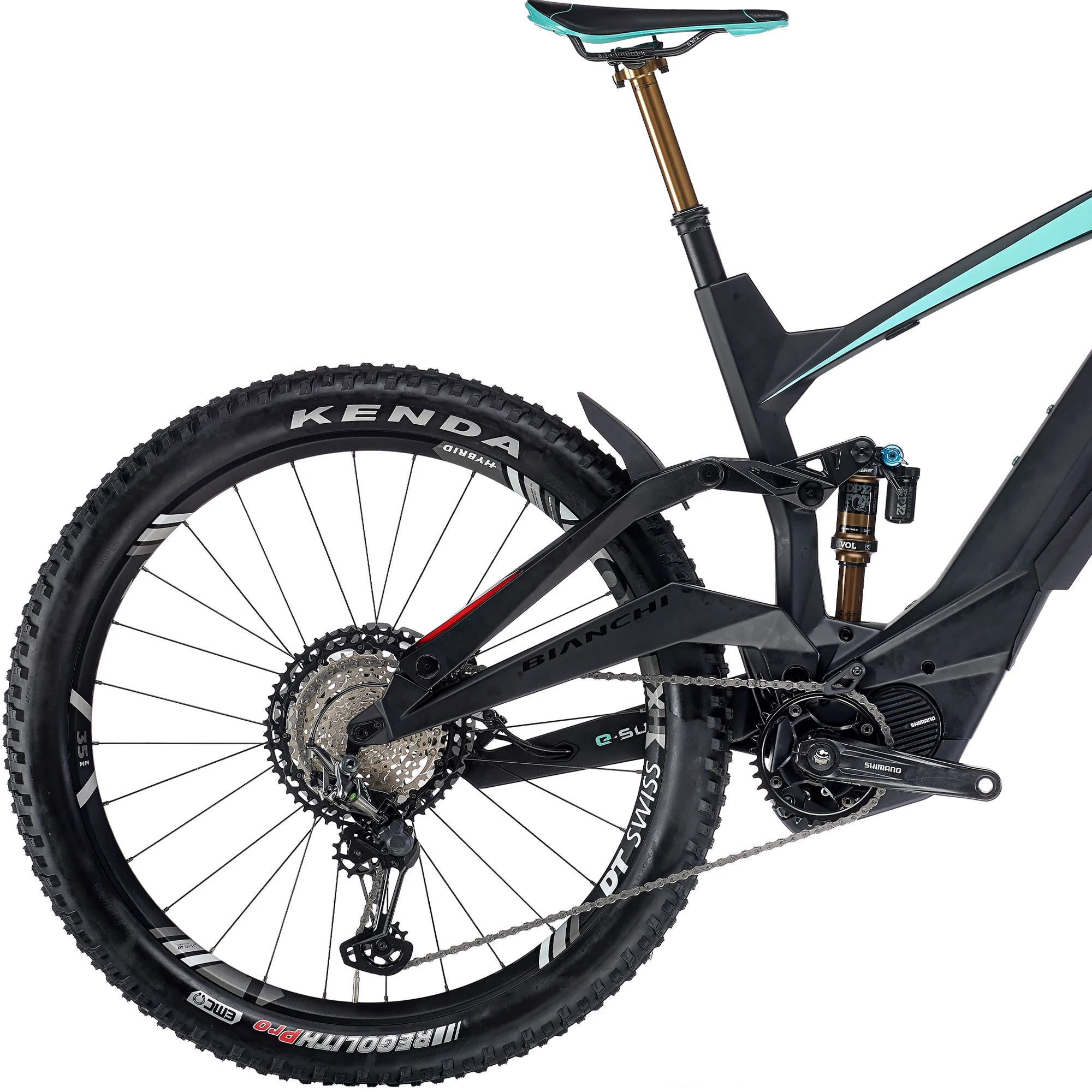

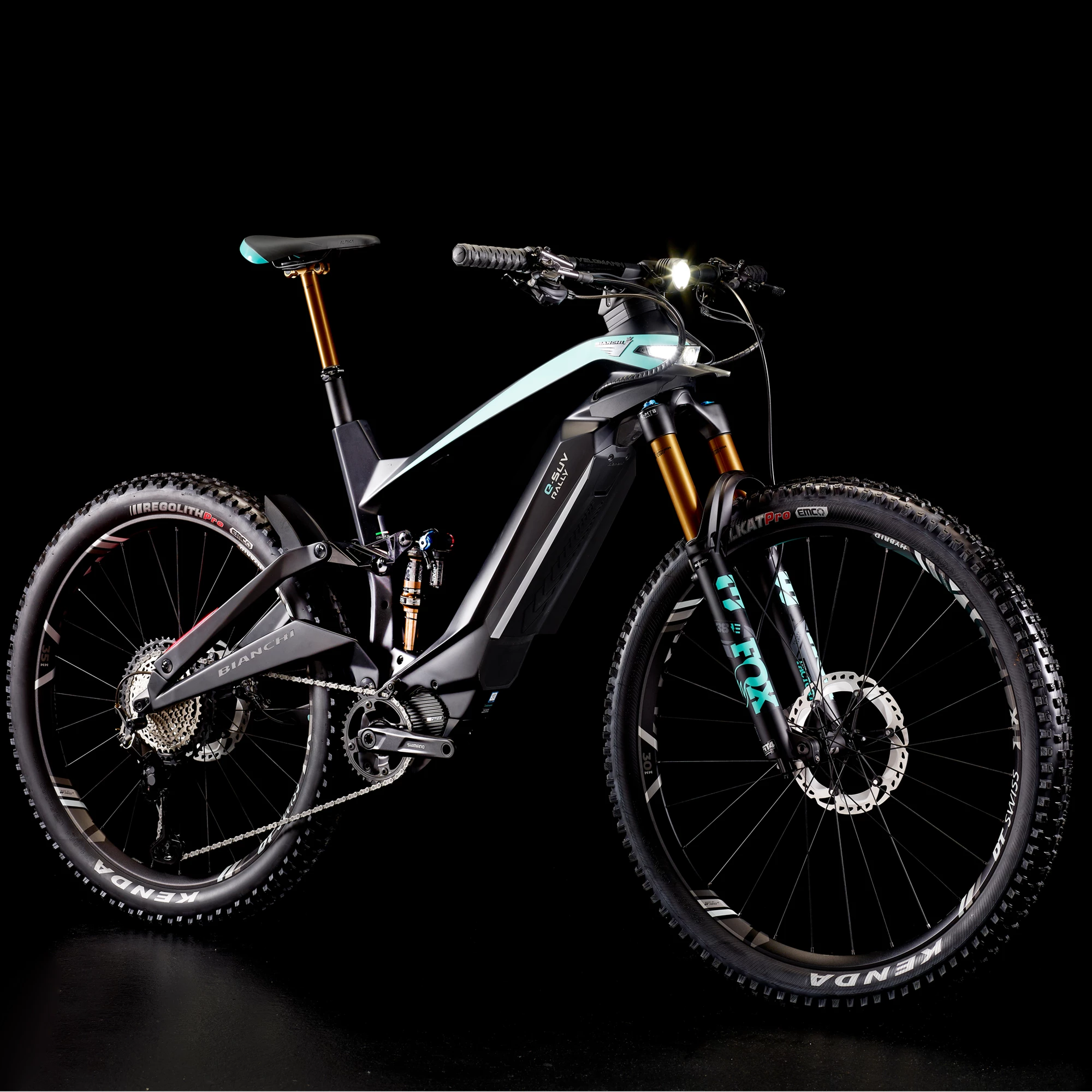

Bianchi E-SUV Rally XTR Electric Mountain Bike 2022
Ideal for adventure and true to its name of 'sports utility vehicle' Bianchi's E-SUV Rally XTR Electric Mountain Bike is innovative in both design and technology, bringing together a powerful motor, long-range battery and premium parts within a carbon fibre full suspension set-up.

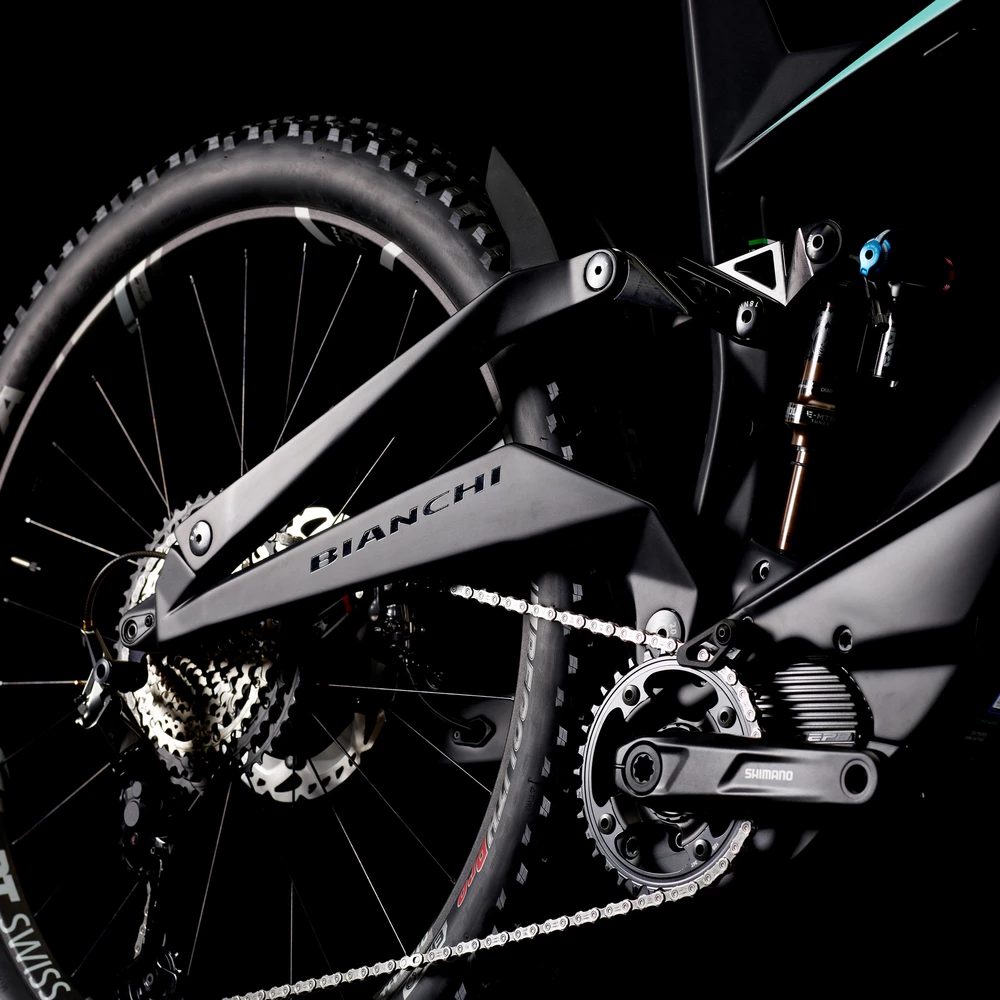

Quiet and compact, Shimano’s EP8 motor provides a natural riding experience with high levels of torque that better assists up the steep hills. The 720Wh battery fits neatly inside the frame's downtube and supplies you with plenty of charge for longer rides via its three levels of assistance; Eco, Trail and Boost.

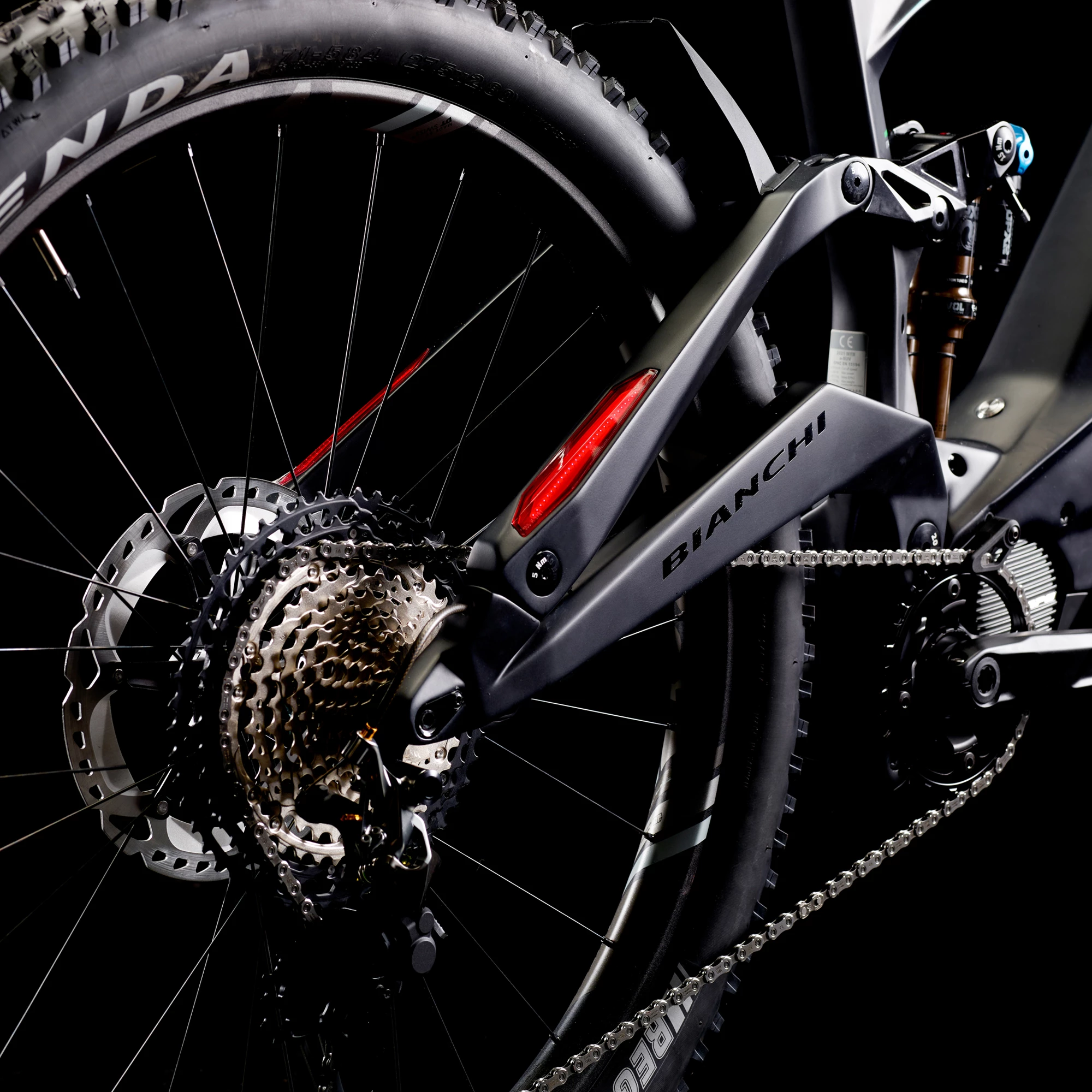

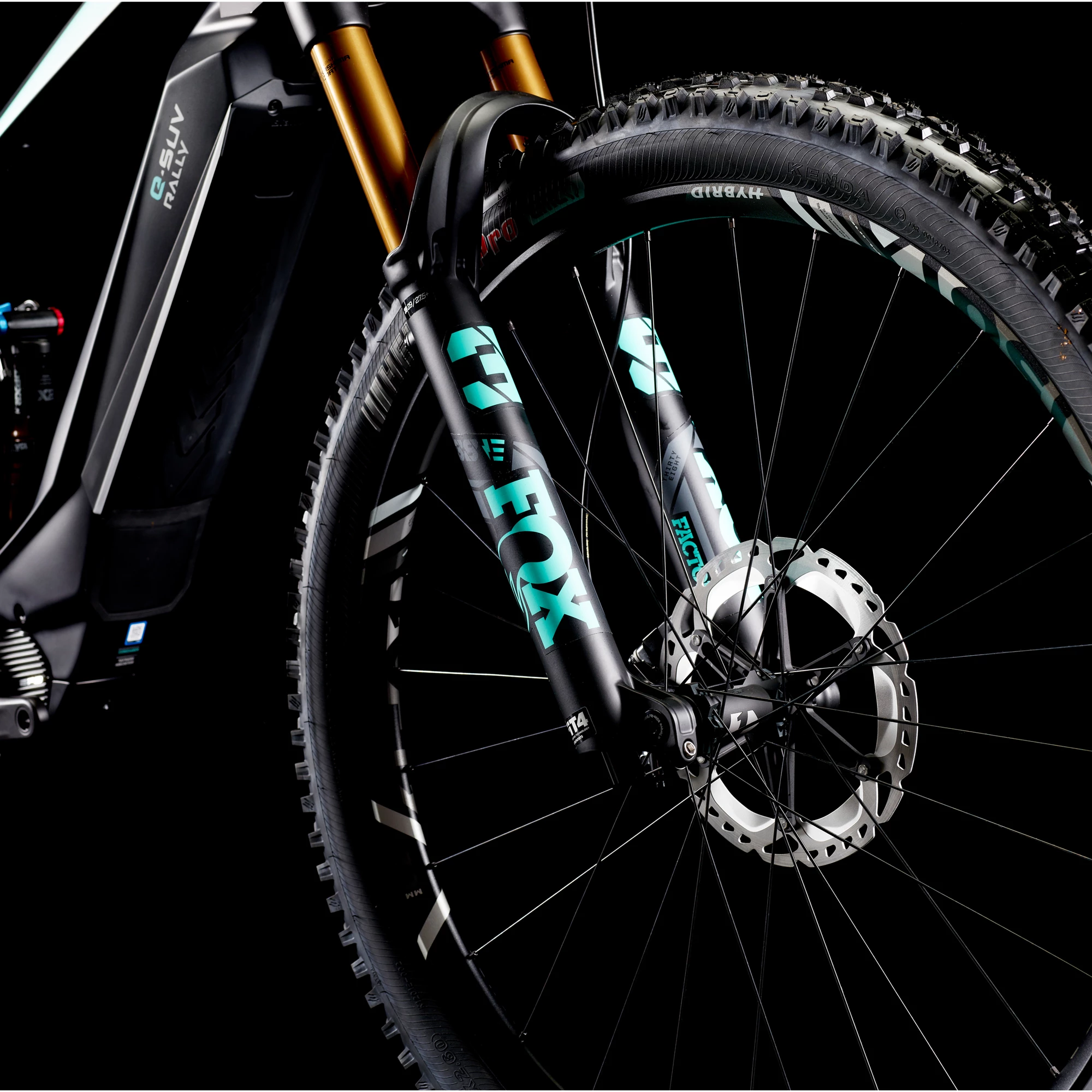

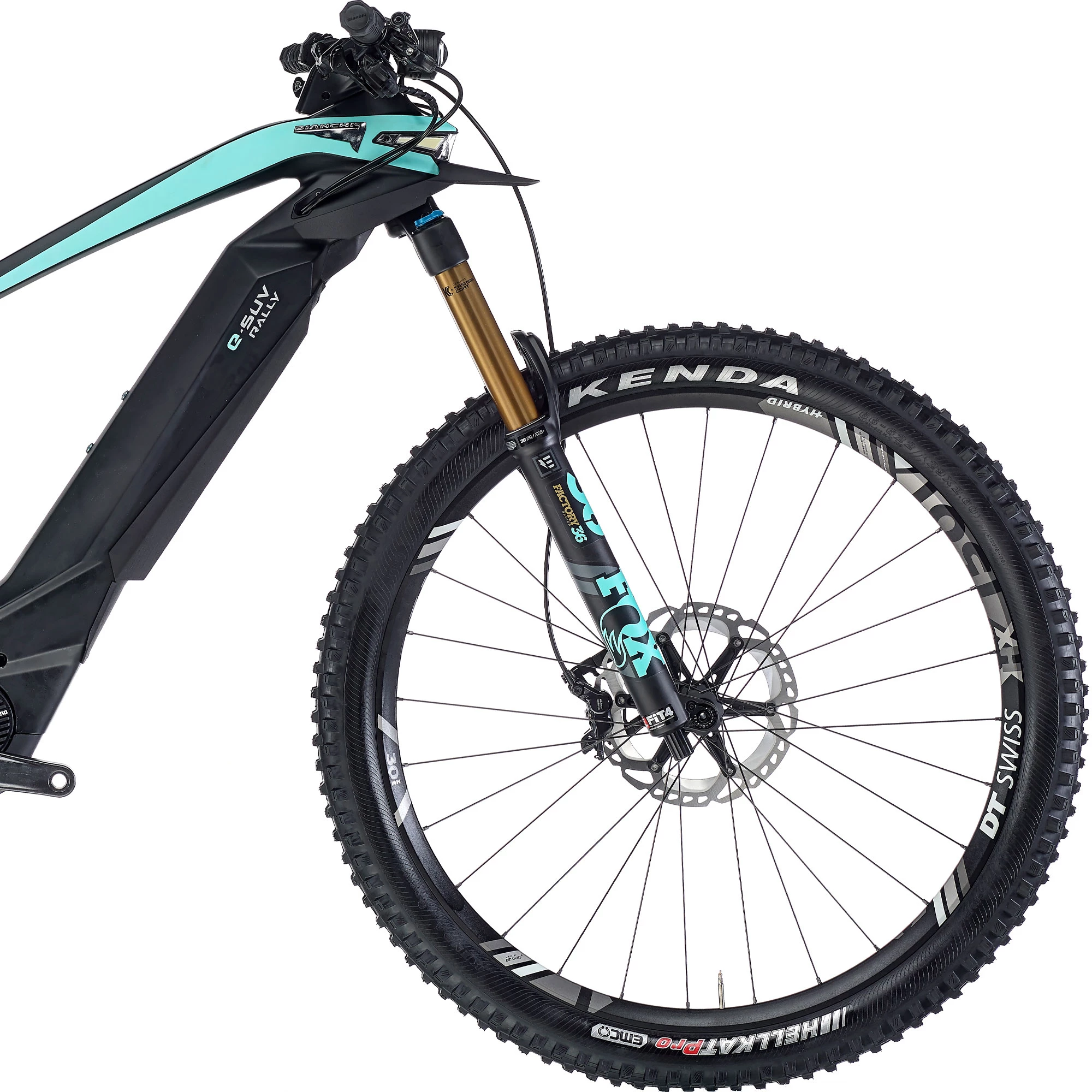

Technical terrain is made a breeze thanks to 150mm of FOX suspension front and the rear. The fork is the e-bike specific FOX 38 Float 29” Factory model whilst the shock is a Float DPX2 unit, both of which offer lots of scope for dialling in the perfect ride. Representing the pinnacle of Shimano's mechanical groupset range, the 12-speed XTR drivetrain gives a vast range of gears, lovely ergonomics and fantastic performance. Also from the premium XTR range, the hydraulic brakes benefit from 4-piston calipers and huge 203mm rotors for fade-free control lap after lap.
The DT Swiss HX 1501 Spline One wheels bring together wide, mixed size (29" and 27.5") aluminium rims with 240 hubs and robust spokes for a smooth and stiff rolling performance while keeping the weight low. Both the rims and the fat Kenda Regolith and Hellkat tyres are tubeless-ready for greater puncture protection and more grip.

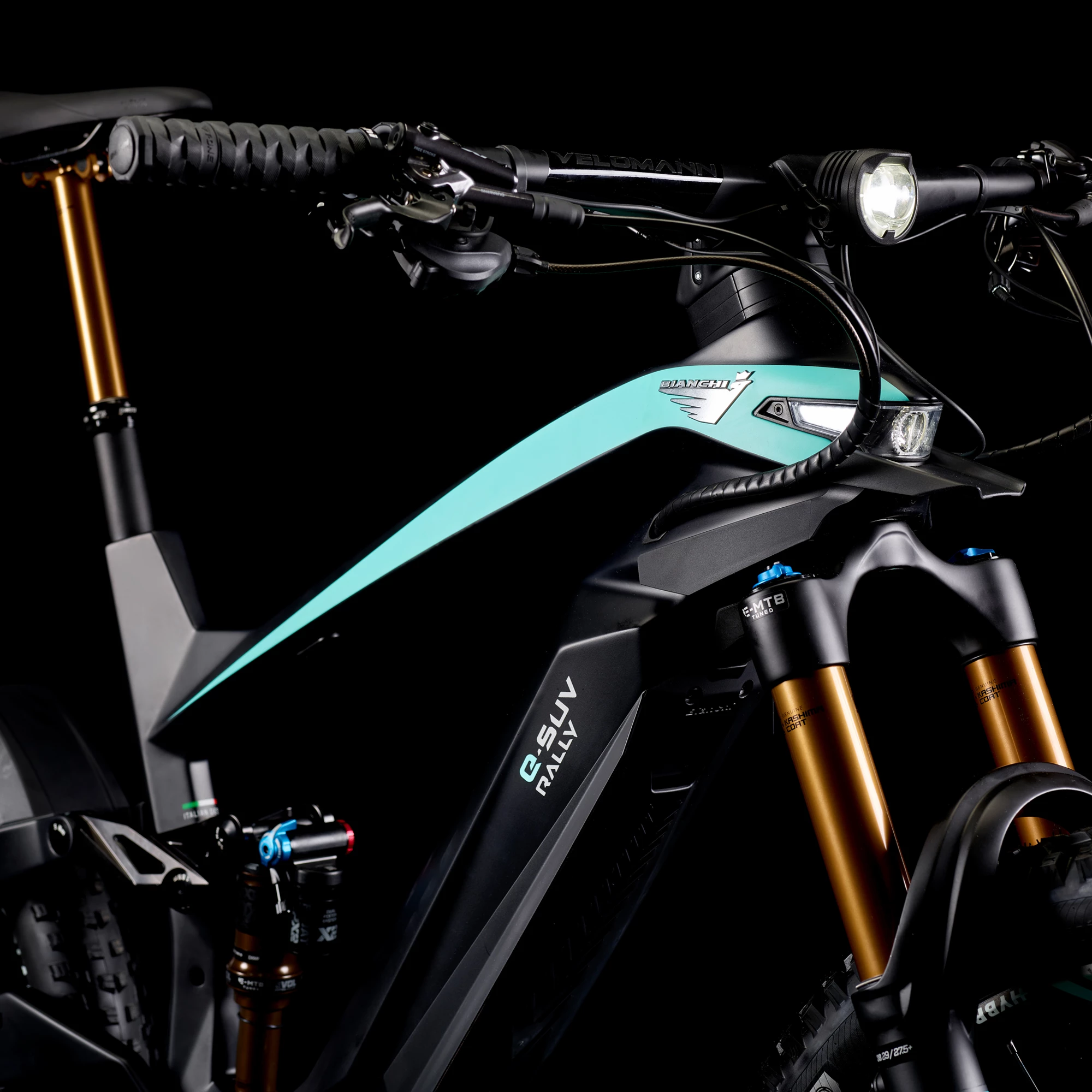

The cockpit is light with a carbon fibre handlebar and stem integration, offering an all in one sleek profile and features a Lupine front light for added visibility alongside the integrated frame lights.
Browse our range of Bianchi electric mountain bikes today.
Highlights
- 29” / 27.5” DT Swiss HX 1501 Spline wheelset with DT Swiss 240 hubs
- Compact and quiet Shimano EP800 motor delivers a natural and refined pedal-assist feel
- 720Wh battery
- All-in-one handlebar and stem carbon construction with additional Lupine front light
- Shimano XTR 12-speed drivetrain
- Shimano XTR 4-piston hydraulic disc brakes
- Integrated lights and mudguards
Battery Specifications
- Maximum Assist: 85Nm / 25km/h
- Motor Weight: 2.6kg (average)
- Battery Power: 720Wh
Technical Specification
| Frame | Bianchi E-SUV 150mm carbon, 1.5" tapered head tube, seatpost diameter 31.6mm, integrated seat clamp, 12x148mm thru-axle, post mount 180mm, internal cable routing inside the downtube |
| Fork | FOX 38 Float 29" Factory, e-MTB version, 150mm travel |
| Rear Shock | FOX Float DPX2 Factory, 150mm travel |
| Headset | FSA 55R 1.5" |
| Bottom Bracket | Included with motor unit |
| Stem | Integrated with handlebar |
| Handlebar | Bianchi integrated carbon handlebar-stem, rise +6°, 800mm width, stem length 40mm, 7° backsweep, 5°upsweep, 25mm rise |
| Grips | T-One Rock T-GP34 |
| Front Brake | Shimano BR-M8120 hydraulic disc brake, 4-piston, Shimano RT-MT800 Center Lock rotor 203mm |
| Rear Brake | Shimano BR-M8120 hydraulic disc brake, 4-piston, Shimano RT-EM810 Center Lock rotor 203mm |
| Brake Levers | Shimano BL-M8100 |
| Rear Derailleur | Shimano XTR RD-M9100SGS Shadow+, 12-speed |
| Shift Levers | Shimano XTR SL- M9100IR 1x12-speed |
| Chain | Shimano CN-M8100, 12-speed |
| Cassette | Shimano CS-M8100-12-speed, 10-51 |
| Crankset | Shimano FC-EM600 aluminium crank 165mm, 24mm axle, 34-tooth chainring, chain guide for 30-38 |
| Front Wheel | Rim - DT Swiss HX 1501 Spline One 29" 30mm width, aluminium, hooked/crotchet, tubeless-ready, Hub - DT Swiss 240, Spokes - DT hybrid 2 |
| Rear Wheel | Rim - DT Swiss HX 1501 Spline One 27.5" 35mm width, aluminium, hooked/crotchet, tubeless-ready, Hub - DT Swiss 240 Ratchet EXP 24, Spokes - DT hybrid 2 |
| Front Tyre | Kenda Hellkat 29x2.6, tubeless-ready |
| Rear Tyre | Kenda Regolith 27.5x2.8, tubeless-ready |
| Saddle | Fizik Alpaca Terra, S alloy rail, 249x145mm |

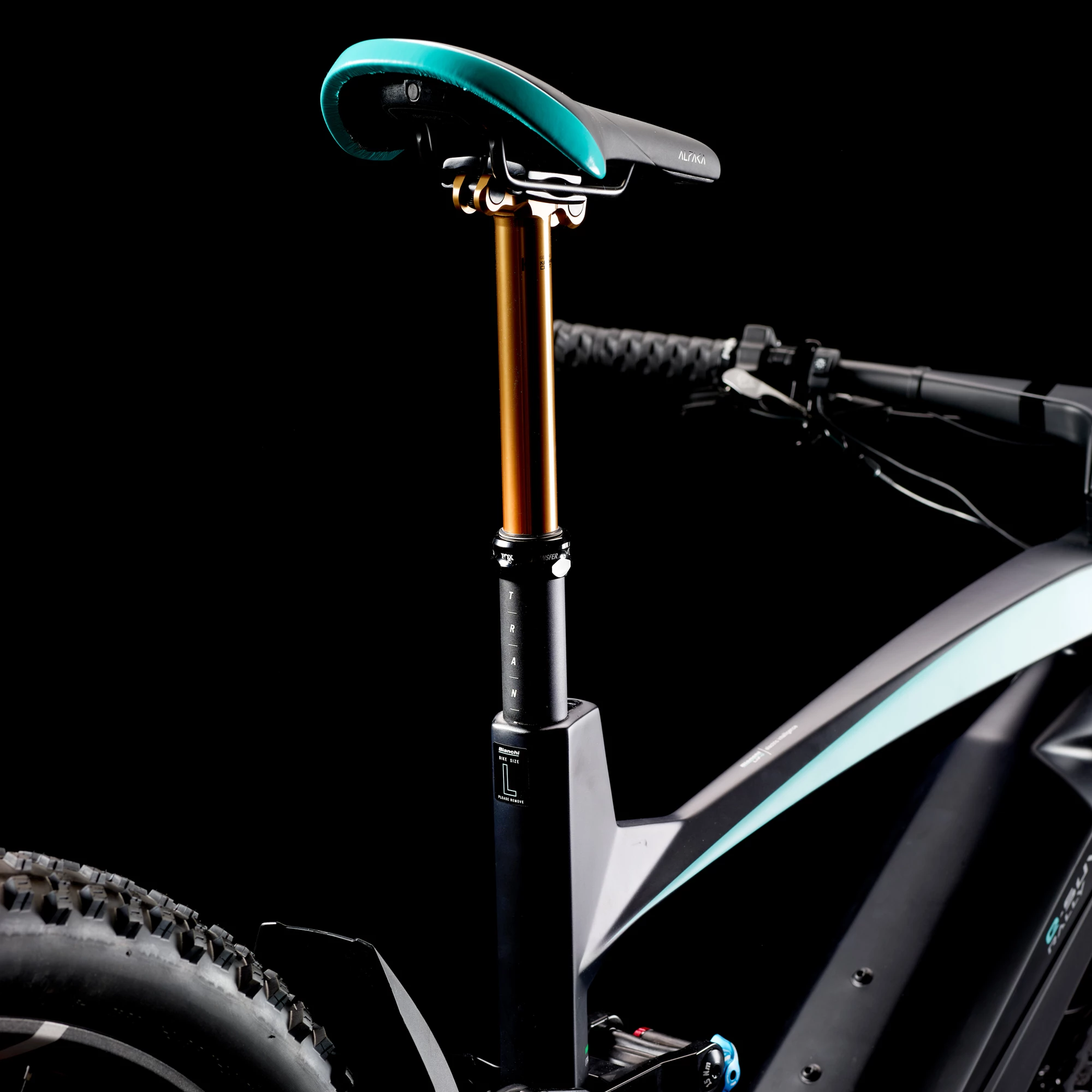

| Seatpost | FOX Transfer Factory, diameter 31,6mm, internal remote cable routing, travel 125mm (17''), 150mm (19,21'') |
| Pedals | Available to be purchased separately |
| Accessories | Integrated front and rear mudguards, front light - Spanninga integrated, Shimano Lupine SL-F, rear light - Spanninga integrated |
| Motor | Shimano EP8 motor unit, DU-EP800 drive unit, 34-tooth chainring, speed sensor, 250W 85Nm |
| Ui/Remote | Shimano EP8 wireless cycle computer |
| Battery | Darfon 10S4P 720Wh |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
