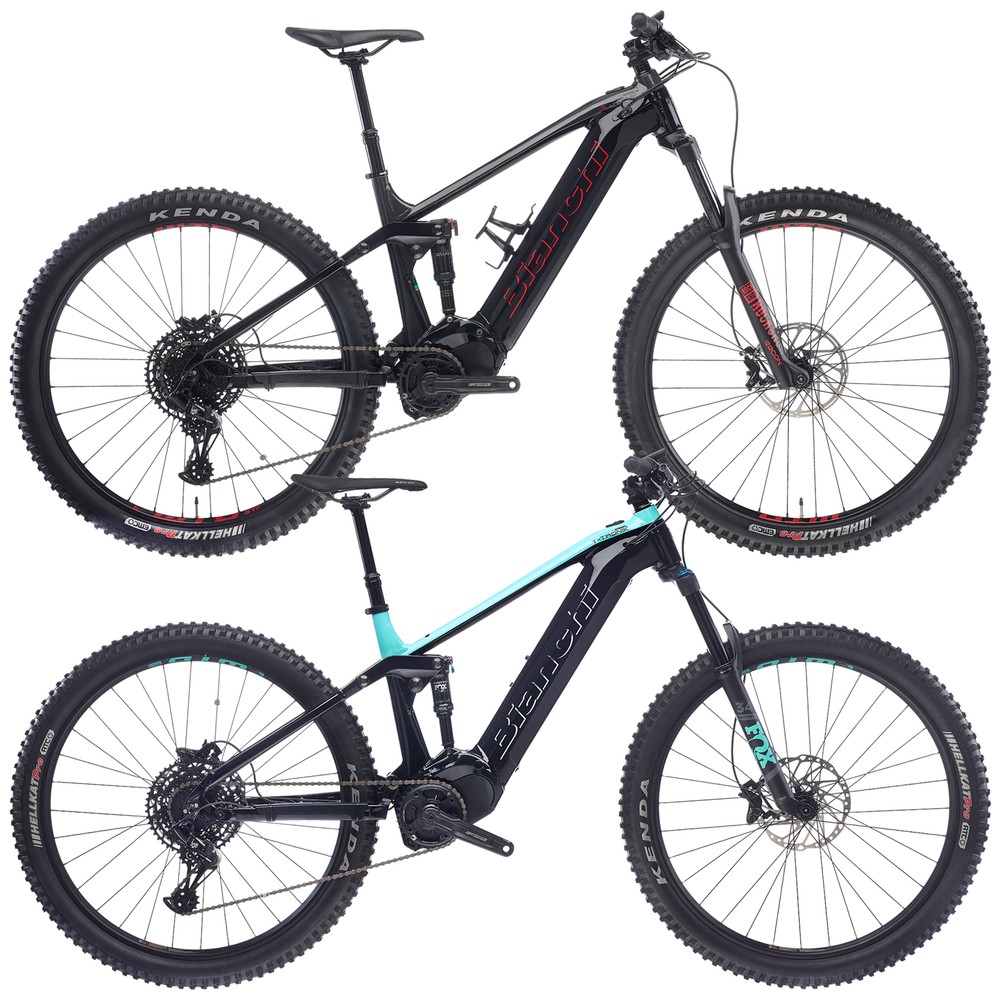

Bianchi T-Tronik Rebel 9.2 NX/SX Eagle Electric Mountain Bike 2020

★★★★★ ★★★★★
(0)
£4,200.00

From only £315.00 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Bianchi
T-Tronik Rebel 9.2 NX/SX Eagle Electric Mountain Bike 2020

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1175449

A great option for all-day trail riding, Bianchi’s T-Tronik Rebel 9.2 NX/SX Eagle Electric Mountain Bike adds a 250W motor to a 140mm chassis, producing a highly capable, fast and efficient machine.

It features 29” wheels, 2.6” wide Kenda Hellcat tyres, SRAM SX/NX Eagle drivetrain and Shimano hydraulic disc brakes, not to mention a dropper seatpost and RockShox fork and rear shock.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Bianchi T-Tronik Rebel 9.2 NX/SX Eagle Electric Mountain Bike 2020

With a 140mm travel frame and suspension from RockShox, the Bianchi T-Tronik Rebel 9.2 NX/SX Eagle Electric Mountain Bike is designed to tackle tough trails and big days. The 250W Bianchi Motor and 630Wh battery provide plenty of power, with five assistance levels running from 50% of pedal input all the way to 400% - enough to make short work of the steepest hills. Controlled from the handlebar remote whilst riding, its simple to quickly swap between modes as the terrain requires.

The single ring drivetrain mixes SRAM SX and NX components provide reliable shifting across the wide-range, 12-speed 11-50 tooth cassette, whilst Shimano’s well-proven MT-520 hydraulic disc brakes are well up to the task of controlling the bike’s speed. A dropper seatpost allows the saddle to be lowered and raised from the handlebar as required for better bike control on technical trails.

The 29” WTB ST Light I30 TCS 2.0 wheels are great for fast-rolling, efficient speed and the 2.6” Kenda Hellcat tyres add high volume cushioning and grip.

Highlights

  • Bianchi T-Tronik Rebel FS 140mm aluminium frame
  • RockShox Deluxe Select+ RL rear shock
  • RockShox Recon RL 29" solo air, fork, 140mm travel
  • Shimano RT-MT520 hydraulic brakes
  • SRAM NX/SX Eagle 12-speed drivetrain
  • WTB ST Light I30 TCS 2.0 29" wheelset
  • Dropper seatpost
  • Bianchi 250W motor with 630Wh battery

Please note: Build as per technical specifications. Images for representation of colourway only.

Technical Specification

Frame Bianchi T-Tronik Rebel FS 140mm aluminium 6061 triple butted, 1.5" tapered ht, seatpost diam. 31.6mm, seat clamp 34.9mm, dropout thru-axle 12x148mm, internal cable routing
Fork RockShox Recon RL 29" solo air, 140mm
Headset FSA Orbit 1.5 ZS
Rear Shock RockShox Deluxe Select+ RL, 185/50 tr
Stem TEC Obvius, 0°, 1.1/8", 31.8mm, length 55mm
Handlebar TEC Obvius rise, al6061-t6 double-butted, width 780mm, 31.8mm, 15mm rise, 9° backsweep
Grips T-One Rock T-GP34
Front Brake Shimano BR-MT520 hydraulic disc
Rear Brake Shimano BR-MT520 hydraulic disc
Brake levers Shimano BR-MT520
Front Derailleur N/A
Rear Derailleur SRAM NX Eagle Long Cage, 12-speed
Shift Levers SRAM SX Eagle trigger single click for e-bike, 12-speed
Cassette SRAM PG1210, 11-50T, 12-speed
Crankset FSA Aluminium Crank Eagle 34T Chainring, length 165mm
Chain SRAM SX Eagle, 12-speed
Front Wheel WTB ST Light I30 TCS 2.0 29" rim with Shimano HB-MT400-B hub
Rear Wheel WTB ST Light I30 TCS 2.0 29" rim with Shimano FH-MT400-B hub
Front Tyre Kenda Hellkat 29x2.6" clincher
Rear Tyre Kenda Hellkat 29x2.6" clincher
Saddle TEC Rector, steel rails
Seatpost Dropper seatpost, 31.6mm, internal remote cable routing, remote 1x specific, travel
Motor Bianchi motor unit 250w 85nm
Battery 630Wh

Bianchi T-Tronik Rebel 9.2 NX/SX Eagle Electric Mountain Bike 2020 Sizing
