Cannondale Canvas Neo 1 Electric Hybrid Bike 2021

★★★★★ ★★★★★

Select a colour and size to view stock availability

Find My Size
Canvas Neo 1 Electric Hybrid Bike 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1274522

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports cycle to work scheme
Cycle to Work Scheme

Cyclescheme can save you up to 39% on a bike and accessories. Visit our Cycle to Work Scheme page to learn more and claim.

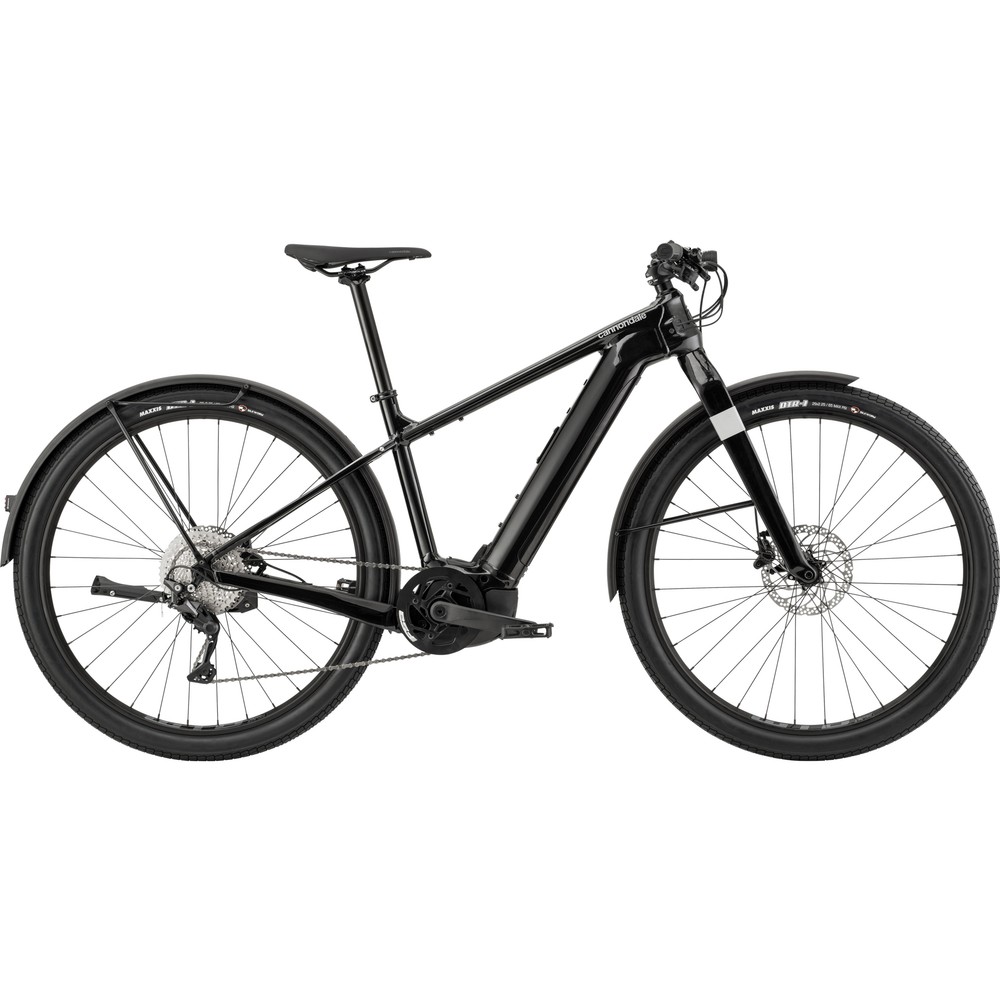

Cannondale Canvas Neo 1 Electric Hybrid Bike 2021

Blending a robust but lively alloy frame, powerful motor assistance and comfort with a stylish aesthetic, the Cannondale Canvas Neo 1 Electric Hybrid Bike is a great choice for commuting, running city errands or social weekend rides.

The frame uses Cannondale’s highest grade of aluminium to be svelte and responsive while its partnering carbon fork dampens road vibrations for increased comfort and composure over irregular surfaces. The frame discreetly hosts the Bosch motor and battery that together combine to offer reliable and long-lasting pedalling assistance when the rider requires it. The Purion handlebar-mounted unit intuitively controls the amount of pedalling assistance, and this also displays ride speed, distance and the battery charge remaining. A generous range is given by the battery, but it can be recharged quickly in under five hours from flat, meaning that it's ready to go again the very next day.

A composed but sporty riding position is offered by the frame's geometry, and this allows the rider to be comfortable on longer excursions but nimble and quick when late for a meeting at the office. Robust wheels and wide tyres handle poor road surfaces with ease, and Shimano 10-speed gears change quickly amongst a wide range of ratios. Hydraulic disc brakes give assured braking in any weather conditions and a rear rack gives the option of transporting large amounts of luggage on multi-day trips.


  • A stylish, fast and rugged urban e-bike that is perfect for the daily commute
  • The Bosch Performance Line CX motor delivers up to 250 watts of assistance and 85Nm of torque up to 25kph
  • The Bosch PowerTube, 625Wh battery gives up to 106 miles (170km) of use and recharges fully in 4.5 hours with the supplied 4A charger
  • Purion handlebar-mounted control unit selects the power assistance level and provides ride and battery charge feedback
  • SmartForm C1 Alloy frame is robust and reactive and neatly houses the motor and battery
  • BallisTec carbon fork dampens vibrations and gives instant steering response
  • Upright but sporty riding position is agile but comfortable
  • Included rear rack, lights and mudguards equip the bike for daily duty in all conditions
  • Strong WTB STX i30 wheelset and wide tyres give a surefooted and confident ride
  • Shimano 10-speed gears provide plenty of range for riding on the flat and up the hills
  • Shimano hydraulic disc brakes are powerful and precise

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.9kg
  • Range: 106 miles / 170km
  • Battery Power: 625Wh
  • Charge Time: 4.9 hours from flat to 100% with the supplied standard 4A charger


  • Supernova Mini 2 front light
  • Supernova E3 Tail Light
  • Tubus Wingee mudguards
  • Rear pannier rack (8kg maximum capacity per side)
  • Cannondale wheel sensor

Technical Specification

Frame Cannondale SmartForm C1 alloy, dual battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, lock mount
Fork Cannondale BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, OutFront 55mm offset, post mount disc, 15x110mm thru-axle, hidden cable routing
Headset Cannondale Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Stem Cannondale 3, 6061 alloy, 31.8mm diameter, 0° angle
Handlebar Cannondale 3 Riser, 6061 alloy, 15mm rise, 8° sweep, 4° rise, 740mm width
Grips Cannondale Locking Grips
Front Brake Shimano MT400 hydraulic disc, 180mm RT30 rotor
Rear Brake Shimano MT400 hydraulic disc, 180mm RT30 rotor
Brake Levers Shimano MT401 hydraulic disc
Rear Derailleur Shimano Deore M4100, 10-speed
Shift Levers Shimano Deore M4100, 10-speed
Chain Shimano Deore, 10-speed
Cassette Shimano Deore M4100, 11-42, 10-speed
Crankset FSA Bosch E-Bike with custom Ai offset, 38 tooth chainring
Front Wheel Rim - WTB STX i30 TCS, 32h, tubeless-ready / Hub - Shimano MT400, 15x110mm thru-axle / Spokes - DT Swiss Champion 2.0
Rear Wheel Rim - WTB STX i30 TCS, 32h, tubeless-ready / Hub - Shimano MT400 12x148mm thru-axle / Spokes - DT Swiss Champion 2.0
Front Tyre Maxxis DTR-1, 29 x 2.25” - clincher
Rear Tyre Maxxis DTR-1, 29 x 2.25” - clincher
Saddle Cannondale Ergo Urban
Seatpost Cannondale 3, 6061 Alloy, 31.6, 350mm (S-M), 400mm (L-XL)
Pedals Cannondale Fitness
Range Up to 106 miles / 170km depending on assistance level used and riding conditions
Charge time 4.9 hours from flat to 100% with the supplied standard 4A charger
Motor Bosch Performance Line CX, 250W
Ui/Remote Bosch Purion
Battery Bosch PowerTube, 625Wh
Charger Bosch 4A

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance or contact Customer Care. We do not install accessories to bikes, including mudguards.
