Description

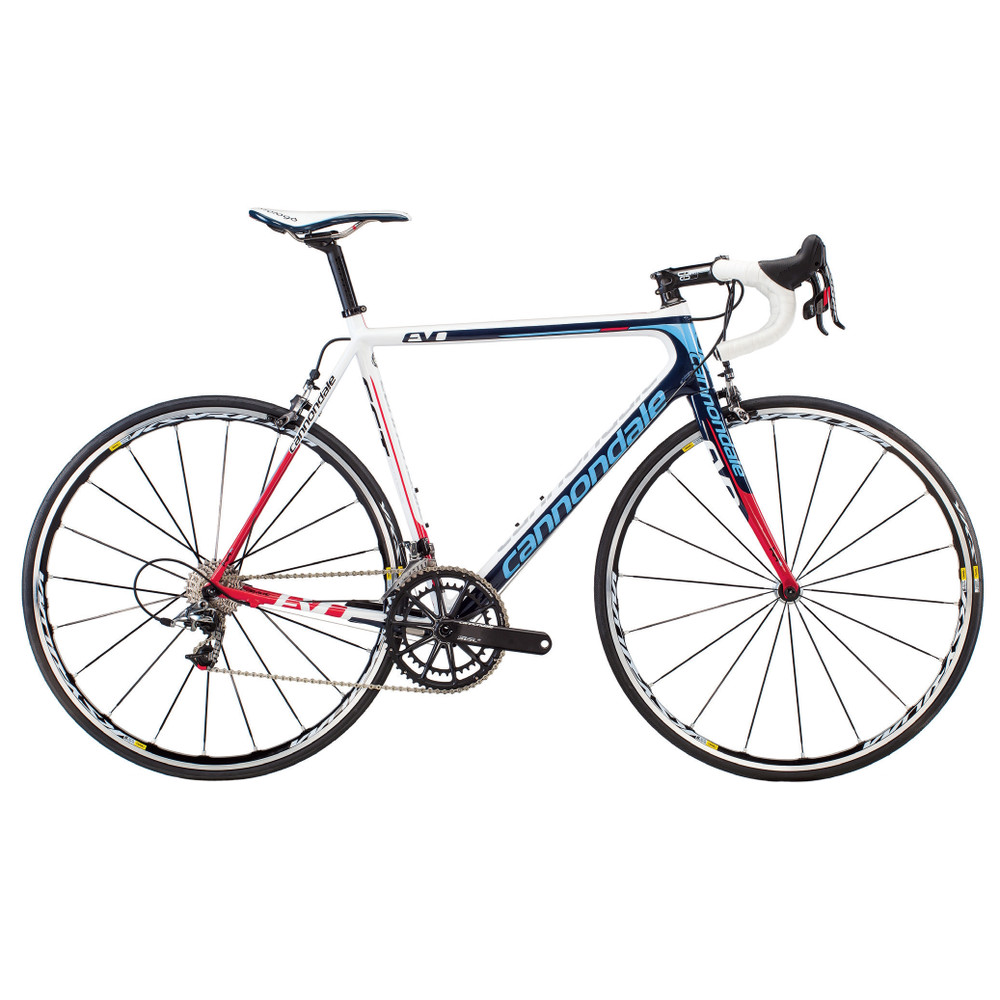

Cannondale Evo HM Dura Ace Road Bike 2014
Designed for the serious road racer, the Cannondale SuperSix EVO breaks the mold for elite race machines.
The SuperSix EVO is:
LIGHT: At under 700 grams, it is the lightest production frame in the world.
STIFF: It has the best stiffness-to-weight ever recorded, an incredible 142.3 Nm/deg/kg.
STRONG: Outperforms even most aluminum frames in destructive and fatigue testing.
SMOOTH: The two zone SPEED SAVE micro-suspension system improves comfort, speed, and control.
SLIM: EVO's smaller diameter tubes give it a significant aero advantage over its oversized competitors, without the weight and stiffness compromises of aero tube shapes.
Features
BallisTec Carbon Cannondale's High Strength carbon construction method allows us to achieve extreme light weight, without sacrificing stiffness or strength.
EVO Hi-MOD: The frame that started it all in 2012. High modulus BallisTec construction delivers extreme light weight and stiffness.
SPEED SAVE Micro-Suspension Rear Stays Subtle flex zones built into the chainstays and seatstays allow the rear wheel to track the ground, improving speed, handling and comfort. Tuned to work with the SPEED SAVE Fork.
SPEED SAVE Fork This 315 gram fork features full BallisTec carbon construction, an 1-1/8"to 1-1/4" tapered steerer for the best balance of weight and stiffness, and offset dropouts, which allow for more fork angle and compliance without affecting handling.
Reduced Frontal Area Compared to the oversized competition, the EVO's downtube is close to 20% smaller, the headtube 11% smaller, and the fork blades 15% thinner. This means less frontal area and less drag. In fact, tests show that EVO has a mere 14g more drag than the best "aero" frames without their added weight and harsh ride.
Continuous Carbon A continuous network of high modulus stiffening fibers runs around joint areas and along the outer edges of the frames tubes, connecting all parts of the frame and allowing precise tuning of stiffness and ride quality.
| FRAME | SuperSix EVO BallisTec Hi-MOD Carbon SPEED SAVE PressFit BB30 |
| FORK | SuperSix EVO SPEED SAVE BallisTec Hi-MOD full Carbon 1-1/8" to 1-1/4" steerer |
| RIMS | Mavic Ksyrium Elite S WTS |
| HUBS | Mavic Ksyrium Elite S WTS |
| SPOKES | Mavic Ksyrium Elite S WTS |
| TYRES | Mavic Yksion, Griplink Front and Powerlink Rear, 700x25c, folding |
| PEDALS | N/A |
| CRANKS | Cannondale Hollowgram SiSL2, BB30, w/ OPI Spidering, 11 Speed, 53/39 (Compact 50/34 Included) |
| BOTTOM BRACKET | Cannondale Aluminum PF30 BB Cup, FSA BB30 Bearing |
| CHAIN | SRAM PC1171, 11-speed |
| CASSETTE | SRAM PG1170, 12-26, 11-speed |
| FRONT DERAILLEUR | SRAM RED 22, braze-on |
| REAR DERAILLEUR | SRAM RED 22 |
| SHIFT LEVERS | SRAM RED 22 Doubletap |
| HANDLEBARS | Cannondale C2 Compact |
| GRIPS | Cannondale Bar Tape w/Gel, 2.5mm |
| STEM | Cannondale C1, 31.8mm 6 Deg |
| HEADSET | SuperSix EVO, 1-1/4" lower bearing, 25mm Carbon top cap |
| BRAKES | SRAM RED |
| BRAKE LEVERS | SRAM RED 22 Doubletap |
| SADDLE | Prologo Nago Evo TiROX Rails |
| SEATPOST | Cannondale C1, Lightweight 2014 Alloy 27.2x250mm |
Technical Specification
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
