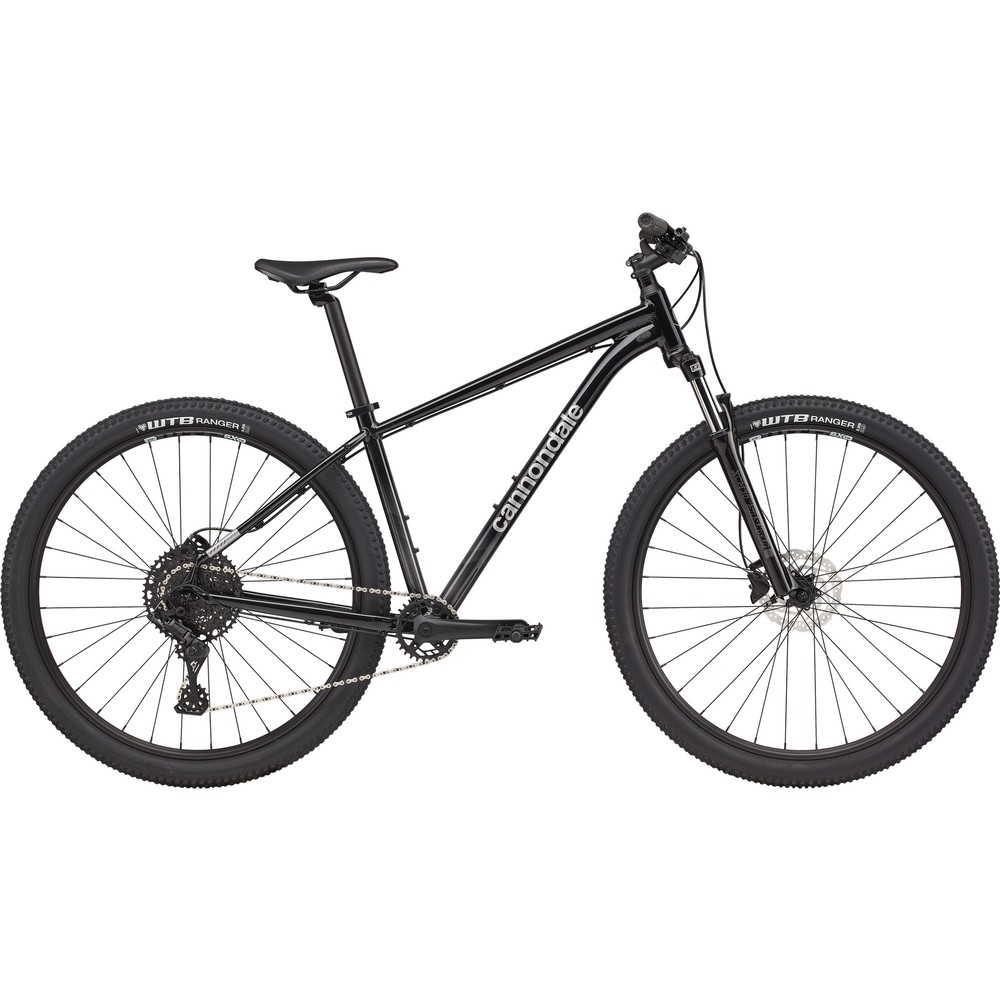

Cannondale Trail 5 Mountain Bike 2023
Blending an enthusiastic and dependable mixture of parts and components the Cannondale Trail 5 Mountain Bike infuses every off-road ride with energy whether rolling across the gravel or adventuring onto more technical woodland tracks.
A simple but incredibly effective SmartForm C3 alloy frame donates plenty of snappy acceleration for attacking the trails while its SAVE engineered seatstays strategically place flex into the rear end of the bike for increased comfort and control over rough surfaces. Partnering with the frame is the SR Suntour XCM fork that increases line precision and lowers fatigue thanks to its plush 100mm of suspension. The geometry is perfectly poised for performance across a multitude of off-road scenarios with the short chainstays delivering agility and the slack head angle bestowing composure.
Frame size-specific wheel sizing avoids smaller riders becoming overwhelmed by bigger wheels but means larger riders can take advantage of increased rim circumferences and their superior rolling characteristics. The reliable microShift Advent X configuration delivers smooth and precise gear changes while Shimano hydraulic disc brakes stop with confidence-inspiring exactness.
Highlights
- Versatile, dependable and fast the Trail is the perfect steed for all off-road adventures
- Lightweight SmartForm C3 Alloy frame is stiff and reactive while its SAVE tuned micro-suspension seatstays infuse comfort and control across rough ground
- SR Suntour XCM fork cushions the bumps with its 100mm of travel to increase ride accuracy and composure
- Dirt-Tailored Geometry features short chainstays for agility and traction, a slack head angle for unwavering stability
- Size-specific wheels sizing uses 27.5" wheels on smaller frame sizes but 29" on larger bikes to offer control and precision no matter the rider’s body size
- microSHIFT Advent X 10-speed gears are accurate and allow riding across any topography
- Shimano hydraulic disc brakes are powerful and precise
Technical Specification
| Frame | SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 |
| Fork | SR Suntour XCM, 100mm, coil, 42mm offset (27.5” |
| Headset | Semi Integrated, 1-1/8" |
| Bottom Bracket | Cannondale cartridge, square taper |
| Stem | Cannondale 6061 Alloy, 31.8, 7 degree |
| Handlebar | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
| Grips | Cannondale Dual-Density |
| Front Brake | Shimano MT200 hydraulic disc, 160mm RT10 rotors |
| Rear Brake | Shimano MT200 hydraulic disc, 160mm RT10 rotors |
| Brake Levers | Shimano MT200 hydraulic disc |
| Rear Derailleur | microSHIFT Advent X, 10-speed |
| Shift Levers | microSHIFT Advent X, 10-speed |
| Chain | KMC X10, 10-speed |
| Cassette | microSHIFT, 11-48T, 10-speed |
| Crankset | Prowheel, Charm, 30 tooth chainring |
| Front Wheel | Rim - WTB SX19, 32h (27.5” |
| Rear Wheel | Rim - WTB SX19, 32h (27.5” |
| Front Tyre | WTB Ranger Comp (27.5 x 2,25” |
| Rear Tyre | WTB Ranger Comp (27.5 x 2,25” |
| Saddle | Cannondale Stage 3 |
| Seatpost | Cannondale 6061 Alloy, 31.6 x 350mm |
| Pedals | Cannondale Platform |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
