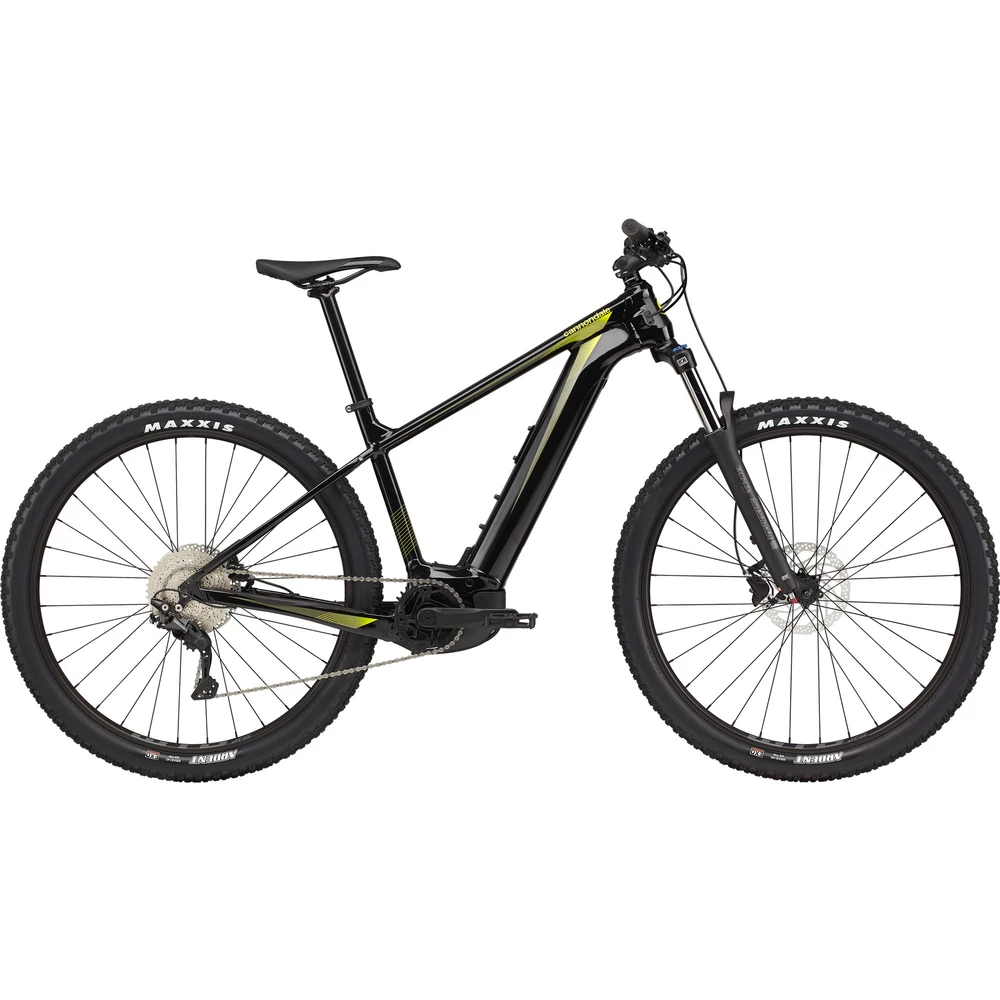

Cannondale Trail Neo 3 Electric Mountain Bike 2021
Combining a sturdy but lively alloy frame with a plush suspension fork, reliable components and a powerful motor, the Cannondale Trail Neo 3 Electric Mountain Bike facilitates adventuring and exploration further into the wilderness.
An efficient motor and battery configuration, supplied by Bosch, delivers up to 340% of rider amplification via its 85Nm of torque. Quiet in operation, the motor is controlled across its four levels by the neat handlebar-mounted Purion remote so that the rider can intuitively select the assistance level while riding depending on the severity of the terrain. The motor and battery are sealed and protected inside the frame to grant a svelte silhouette. This bike has an electric assisted speed limit of 15.5 mph / 25 km/h. The frame is composed of SmartForm C1 alloy that delivers an energetic ride experience while it's SAVE micro-suspension rear seatstays donate metered levels of comfort and trail control. Versatility is naturally offered by the frame thanks to its neatly integrated mudguard and rack mounts.
The SR Suntour suspension fork instils composure and line accuracy across rough terrain, and this is complemented by the balanced frameset geometry to deliver performance whatever the trail complexity. All manner of off-road obstacles are confronted successfully by the sturdy 29-inch wheelset while the Shimano Deore 10-speed gear setup eases riding across any landscape via its wide range of ratios. The hydraulic disc brakes complete the build by granting confidence-raising levels of stopping power whatever the weather conditions.
Browse our range of Cannondale electric mountain bikes today.
Highlights
- A rugged and versatile mountain bike that features a motor assistance unit to help conquer all off-road terrain
- Powerful, light and quiet Bosch Performance Line CX Motor and PowerTube battery delivers 85Nm of torque, has four assistance levels up to 340% rider amplification and has a range of up to 41 miles
- A sealed battery cover keeps the elements out and a burly skid plate protects the motor unit
- SmartForm C1 Alloy frame is light and stiff for efficient power transfer and features SAVE tuned seatstays for comfort and control
- Mudguard and rack mounting points on the frame increase versatility
- SR Suntour XCM 34 fork cushions the bumps with its 100mm of travel to increase ride accuracy and composure
- A refined geometry, low and forward motor positioning and short chainstays promote a lively, balanced and composed ride
- Reliable 29" wheels combat off-road obstacles with their increased rolling ability and sturdy build
- Shimano Deore M4100 10-speed gears are accurate and have a wide range to allow riding across any topography
- Shimano hydraulic disc brakes are powerful and precise
Battery Specification
- Rider Amplification: Turbo mode: 340% / eMTB mode: 140-340% / Tour mode: 140% / ECO mode: 60%
- Maximum Assist: 85Nm
- Motor Weight: 2.9kg
- Range: 41 miles / 65km (maximum, when combining the four assistance modes in favourable conditions
- Battery Power: 500Wh
Technical Specification
| Frame | SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/mudguard mounts |
| Fork | SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset |
| Headset | Cannondale Integrated Sealed Bearing, Tapered |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0 degree |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8 degree sweep, 4 degree rise, 780mm |
| Grips | Fabric Funguy |
| Front Brake | Shimano MT200 hydraulic disc, 180mm RT10 rotor |
| Rear Brake | Shimano MT200 hydraulic disc, 180mm RT10 rotor |
| Brake Levers | Shimano MT200 hydraulic disc |
| Rear Derailleur | Shimano Deore M4100, 10-speed |
| Shift Levers | Shimano Deore M4100, 10-speed |
| Chain | Shimano HG54, 10-Speed |
| Cassette | Shimano Deore, 11-42, 10-Speed |
| Crankset | FSA Bosch E-Bike with custom Ai offset, 34 tooth chainring |
| Front Wheel | WTB STX i25 TCS, 29", 32h tubeless-ready rim, Shimano MT400, 15x110mm thru-axle hub, DT Swiss Champion x 32 spokes |
| Rear Wheel | WTB STX i25 TCS, 29", 32h tubeless-ready rim, Shimano MT400, 12x148mm thru-axle hub, DT Swiss Champion x 32 spokes |
| Front Tyre | Maxxis Ardent, 29 x 2.4", Wire 60TPI Exo, clincher |
| Rear Tyre | Maxxis Ardent, 29 x 2.4", Wire 60TPI Exo, clincher |
| Saddle | Cannondale Ergo XC |
| Seatpost | Cannondale 4, 6061 Alloy, 31.6 x 350mm |
| Pedals | Available to be purchased separately |
| Accessories | Pre-installed light cables |
| Range | 41 miles / 65km (maximum, when combining the four assistance modes in favourable conditions) |
| Motor | Bosch Performance Line CX |
| Ui/Remote | Bosch Purion |
| Battery | Bosch PowerTube 500Wh |
| Charger | Bosch 4A |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
