Product Details

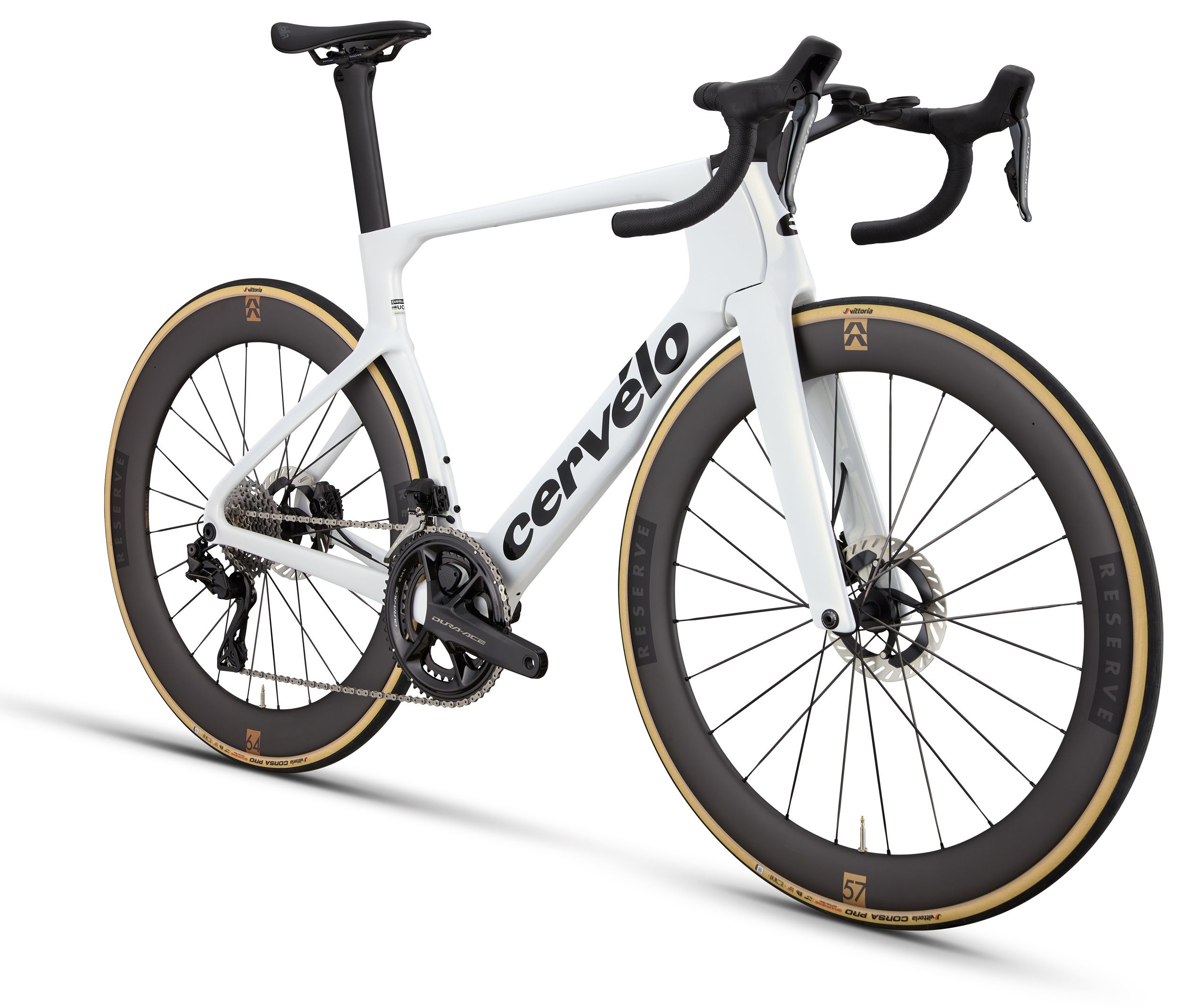

The fastest just got faster. The Cervelo S5 Dura-Ace Di2 Road Bike is even more streamlined thanks to enhanced aerodynamics around the front end of the bike and via the integration of the asymmetric profiles of the seat tube and rear wheel. The new design delivers an aero improvement of 6.3 watts over its predecessor - more watts in the bank, ready to forge the day's break or surge for the win in a sprint for the finish line. It's not just faster, but it's lighter too, weighing 124 grams less than the previous generation, offering a marginal gain when the road pitches upwards. The much-loved poise, snappy handling and stability remain, making the latest S5 the natural choice for riders who love the thrill of riding at their limits.
Cervelo x Reserve 57/64 Turbulent Aero

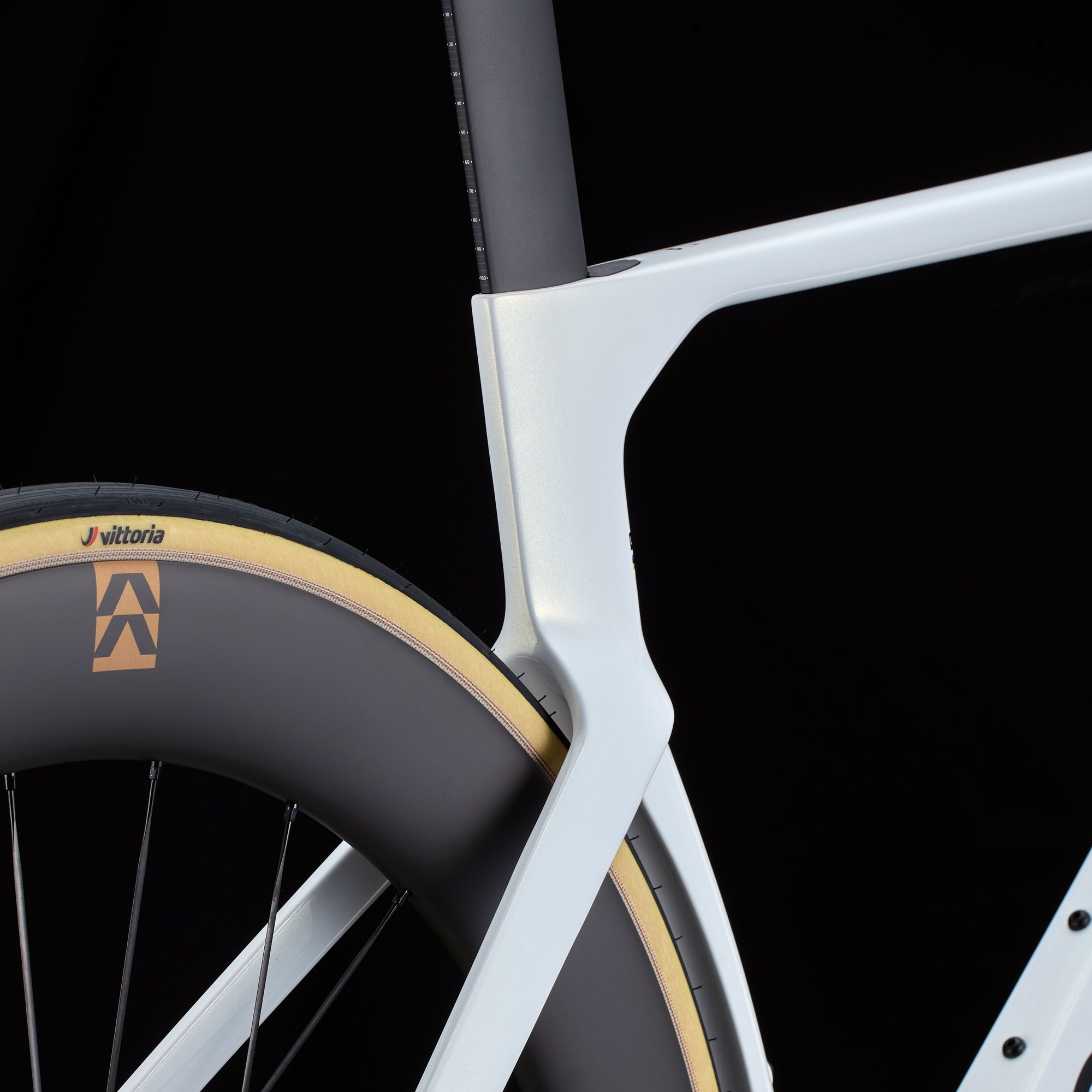

Co-developed by Cervelo and Reserve, the 57/64 Turbulent Aero wheelset has been tuned to work perfectly with this latest iteration of the S5 frame and forks. The asymmetry of the rear wheel matches the seat tube, ensuring smooth and efficient airflow over both. Meanwhile, the added depth of the front rim helps smooth airflow over the wheel in high yaw scenarios. Some 3 watts faster than its predecessor wheelset, the 57/64 still tips the scales at the same weight.

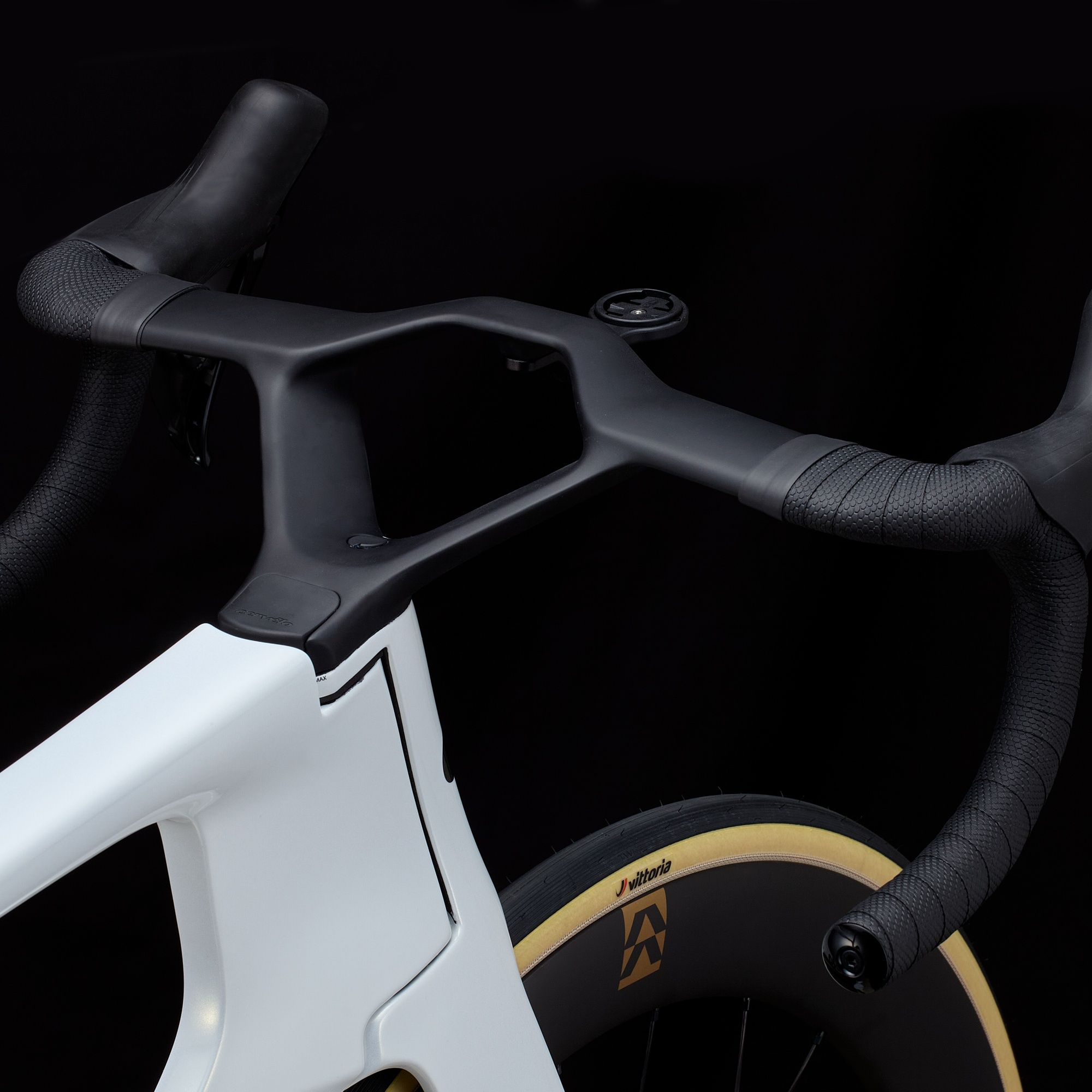

Cervelo HB19 Carbon one-piece cockpit
The distinctive V-shaped bar and stem remain, but it's now a one-piece setup. The “Plus-Four” concept gives a handlebar design where the width at the hoods is 4cm narrower than at the drops - for example, 38cm at the hoods and 42cm at the drops. This innovative setup promotes a more aerodynamic riding position when your hands are on the hoods, while still offering enhanced control and stability in the drops for sprinting and descending. All handlebar sizes comply fully with UCI regulations, including the most recent updates
HB19 Carbon one-piece cockpit sizing:
- Frame size 48cm: Bar width: 36cm /Stem length: 80mm
- Frame size 51cm: Bar width: 38cm /Stem length: 90mm
- Frame size 54cm: Bar width: 40cm /Stem length: 100mm
- Frame size 56cm: Bar width: 40cm /Stem length: 100mm
- Frame size 58cm: Bar width: 40cm /Stem length: 110mm
- Frame size 61cm: Bar width: 40cm /Stem length: 120mm
Features
- Frame: Cervelo S5 All-Carbon, TrueAero tube profiles, integrated head tube to fork configuration, integrated headset 1” x 1-3/8”, 12x142mm ( M12x1.0mm, 169mm length thru-axle)
- Fork: Cervelo All-Carbon, tapered Bayonet S5 fork, external head tube nose section, 12x100mm thru-axle (M12x1.5mm, 122mm length)
- Headset: FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
- Bottom Bracket: Ceramic Speed SL, BBright for 24mm spindle
- Handlebar and Stem: Cervélo HB19 Carbon one-piece cockpit
- Bar Tape: Cervelo bar tape
- Front Brake: Shimano Dura-Ace hydraulic disc, with 160mm Shimano CL900 Centerlock Disc
- Rear Brake: Shimano Dura-Ace hydraulic disc, with 160mm Shimano CL900 Centerlock Disc
- Brake and Shift Levers: Shimano Dura-Ace, R9270
- Front Derailleur: Shimano Dura-Ace, Di 2 R9250
- Rear Derailleur: Shimano Dura-Ace, Di 2 R9250
- Chain: Shimano M9100, 12-speed
- Cassette: Shimano Dura-Ace, R9200, 11-34T, 12-Speed
- Crankset: Shimano Dura-Ace, R9200, 54/40T
- Front Wheel: Reserve 57TA, DT Swiss 180 DICUT, 12x100mm, 24H, centerlock, tube less compatible
- Rear Wheel: Reserve 64TA, DT Swiss 180 DICUT, 12x142mm, HG freehub 24H, center lock, tubeless compatible
- Front Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
- Rear Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
- Saddle: Selle Italia NOVUS BOOST EVO SuperFlow Carbon
- Seatpost: Cervélo SP34 Carbon
- Powermeter: 4iiii Precision Pro, GEN3+ Dual Sided
- Pedals: Available to be purchased separately
- Accessories: Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount
Highlights
- Cervelo S5 All-Carbon frame with deeper chord-length profiles on headtube and fork - claimed 6.3 watts faster than previous S5
- Weight savings from the frame, seatpost, and one-piece bar - system weight is down 124g
- Shimano Dura Ace Di2 12-speed electronic drivetrain and Dura Ace hydraulic disc brakes
- Reserve Turbulent Aero 57/64 mm tubeless-ready carbon wheels designed specifically for the S5 frame system
- Geometry optimised for 29mm wide road tyres (max width 34mm)
- Cervelo HB19 one-piece Carbon V-Stem
Specifications
- Model
- S5 Dura-Ace Di2
- Bottom Bracket [Maker]
- ceramic-speed
- Bottom Bracket Standard
- BBRight
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- Dura-Ace
- Cassette [Gearing]
- 11-34
- Cassette [Maker]
- Shimano
- Cassette [Model]
- Dura-Ace R9200
- Chain [Maker]
- Shimano
- Chainring [Gearing]
- 54–40
- Crank [Maker]
- Shimano
- Crank [Model]
- Dura-Ace R9200
- E-Bike
- No
- F Hub [Maker]
- DT Swiss
- F Hub [Model]
- 180 DICUT
- Family
- S5
- FD [Maker]
- Shimano
- FD [Model]
- Dura-Ace Di2 R9250
- Fenders Mounts
- No
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cervelo
- Fork [Material]
- Carbon
- Fork [Model]
- Bayonet S5
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- Brand-Specific
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Cervelo
- Handlebar [Material]
- Carbon
- Handlebar [Shape]
- Drop bar
- Headset [Maker]
- FSA
- Headset [SHIS]
- IS2
- Power Meter [Maker]
- 4iiii
- Power Meter [Model]
- Precision Pro
- R Hub [Maker]
- DT Swiss
- R Hub [Model]
- 180 DICUT
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- Dura-Ace Di2 R9250
- Saddle [Maker]
- Selle Italia
- Saddle [Material]
- Carbon
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Cervelo
- Seatpost [Material]
- Carbon
- Shifters [Maker]
- Shimano
- Shifters [Model]
- Dura-Ace Di2 R9270
- Shifting
- Electronic
- Stem [Maker]
- Cervelo
- Stem [Material]
- Carbon
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Tires [Width]
- 29 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Reserve
- Wheelset [Material]
- Carbon
- Product code
- 1938577 / 54293848555866
Size Guide
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 152 - 161 | 159 - 168 | 168 - 174 | 174 - 180 | 180 - 185 | 185 - 192.5 |
| Rider Height (ft. in.) | 5'0" - 5'3.5" | 5'2.5" - 5'6" | 5'6" - 5'8.5" | 5'8.5" - 5'11" | 5'11" - 6'1" | 6'1" - 6'4" |
| Seat Tube (ctr-top) | 480 | 510 | 540 | 560 | 580 | 610 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - |
| Effective Top Tube | 515 | 532 | 548 | 563 | 581 | 597 |
| Actual Top Tube | - | - | - | - | - | - |
| Seat Angle (°) | 73 | 73 | 73 | 73 | 73 | 73 |
| Head Tube Angle (°) | 71 | 72 | 73 | 73 | 73 | 73 |
| Head Tube Length | 89 | 110 | 133 | 159 | 188 | 214 |
| Fork Rake | 57 | 51 | 45 | 45 | 45 | 45 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 972 | 974 | 973 | 993 | 1011 | 1027 |
| Stack | 505 | 530 | 555 | 580 | 605 | 630 |
| Reach | 360 | 369 | 378 | 387 | 396 | 405 |
All measurements in mm unless otherwise stated.
