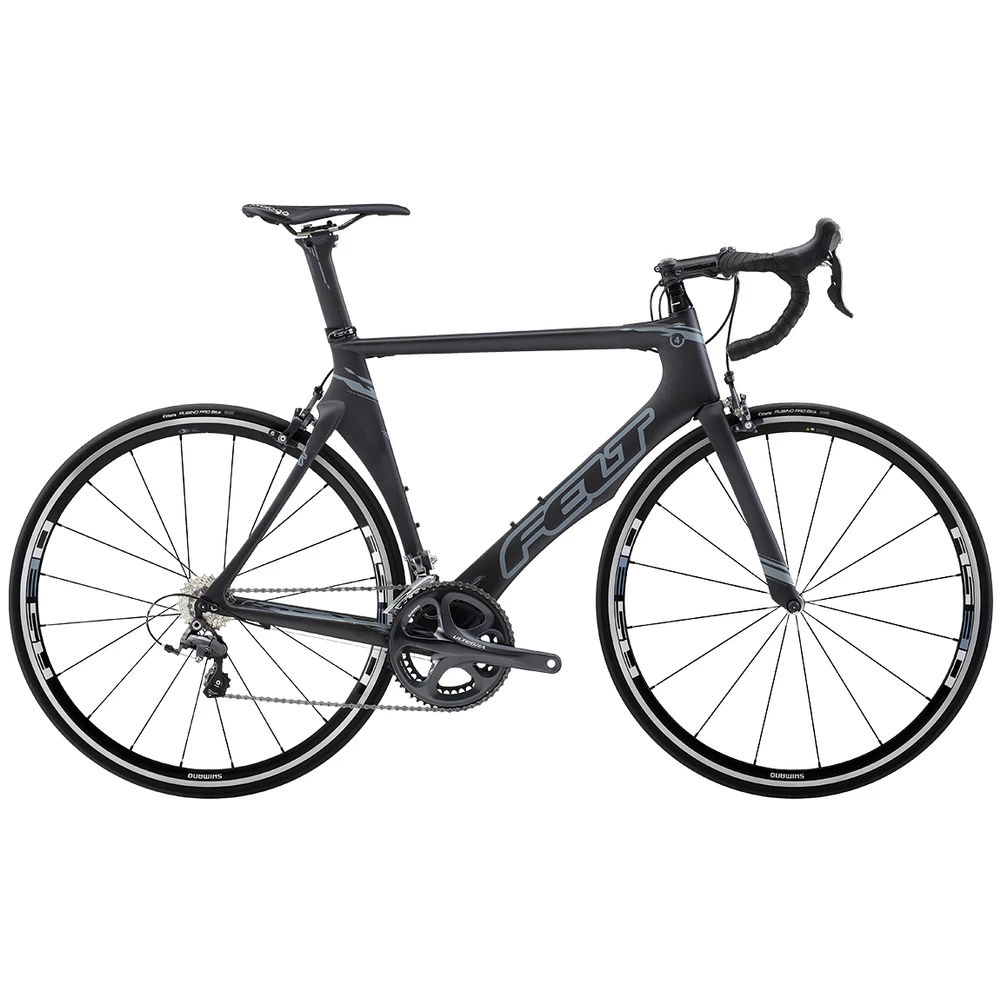

Felt AR4 Road Bike 2013

YOUTUBE:JYQOMr9n1go

Testing sessions at the San Diego Low Speed Wind Tunnel facility have proven that, depending on speed and wind conditions, a rider can reasonably expect to save from 58 to 75 seconds over the course of an hour when compared to a bike with round frame tubes in similar conditions.

Like all Felt road bikes, the AR is characterized by crisp handling. The proprietary blend of carbon fibre materials used to construct the frame give it the stiffness and ride quality for which Felt is known.

With an aerodynamic UHC advanced carbon fibre frame and high-quality, competition-ready components, the AR4 is engineered to minimize drag and maximize performance. Extensive wind-tunnel development has proven it capable of shaving seconds off your time. It’s equally adept at climbing or sprinting, and with Shimano Ultegra drivetrain and Shimano wheels, you’re guaranteed reliable performance for the long haul.

Specifications

• UHC Adcanced, MMC, InsideOut-Technology, Carbon dropouts
• Aerodynamic, wind tunnel deveolopment & testing
• SHIMANO Ultegra group w/ Internal Cable Routing
• Shimano RS30, 30mm alloy wheelset
• Matte Carbon, with Shadow Decals

Frame: Felt Aero Road UHC Advanced MMC Carbon Fibre frame with 3KP weave, InsideOut internal molding process, machined threaded aluminium BB shell, Carbon Fibre dropouts & 6061 forged aluminium replaceable derailleur hanger

Fork: Felt Aero Road UHC Performance monocoque fork; 100% Carbon Fibre 1.125" steerer tube, crown, blades, & dropouts

Finish: Shadow (Matte Carbon)

Bottom Bracket: Shimano Hollowtech-II

Brakes: Shimano Ultegra Super SLR dual pivot with cartridge brake pads

Cassette: Shimano, 11-25T

Chain: Shimano 10-speed

Chainset: Shimano Ultegra Hollowtech-II, 53/39T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

Front Derailleur: Shimano Ultegra braze-on

Handlebar Tape: Felt Gel Tape w/ Felt Logos

Handlebar: Felt VS Aero 2014 double butted aluminium, aerodynamic wing top section, ergonomic, Ø31.8mm, 51cm=400mm, 54cm=420mm, 56cm=420mm, 58cm=440mm, 61cm=440mm

Headset: FSA 1.125” Integrated with 25mm aluminium cone spacer, 2 x 10mm PC headset spacer, Felt compression device, Carbon Fibre top cap & 7075 anodized aluminium bolt

Pedals: N/A

Rear Derailleur: Shimano Ultegra

Saddle: Prologo Zero T2.0, Carbon Fibre injected base with light foam padding & Cr-Mo rails

Seatpost: Felt Aero UHC Advanced Carbon Fibre Standard Offset Bladed Monocoque Design

Seat Binder: Felt AR Aero aluminium with steel bolts

Shifters: Shimano Ultegra STI

Stem: Felt SL 3D forged 6061 aluminium with custom Cr-Mo bolts, /-7° rise, Ø31.8mm bar clamp, 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm

Tyres: Vittoria Rubino Pro Slick, 700c x 23c, 150 tpi

Wheels: Shimano RS30
