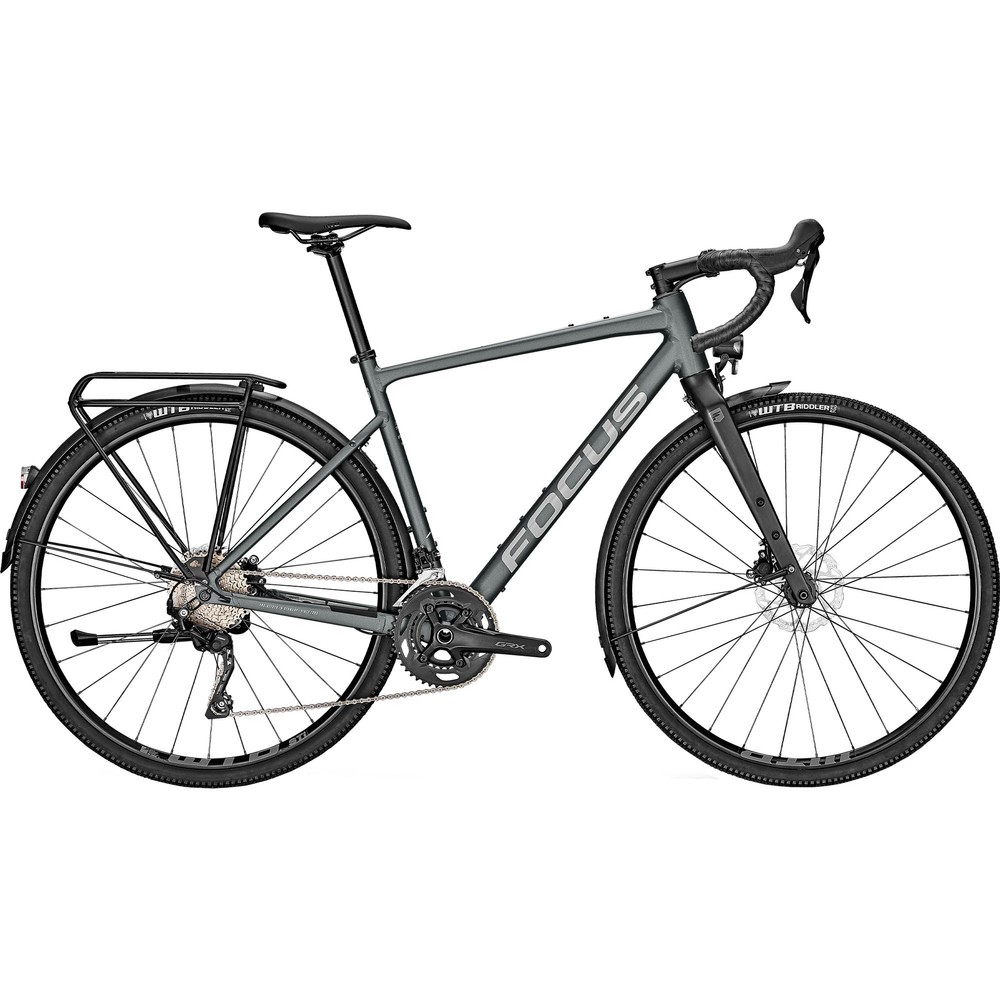

Focus Atlas 6.7 EQP Disc Gravel Bike 2023

★★★★★ ★★★★★

Need help choosing a bike, or technical advice?

Call our friendly team of bike experts on 020 3375 8700

Select a colour and size to view stock availability

Atlas 6.7 EQP Disc Gravel Bike 2023

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1317114

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Focus Atlas 6.7 EQP Disc Gravel Bike 2021

Built to push your boundaries and expand your riding horizons, the Focus Atlas 6.7 EQP Disc Gravel Bike 2021 delivers comfortable control on all terrains. Fully-loaded with all the accessories required for gravel touring and bikepacking, this EQP edition sees a pannier rack, mudguards and a stand equipped as standard. With a twenty kilogram maximum load on the pannier, and with the potential to load six kilograms on the fork, the Atlas is the perfect companion for any adventure - no matter the journey. Bright and reliable, the light system runs off of a hub dynamo, ensuring you’re never caught out without power.

Although equipped with 700c tyres as stock, the wide clearance of the Atlas frame can take tyre widths of up to 47mm on a 650b wheel. Highly versatile, Road Boost technology amplifies the tyre clearance whilst keeping the chainstays short, and provides a more durable wheel thanks to improved spoke tension. The cable routing runs from the handlebar directly into the headset, for an integrated aesthetic. More than just a visual change, by shielding the cables they are less susceptible to damage, and less likely to interfere with handlebar bags.

Purpose-built for gravel riding, the Shimano GRX 400 drivetrain provides a wide gear range and durable componentry that won’t let you down. The hydraulic disc brakes offer ample stopping power for rugged descents, and are ideal for the added weight of a fully-laden bike. The GRX 400 rear derailleur is equipped with a clutch system to stabilize the chain through rough terrain, designed to reduce drivetrain noise and chain movement. A carbon fork adds comfortable compliance, and the tough WTB ST i23 rims are both strong and tubeless ready.


  • Robust aluminium frameset
  • Wide tyre clearance, up to 47mm with 650b wheels
  • Fully equipped with pannier rack, mudguards and stand
  • Dynamo powered lights
  • Durable Shimano GRX 400 2x10 drivetrain
  • Confidence inspiring geometry
  • Road Boost spacing
  • Double sealed Novatec hubs with MTB 23mm wide WTB rims
  • Integrated C.I.S cable routing

Technical Specification

Frame Focus Aluminium, disc, BSA, 148x12mm thru-axle, flat mount 160/160mm, internal cable routing
Fork Focus Carbon, disc, 110x12mm thru-axle, flat mount 160/160mm, internal brake cable routing, multiple mounting points
Headset Acros IS 52/286-IS52/40, Focus integrated C.I.S.
Stem Focus Aluminium, 31.8mm, 6-degree drop/rise
Handlebar Focus aluminium, 31.8mm, 116mm drop, 74mm reach, 10 degree flare
Bar Tape Focus Bartape SL
Rear Brake Shimano GRX 400 hydraulic disc
Front Brake Shimano GRX 400 hydraulic disc
Brake Levers Shimano GRX 400 hydraulic disc
Rear Derailleur Shimano GRX 400 10-speed
Front Derailleur Shimano GRX 400
Shift Levers Shimano GRX 400
Chain Shimano Tiagra CN-4601
Cassette Shimano CS-HG5010, 10-speed, 11-34t
Crankset Shimano GRX 600, 46-30t
Front Wheel Hub - Shutter Precision PL-7 Dynamo Hub, 110x12mm / Rim - WTB ST i23 TCS, tubeless-ready
Rear Wheel Hub - Novatec D041, 12x148mm, Shimano 11-speed freehub / Rim - WTB ST i23 TCS, tubeless-ready
Front Tyre WTB Riddler, 700 x 37C, clincher
Rear Tyre WTB Riddler, 700 x 37C, clincher
Saddle WTB SL8
Seatpost Focus aluminium, 27.2mm, 350mm length, 0mm set-back
Pedals Available to be purchased separately
Accessories Buechel 51mm mudguards, Herrmans H-Black MR8 LED front light, Herrmans H-Trace Mini LED rear light, Focus pannier rack, Focus stand
Manufacturer claimed weight 12.8kg size 54

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Focus Atlas 6.7 EQP Disc Gravel Bike 2023 Sizing
