Focus Raven 8.6 Hardtail Mountain Bike 2021

★★★★★ ★★★★★

Select a colour and size to view stock availability

Find My Size

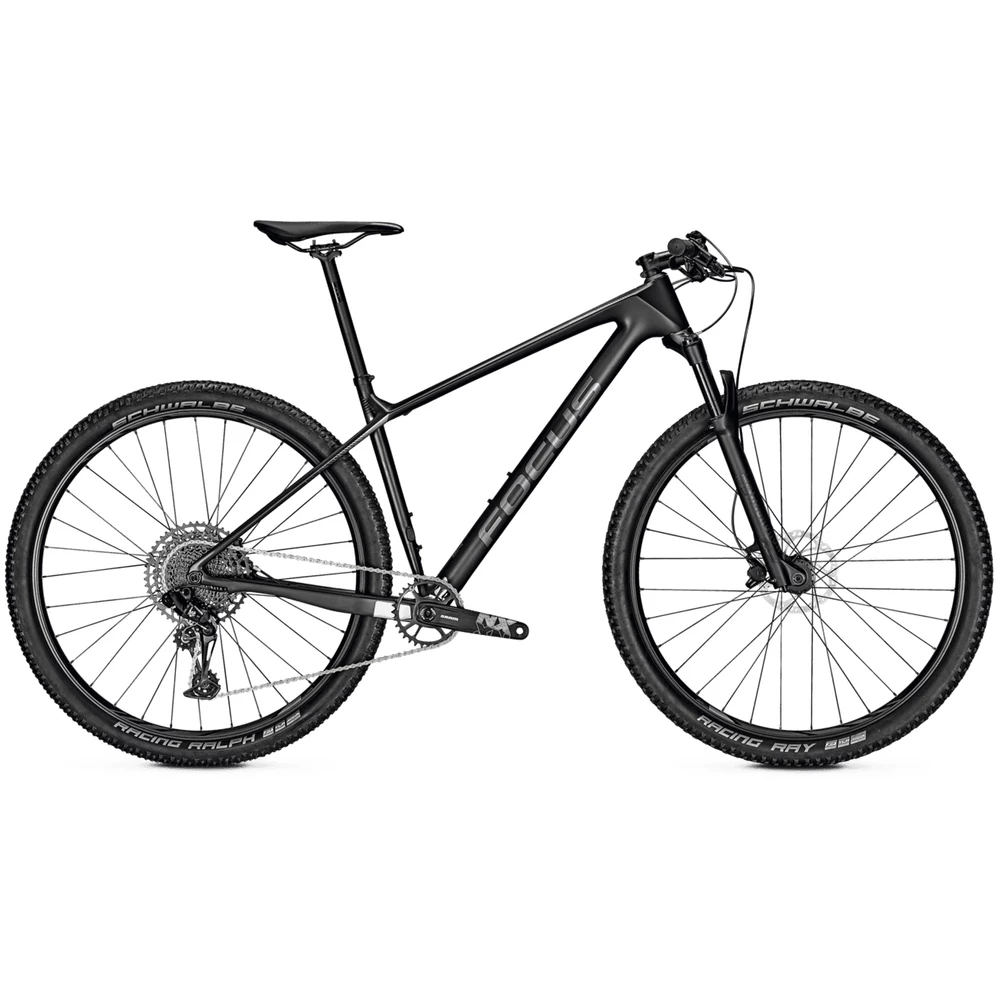

Raven 8.6 Hardtail Mountain Bike 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1168504

The Focus Raven 8.6 Hardtail Mountain Bike is the first rung on the ladder for XC racing bikes in this range, but there's no reason why you shouldn't be aiming for the top step of the podium.

The carbon frame is light, stiff and powerful, without feeling harsh, thanks to Comfort Improving Areas, and the SRAM NX Eagle components will shift your gears reliably in any race situation.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports cycle to work scheme
Cycle to Work Scheme

Cyclescheme can save you up to 39% on a bike and accessories. Visit our Cycle to Work Scheme page to learn more and claim.

Focus Raven 8.6 Hardtail Mountain Bike 2021

Enter the world of cross-country racing with the lightweight Focus Raven 8.6 Hardtail Mountain Bike, the reliable sibling of World and European champion-winning bikes. The frame is engineered with the same Comfort Improving Areas as bikes higher up the range with specific tube shapes to reduce vibrations and enhance compliance. 29" DT Swiss X1900 wheels have a great feel, easily carrying momentum over rough ground, and the RAT quick-release axles make short work of tyre changes.

Magura hydraulic disc brakes offer powerful stopping performance and the SRAM NX Eagle components bring reliability to your gear shifting. This is a great bike for taking the step up to XC racing and it won't be overshadowed by bikes with a meatier price tag.


  • SRAM NX Eagle components
  • DT Swiss X1900 29" wheelset
  • R.A.T. quick-release axles
  • Lightweight Focus carbon frame with Comfort Improving Areas (C.I.A.)

Technical Specification

FRAME Focus carbon, PF30 BB, 148x12 mm through axle, internal cable routing, Post Mount 160 mm
FORK Rock Shox Judy Gold, OneLoc remote, 15x110 mm QR, 100mm travel
HEADSET Acros AIX-322, tapered, IS 42/286-IS52/40
HANDLEBAR BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep
STEM BBB Rider BHS-109 Deluxe, 31.8mm, 7degree
FRONT BRAKE  Magura MT2 hydraulic disc
REAR BRAKE  Magura MT2 hydraulic disc
SHIFT LEVERS  SRAM NX Eagle, 12-speed
CASSETTE SRAM NX Eagle, 11-50t, PG-1230, 12-speed
FRONT WHEEL  DT Swiss X1900, 622-25, 15x110 MM / 12x148 MM, Rodi Viper 21 rim
REAR WHEEL  DT Swiss X1900, 622-25, 15x110 MM / 12x148 MM, Rodi Viper 21 rim
FRONT TYRE  Schwalbe Racing Ralph Performance, 57-622
REAR TYRE  Schwalbe Racing Ralph Performance, 57-622
SADDLE  Focus Race SL
SEATPOST  BBB Deluxe, Aluminium, 27,2mm, 350mm
PEDALS Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance or contact Customer Care. We do not install accessories to bikes, including mudguards.

Focus Raven 8.6 Hardtail Mountain Bike 2021 Sizing
