Description

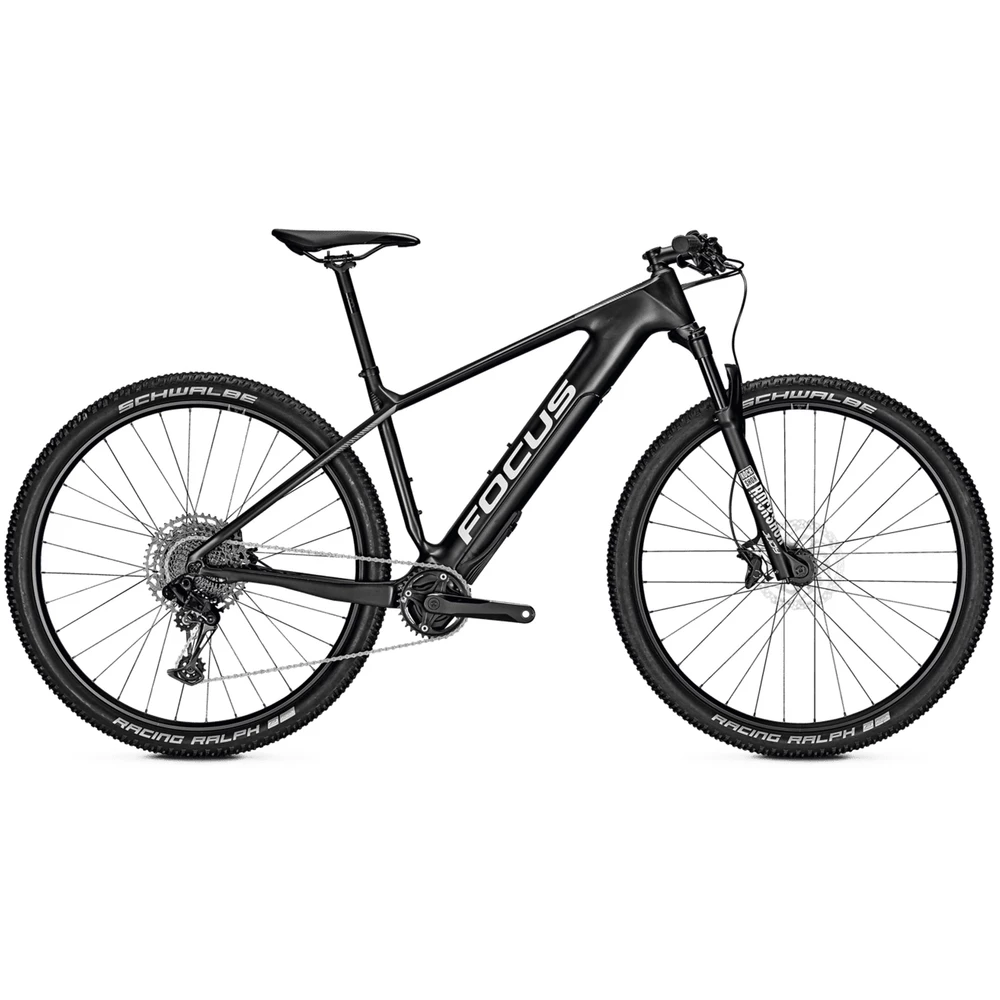

Focus Raven2 9.7 Hardtail Electric Mountain Bike 2020
The 250W FAZUA EVATION motor and battery neatly concealed in the downtube of the Focus Raven2 9.7 Hardtail Electric Mountain Bike has three assistance levels (Breeze, River and Rocket) which provide help up to 25kph. Above that speed it decouples completely so that there is no added resistance, making the bike drag free. The F.I.T. (Focus Integration Technology) carbon frame also benefits from S.S.P.S. (Stable Stiffness Per Size) design so that every frame size handles and feels the same for a consistent ride across the spectrum.
The Shimano SLX and XT drivetrain use a wide-range cassette so that the right ratio is always available for climbs and descents, while the BR-MT420, 4-piston hydraulic disc brakes from Shimano are suitably performance-oriented for a machine of this calibre. Further comfort and control are provided by the 100mm of travel from the RockShox Judy Gold RL fork, helping keep the Raven2 9.7 feel fast and racy.
Features
- F.I.T. (Focus Integration Technology) Carbon frame
- RockShox Judy Gold RL fork with 100mm travel
- Shimano BR-MT420, 4-piston, hydraulic disc brakes
- SRAM SX Eagle 12-speed drivetrain
- FAZUA EVATION, 60 Nm, 250W motor with three assist levels and a 250Wh removable battery
Technical Specification
| FRAME | Focus F.I.T. Technology Carbon frame, 148x12mm thru-axle, internal cable routing, Post Mount 160mm |
| FORK | RockShox Judy Gold RL, 15x110mm, 100mm travel |
| STEM | BBB Rider BHS-109, 31.8mm, 7 degree |
| HANDLEBAR | BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep |
| HANDLEBAR GRIPS | FOCUS Locker SL |
| FRONT BRAKE | Shimano BR-MT420, 4-piston, hydraulic disc |
| REAR BRAKE | Shimano BR-MT420, 4-piston, hydraulic disc |
| BRAKE LEVERS | Shimano BR-MT420, hydraulic disc |
| REAR DERAILLEUR | SRAM SX Eagle, 12-speed |
| SHIFT LEVERS | SRAM SX Eagle, 12-speed |
| CASSETTE | SRAM PG-1210 Eagle, 12-speed, 11-50t |
| CHAIN | SRAM SX Eagle |
| CRANKSET | FSA CK-746, aluminium, 34t |
| FRONT WHEEL | Novatec D041, 15x110mm hub with Rodi Blackrock rim |
| REAR WHEEL | Novatec D162 , 12x148mm hub with Rodi Blackrock rim |
| FRONT TYRE | Schwalbe Racing Ralph Performance 2.25, 29" clincher |
| FRONT TYRE | Schwalbe Racing Ralph Performance 2.25, 29" clincher |
| SADDLE | Focus Race SL |
| SEATPOST | BBB Deluxe, Aluminium, 27.2mm, 350mm |
| PEDALS | Available to be purchased separately |
| MOTOR | FAZUA EVATION, 60 Nm, 250W |
| BATTERY | FAZUA EVATION, 250Wh removable |
| CLAIMED MANUFACTURER WEIGHT | 17.2kg size medium |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
