Haibike AllMtn 10 Electric Mountain Bike 2022


Select a colour and size to view stock availability

AllMtn 10 Electric Mountain Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1408154

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

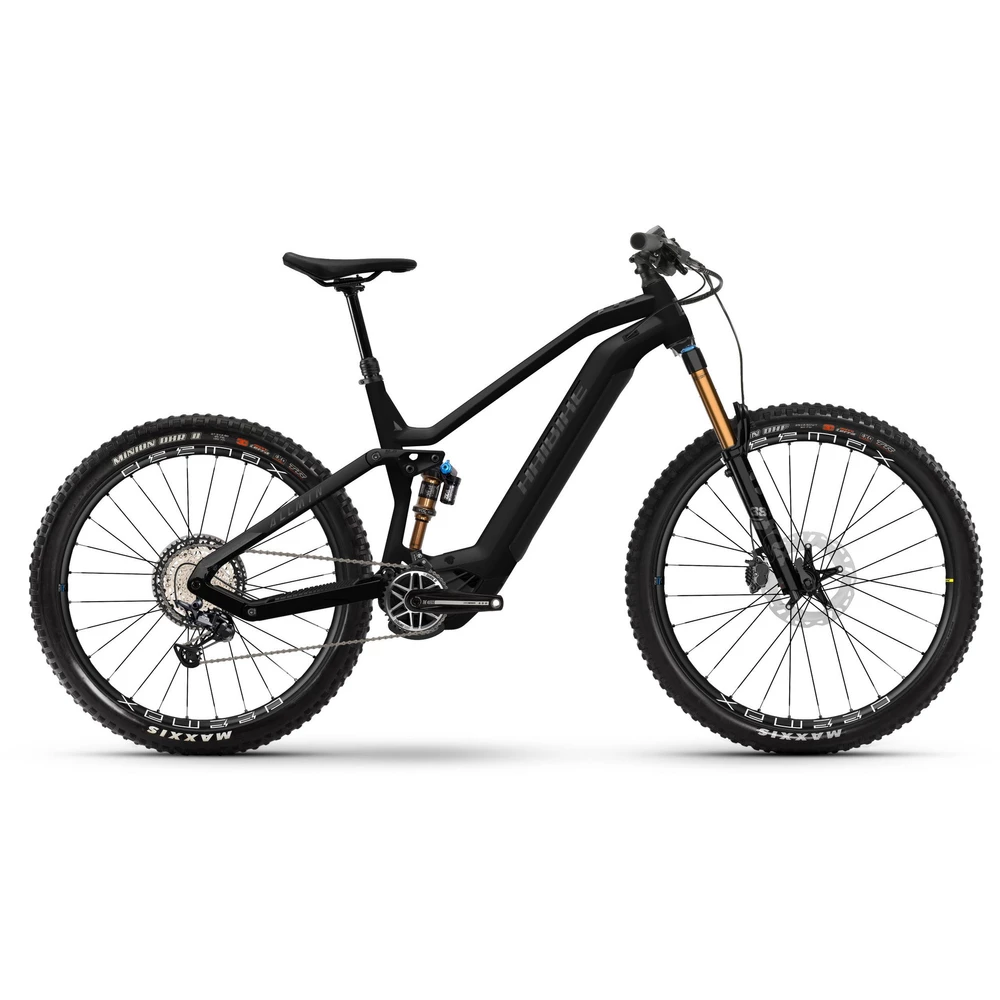

Haibike AllMtn 10 Electric Mountain Bike 2022

Packaging a durable aluminium frame with high-end components, the Haibike AllMtn 10 Electric Mountain Bike ushers in a new era of performance. Developed to tackle demanding, technical terrain, both up and downhill, this model features the latest Yamaha PW-X3 motor system, which combines 85Nm of torque with a low motor weight of just 2.75kg. The Yamaha Interface - X control system is sleek and unobtrusive, and the high-capacity 750Wh Yamaha InTube battery provides the longevity needed for all-day exploration.

The FOX 38 fork features an oversized 38mm stanchion to enhance its stiffness, while the Float X rear shock provides supreme composure through repeat impacts. A Shimano Deore XT drivetrain balances performance with durability and four-piston Deore XT brakes deliver confident braking in all conditions. The mixed-wheel setup sees a tough Mavic E-Deemax wheelset with a 29” front and 27.5” rear rim, making the bike more manoeuvrable through tight turns.

Browse our range of Haibike electric mountain bikes today.


  • Lightweight Yamaha PW-X3 motor system with 250w of power and 85Nm of torque, 25km/h maximum assistance
  • The high-quality component specification provides excellent performance on the trail
  • Mixed wheel 29" front, 27.5" rear provides a playful ride character
  • The lightweight 6061 aluminium frame features 160mm of bump-eating suspension travel
  • Shimano Deore XT 12-speed drivetrain is smooth and durable
  • 750Wh Yamaha battery delivers a superior range for long-lasting performance
  • 160mm FOX 38 suspension fork offers robust performance and excellent traction
  • Shimano Deore XT four-piston brakes offer supreme stopping power and a wide degree of modulation

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.75kg
  • Battery Power: 750Wh

Technical Specification

Frame Haibike, AllMtn PW-X3, Aluminium
Fork FOX 38 Float Factory 160, air, Kashima, 160mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15x110mm thru-axle, boost
Rear Shock FOX, Float X Factory EVOL LV, Air, Trunnion
Stem Haibike Components The Stem, alu, A-head, 31.8mm
Grips Haibike, MTB grips
Handlebar Haibike Components The Bar, 780mm
Front Brake Shimano Deore XT, hydraulic disc brake, four-piston
Rear Brake Shimano Deore XT, hydraulic disc brake, four-piston
Brake Levers Shimano Deore XT
Rear Derailleur Shimano Deore XT, 12-speed
Shifter Shimano Deore XT, 12-speed
Chain Shimano, SLX M7100
Cassette Shimano M6100, 10-51t
Crankset Haibike Components The Crank, aluminium
Front Wheel Mavic, E-Deemax, 29”
Rear Wheel Mavic, E-Deemax, 27.5”
Front Tyre Maxxis, Minion DHF II, 63-622, 29 x 2.5”, clincher
Rear Tyre Maxxis, Minion DHR II, 66-584, 27.5 x 2.6”, clincher
Saddle Fizik Terra Aidon X5-160
Seatpost Haibike Components Dropper-Post, aluminium, 34.9 mm
Pedals Freeridepedal, aluminium
Motor Yamaha PW-X3 System, 250w, 85Nm, 25 km/h
Battery Yamaha, InTube 750Wh
Ui/Remote Yamaha, Interface - X
Electric assisted speed limit 15.5 mph / 25 km/h

Haibike AllMtn 10 Electric Mountain Bike 2022 Sizing
