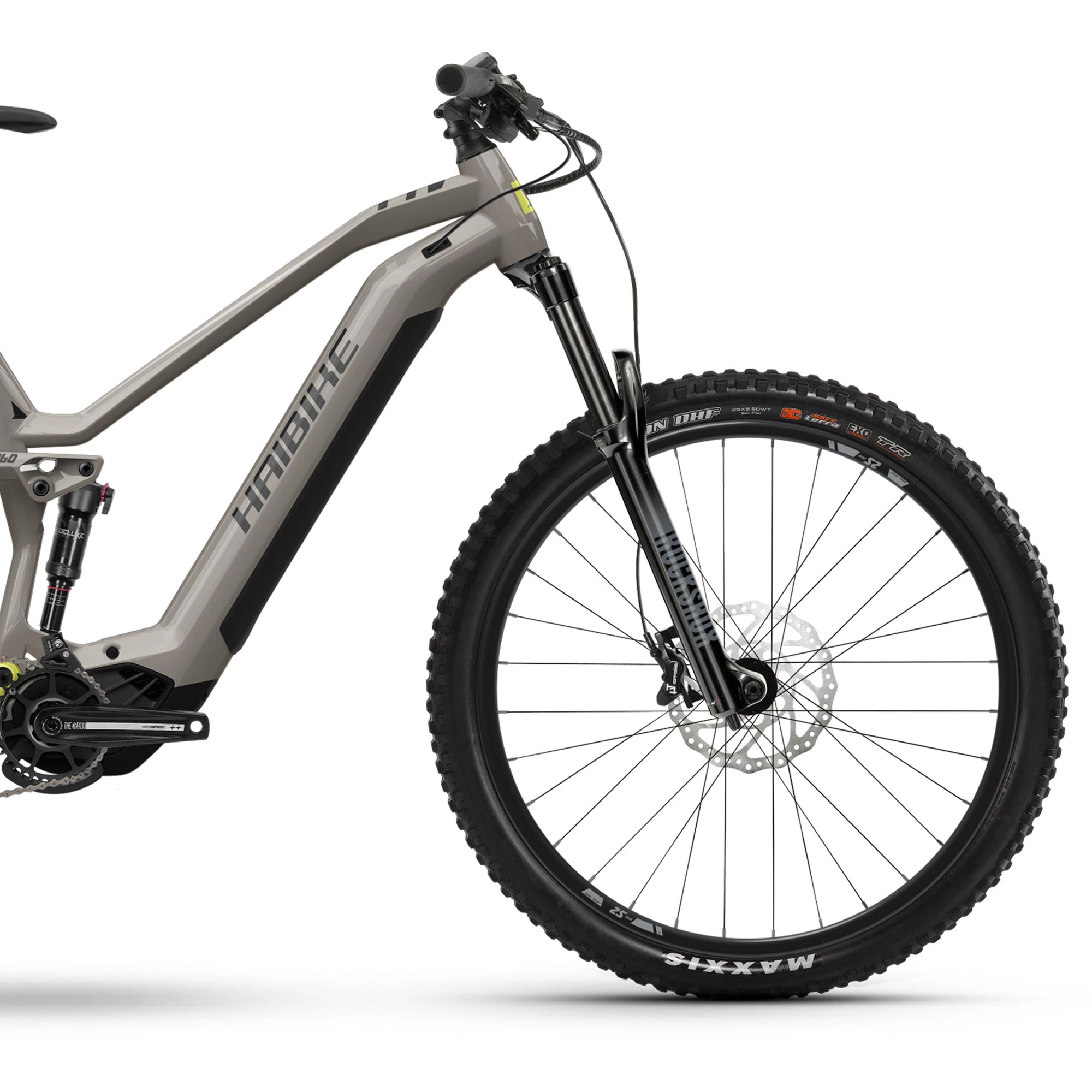

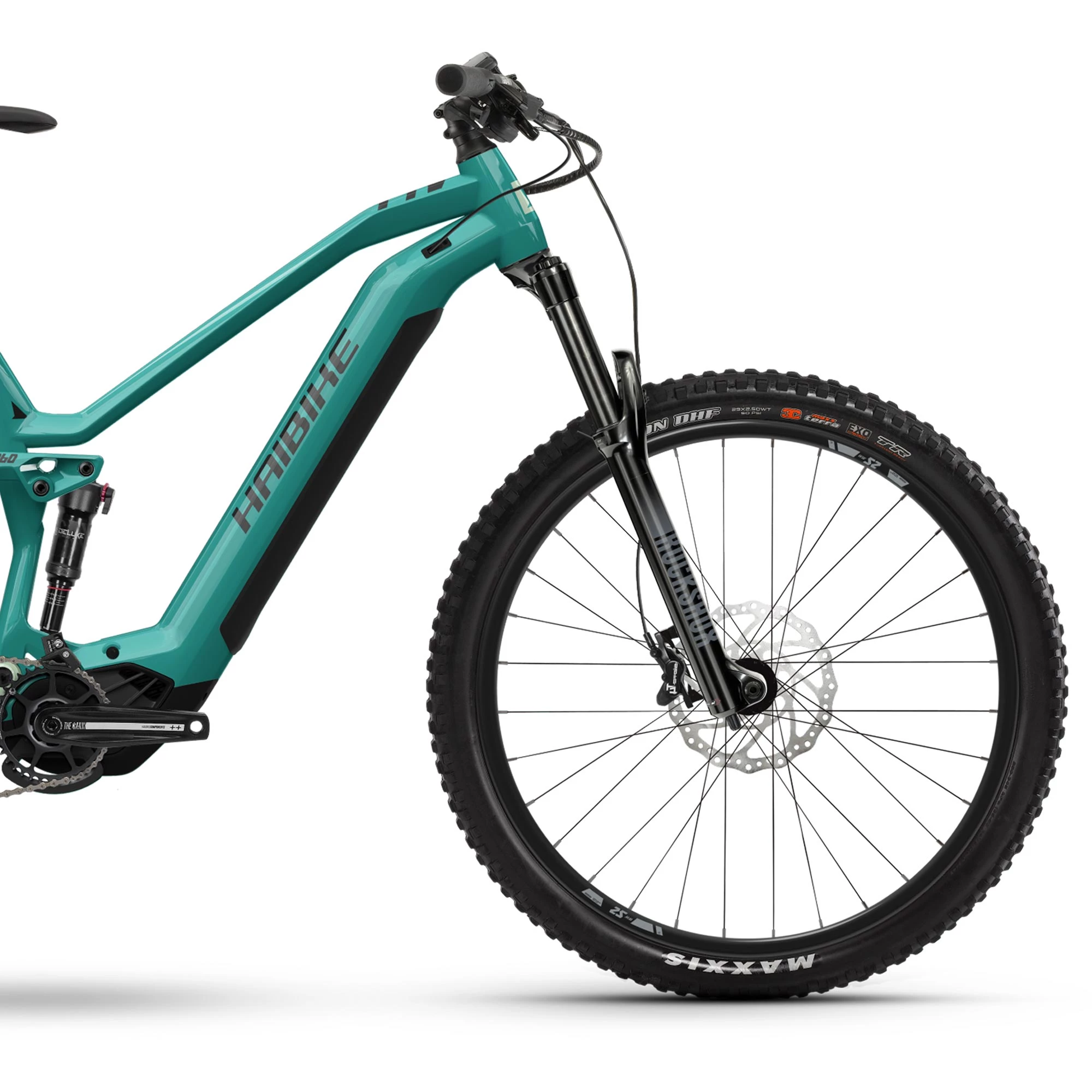

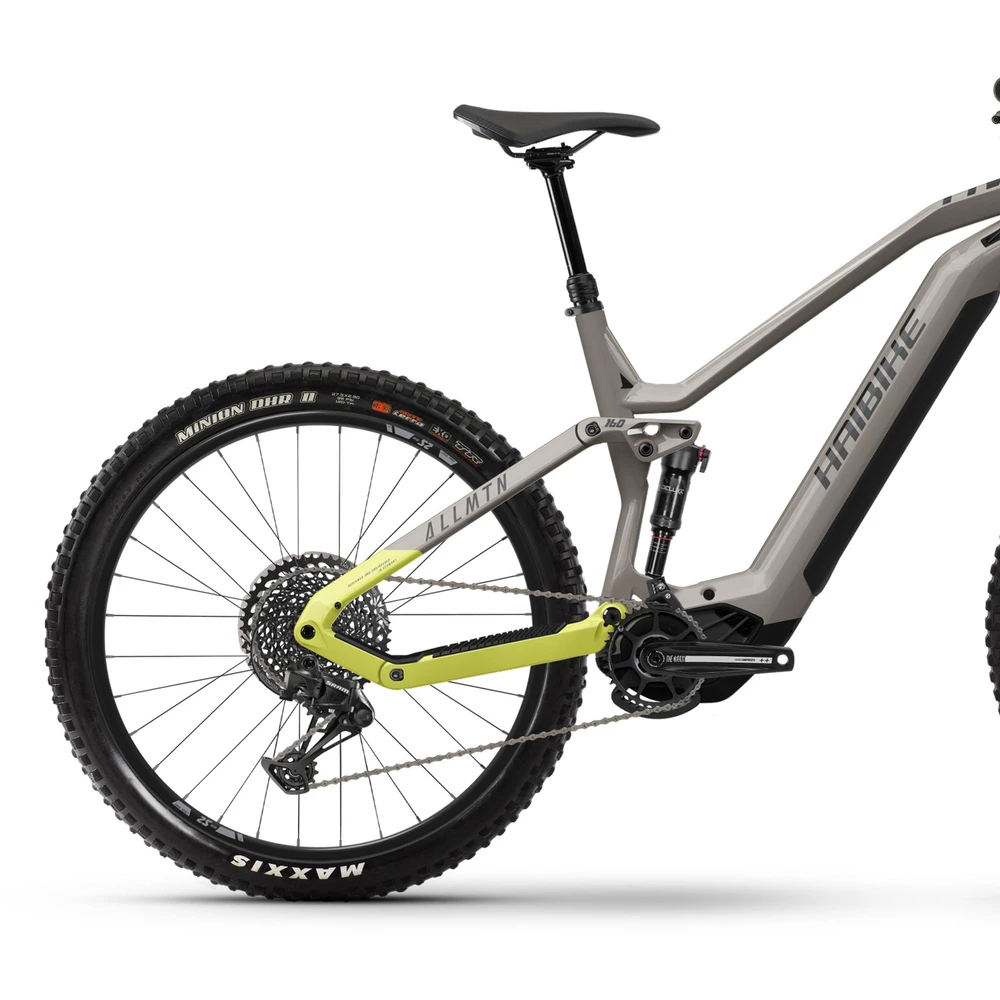

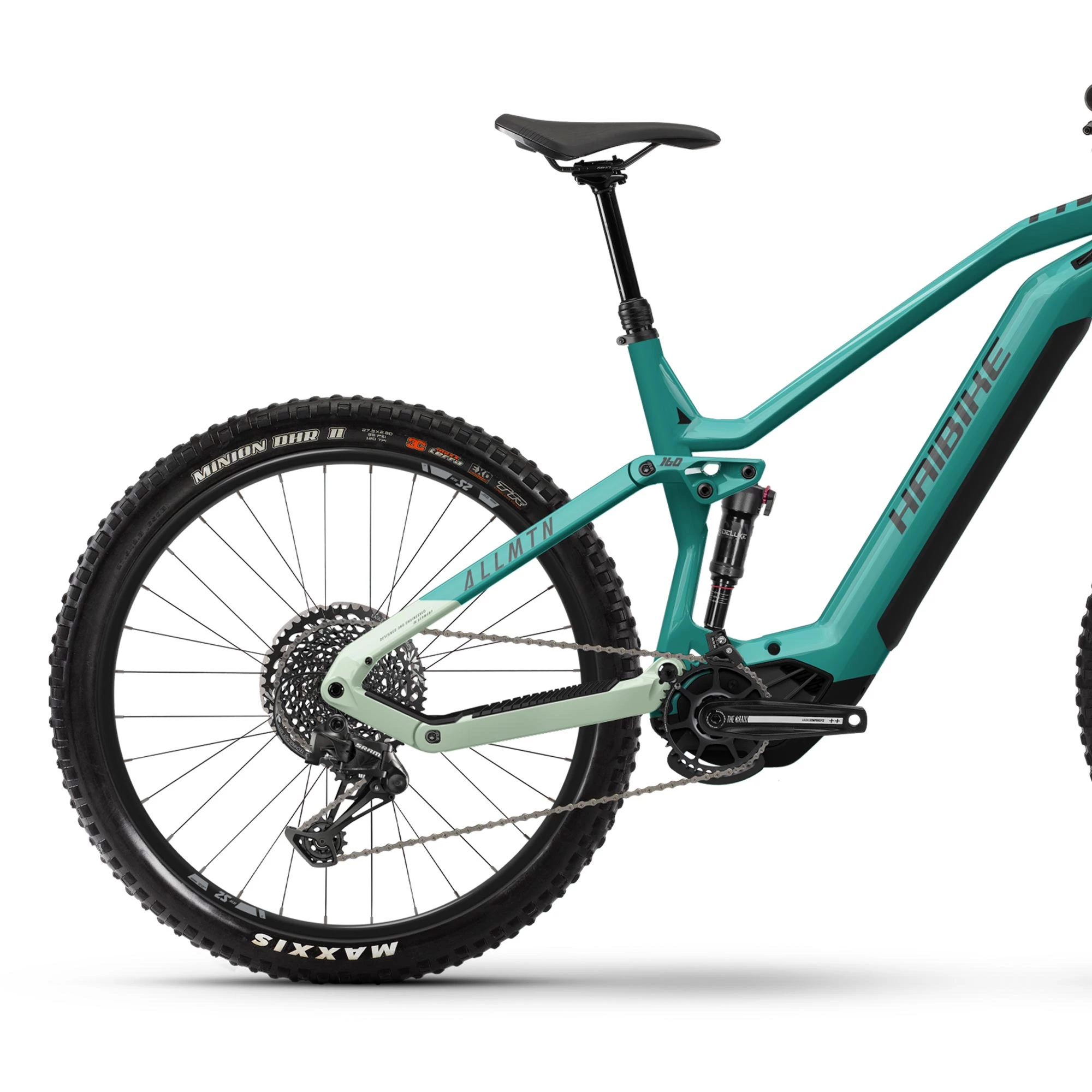

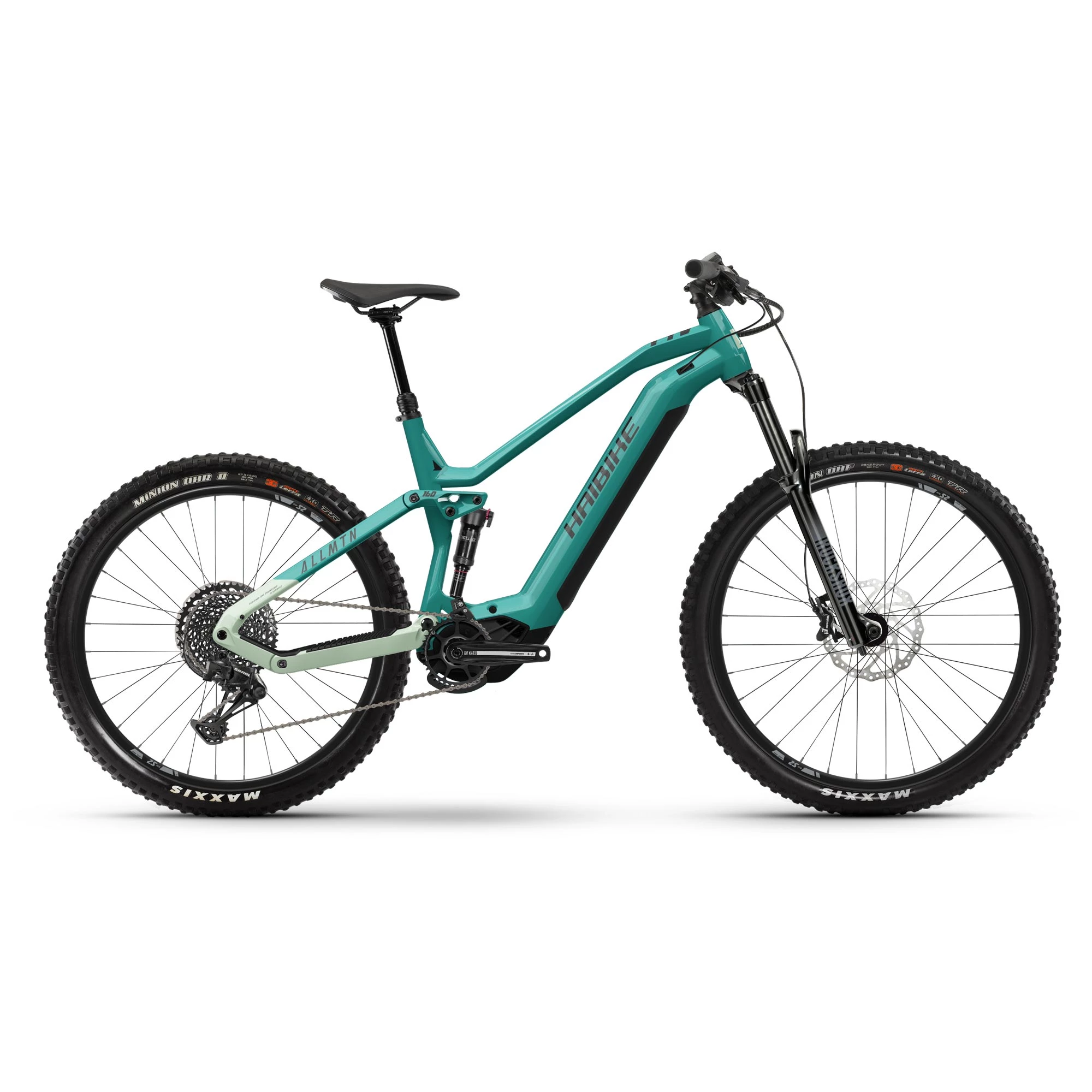

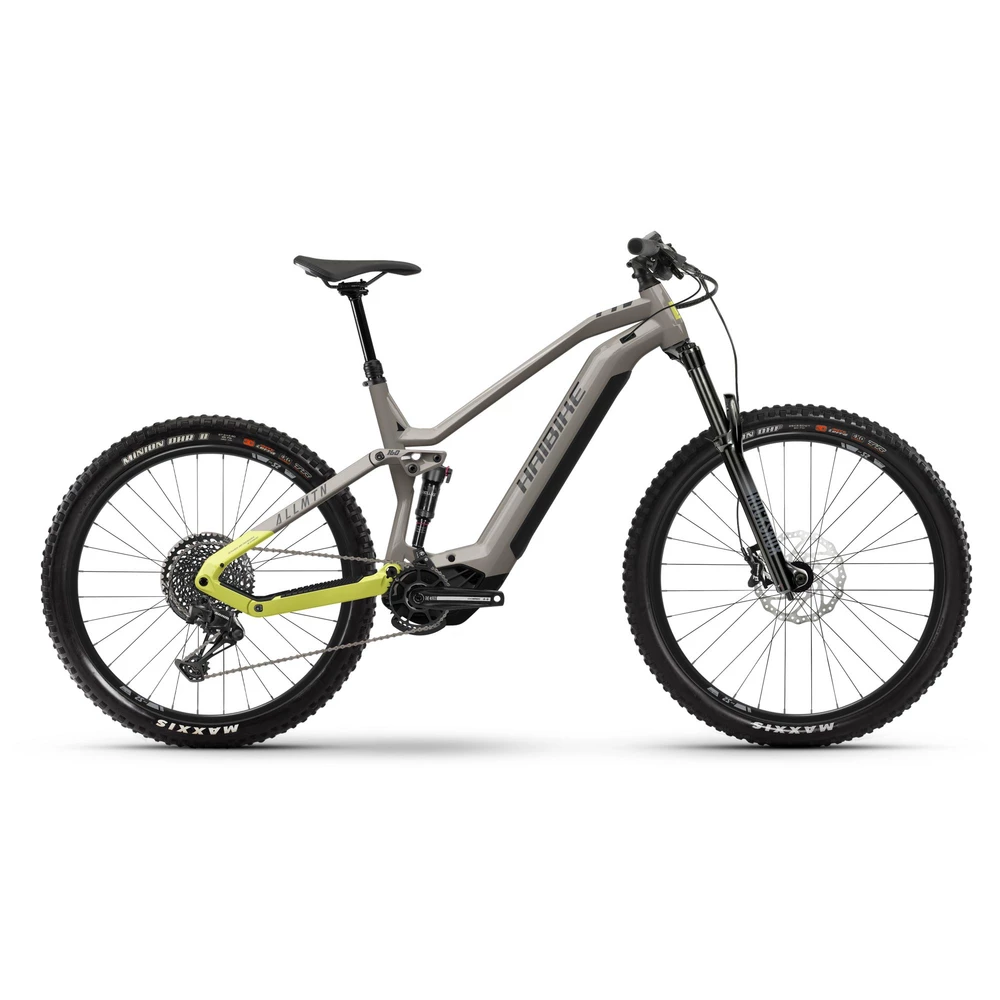

Haibike AllMtn 2 Electric Mountain Bike 2023

£3,699.00 - £4,599.00
RRP £4,599.00

Need help choosing an electric bike?

Our Kingston electric bike store team are here to help you. Email or call 0333 006 8833

Select a colour and size to view stock availability

Price £4,599.00
Price £3,699.00 (Save 20%)
AllMtn 2 Electric Mountain Bike 2023

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1408253

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Haibike AllMtn 2 Electric Mountain Bike 2023

Featuring an all-new frame design and 160mm of front and rear travel, the Haibike AllMtn 2 Electric Mountain Bike is a force to be reckoned with on technical singletrack and challenging descents. Compact and lightweight, the Yamaha PW-X3 motor system weighs only 2.75kg, despite putting out 85Nm of hill-shredding torque. This bike has an electric-assisted speed limit of 15.5 mph / 25 km/h. Working in tandem with this is the mullet-style 29” front and 27.5” wheel setup, which provides an agile yet stable ride feel.

The system is powered by an InTube 630Wh battery, which provides an extensive range for all-day riding. The RockShox 35 Gold Suspension fork is stiff to boost precision and is supple through its 160mm of travel. A SRAM SX 12-speed drivetrain sees a wide range of gears for tackling all gradients, and four-piston TRP brakes deliver the stopping power to see complete control on the descents. Maxxis Minion tyres provide claw-like grip in loamy soils, and the WTB rims are highly durable to resist impact.

Browse our range of Haibike electric mountain bikes today.


  • Powerful Yamaha motor system with 250w of power and 85Nm of torque, 25km/h maximum assistance
  • The lightweight 6061 aluminium frame features 160mm of bump-eating suspension travel
  • 12-speed SRAM SX Eagle drivetrain features a wide 11-50t cassette
  • Long-lasting 630Wh Yamaha InTube battery provides excellent range
  • Yamaha Side Switch display features seven functions and a 1.7” screen
  • 160mm RockShox 35 Gold suspension fork
  • Powerful TRP Slate T4 four-piston hydraulic disc brakes offer epic control when descending

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.75kg
  • Battery Power: 630Wh

Technical Specification

Frame Haibike, AllMtn PW-X3, aluminium
Fork RockShox, 35 Gold, Air, 160mm, 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock RockShox Deluxe Select Plus, Air, Trunnion Mount
Stem Haibike Components The Stem, alu, A-head, 31.8mm
Grips Haibike, MTB grips
Handlebar Haibike Components The Bar, 780mm
Front Brake TRP Slate, hydraulic disc brake, four-piston, 180mm
Rear Brake TRP Slate, hydraulic disc brake, four-piston, 180mm
Brake Levers TRP Slate
Rear Derailleur SRAM SX Eagle, 12-speed
Shifter SRAM SX Eagle, 12-speed
Chain SRAM SX Eagle
Cassette SRAM Eagle PG1210, 11-50t
Crankset Haibike, forged, aluminium
Front Wheel Rim - WTB, ST i30 TCS / Hub - Haibike Components The Hub, 6-bolt standard
Rear Wheel Rim -WTB, ST i30 TCS / Hub - Haibike Components The Hub, 12x148mm, 6-bolt standard
Front Tyre Maxxis, Minion DHF II, 63-622, 29 x 2.5”, clincher
Rear Tyre Maxxis, Minion DHR II, 63-622, 27.5 x 2.5”, clincher
Saddle Selle Royal Vivo
Seatpost Haibike Components Dropper-Post, aluminium, 34.9 mm
Pedals Freeridepedal, aluminium
Motor Yamaha PW-X3 System, 250w, 85Nm, 25 km/h
Battery Yamaha InTube, 630Wh
Ui/Remote Yamaha Side Switch, 1.7" LCD, seven functions
Electric assisted speed limit 15.5 mph / 25 km/h
