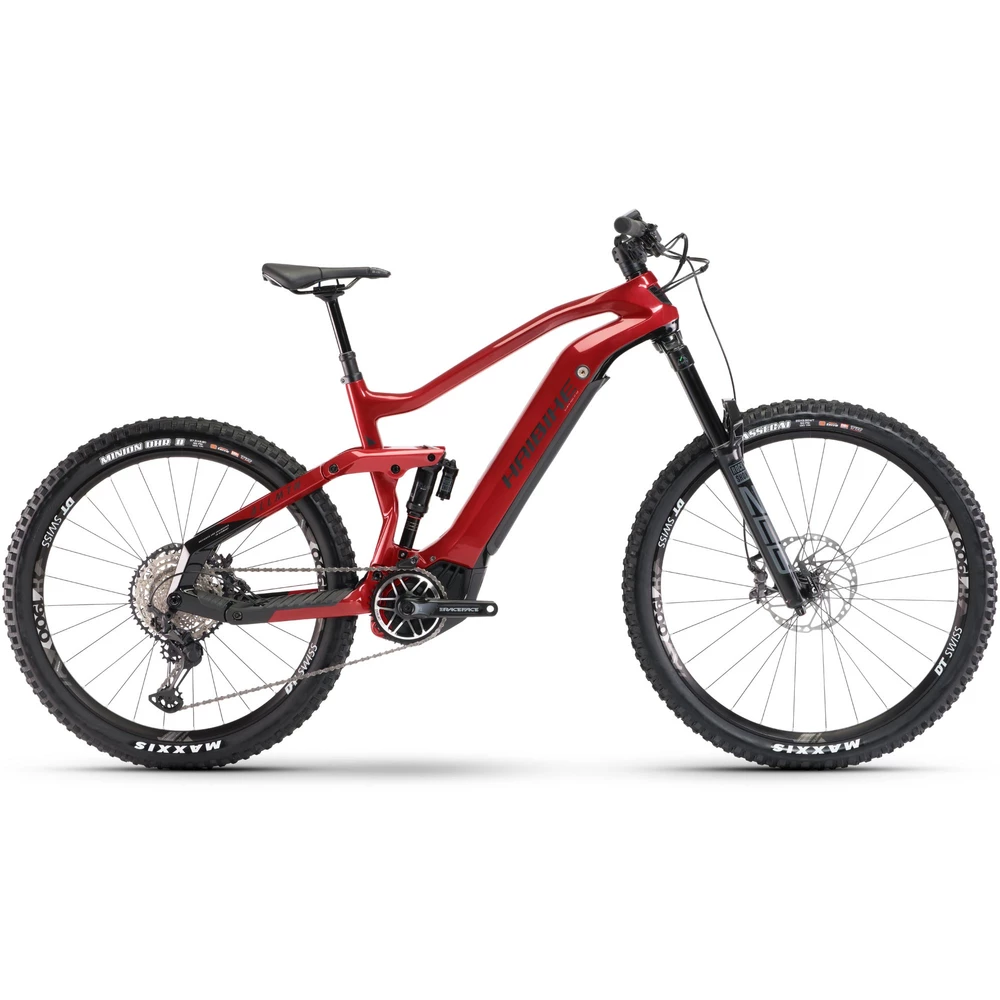

Haibike AllMtn CF 12 Electric Mountain Bike 2022

£3,799.00 - £3,999.00
RRP £5,599.00

Need help choosing an electric bike?

Our Kingston electric bike store team are here to help you. Email [email protected] or call 0333 006 8833

Check to see if we have it in stock - just select your colour and size.

AllMtn CF 12 Electric Mountain Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1408117

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premium Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

Haibike AllMtn CF 12 Electric Mountain Bike 2022

Based around the excellent Yamaha PW-X2 motor system, the Haibike AllMtn CF 12 Electric Mountain Bike is the perfect all-around choice to take your riding to the next level. Lightweight and stiff, the carbon frame delivers a premium ride character, and a high capacity 600Wh Yamaha battery is capable of long rides far from the beaten track. The motor provides 80Nm of torque to blaze up the climbs and features a Yamaha Side Switch display to keep on top of key data metrics. This bike has an electric assisted speed limit of 15.5 mph / 25 km/h.

This bike features a RockShox ZEB Charger R fork to improve its big-hit performance, with the oversized stanchions providing excellent front wheel tracking over challenging terrain. Shimano Deore XT brakes are equipped to enhance braking performance, with the four-piston design delivering epic stopping power in all conditions. RaceFace crank arms further reduce the weight, and the Shimano Deore XT drivetrain offers slick shifting across the entire 12-speed range.

Browse our range of Haibike electric mountain bikes today.


  • Powerful Yamaha PW-X2 motor system with 250w of power and 80Nm of torque, 25km/h maximum assistance
  • The lightweight carbon frame is both durable and reactive on the trail
  • Mixed wheel 29" front, 27.5" rear provides a playful ride character
  • 12-speed Shimano Deore XT drivetrain features a wide 11-51t cassette
  • 600Wh Yamaha battery delivers excellent range for long-lasting performance
  • 160mm RockShox Lyrik suspension fork is a robust choice for aggressive riding
  • Shimano four-piston hydraulic disc brakes offer superior control when descending

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 3.1kg
  • Battery Power: 600Wh

Technical Specification

Frame Haibike, XDURO AM i600, carbon
Fork RockShox, ZEB Charger R, air, 160mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15x110mm thru-axle, boost
Rear Shock RockShox, Deluxe Select, Air, Trunnion Mount
Stem Haibike Components The Stem, alu, A-head, 31.8mm
Grips Haibike, MTB grips
Handlebar Haibike Components The Bar, 780mm
Front Brake Shimano Deore XT, hydraulic disc brake, four-piston
Rear Brake Shimano Deore XT, hydraulic disc brake, four-piston
Brake Levers Shimano Deore XT
Rear Derailleur Shimano Deore XT, 12-speed
Shifter Shimano Deore XT, 12-speed
Chain Shimano CN-M7100
Cassette Shimano M7100, 10-51t
Crankset Raceface Aeffect
Front Wheel DT Swiss H1900, 29”
Rear Wheel DT Swiss H1900, 27.5”
Front Tyre Maxxis, Assegai MaxxTerra/Exo+/TR, 63-622, 29 x 2.5 inch, clincher
Rear Tyre Maxxis, Minion DHR II, 66-584, 27.5 x 2.8”, clincher
Saddle Prologo, Proxim W400
Seatpost Haibike Components Dropper-Post, aluminium, 34.9 mm
Pedals Freeridepedal, aluminium
Motor Yamaha PW-X2 System, 250w, 80Nm, 25 km/h
Battery Yamaha, 600Wh
Ui/Remote Yamaha Side Switch, 1.7" LCD, seven functions
Electric assisted speed limit 15.5 mph / 25 km/h

Haibike AllMtn CF 12 Electric Mountain Bike 2022 Sizing
