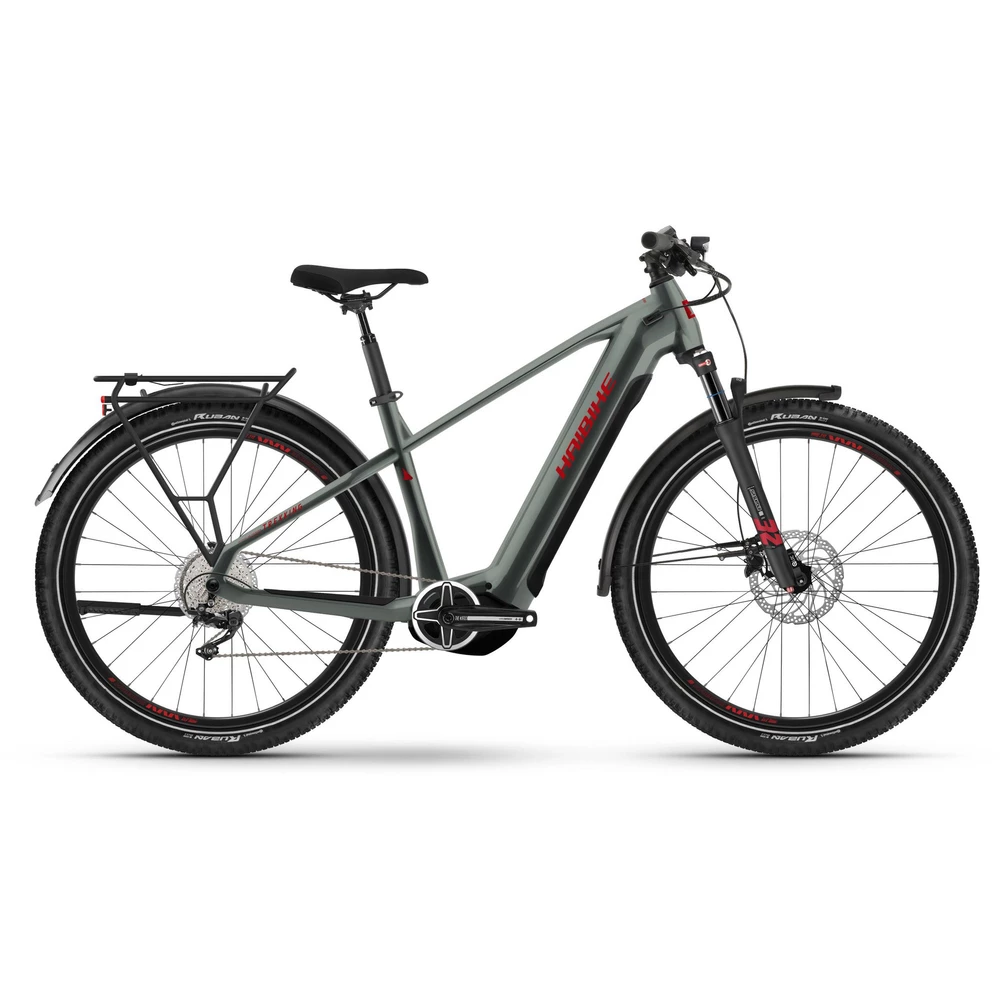

Haibike Trekking 5 High Electric Hybrid Bike 2023

This item is no longer available to buy. View similar products.

Product ID: 1651787

Haibike Trekking 5 High Electric Hybrid Bike 2023

Featuring a powerful Yamaha motor system and a high-capacity battery, the Haibike Trekking 5 High Electric Hybrid Bike delivers a fun, practical cycling experience for commuting, leisure and more. The 720Wh InTube battery creates enough range for assistance on long rides. 75Nm of torque is provided by the 250W Yamaha PW-S2 System motor, making light work of even the steepest hills, ensuring you arrive at your destination sweat-free, and it's light and small for sleek integration. This bike has an electric assisted speed limit of 15.5 mph / 25kph.

Integrated lights add a degree of visibility in low light conditions, and included are mudguards, a kickstand and a luggage rack for your convenience. The Yamaha display is clear and easy to read and allows viewing of assistance levels, ride stats such as speed, and battery remaining. A high front-end provides a comfortable and upright ride experience, and for crisp shifting, a Shimano Deore 1x12-speed drivetrain features. Hydraulic disc brakes provide powerful braking, instilling confidence when descending on wet roads.

Browse our range of Haibike electric bikes today.

Highlights

  • The aluminium frame is lightweight and durable
  • SR Suntour, Mobie 25 LOR fork with 100mm travel takes the sting out of rough roads
  • Yamaha PW-S2 motor system delivers 250w of power and 75Nm of torque
  • Shimano Deore 1x12-speed drivetrain
  • Shimano hydraulic disc brakes provide all-weather stopping power
  • 27.5" wheels and Continental Ruban Reflex clincher tyres
  • InTube 720Wh battery provides a good range
  • Integrated lights powered by the main battery
  • Pannier rack and mudguards are included, as well as a kickstand

Battery Specifications

  • Maximum Assist: 250w / 75Nm torque
  • Motor Weight: 2.85kg
  • Battery Power: 720Wh

Technical Specification

Frame Haibike Trekking, Aluminium 6061, high
Fork SR Suntour, Mobie 25 LOR, Lockout, steel spring, travel 100mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Headset Feimin, A-Head tapered, ball bearing
Bottom Bracket Integrated in the motor
Stem XLC, A-Head verstellbar, A-head, 31.8mm
Handlebar Ergoriser, oversize, 720mm
Front Brake Shimano MT410, hydraulic disc brake / Shimano RT30, 180mm rotor
Rear Brake Shimano MT410, hydraulic disc brake / Shimano RT30, 180mm rotor
Brake Levers Shimano MT402, aluminium
Rear Derailleur Shimano, Deore M5100
Shift Levers Shimano, Deore M5100, Trigger switch
Chain Shimano, CN-M6100
Chain guide Nylon, direct mount
Cassette Shimano, M5100, 11-51t
Crankset Miranda, Kies crank arm, 38t chainring
Front Wheel Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano, MT400, Center Lock / spokes - Sapim Leader, black
Rear Wheel Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano, MT400, Center Lock / spokes - Sapim Leader, black
Front Tyre Continental Ruban Reflex, 27.5" x 2.3", clincher
Rear Tyre Continental, Ruban Reflex, 27.5" x 2.3", clincher
Saddle Selle Royal, Essenza
Seatpost Haibike Components, aluminium, patent, 34.9mm
Pedals VP, E461, aluminium, with reflector
Motor Yamaha PW-S2 System, 250W, 75Nm, 25km/h
Ui/Remote Yamaha, Side Switch, 1.7" LCD, 7 functions
Battery InTube 720Wh
Accessories Herrmans H-Black MR4, 40 lumen front light / Spanninga, Aerline 2 rear light /Systemgepäckträger MIK, 25kg carrier / Curana, Apollo 70, aluminium mudguards / Ursus Mooi rear stand
Electric assisted speed limit 15.5mph / 25kph
Maximum system weight 130kg (including bike, rider and cargo)

Haibike Trekking 5 High Electric Hybrid Bike 2023 Sizing
