Orbea Avant H30 Road Bike 2020

★★★★★ ★★★★★
(9)
£1,049.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1219510

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

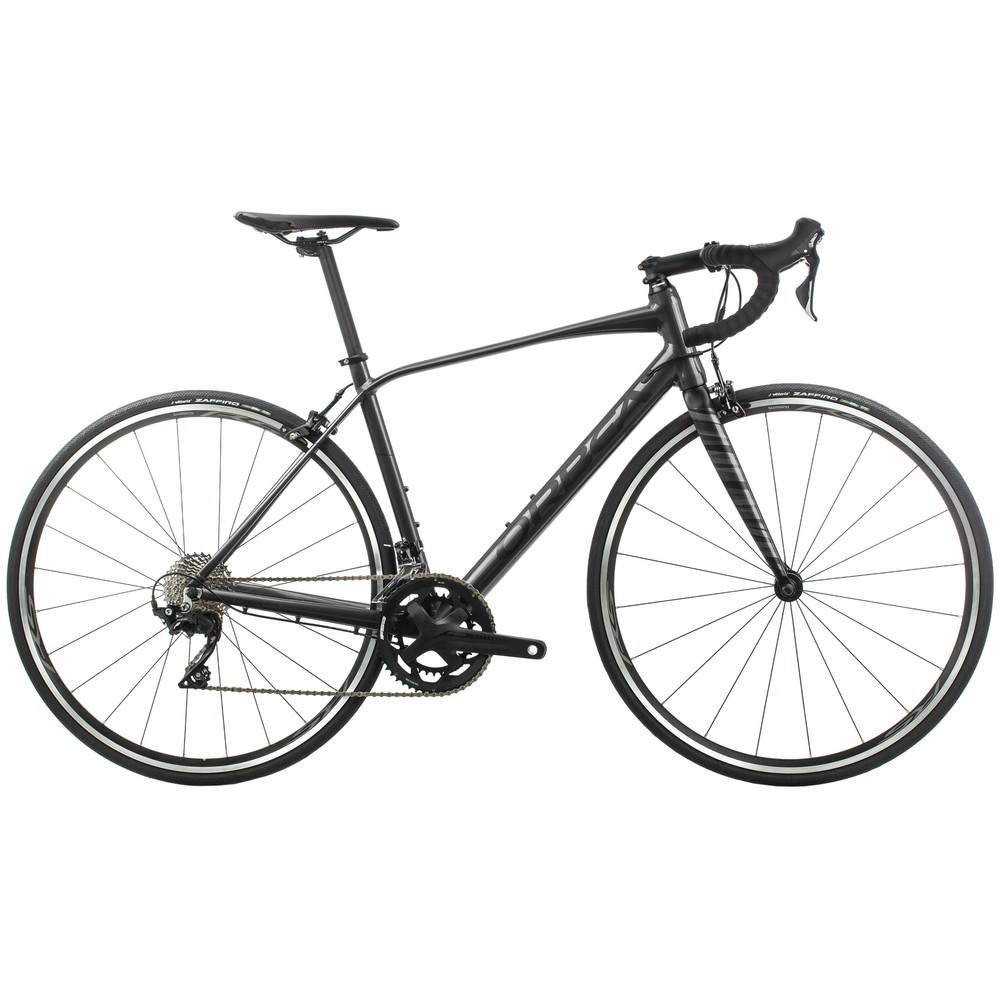

Orbea Avant H30 Road Bike 2020

Combining a strong, stiff and light aluminium frame with a carbon fork, the Orbea Avant H30 Road Bike offers predictable handling, efficient power transfer and a comfortable, smooth ride. The Avant Endurance Geometry provides a slightly less racy position for long days in the saddle, without feeling overly relaxed, and the handlebar, stem and cranks are frame-size-specific, making it easier to dial in an optimised position. This is a bike that will excel over a range of terrain whether that's the smoothest tarmac or potholed back lanes thanks to plenty of bump-smoothing compliance.

Shimano 105 and FSA components complement the build perfectly, blending reliability with performance in the drivetrain, with the 11 gears giving you plenty of range for the ups and the downs. Orbea rim brakes ensure powerful and modulated braking. The Avant rolls on Shimano RS100 wheels, a sturdy option that is able to cope with hard, all-weather riding.

Highlights

  • Orbea Avant Hydro - hydroformed triple-butted aluminium - frame
  • The headtube, downtube and chainstays are shaped to resist twisting and transmit power to the rear wheel
  • Avant Endurance Geometry endurance ergonomics result in a bike that is easier to ride and increases stamina. Handling is precise and intuitive
  • The Avant fork uses a shallower, rounded-blade profile and longer fork legs to offer the best combination of elasticity, tyre clearance and torsional stiffness. The increased axle-to-crown height is offset by a shorter headtube to maintain stack measurements and improve aesthetics
  • Shimano 105 R7000 and FSA 11-speed drivetrain
  • Shimano RS100 clincher wheels and Vittoria Zafiro IV 25c tyres

Please note: Spec is as listed, images are for illustration of colourway only

Technical Specification

Frame Orbea Avant Hydro, hydroformed triple-butted aluminium, headset 1-1/8”, BB 68mm- BSC English, internal cable routing, 130 OLD, 27.2mm seat tube
Fork Orbea Avant carbon fork, aluminium steerer, 1-1/8” head tube
Headset 1-1/8” semi-integrated aluminium cup
Bottom Bracket Orbea BB 68mm- BSC English
Stem Orbea OC-II, length - 90mm (47) / 100mm (49-51) / 110mm (53-57) / 120mm (60)
Handlebar Orbea OC1 Road, reach 80mm, drop 125mm, width - 380mm (47) / 400mm (49) / 420mm (51-55) / 440mm (57-60)
Front Brake Orbea OC-II
Rear Brake Orbea OC-II
Brake Levers Shimano 105 R7000
Front Derailleur Shimano 105 R7000
Rear Derailleur Shimano 105 R7000, 11-speed
Shift Levers Shimano 105 R7000, 11-speed
Cassette Shimano 105 R7000, 11-32t, 11-speed
Crankset FSA Omega Megaexo, 34/50t, crank length - 170mm (47-53) / 172mm (55-57) / 175mm (60)
Chain FSA Team Issue
Front Wheel Shimano RS100, clincher
Rear Wheel Shimano RS100, clincher
Front Tyre Vittoria Zafiro IV, 700x25c, clincher
Rear Tyre Vittoria Zafiro IV, 700x25c, clincher
Saddle Selle Royal Seta RS
Seatpost Orbea alloy 27.2 Offset 20mm
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
