Orbea Avant H50 Road Bike 2021

★★★★★ ★★★★★
MSP £939.00 Save 20%

Select a colour and size to view stock availability

Avant H50 Road Bike 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1280344

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Orbea Avant H50 Road Bike 2021

Possessing a multifaceted character, an advanced frame construction and dependable components, the Orbea Avant H50 Road Bike is the ideal companion for the longest of rides whether they be in the mountains or across uncharted country roads.

The high grade of aluminium that makes the frame has a hydroformed, variable thickness construction to raise its stiffness to weight ratio markedly. This frame introduces comfort to the rear of the bike via its kinked top tube design that shrinks the rear triangle to promote increased vertical compliance. In addition, the carbon fork legs smooth road surface irregularities to lower fatigue in the rider’s shoulders, neck and arms.

Hidden cable routing gives a truly clean and professional vibe while the endurance-inspired geometry positions the rider in a slightly more upright position to reduce tiredness in the back muscles during the biggest days in the saddle. Lightweight aluminium wheels are reactive but robust and are driven forwards by the reliable and accurate Shimano Sora gear configuration.


  • A super-durable, versatile and enlivening road bike that is great for endurance riding across a variety of road surfaces
  • Hydroformed aluminium frame with smooth welds boasts variable thickness tubing to increase lateral stiffness but keep the weight low

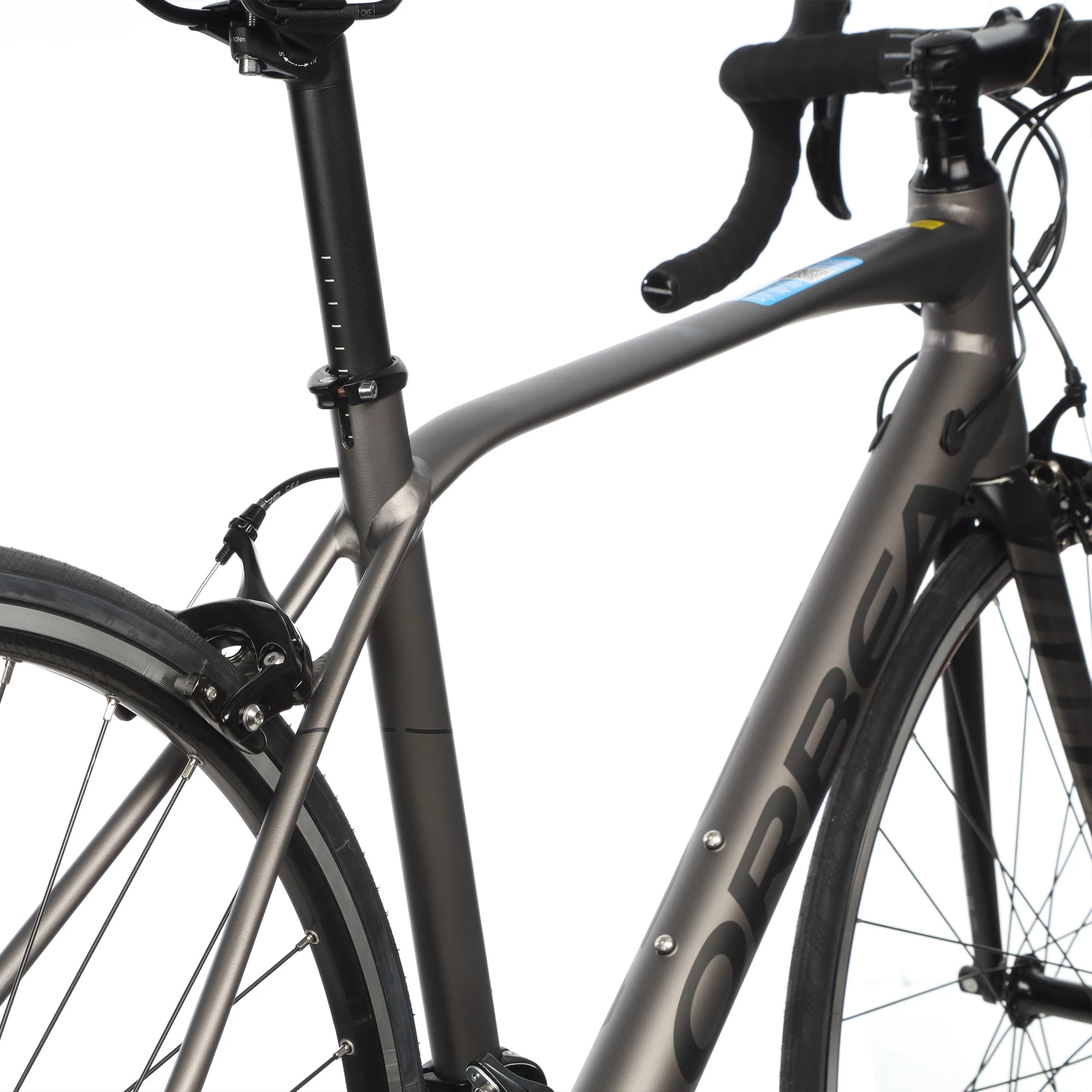

  • Innovative kinked top tube design creates a smaller rear frame triangle for increased compliance and comfort
  • The carbon fork with alloy steerer is torsionally stiff, strong and reduces road vibrations
  • Hidden cable routing through the frame grants a crisp aesthetic
  • Endurance inspired geometry reduces the reach and increases the stack for a more upright and comfortable riding position
  • Orbea R1800 wheels have an alloy rim, are light and strong
  • Shimano Sora 9-speed gears are precise and reliable

Technical Specification

Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, 1-1/8" headset, BB 68mm – BSC English bottom bracket standard, 130 OLD, 27.2mm seatpost diameter
Fork Orbea Avant carbon fork, 1-1/8” aluminium steerer
Headset Orbea 1-1/8" Semi-Integrated Aluminium Cup
Stem Orbea OC1 31.8mm interface, 7-degree (Length - 90mm (Size 47) / 100mm (Sizes 49, 51, 53) / 110mm (Sizes 55, 57) / 120mm (Size 60))
Handlebar Orbea OC1 Road, reach 80mm, drop 125mm (Width (C-C) - 380mm (Size 47) / 400mm (Size 49) / 420mm (Sizes 53, 55, 57) / 440mm (Sizes 57, 60))
Front Brake Orbea OC-II, caliper
Rear Brake Orbea OC-II, caliper
Brake Levers Shimano Sora
Front Derailleur Shimano Sora 3000
Rear Derailleur Shimano Sora 3000GS, 9-speed
Shift Levers Shimano Sora, 9-speed
Chain Shimano HG53, 9-Speed
Cassette Shimano HG53, 9-Speed

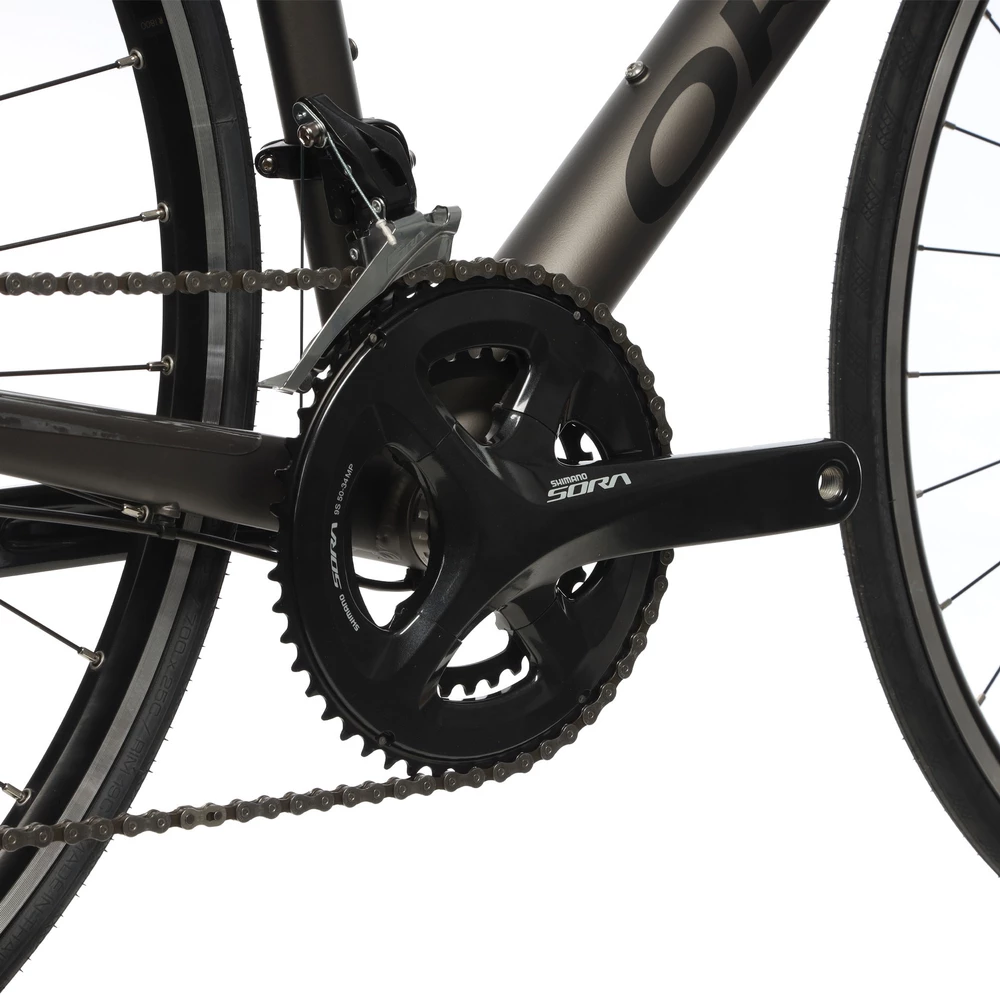

Crankset Shimano Sora R3000, 34x50 teeth chainrings (Length - 170mm (Sizes 47, 49, 51, 53) / 172.5mm (Sizes 55, 57) / 175mm (Size 60))
Front Wheel Orbea R1800
Rear Wheel Orbea R1800
Front Tyre Vittoria Zafiro V, 700x25c, clincher
Rear Tyre Vittoria Zafiro V, 700x25c, clincher
Saddle Selle Royal Seta RS
Seatpost Orbea Alloy 27.2mm diameter, 20mm offset
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Orbea Avant H50 Road Bike 2021 Sizing
