Description

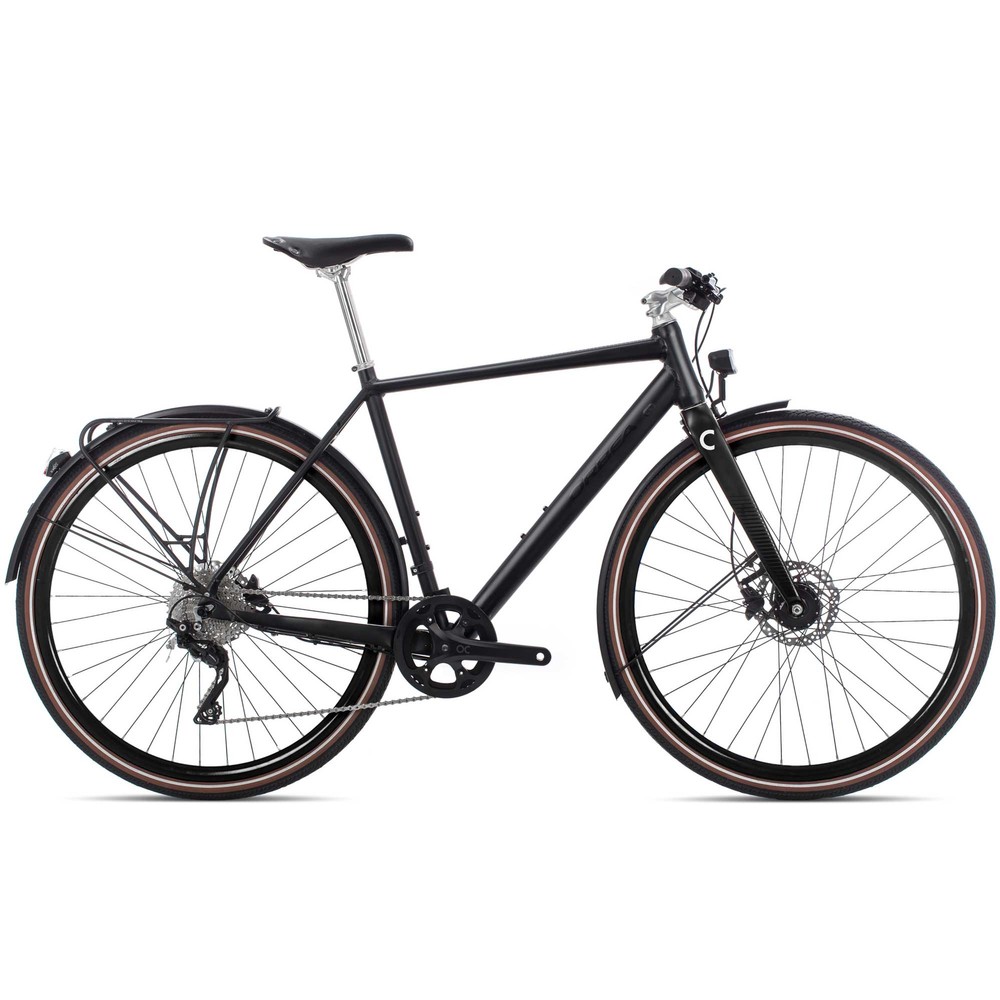

Ultimately versatile, the Orbea Carpe 10 Disc Hybrid Bike is designed to fit around your busy lifestyle. Built on a high-quality Aluminium 6000 frame, this bike is robust and lightweight, making it perfect for daily commutes and leisure rides, while the inclusion of a rear rack means you can even carry your shopping home too.
High-quality Shimano components deliver crisp and reliable shifting through the 10-speed Deore gearset, while hydraulic disc brakes are the perfect addition to help you stop with modulation in any weather. And when it's raining, you'll enjoy the benefits of the included SKS EDGE mudguards to help you stay dry.
Another fantastic addition to this bike's specification is the dynamo-powered light set. A Spanninga Pixeo rear light and Kendo XDAS front light are powered by the dynamo and won't run out of batteries, so you can ride safely in the knowledge you're easier to spot on the road.
Frame | Orbea Urban Speed Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9mm QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing |
Fork | Orbea Speed 400mm Carbon, Flat Mount Disc Brake |
Stem | Orbea TDS-C301 |
Handlebar | Orbea AL320 Riser 680mm |
Front Brake | Shimano MT200 hydraulic disc |
Rear Brake | Shimano MT200 hydraulic disc |
Brake Levers | Shimano MT200 hydraulic disc |
Front Derailleur | N/A |
Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus |
Shift Levers | Shimano Deore M4100 10-speed |
Cassette | Shimano Deore M4100 11-46t 10-speed |
Crankset | Orbea Alloy 42t |
Front Wheel | Orbea Airline Corsa Disc 700 x 19c clincher |
Rear Wheel | Orbea Airline Corsa Disc 700 x 19c clincher |
Front Tyre | Kenda K1067 700x38C Reflective type plus puncture protection, clincher |
Rear Tyre | Kenda K1067 700x38C Reflective type plus puncture protection, clincher |
Saddle | Velo 1221 |
Seatpost | Orbea C255 27.2x300mm |
Accessories | Orbea rear luggage carrier (Max |
Front Light | Joss Spanninga Kendo XDAS Dinamo |
Rear Light | Spanninga Pixeo |
Dynamo | Shimano DH-3D37-NT, 6V Dynamo 3.0W |
Pedals | Available to be purchased separately |
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
