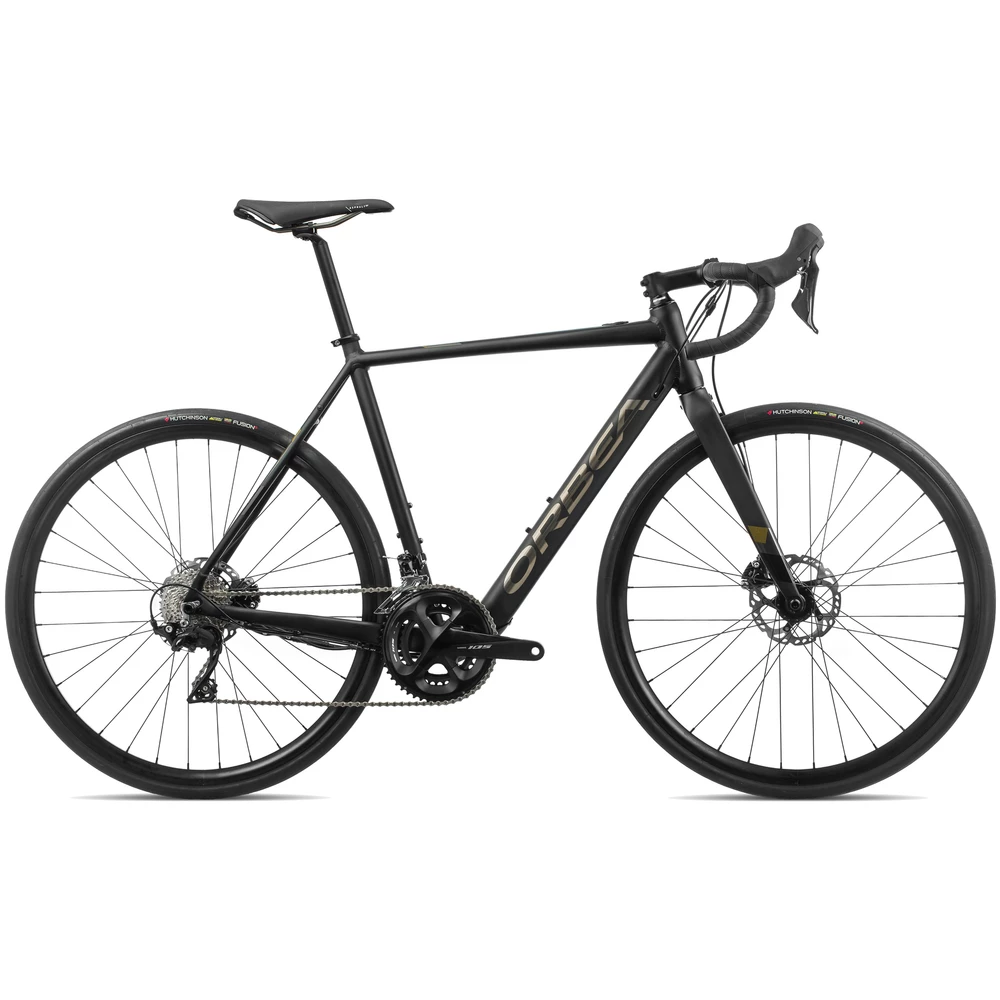

Orbea Gain D30 Disc E-Road Bike 2020

The Orbea Gain D30 Disc E-Road is a fun bike to ride, thanks to the sporty geometry, stiff yet compliant alloy frame and carbon fork, and the addition of a powerful hub-based motor, providing assistance so you can ride further or simply get up the hills faster. The setup keeps things sleek, with the light small battery neatly integrated. Delivery of power is incredibly smooth and when it cuts out above 25kph, it'll do so without creating additional drag.

Shimano 105 is a groupset that benefits from the use of trickle-down technology from models above, so you get crisp shifting performance and powerful modulated all-condition braking with very little weight penalty. BlackJack Ready GR wheels and Hutchinson Fusion 5 All Season 28mm tyres are a solid pairing, able to take on even harsher roads with aplomb, for fast rolling and a comfortable ride.

Highlights

  • Lightweight alloy frame and carbon fork
  • The Enough Power and Enough Energy concepts result in an exceptionally lightweight, sporty and rideable bike – a machine that heeds the call of the open road. Gain embraces your sweat and hard work and works in unison with your efforts to tick off the kilometres
  • System interfaces are modern, integrated and sleek
  • The Gain’s control centre is an attractive and discreet button on the top tube. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge
  • Coloured LED lighting puts all the information you need right at your fingertips
  • The Ebikemotion 36V/6.9A ANT+ battery is light, small and discreet. Gain’s Enough Energy concept provides you with enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike
  • The rear hub motor is the key to Gain’s Enough Power concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to enhance your ride, not dominate it. And since the motor is at the hub, you’ll experience drag-free pedalling when Gain is not providing a push
  • Gain’s smooth and balanced assist requires an advanced sensor. Blending perfectly with your effort to create a sleek and discrete system, the cassette lockring holds 20 magnets that are detected by the integrated dropout sensor. The system monitors your pedalling input and adjusts power accordingly
  • A smartphone and smartwatch compatible app enable deeper control of the iWoc system used by Gain. Ride tracking, activity and GPS route uploading and other functions are available from your mobile device, making the Gain an even more valuable tool
  • Shimano 105 11-speed drivetrain and Shimano 105 R7070 hydraulic disc brakes
  • BlackJack Ready GR clincher wheels and Hutchinson Fusion 5 All Season 28c tyres
  • Please note: Spec is as listed, images are for illustration of colourway only

Technical Specification

Frame Orbea Gain Hydro, aluminium 6000 series, Orbea Tube Shaping, flat mount disc brakes, 135x9 QR, carrier and mudguards compatible, maximum tyre size 700x40c, inner cable routing, Ebikemotion X35 specific, integrated battery
Fork Orbea Speed 400mm carbon flat mount
Headset 1-1/8” semi-integrated
Handlebar Orbea OC2 Road, reach 80mm, drop 125mm, width - 400mm (XS); 420mm (S,M); 440mm (L,XL)
Stem OC1 Road -6º, length - 90mm (XS); 100mm (S,M); 110mm (L); 120mm (XL)
Front Brake Shimano R7070 hydraulic disc
Rear Brake Shimano R7070 hydraulic disc
Brake Levers Shimano ST-7020
Front Derailleur Shimano 105 R7000
Rear Derailleur Shimano 105 R7000 GS
Shift Levers Shimano ST-7020, 11-speed
Cassette Shimano 105 R7000, 11-32t, 11-speed
Crankset Shimano 105 R7000 34x50t, crank length - 170mm (XS,S,M); 172mm (L); 175mm (XL)
Chain KMC X11
Front Wheel BlackJack Ready GR, clincher
Rear Wheel BlackJack Ready GR, clincher
Front Tyre Hutchinson Fusion 5 All Season TLR 700x28c, clincher
Rear Tyre Hutchinson Fusion 5 All Season TLR 700x28c, clincher
Saddle Selle Royal Asphalt GR
Seatpost Orbea OC2 27.2 Offset 20
Pedals N/A
Motor Ebikemotion X35 25kmh
Battery Ebikemotion 36V/6.9A ANT+
Remote Ebikemotion iWoc ONE
Charger Ebikemotion X35

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.
