Orbea Gain D30 GRX 600 Disc Electric Gravel Bike 2021

★★★★★ ★★★★★

Select a colour and size to view stock availability

Gain D30 GRX 600 Disc Electric Gravel Bike 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1291507

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

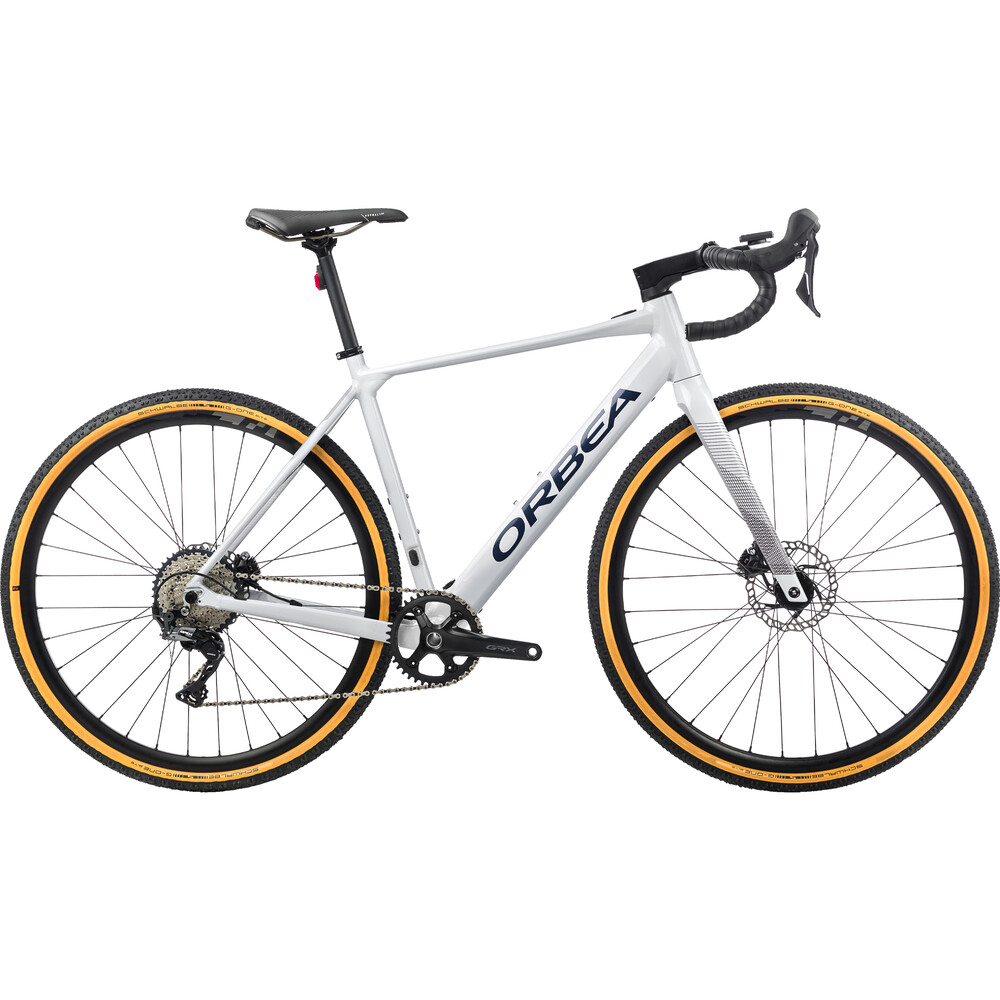

Orbea Gain D30 GRX 600 Disc Electric Gravel Bike 2021

For long mixed-surface adventures that you simply want to enjoy to the full, treat yourself to an Orbea Gain D30 GRX 600 Disc Electric Gravel Bike. The powerful motor is housed in the rear wheel and is designed to enhance your ride rather than dominate it adding extra power up to a maximum speed of 15.5 mph / 25 km/h. So, you can call upon its 250 watts of assistance when you want it, and ride freely without assistance when you don't.

The 248Whr battery is housed in the down tube, and the neat Mahle Ebikemotion iWoc ONE remote interface will let you know how much power you have left among other metrics. Also in the head unit, you'll find a 60 lumen integrated front light, with a rear light housed in the seatpost too.

A Shimano GRX groupset is specified here with a 1 x 11-speed setup that's perfect for choppy trails and long canal tow-paths, with the wide-ranging 11-40t cassette combining with the 40t chainring for loads of gearing options. The grippy Vittoria Terreno Dry Gravel G2.0 tyres come in a size 38c, so you'll have comfort and traction wherever you ride.

Browse our range of Orbea electric gravel bikes today.


  • The Mahle Ebikemotion X35 Plus motor is designed to improve your rides, not dominate them
  • Motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
  • ICR Plus internal cable routing keeps the cockpit clean looking
  • Integrated lights
  • Mahle Ebikemotion 248Wh battery neatly housed in the downtube
  • Mahle Ebikemotion iWoc ONE interface displays battery and assist levels as you ride
  • Hydroformed Aluminium frame is lightweight and robust
  • Endurance geometry is perfect for riding all day long
  • Shimano GRX 11-speed groupset is ideal for gravel riding
  • Vittoria Terreno Dry Gravel G2.0 tyres are plush and comfortable off-road, providing plenty of grip too

Battery Specification

  • Maximum Assist: 250w up to 25km/hr
  • Motor Weight: 3.5kg
  • Range: Up to 47 miles / 75km depending on usage and riding conditions
  • Battery Power: 250Wh

Technical Specification

Frame Orbea Gain Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximum tyre, 1" 1/2 semi-integrated headset, 41 x 86.5 Pressfit bottom bracket
Fork Orbea Gain Hydrocarbon fork, full carbon, 1-1/8" - 1.5" tapered head tube compatible, 700x40 maximum tyre, flat mount disc mount, Thru-axle 12x100mm
Headset Orbea Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea OC1 31.8mm interface -6º
Handlebar Orbea OC1 All Road, reach 80mm, drop 125mm, flare 12º
Front Brake Shimano GRX400 hydraulic disc
Rear Brake Shimano GRX400 hydraulic disc
Brake Levers Shimano GRX400
Rear Derailleur Shimano GRX812 GS 11-speed
Shift Levers Shimano GRX ST-RX600 11-speed
Chain KMC X11
Cassette Shimano SLX M7000 11-40t 11-Speed
Crankset Shimano GRX RX600 40t
Front Wheel Blackjack Ready GR clincher
Rear Wheel Blackjack Ready GR clincher
Front Tyre Vittoria Terreno Dry Gravel G2.0 TNT 700x38c clincher
Rear Tyre Vittoria Terreno Dry Gravel G2.0 TNT 700x38c clincher
Saddle Selle Royal Asphalt GR
Seatpost Orbea OC 27.2 Offset 0, for integrated light
Pedals Available to be purchased separately
Accessories 60 Lumen COB LED front light on display holder, 11-lumen Lezyne STVZO seatpost mounting rear light
Motor Mahle Ebikemotion X35 Plus 25kmh (250 watts, 40Nm maximum torque)
Remote Mahle Ebikemotion iWoc ONE
Battery Mahle Ebikemotion 36V/6.9A 248Wh ANT+
Charger Mahle Ebikemotion X35
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Orbea Gain D30 GRX 600 Disc Electric Gravel Bike 2021 Sizing
