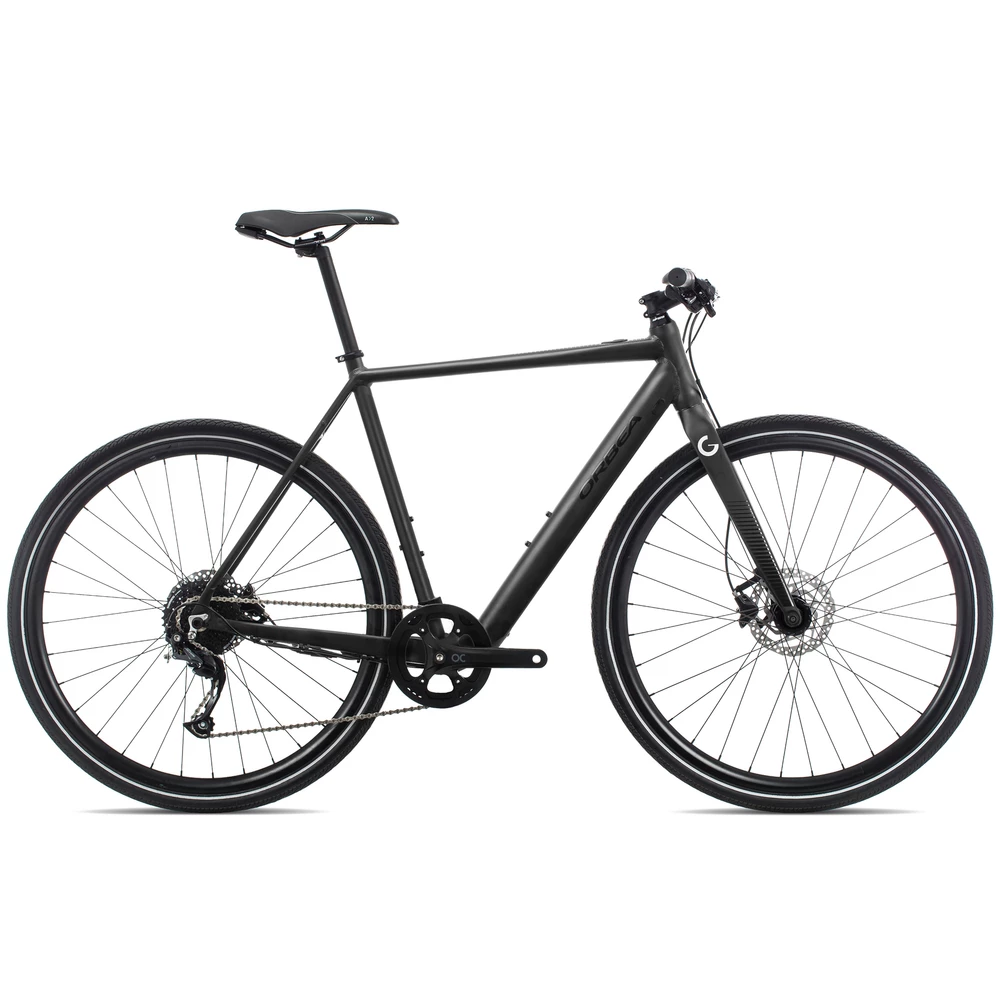

Orbea Gain F40 Disc Electric Hybrid Bike 2020

★★★★★ ★★★★★
(1)
£1,799.00

From only £134.93 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Orbea
Gain F40 Disc Electric Hybrid Bike 2020

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1224344

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Orbea Gain F40 Disc Electric Hybrid Bike 2020

The Orbea Gain F40 Disc Electric Hybrid Bike brings together the comfort of a more relaxed position, the stiff yet compliant feel of an alloy frame and carbon fork, and the assistance of a powerful motor. Built into the rear hub, this motor will provide a boost up to 25kph, when it cuts out without creating any extra drag at higher speeds. The battery that powers it is small and light, fitting discreetly into the downtube, and the motor is powered on and off by a button on the top tube, which also provides information about battery and assistance levels.

The bike has been built up with reliable Shimano 9-speed components that include hydraulic disc brakes for confidence-inspiring stopping power, and rolls on Orbea Airline Corsa wheels fitted with Kenda 38mm tyres, wide enough to soak up the impacts of the harshest roads. This is a versatile bike that'll excel both on tarmac and gravel, with clearance for wider 40mm tyres further adding to its capabilities.

Highlights

  • Strong alloy frame and carbon fork
  • The Enough Power and Enough Energy concepts result in an exceptionally lightweight, sporty and rideable bike – a machine that heeds the call of the open road. Gain embraces your sweat and hard work and works in unison with your efforts to tick off the kilometres
  • System interfaces are modern, integrated and sleek
  • The Gain’s control centre is an attractive and discreet button on the top tube. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge
  • Coloured LED lighting puts all the information you need right at your fingertips
  • The Ebikemotion 36V/6.9A ANT+ battery is light, small and discreet. Gain’s Enough Energy concept provides you with enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike
  • The rear hub motor is the key to Gain’s Enough Power concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to enhance your ride, not dominate it. And since the motor is at the hub, you’ll experience drag-free pedalling when Gain is not providing a push
  • Gain’s smooth and balanced assist requires an advanced sensor. Blending perfectly with your effort to create a sleek and discrete system, the cassette lockring holds 20 magnets that are detected by the integrated dropout sensor. The system monitors your pedalling input and adjusts power accordingly
  • A smartphone and smartwatch compatible app enables deeper control of the iWoc system used by Gain. Ride tracking, activity and GPS route uploading and other functions are available from your mobile device, making the Gain an even more valuable tool
  • Shimano 9-speed drivetrain and hydraulic disc brakes
  • Orbea Airline Corsa disc wheels and Kenda 38mm tyres
  • Clearance for 40mm wide tyres
  • Please note: Spec is as listed, images are for illustration of colourway only

Technical Specification

Frame Orbea Gain Hydro, aluminium 6000 series, Orbea Tube Shaping, flat mount disc brakes, 135x9 QR, carrier and mudguard compatible, maximum tyres 700x40C, inner cable routing, Ebikemotion X35 specific, integrated battery
Fork Orbea Speed 400mm carbon flat mount
Headset 1-1/8” semi-integrated
Handlebar Orbea alloy 31.8mm riser, width - 640mm
Stem Alloy 31.8mm interface 7º, length - 70mm
Front Brake Shimano MT200 Hydraulic Disc
Rear Brake Shimano MT200 Hydraulic Disc
Brake Levers Shimano SL-M2010
Front Derailleur n/a
Rear Derailleur Shimano Altus M2000 SGS Shadow
Shift Levers Shimano SL-M2010, 9-speed
Cassette Shimano HG50 11-36t, 9-speed
Crankset Prowheel 42 steel, custom logo, crank length - 170mm
Chain Shimano HG53 9-speed
Front Wheel Orbea Airline Corsa, clincher
Rear Wheel Orbea Airline Corsa, clincher
Front Tyre Kenda K1067, 700x38c, reflective type with puncture protection, clincher
Rear Tyre Kenda K1067, 700x38c, reflective type with puncture protection, clincher
Saddle Selle Royal Scientia A2
Seatpost Orbea alloy 27.2, offset 20
Pedals VP-537 Black
Motor Ebikemotion X35 25kmh
Battery Ebikemotion 36V/6.9A ANT+
Display OC monochrome ANT+ LEV
Remote Ebikemotion iWoc ONE
Charger Ebikemotion X35

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Orbea Gain F40 Disc Electric Hybrid Bike 2020 Sizing
