Description

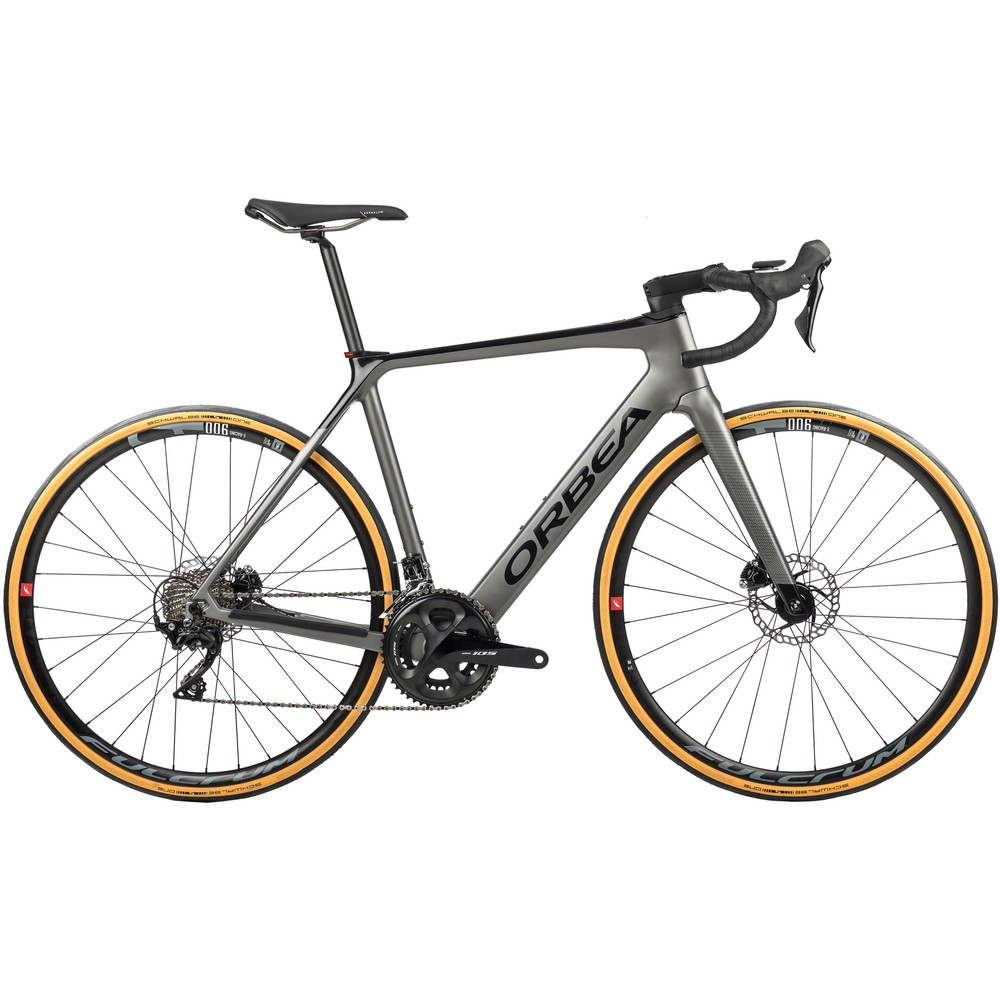

Orbea Gain M30F 105 Disc Electric Road Bike 2021
The perfect machine for long road rides, the Orbea Gain M30 105 Disc Electric Road Bike combines a lightweight carbon fibre frameset with a powerful motor for a fine mix of pace and comfort. At the touch of a button you can enjoy up to 250 watts of assistance and when it is turned off, the superb Mahle Ebikemotion system is barely noticeable. By housing the motor in the rear hub, and the battery inside the down tube, the bike looks more like a regular racer than an e-bike
Orbea has included some really neat finishing touches to make this bike stand out. The integrated front and rear lights are extremely handy and look quite slick, while the integrated cable routing through the stem and headset makes the whole front end look really clean.
With an 11-speed Shimano 105 groupset, you're getting crisp, accurate shifting through the all the gears you need for any gradient. The compact chainset combines with a wide-ranging cassette to make light work of any hills, especially considering you have up to 250 watts of extra power in the motor when you want it. Hydraulic disc brakes make for confident and modulated stopping, whether the road conditions are wet or dry.
Browse our range of Orbea electric road bikes today.
Highlights
- Lightweight Orbea Carbon OMR monocoque frameset
- The Mahle Ebikemotion X35 Plus motor is designed to improve your rides, not dominate them
- Motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
- ICR Plus internal cable routing keeps the cockpit clean looking
- Integrated lights
- Mahle Ebikemotion 248Wh battery neatly housed in the downtube
- Mahle Ebikemotion iWoc ONE interface displays battery and assist levels as you ride
- Endurance geometry is perfect for riding all day long
- Shimano 105 R7000 11-speed groupset
- Clearance for tyres up to 40mm wide
Battery Specification
- Maximum Assist: 250w up to 25km/hr
- Motor Weight: 3.5kg
- Range: Up to 47 miles / 75km depending on usage and riding conditions
- Battery Power: 248Wh
Technical Specification
| Frame | Orbea Gain Carbon OMR monocoque structure, integrated seat clamp with integrated Lezyne STVZO rear light, ICR internal cable routing, forged bottom bracket BB386 EVO, 135x9 quick release, flat mount disc, 700x40mm maximum tyre clearance, 1" 1/2 semi headset |
| Fork | Orbea Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40mm maximum tyre clearance, flat mount disc, Orbea 12x100mm Thru-Axle M12x2 P1 Lite, down tube aero integration |
| Headset | Orbea Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | Orbea ICR -8º |
| Handlebar | Orbea OC2 Road, reach 80mm, drop 125mm |
| Front Brake | Shimano 105 R7070 hydraulic disc |
| Rear Brake | Shimano 105 R7070 hydraulic disc |
| Brake Levers | Shimano 105 R7020 hydraulic disc |
| Rear Derailleur | Shimano 105 R7000 GS 11-speed |
| Front Derailleur | Shimano 105 R7000 |
| Shift Levers | Shimano 105 ST-7020 11-speed |
| Chain | KMC X11 |
| Cassette | Shimano 105 R7000 11-32t 11-Speed |
| Crankset | Shimano 105 R7000 34x50t |
| Front Wheel | Fulcrum E-Racing 900 clincher |
| Rear Wheel | Fulcrum E-Racing 900 clincher |
| Front Tyre | Schwalbe ONE 700x30C, Performance Line RaceGuard, TLE, ADDIX, tubeless-ready clincher |
| Rear Tyre | Schwalbe ONE 700x30C, Performance Line RaceGuard, TLE, ADDIX, tubeless-ready clincher |
| Saddle | Selle Royal Asphalt GR |
| Seatpost | OC2 Carbon 27.2 Offset 20mm |
| Pedals | Available to be purchased separately |
| Accessories | 60 Lumen COB LED front light on display holder, 11-lumen Lezyne STVZO integrated seat clamp rear light |
| Motor | Mahle Ebikemotion X35 Plus 25kmh (250 watts, 40Nm maximum torque) |
| Remote | Mahle Ebikemotion iWoc ONE |
| Display | Mahle Ebikemotion Pulsar One monochrome ANT+ LEV |
| Battery | Mahle Ebikemotion 36V/6.9A 248Wh ANT+ |
| Charger | Mahle Ebikemotion X35 |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
