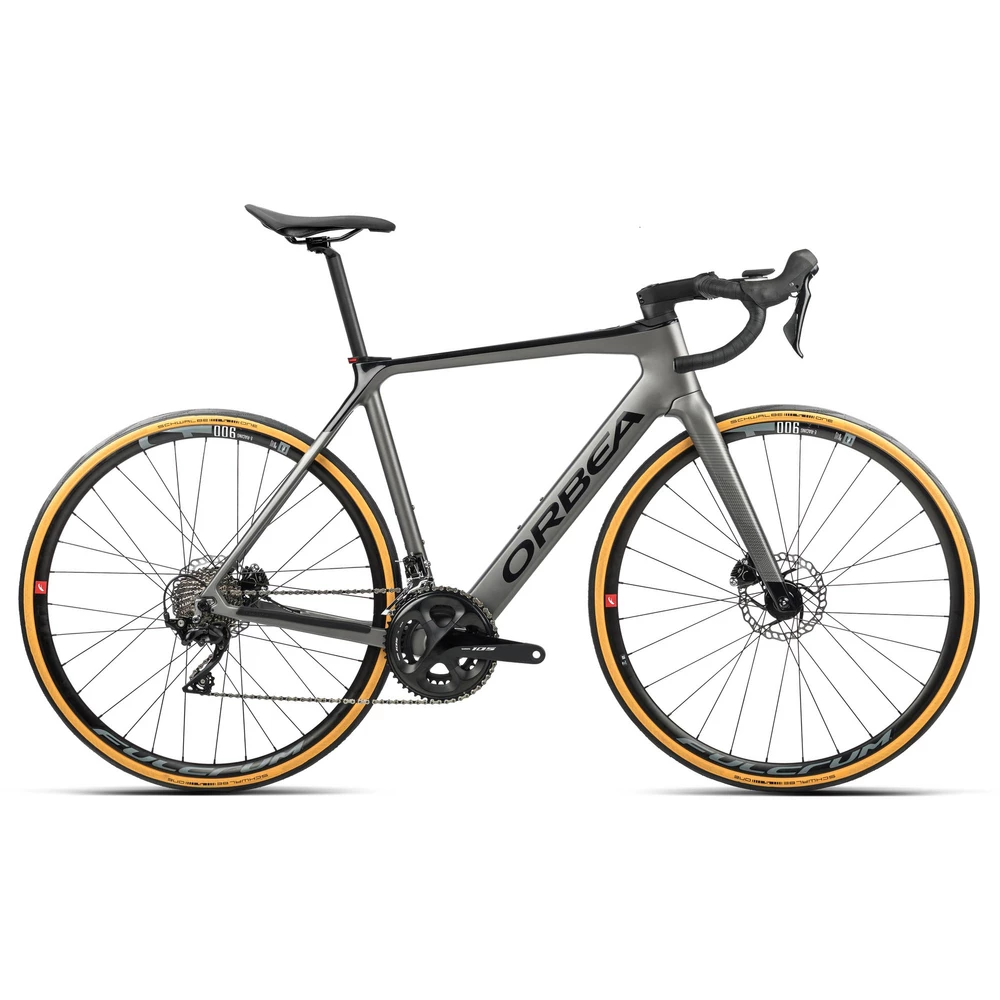

Orbea Gain M30 Electric Road Bike 2022


Select a colour and size to view stock availability

Gain M30 Electric Road Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1464505

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Orbea Gain M30 Electric Road Bike 2022

A fast and efficient choice, the Orbea Gain M30 Electric Road Bike delivers an authentic cycling experience with a twist of powered assistance, taking the sting out of hills to encourage exploration. The carbon frame is lightweight and stiff, offering explosive power transfer for rapid acceleration, and sees the 248Wh battery integrated neatly into the downtube. An STVZO compliant light integrates into the built-in seatpost clamp, and the Ebikemotion X35 Plus hub motor provides 40Nm of hill-shredding torque and assistance up to a maximum speed of 15.5 mph / 25 km/h.

Comfort is key to your performance over longer distances, and the relaxed geometry of the Gain is ideal for endurance rides and sportive events. The iWoc ONE display displays the remaining battery charge and the current level of assistance, keeping key ride data in your line of sight.

Offering performance where it counts, the 11-speed Shimano drivetrain and Fulcrum wheelset are both durable and lightweight, and the full-carbon fork provides compliant comfort to damp road vibration. The Schwalbe ONE tyres feature a 30c width to take the sting out of bumps and potholes, while the Fizik Aliante R5 saddle issues lasting comfort.

Browse our range of Orbea electric road bikes today.


  • The Ebikemotion X35 Plus motor improves your rides rather than dominating them
  • The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
  • ICR Plus internal cable routing keeps the cockpit clean looking
  • Integrated lights draw power from the main battery
  • An Ebikemotion 248Wh battery is neatly housed in the downtube
  • The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
  • Endurance geometry is perfect for all-day rides
  • Shimano 105 11-speed groupset is efficient and precise
  • Schwalbe G-ONE tyres are plush and comfortable, thanks to their 30c width

Battery Specification

  • Maximum Assist: 250w, 40Nm
  • Motor Weight: 3.5kg
  • Battery Power: 248Wh

Technical Specification

Frame Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximum tyre, 1" 1/2 semi headset, BB386 EVO
Fork Gain OMR carbon fork, with 1-1/2 carbon steerer, 700x40 maximum tyre, flat mount disc mount, 12x100mm thru-axle, with down tube aero integration
Headset Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea OC RP10 Road Performance SL, ICR, -8º, IFC01 Computer mount interface
Handlebar Orbea OC RP20 Road Performance SL, 80mm reach, 125mm drop
Front Brake Shimano R7070, hydraulic disc
Rear Brake Shimano R7070, hydraulic disc
Brake Levers Shimano ST-7020
Front Derailleur Shimano 105 R7000
Rear Derailleur Shimano 105 R7000 GS
Shift Levers Shimano ST-7020, 11-speed
Chain KMC X11
Cassette Shimano 105 R7000, 11-32t, 11-speed
Crankset Shimano 105 R7000, 34x50t
Front Wheel Fulcrum E-Racing 900, clincher, 700c
Rear Wheel Fulcrum E-Racing 900, clincher, 700c
Front Tyre Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, tubeless-ready
Rear Tyre Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, tubeless-ready
Seatpost Orbea OC carbon. 27.2mm diameter, zero offset, for integrated light
Pedals Available to be purchased separately
Accessories Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen, STVZO
Motor Ebikemotion X35 Plus, 250W, 40Nm
Remote Ebikemotion iWoc ONE
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Charger Ebikemotion X35
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Orbea Gain M30 Electric Road Bike 2022 Sizing
