Orbea Keram 30 Electric Mountain Bike 2021


We're sorry, but unfortunately, we're unable to ship this item to your country

Not sure what you are after and looking to test ride an electric bike? Well, you can at our Electric Bike Store.

Click here to make a booking

Product ID: 1231871

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

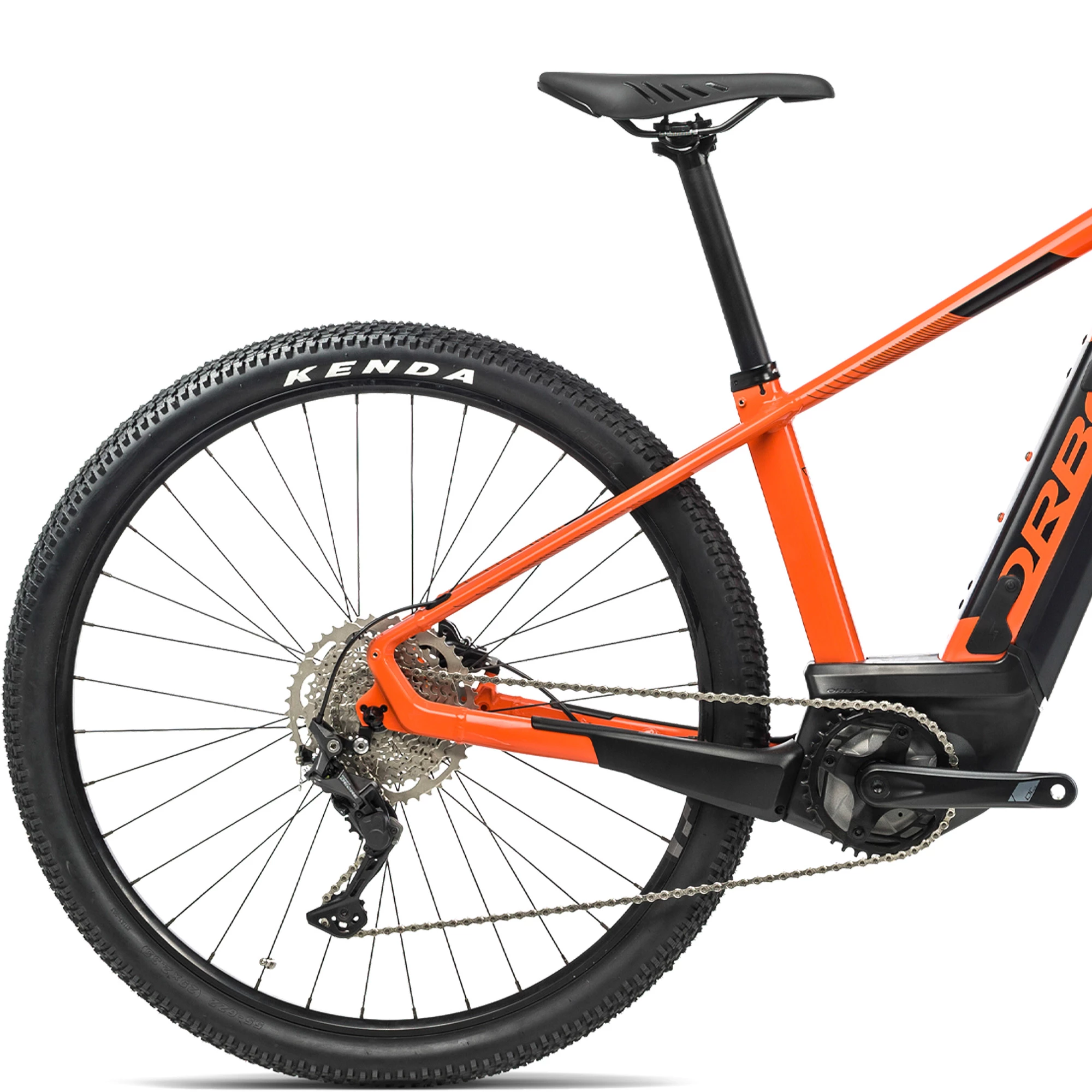

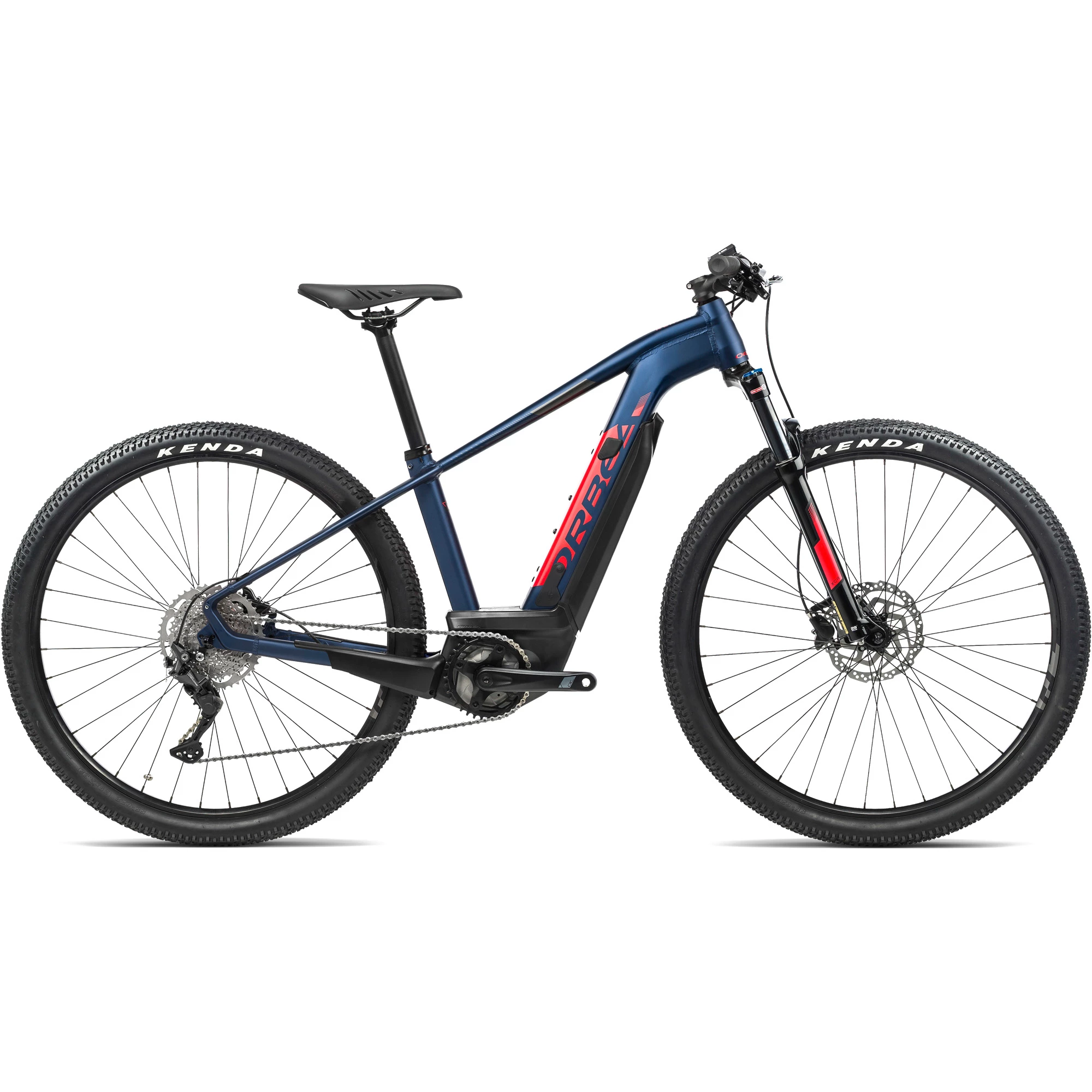

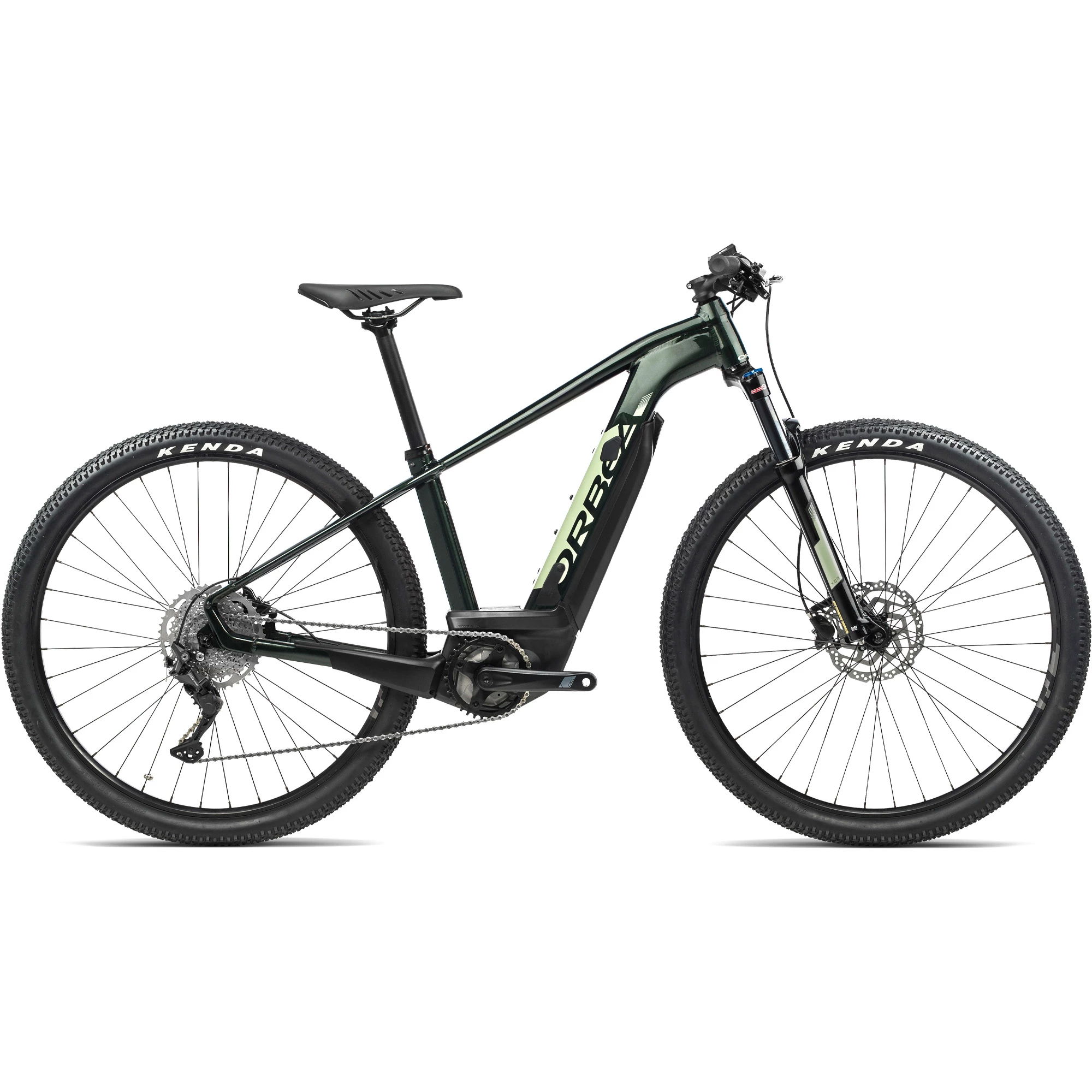

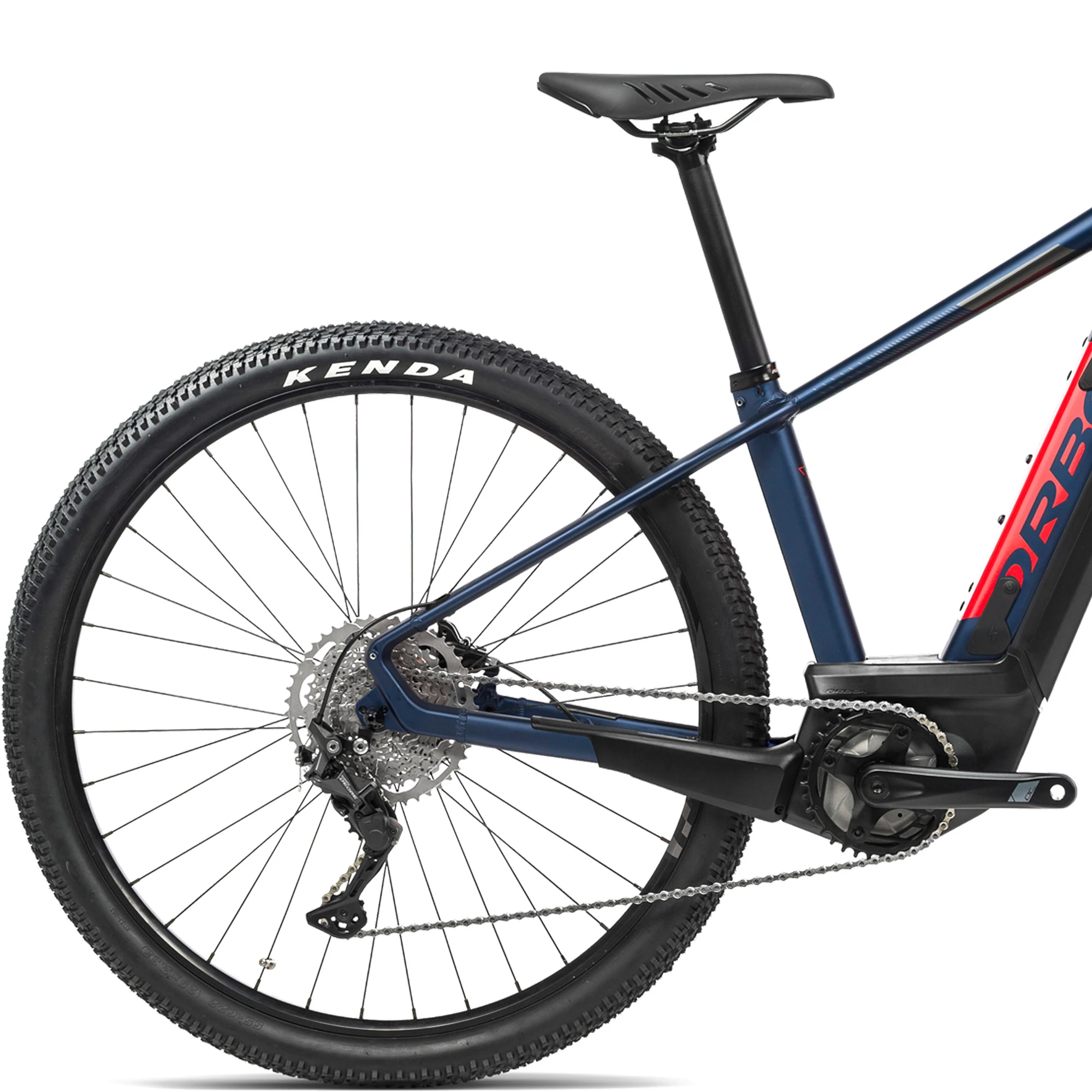

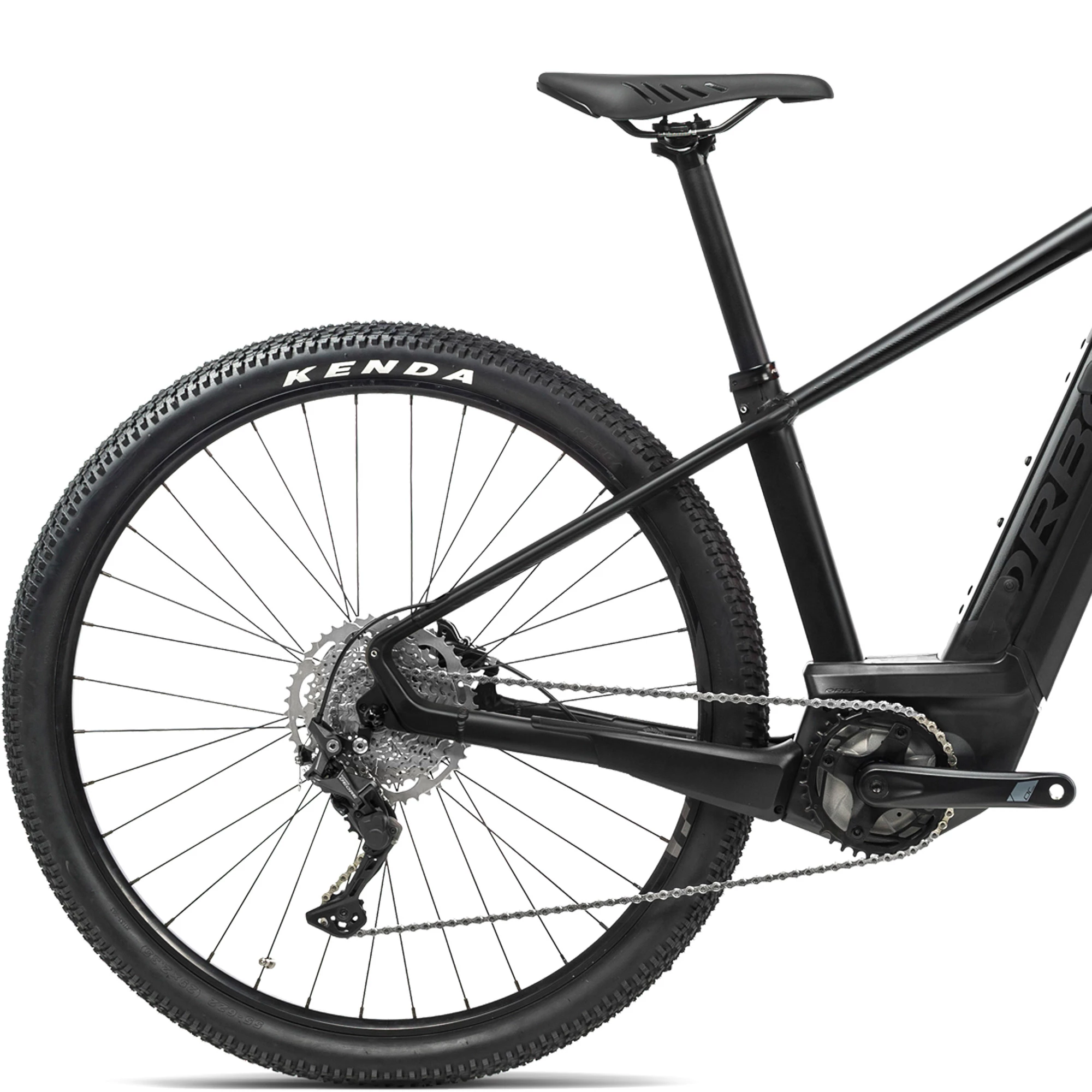

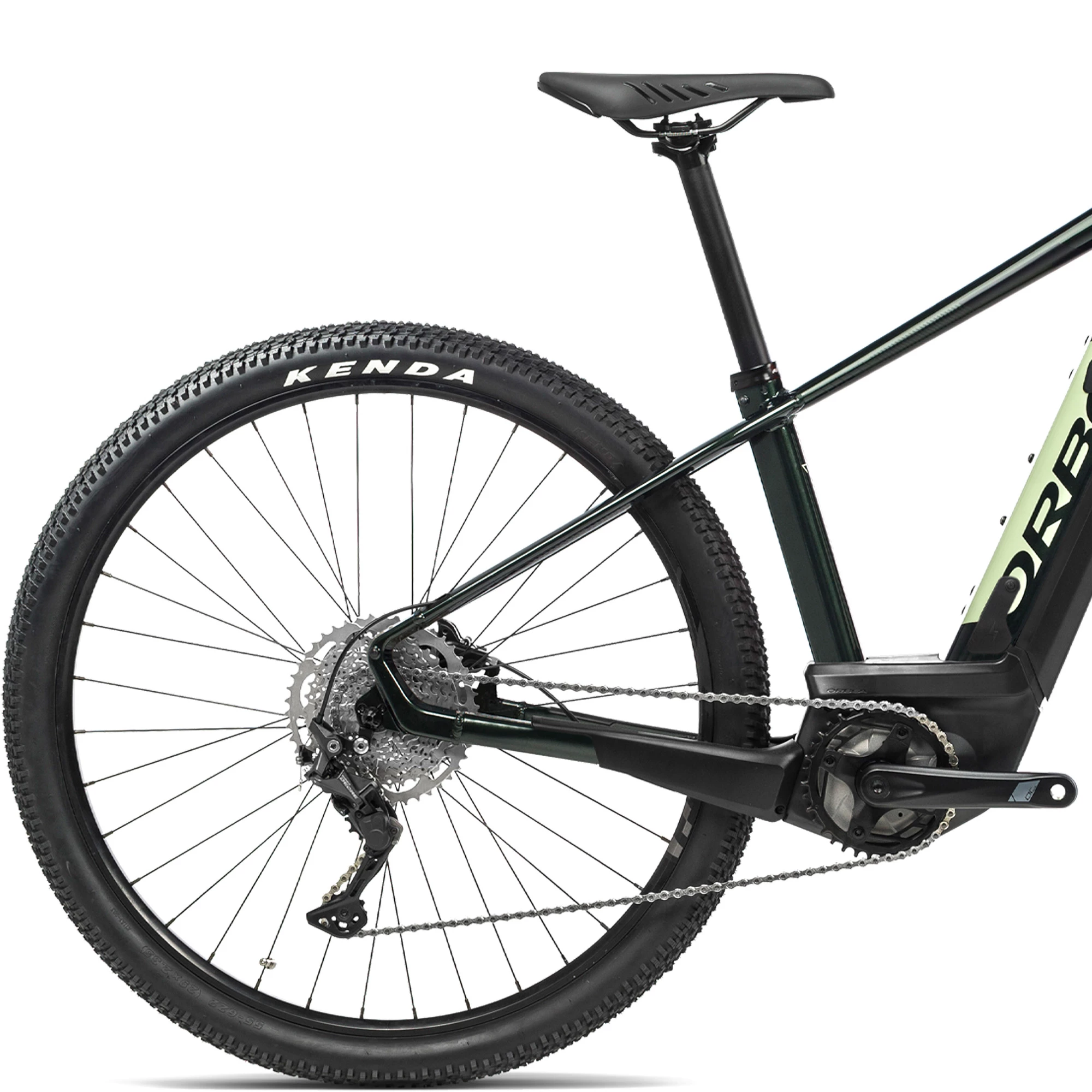

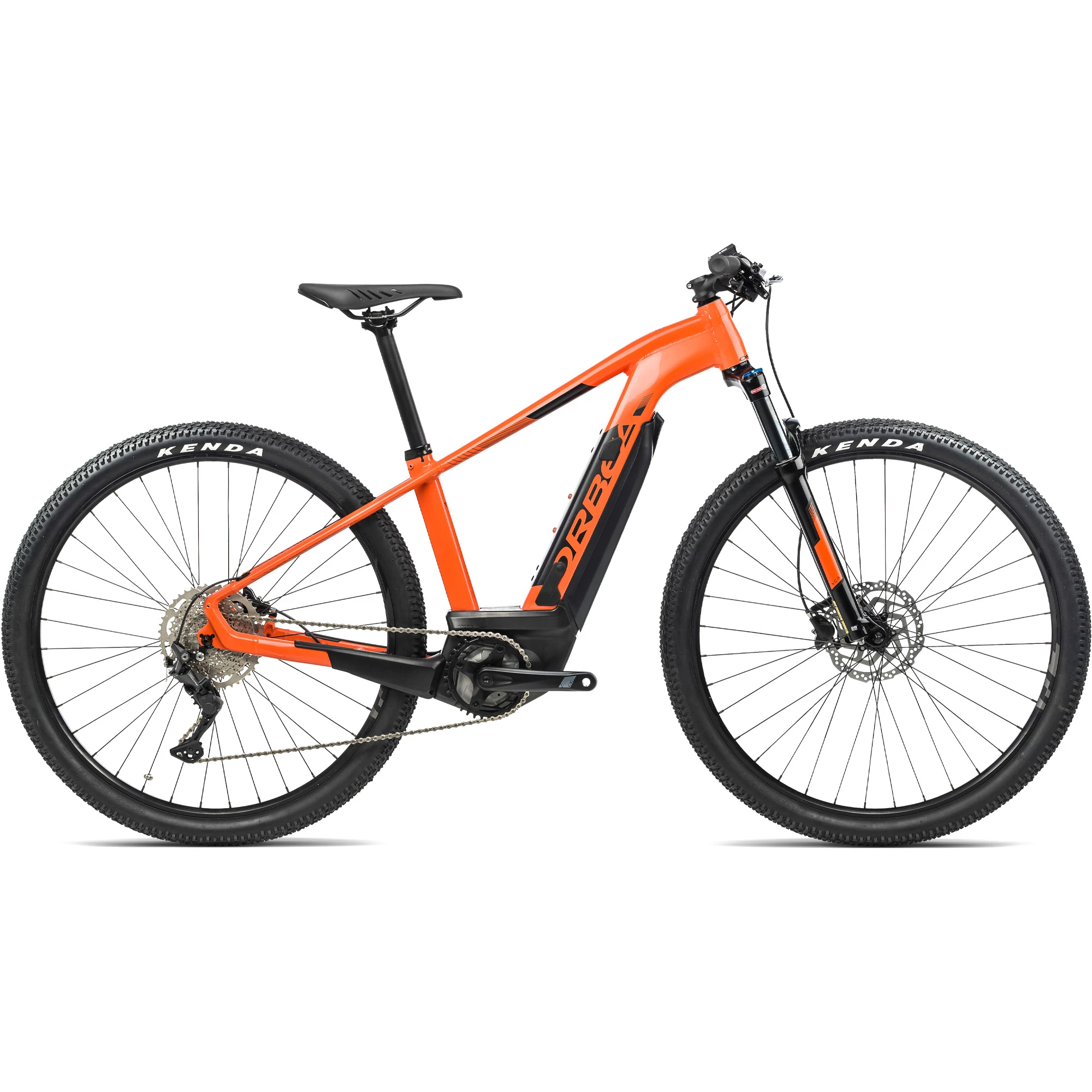

Orbea Keram 30 Electric Mountain Bike 2021

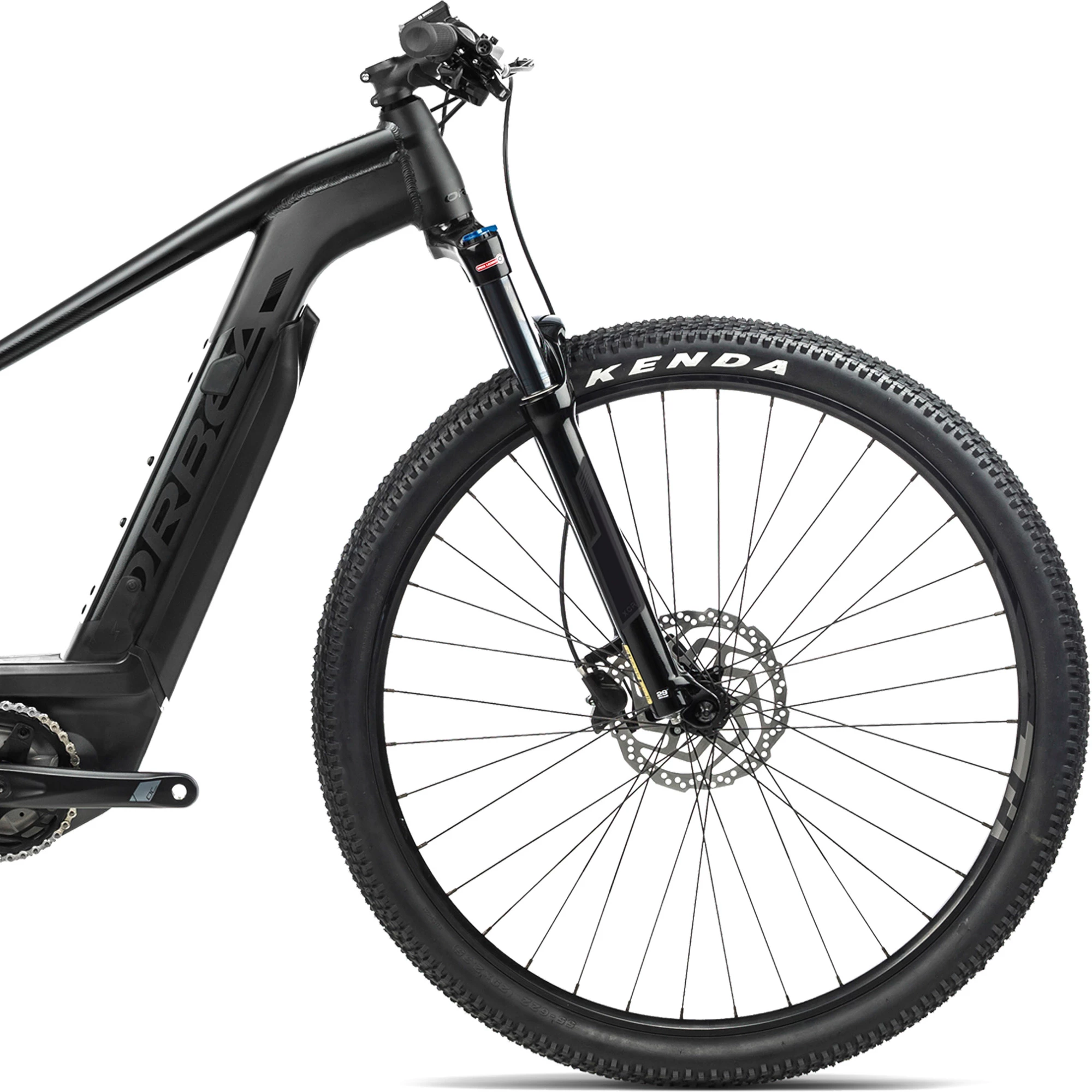

Designed to help you ride in comfort and really enjoy your surroundings, the Orbea Keram 30 Electric Mountain Bike has a reliable Bosch motor and sturdy aluminium frame. 100mm of front suspension through the SR Suntour fork softens bumps on the trail, boosting comfort and control.

Fast-becoming the industry's go-to e-bike motor supplier, Bosch is the envy of its competitors. Here, they supply their fantastically smooth Active motor, with assistance of up to 40Nm of power. Once you reach 25km/hr, the motor cuts out and becomes barely noticeable, with minimal resistance through the cranks. The 400Nm battery has enough power for an average of 71km, so even the most adventurous of riders can enjoy a full day on the trails.

With a Shimano Deore 10-speed gearset, you can be assured of quality shifting, while the Shimano MT210 hydraulic disc brakes allow for superb braking modulation. The size Small comes with 27.5" Black Rock wheels, while the rest of the range comes with 29" option, allowing for a similar ride-feel right across the range.

Browse our range of Orbea electric mountain bikes today.


  • Hard Tail e-MTB designed for a more comfortable position
  • Size-specific wheels provide a consistent handling across the range
  • SR Suntour XCR32 suspension fork with 100mm of travel
  • A fun and easy bike to ride
  • 400Wh battery for a long day out on the trails
  • Bosch Active motor has 40Nm of torque to tame the trails
  • Shimano Deore M4100 shifters
  • Shimano Deore M5120 10-speed rear derailleur
  • Shimano hydraulic disc brakes

Battery Specification

  • Maximum Assist: 40Nm up to 25km/hr
  • Motor Weight: 2.9kg
  • Battery Power: 400Wh
  • Range: 71km/44 miles (combined use average - depending on power mode selected and trail conditions)

Technical Specification

Frame Orbea Keram 2019, Hydroformed Alloy 6061, Hide out battery technology, bottle cage and dual battery compatible and hidden kickstand compatible

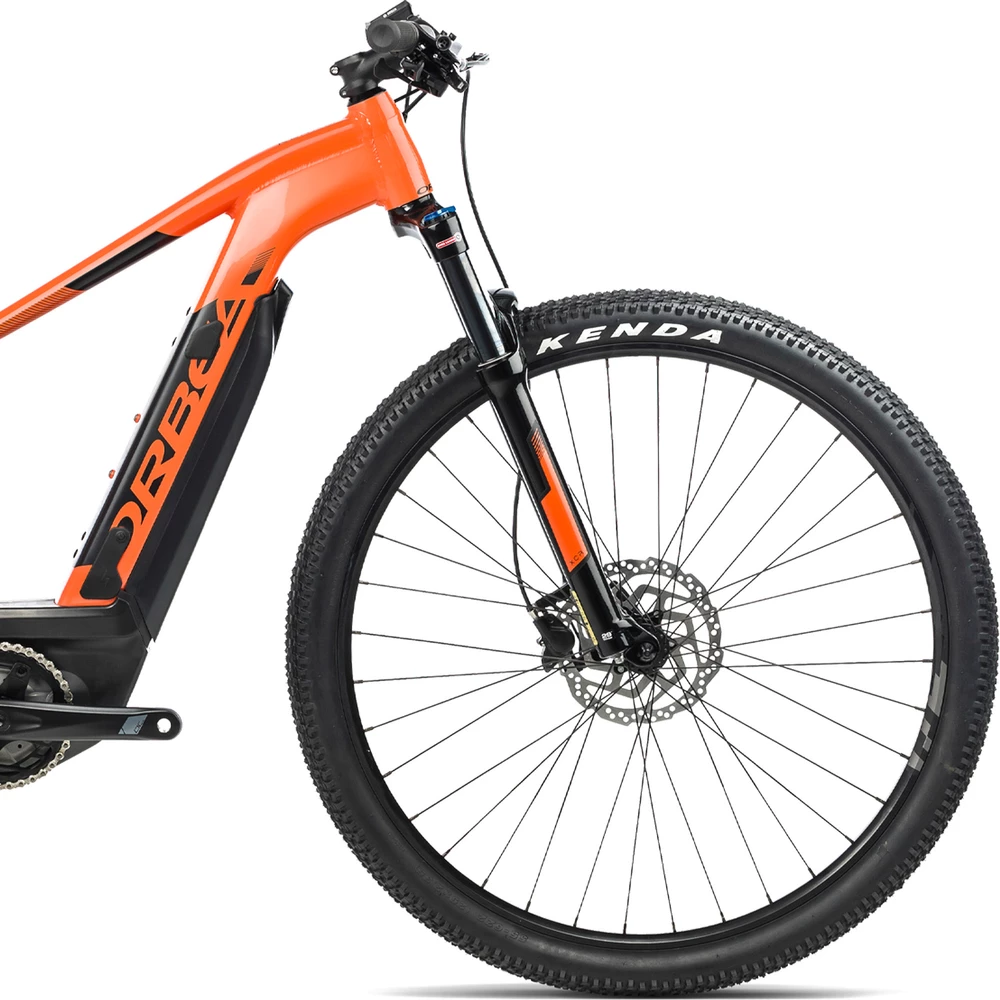

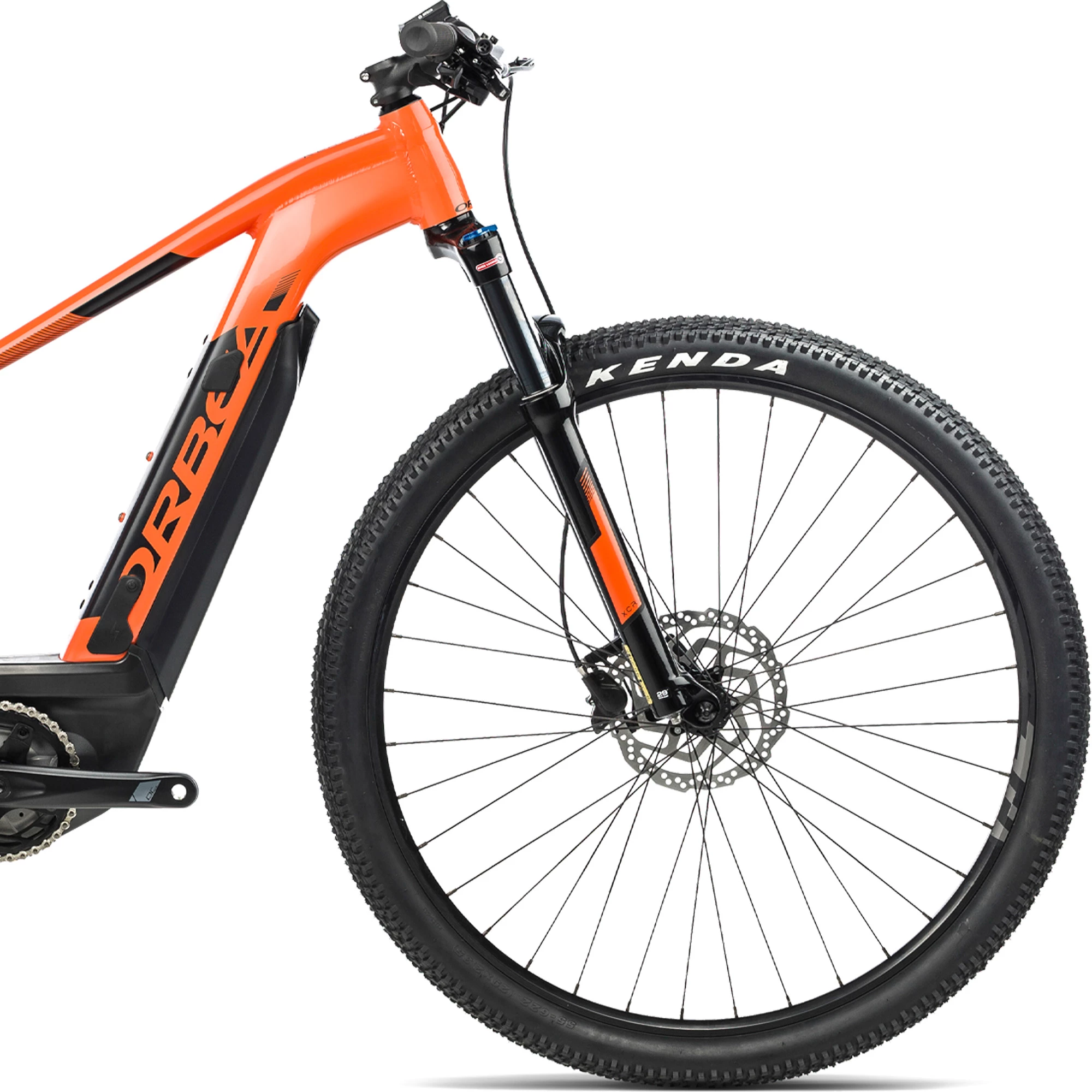

Fork SR Suntour XCR32 LO Coil 100mm QR
Stem Orbea Alloy 31.8mm interface 7º
Handlebar Orbea OC1 Flat, 31.8mm, 740mm width
Front Brake Shimano MT200 hydraulic disc
Rear Brake Shimano MT200 hydraulic disc
Brake Levers Shimano MT200 hydraulic disc
Front Derailleur N/A
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus 10-speed
Shift Levers Shimano Deore M4100 10-speed
Cassette Shimano Deore M4100 11-46t 10-Speed
Crankset Orbea PW EB04-NW32 G4
Chain KMC e10 Turbo Silver, 10-speed
Front Wheel Orbea Black Rock 23c Disc clincher (Size Specific)
Rear Wheel Orbea Black Rock 23c Disc clincher (Size Specific)
Front Tyre Kenda K1153 2.35" 22TPI, clincher
Rear Tyre Kenda K1153 2.35" 22TPI, clincher
Saddle Selle Royal 2077 DRN
Seatpost Orbea Alloy, 31.6x400mm, Offset 0
Accessories Abus battery Powertube Lock PLUS
Pedals Available to be purchased separately
Battery Bosch Performance 400Wh
Ui/Remote Bosch Performance Purion
Motor Bosch Active 25km/h
Charger Bosch Compact Charger 2A (100-240V) Worldwide
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
