Orbea MX 20 Mountain Bike 2021

★★★★★ ★★★★★

This item is no longer available to buy. View similar products.

Product ID: 1230302

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

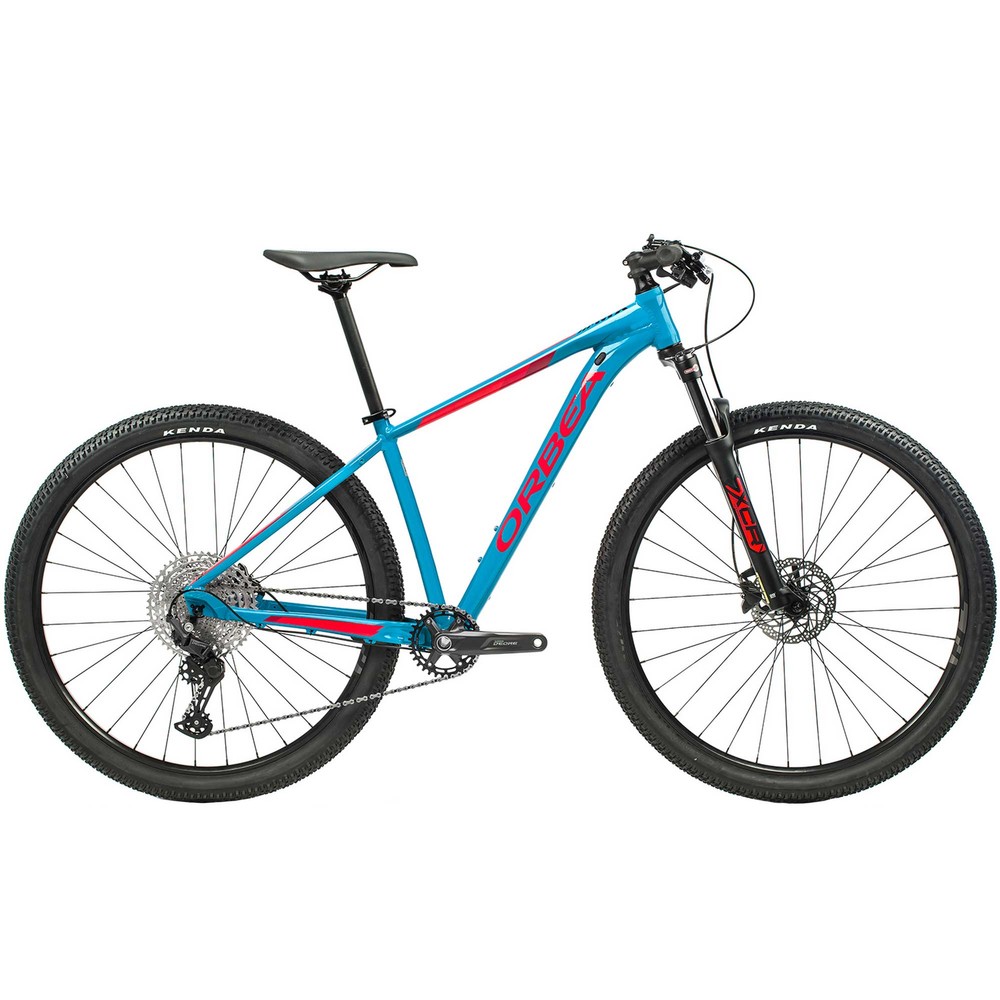

Orbea MX 20 Mountain Bike 2021

Getting into a new sport like mountain biking can be daunting, but the simplicity and effectiveness of the Orbea MX 20 Mountain Bike makes for an easy choice. A sturdy but lightweight alloy frame, size-specific wheels and a fork with 100mm of travel amount to a bike with all the features you need and none of the ones you don't. As a hardtail MTB, the MX 20 is best suited to rolling trails, or cross-country riding - with no rear suspension to impede power transfer, it allows you to ride uphill more efficiently.

The Shimano Deore 11-speed gearset is perfect for any terrain, thanks to the wide-ranging cassette. Flick through the gears with ease while the single front chainring makes the system very easy to operate with less chance of dropping your chain. The Shimano hydraulic disc brakes are perfect for off-road riding, with the ability to stop quickly and safely. 2.35" wide Kenda tyres have loads of grip, and with size-specific wheels - 27.5" on the Small and Medium options and 29" on the rest of the range - you get an agile and pacy ride no matter what size you ride.


  • Hard Tail MTB with a great specification for the price
  • Size-specific wheels ensure a great all-round ride
  • SR Suntour XCR32 suspension fork with 100mm of travel
  • Shimano hydraulic disc brakes
  • Shimano Deore M5100 11-speed shifters and derailleur
  • 1x chainset is reliable with less maintenance
  • Kenda K1153 2.35" tyres provide plenty of traction

Technical Specification

Frame Orbea MX AL6061 Alloy, Orbea tube shapes, internal cable routing, rear rack mounting points, Quick Release drop-outs
Fork SR Suntour XCR32 RL Coil with Preload adjuster 100mm quick-release drop-outs
Rear Shock N/A
Headset VP-Z104PD 1-1/8" Semi-Cartridge
Stem Orbea Alloy 31.8mm interface 7º
Handlebar Orbea Flat, 31.8mm, 720mm width
Front Brake Shimano MT201 hydraulic disc
Rear Brake Shimano MT201 hydraulic disc
Brake Levers Shimano MT201 hydraulic disc
Front Derailleur N/A
Rear Derailleur Shimano Deore M5100 SGS Shadow Plus 11-speed
Shift Levers Shimano Deore M5100 11-speed
Chain KMC X11, 11-speed
Cassette Shimano Deore M5100 11-51t 11-speed
Crankset Shimano M5100 32t
Front Wheel Orbea Black Rock 23c Disc clincher (size-specific)
Rear Wheel Orbea Black Rock 23c Disc clincher (size-specific)
Front Tyre Kenda K1153 2.35" 30TPI clincher
Rear Tyre Kenda K1153 2.35" 30TPI clincher
Saddle Selle Royal 2058 DRN
Seatpost Orbea Alloy 27.2 Offset 0
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.
