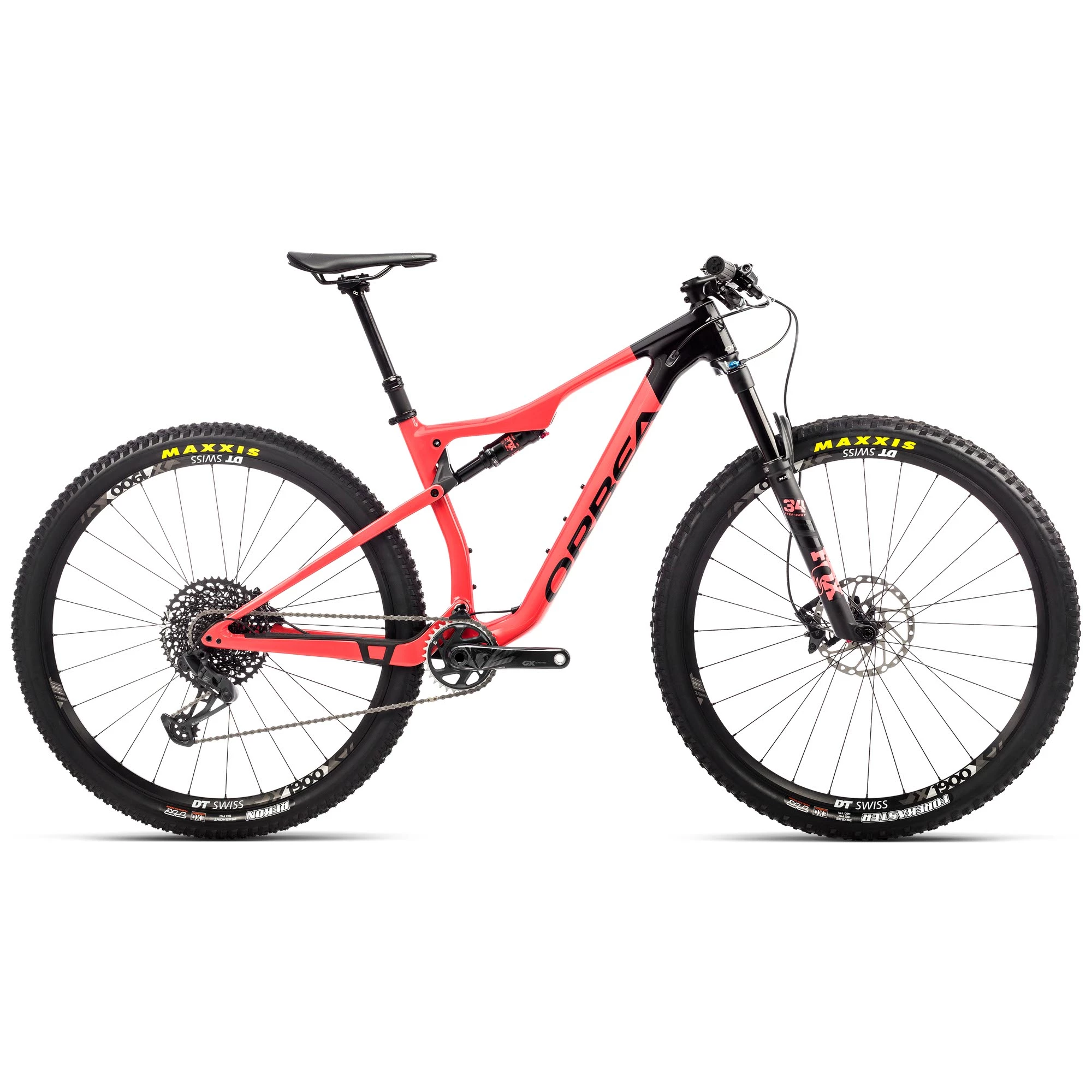

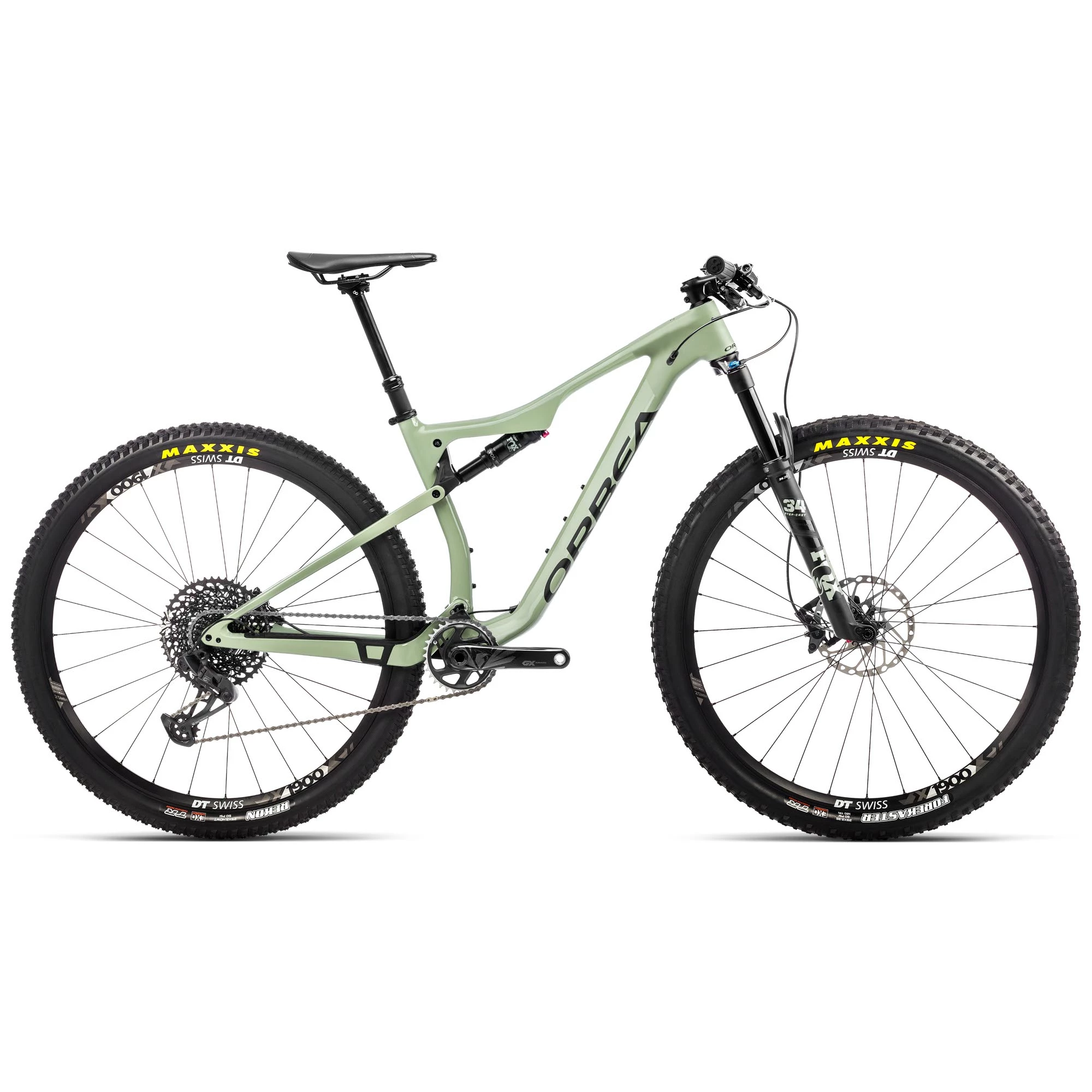

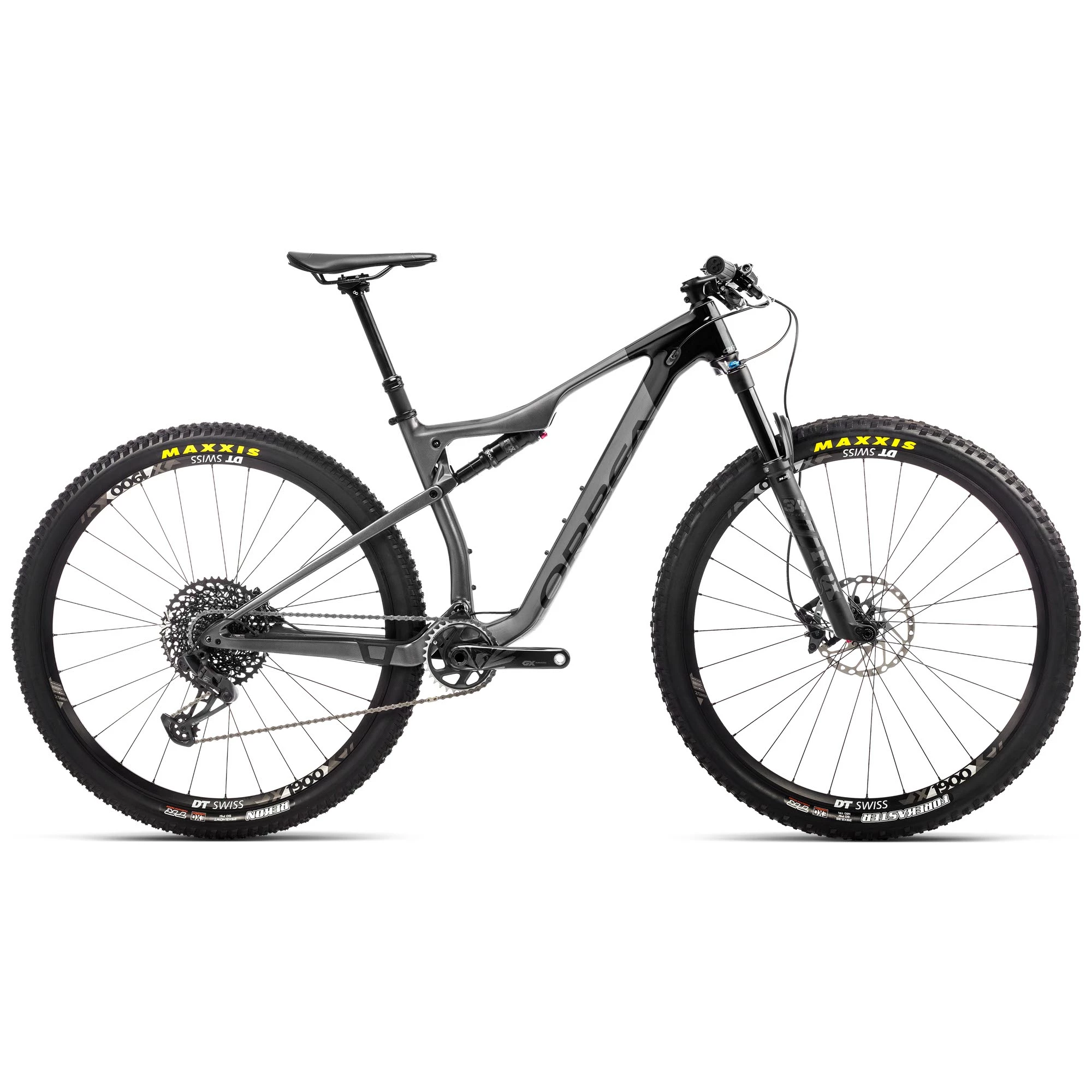

Orbea OIZ M20 TR Mountain Bike 2022

A fun and fast option that ticks all the boxes for riders seeking burly cross-country performance, the Orbea OIZ M20 TR Mountain Bike features 120mm of supple, traction-rich suspension to mould to the terrain. With its TR designation, this model features a slacker head angle and 20mm more suspension than its more race-oriented stablemate, injecting confidence and versatility into every ride. Constructed from OMR carbon fibre, this frame is light and stiff, utilising an aluminium rocker link to drive the unique Fiber Link suspension design.

Fast and performance-oriented, the 29” DT Swiss X-1900 Spline wheels provide stability and speed through rough terrain. SRAM take care of shifting duties, with their 12-speed GX drivetrain providing proven, reliable gear changes across the wide 10-50t cassette. Maxxis tyres deliver grip on hardpack terrain, and an Orbea OC MC20 dropper post boosts confidence when descending tricky trails. The Orbea Squidlock system neatly houses a lockout and dropper remote to maintain a sleek aesthetic, and FOX Performance suspension units deliver excellent grip and bump absorption.


  • The OIZ TR takes a thoroughbred XC racing platform and adds bigger suspension, front and rear to create a super-fast and nimble character that is set to conquer any trail
  • An OMR carbon frame delivers an excellent stiffness to weight ratio
  • UFO rear suspension design reduces pivot points and combines with the Alloylink junction to deliver lateral stiffness, a composed action and low weight
  • FOX i-line DPS Performance rear shock with 120mm of suspension offers plush performance
  • FOX 32 Float SCPerformance fork sees 120mm of bump-eating suspension travel
  • The geometry is aggressive and precise for maximum power transfer and rapid handling
  • Fast-rolling 29” DT Swiss X-1900 Spline wheels are ideal for cross-country
  • SRAM GX groupset provides proven crisp shifting and excellent chain retention
  • Shimano M6100 hydraulic disc brakes are powerful and controllable through steep terrain
  • A dropper post is added to improve speed on undulating terrain

Technical Specification

Frame Orbea OIZ Carbon OMR frame, Alloylink, Boost, BB92 PF bottom bracket, Taper UFO2, I-Line shock

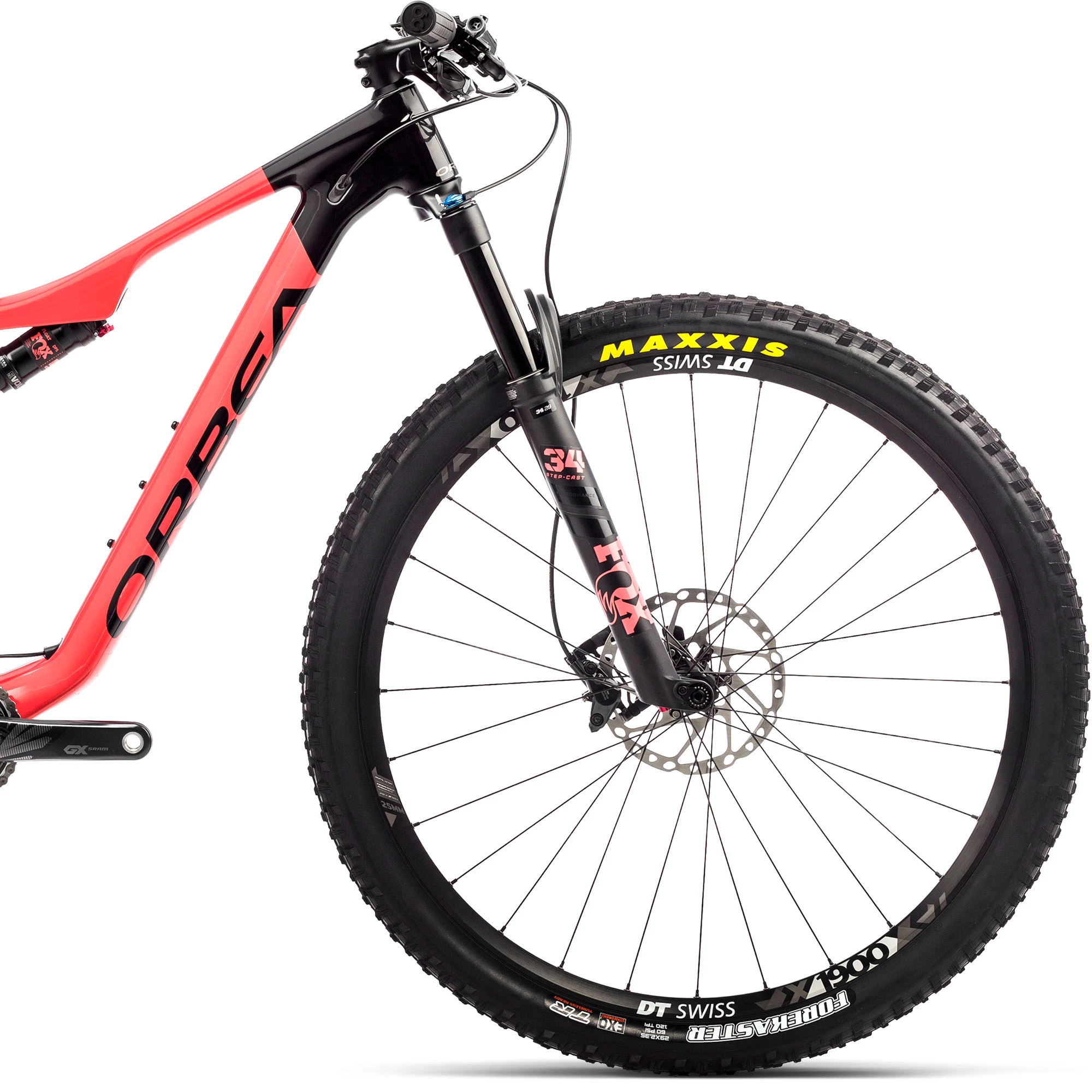

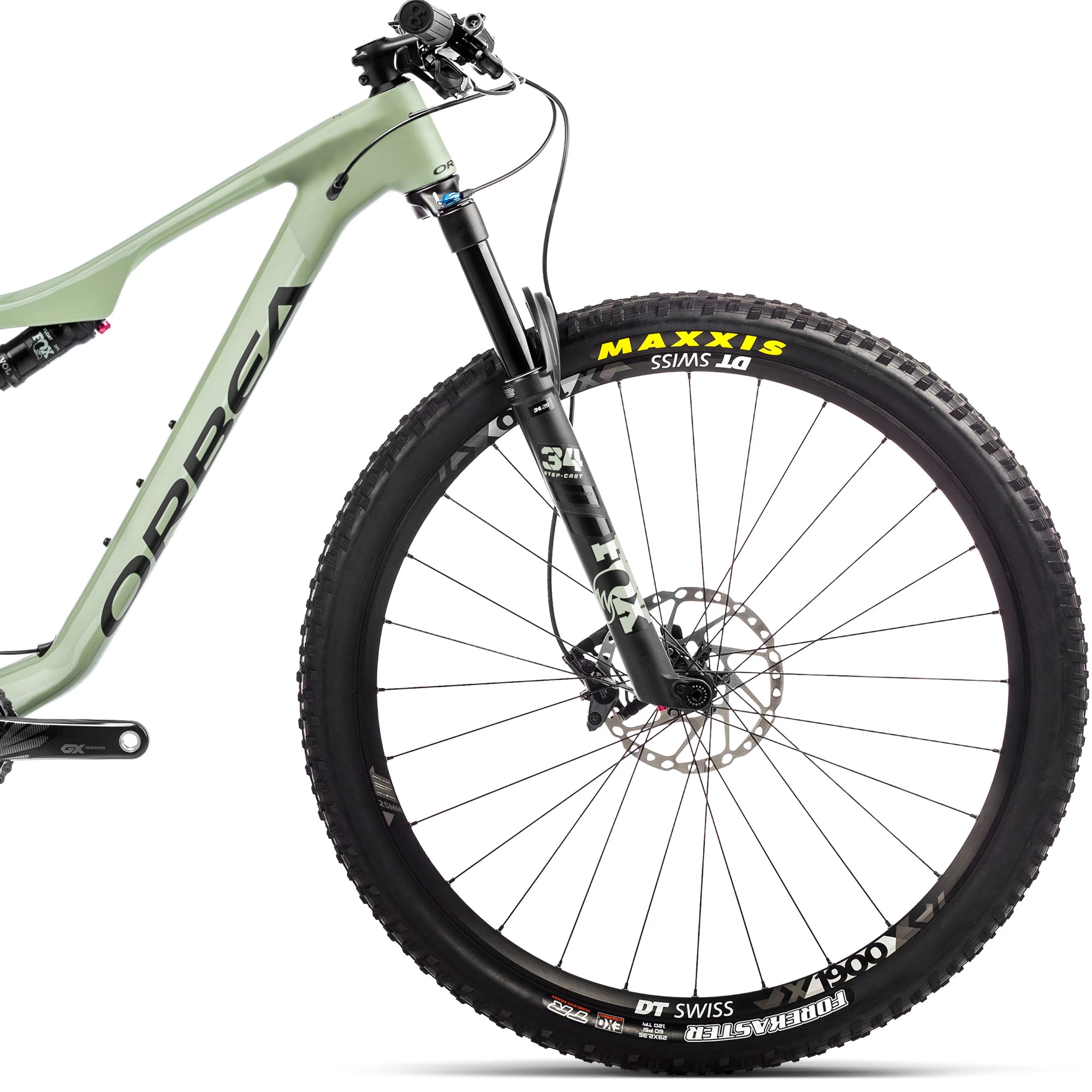

Fork FOX 34 Float SC Performance, 120mm travel, Grip Remote Push-Unlock, QR15x110

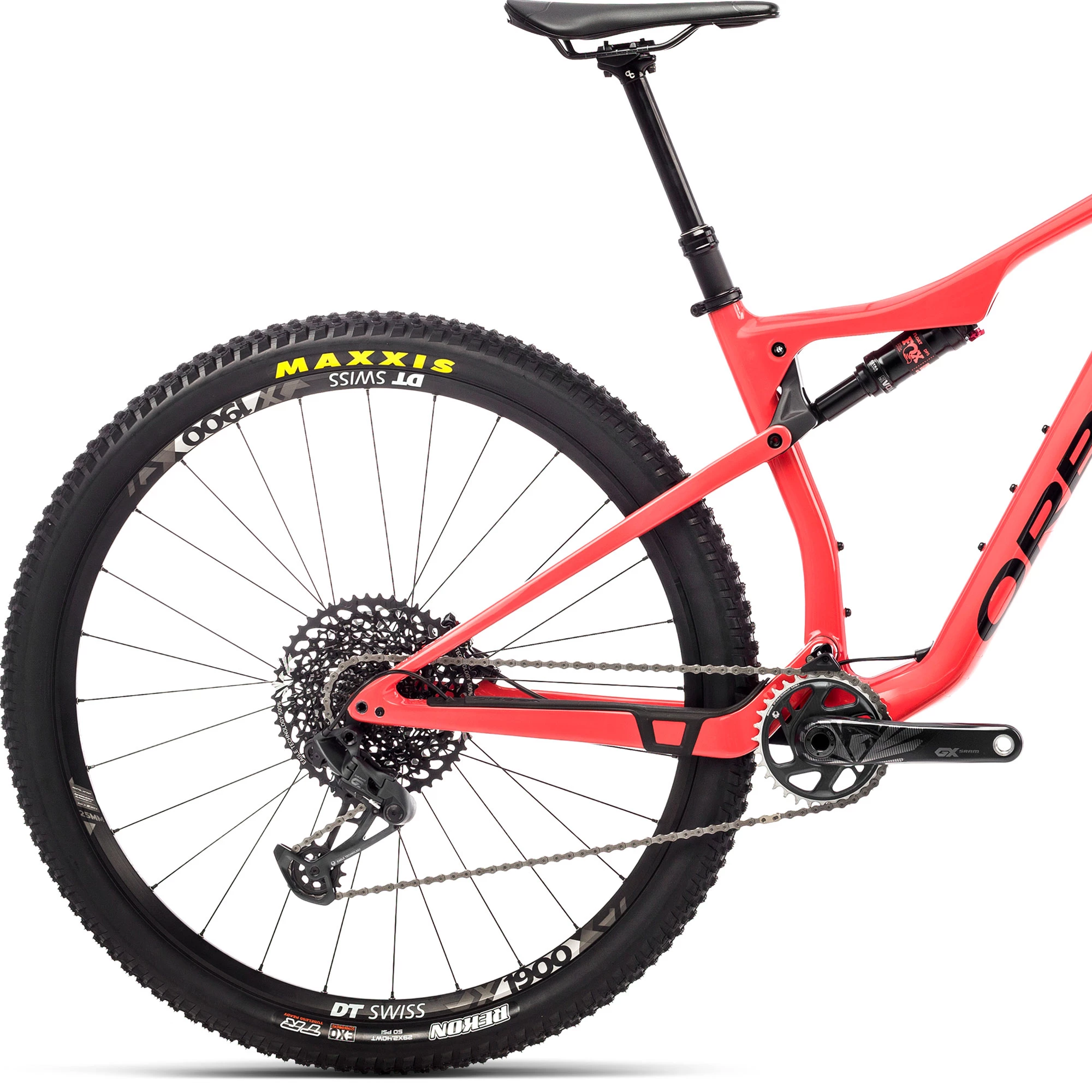

Rear Shock FOX i-line DPS Performance, 120mm travel, Remote Push-Unlock, EVOL air spring, custom tune, 190x45mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1, 31.8mm interface, -7°
Handlebar Orbea OC1 Flat, 31.8mm diameter, 740mm width
Front Brake Shimano M6100, hydraulic disc
Rear Brake Shimano M6100, hydraulic disc
Brake Levers Shimano M6100, hydraulic disc
Rear Derailleur SRAM GX Eagle, 12-speed
Shift Levers SRAM GX Eagle, 12-speed
Chain SRAM GX Eagle, 12-speed
Cassette SRAM XG-1275 Eagle, 10-50t, 12-speed
Crankset SRAM GX Carbon Eagle, DUB, Boost, 32t
Front Wheel DT Swiss X-1900 Spline 25c TLR CL, 15/110mm Boost
Rear Wheel DT Swiss X-1900 Spline 25c TLR CL, 12/148mm Boost
Front Tyre Maxxis Forekaster 2.35”, FB 120 TPI Dual Exo, tubeless-ready
Rear Tyre Maxxis Rekon Race 2.35”, 120 TPI Exo, tubeless-ready
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC2 Dropper, 31.6mm diameter, 390/125mm length
Remote Lockout Orbea OC Squidlock 3-position
Pedals Available to be purchased separately
Accessories Orbea OC chainguide

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
