Orbea Occam H20 LT Mountain Bike 2022

MSP £3,499.00 Save 15%

Select a colour and size to view stock availability

Occam H20 LT Mountain Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1464638

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

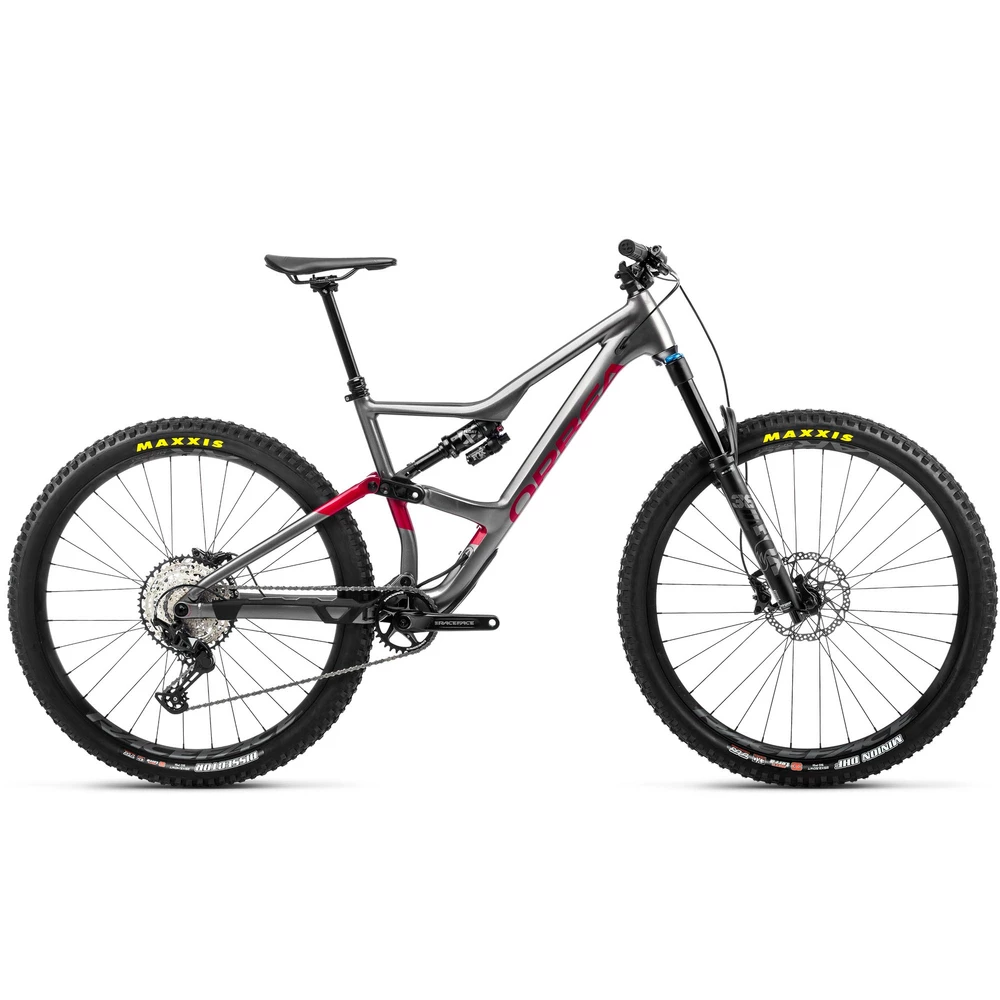

Orbea Occam H20 LT Mountain Bike 2022

Fun is the name of the game for the Orbea Occam H20 LT Mountain Bike, which sees the suspension travel amped up to 150mm to cruise through rough terrain and offer a more capable ride than ever. A burly FOX 36 fork is paired with a Float X Performance rear shock to iron out the trail, instilling confidence with their traction and plush suspension action. The head angle is reduced by half a degree to improve stability, and the Pure Trail geometry sees a low bottom bracket and stretched out reach measurement for exceptional cornering performance and composure.

Although heavier than its carbon counterpart, the aluminium frame offers similar performance and is the result of a host of advanced manufacturing processes. The triple-butted tubing is lightweight without sacrificing strength, whilst the welds are polished for a sleek and clean aesthetic. A new two-piece linkage improves stiffness and durability, and the asymmetric design allows for an uninterrupted seat tube design.

The dropper seat post, handlebar and stem are part of the Orbea house component range and combine low weight with durability to survive seasons of hard use. Maxxis tyres offer supreme traction on a range of terrains, with the Minion DHF front tyre featuring tall cornering knobs to dig into loose soil. RaceFace AR 30c wheels provide an aggressive tyre profile and excellent durability, while the Shimano SLX 12-speed drivetrain ticks all the boxes for all-mountain performance.


  • Revised two-part linkage design boosts torsional stiffness for a precise feel
  • 29” RaceFace wheels deliver fast rolling speeds and exceptional durability
  • The Shimano SLX groupset offers a wide gear range and crisp shifting
  • FOX suspension provides excellent composure on the trail
  • The LT moniker sees this model feature 150mm of front and rear travel
  • Contemporary geometry sees this model excel on all gradients, a true all-rounder
  • Shimano hydraulic disc brakes offer excellent stopping power
  • The lightweight hydroformed aluminium frame is the culmination of advanced manufacturing processes
  • Polished welds mimic the look of a carbon frame whilst improving durability

Technical Specification

Frame Orbea Occam Hydro High Polished 2021 Triple Butted Aluminium, 150mm travel, 29”, 12x148mm
Fork FOX 36 Float Performance, 150mm travel, GRIP 3-position, QR15x110mm
Rear Shock FOX X Factory, 15mm travel, 2-Position, Evol, Kashima coating, custom tune, 210x55mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1 3D Forged 35mm interface
Handlebar Orbea OC1 35mm diameter, 12mm rise, 780mm width
Front Brake Shimano M6100, hydraulic disc
Rear Brake Shimano M6100, hydraulic disc
Brake Levers Shimano M6120
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus, 12-speed
Shift Levers Shimano SLX M7100 I-Spec EV, 12-speed
Chain Shimano M6100, 12-speed
Cassette Shimano SLX M7100, 10-51t, 12-speed
Crankset Race Face Aeffect, 32t
Front Wheel RaceFace AR 30c, tubeless-ready, 29”
Rear Wheel RaceFace AR 30c, tubeless-ready, 29”
Front Tyre Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR, tubeless-ready
Rear Tyre Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR, tubeless-ready
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea MC20 Mountain Control Dropper, 31.6mm
Dropper Post Remote Shimano SL-MT500 I-Spec EV
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
