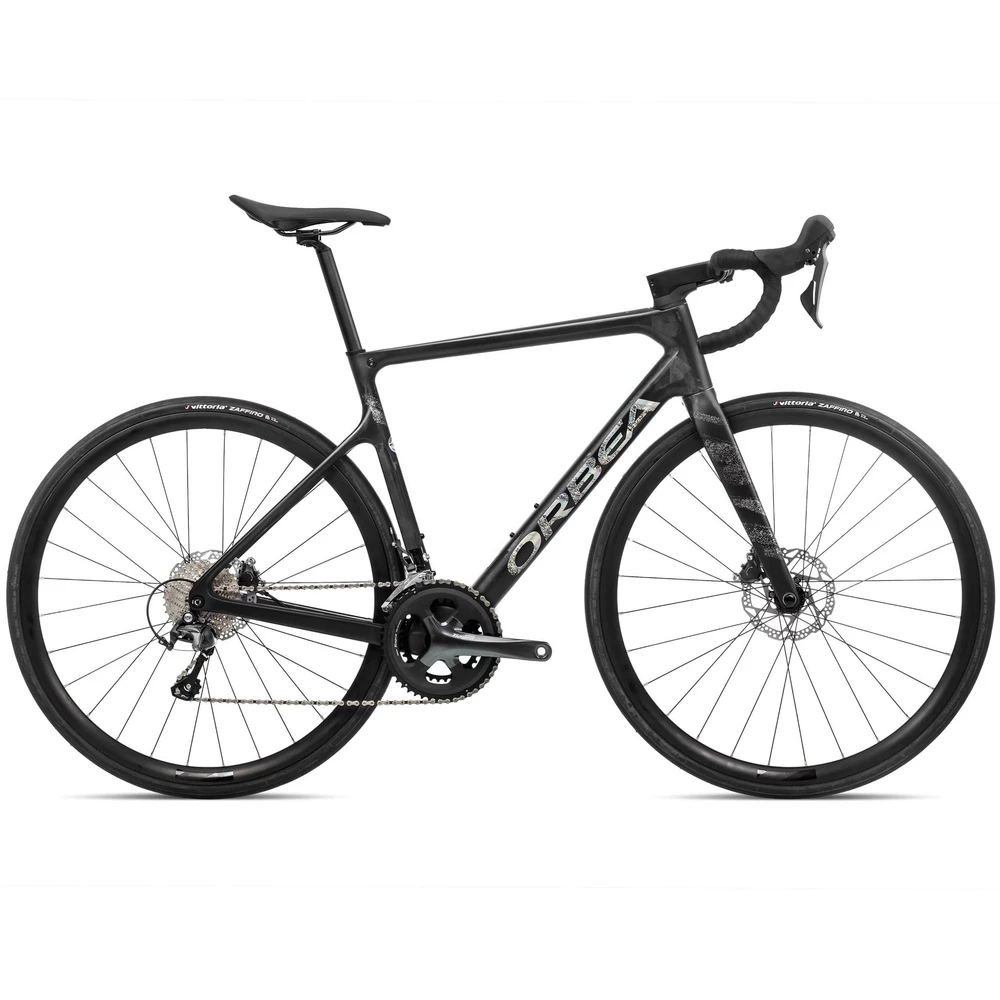

Orbea Orca M40 Disc Road Bike 2023

This item is no longer available to buy. View similar products.

Product ID: 1674019

Orbea Orca M40 Disc Road Bike 2023

A fast and responsive choice for riders looking to make waves on their local scene, the Orbea Orca M40 Disc Road Bike blends value and performance perfectly. A lightweight carbon OMR frameset, powerful hydraulic disc brakes and a Shimano 10-speed Tiagra drivetrain deliver a capable ride straight out of the box. This frame sees much trickle-down technology from the higher-end models in the Orca series, with its responsive geometry providing a fun and engaging ride experience.

The alloy wheelset is lightweight and reliable and is fitted with robust, durable Vittoria Zaffiro tyres in a 28mm width, which are perfect for getting the training miles in. Shimano takes care of the groupset, with Tiagra 10-speed creating a reliable drivetrain with a wide range of gears, while the hydraulic disc brakes issue consistent power in all weather conditions. Internally routed cables provide a sleek aesthetic, and the carbon fork legs damp vibration to prevent fatigue on longer rides.

Highlights

  • A modern and versatile race bike that’s exciting and inspiring across any road terrain
  • Full OMR carbon frameset uses optimised layups, single uniform frame structures and continuous fibre orientation to increase stiffness and compliance while keeping the weight low
  • The carbon fork with alloy steerer is stiff, strong and reduces road vibrations
  • Hidden cable routing through the stem and frame grants a crisp aesthetic
  • 32mm tyre clearance permits the use of plusher, grippier, and faster-rolling rubber
  • Racing-inspired geometry maximises power transfer and efficiency and gives precise and intuitive handling
  • The wheels have an alloy rim, are light, strong and are compatible with tubeless-ready or standard clincher tyres
  • Shimano Tiagra 10-speed gears are precise and reliable
  • Shimano hydraulic disc brakes offer powerful and modulated stopping power

Technical Specification

Frame Orbea Orca carbon OMR Disc, monocoque construction, 1.5” headset, BB386 bottom bracket standard, power meter compatible, 12x142mm rear thru-axle with M12x2 P1 thread, speed release compatible dropout, internal cable routing, EC/DC compatible
Fork Orbea carbon fork, 1-1/8"-1.5" tapered head tube compatible, thru-axle 12x100mm, thread M12x2 P1, speed release compatible dropout
Headset Acros alloy 1-1/2" internal cable routing
Stem Orbea OC RP21 Road Performance ICR, -6º
Handlebar OC RP31-R Road Performance, rise 15mm, reach 70mm, drop 125mm
Front Brake Shimano Tiagra 4770 hydraulic disc
Rear Brake Shimano Tiagra 4770 hydraulic disc
Brake Levers Shimano Tiagra ST-4770, hydraulic disc
Front Derailleur Shimano Tiagra 4700
Rear Derailleur Shimano Tiagra 4700 GS, 10-speed
Shift Levers Shimano R7170 Di2, 10-speed
Chain KMC X10, 10-speed
Cassette Shimano Tiagra HG-500, 11-34t, 10-speed
Crankset Shimano Tiagra 4700, 34x50t
Front Wheel Orbea-approved alloy, tubeless-ready, 700x19c, 28H
Rear Wheel Orbea-approved alloy, tubeless-ready, 700x19c, 28H
Front Tyre Vittoria Zaffiro V Rigid bead 700x28c, clincher
Rear Tyre Vittoria Zaffiro V Rigid bead 700x28c, clincher
Saddle Fizik Aliante R5
Seatpost Orbea-approved carbon, 27.2mm, Setback 20mm
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Orbea Orca M40 Disc Road Bike 2023 Sizing
