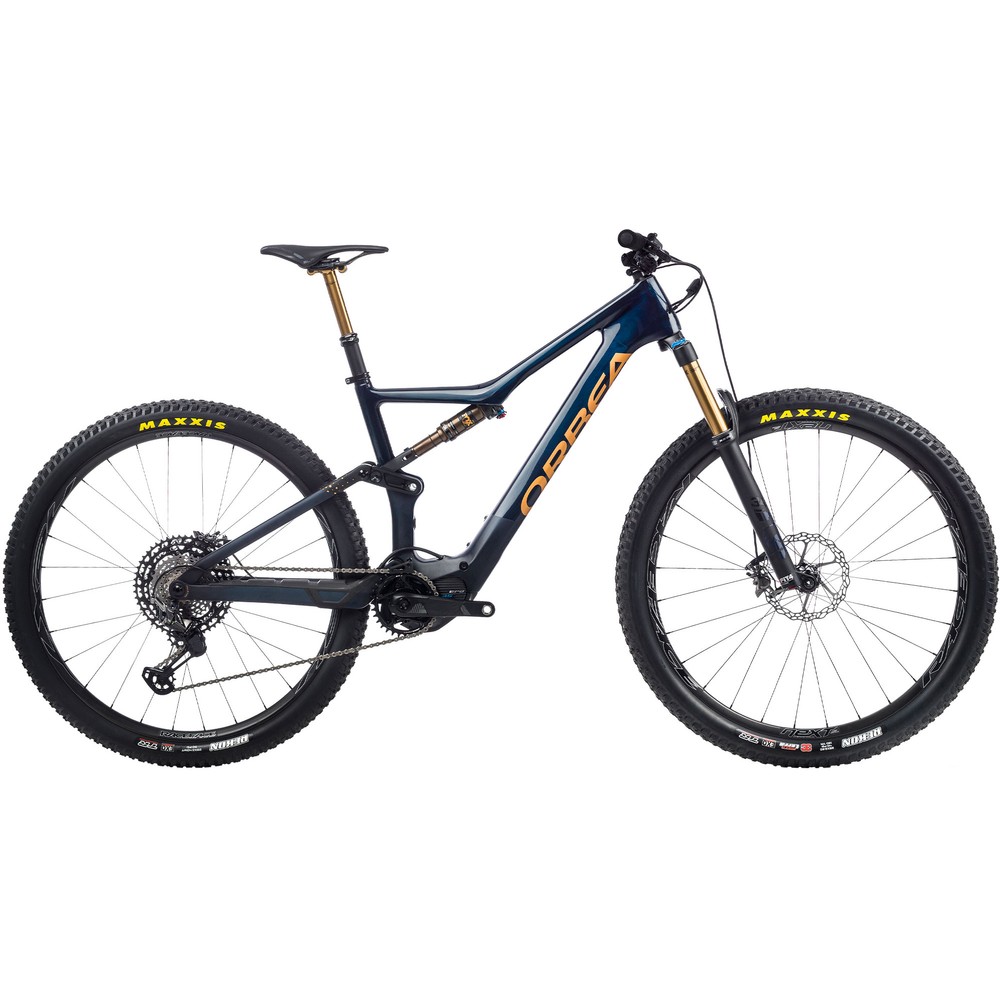

Orbea Rise M-LTD Full Suspension" 29 Electric Mountain Bike 2021
Developed with the sole intention of enhancing your rides, the Orbea Rise M-LTD Full Suspension 29" Electric Mountain Bike delivers a ride character like nothing else and allows you to explore further than ever before to discover all-new epic locations. A new standard in electric mountain bike technology, the Rise pairs the lively feel of a non-electric bike with a bespoke Shimano EP8 RS motor system, providing a quality of ride of which has never been seen before in an electric model. Lightweight, fast and supremely fun, the Rise is set to challenge your expectations of what an electric bike can achieve, with its incredible specification and high-quality OMR carbon frame being guaranteed to leave you wanting nothing more.
Key to this bike's performance is its responsive and ultra-efficient Shimano EP8 RS motor system that provides assistance up to a maximum speed of 15.5 mph / 25 km/h. Unique to the Orbea Rise range, it sees custom firmware that looks to deliver the most natural ride-feel possible. Designed to echo your input with smooth assistance, peak power delivery is provided between 75 and 95 revolutions per minute, mirroring that of where riders produce the most amounts of power. When paired with the sleek, integrated 360Wh battery, this is a potent formula for fun, giving you all the tools you need to push your riding to the next level. Available aftermarket is an optional range extender, which boosts the overall battery capacity to 612Wh, extending your runtime with an additional 252Wh.
As the highest-spec model in the lineup, the Rise M-LTD sees a glistening specification. FOX supply their top-end Factory suspension front and rear, with the 34 Factory FIT4 fork being one of the highest performance models available on the market. The latest Shimano XTR drivetrain sees unrivalled 12-speed performance and is paired with XTR brakes for controlled modulation and stopping power on any gradient. The Shimano E7000 remote is compatible with the Shimano E-Tube app, allowing for adjustments to be made to fine-tune the assistance to your personal preference.
Due to component availablility, product specification may be subject to change.
Browse our range of Orbea electric mountain bikes today.
Highlights
- Lightweight OMR carbon frame construction
- Sleek, integrated design
- Custom tuned Shimano EP8 RS motor system, Rider-First firmware
- Modern long-reach geometry
- Optimised for a natural feel on the trail
- 360Wh battery, aftermarket 252Wh range extender available
- Fast-rolling 29" wheels
- 140mm of rear suspension, ideal for all-mountain use
- 140mm FOX 34 Float Factory fork, FIT4 damper
- Full Shimano XTR 12-speed drivetrain
- Shimano XTR brakes
- Compatible with the Shimano E-Tube smartphone app
Battery Specifications
- Maximum Assist: 250w / 60Nm torque / 25km/hour
- Motor Weight: 2.6kg
- Battery Power: 360wh
Technical Specification
| Frame | Orbea Rise OMR Carbon,140mm travel, 29" wheels, C-Boost 12x148 axle |
| Fork | FOX 34 Float Factory, 140, FIT4, 3-Pos-Adj, 15x110, Kashima |
| Rear Shock | FOX DPX2 Factory, 3-Position Adjust, Evol, Kashima, custom tune, 210x55mm |
| Stem | Race Face Turbine R 35mm interface |
| Handlebar | Race Face Next 35, 20mm rise, 760mm width |
| Front Brake | Shimano XTR M91000, hydraulic disc |
| Rear Brake | Shimano XTR M91000, hydraulic disc |
| Brake Levers | Shimano XTR M9100 |
| Rear Derailleur | Shimano XTR M9100 SGS Shadow Plus, 12-speed |
| Shift Levers | Shimano XTR M9100, 12-speed |
| Chain | Shimano CN-9100, 12-speed |
| Cassette | Shimano XTR M9100, 12-speed, 10-51t |
| Crankset | e*thirteen Plus aluminium crank arms, 165mm |
| Front Wheel | Race Face NEXT-SL carbon, 15/110mm, tubeless-ready |
| Rear Wheel | Race Face NEXT-SL carbon, 12x148mm, tubeless-ready |
| Front Tyre | Maxxis Rekon 2.60", 120 TPI, 3CMaxxTerra Exo, tubeless-ready, clincher |
| Rear Tyre | Maxxis Rekon 2.40", 60 TPI, Dual Exo, tubeless-ready, clincher |
| Saddle | Selle Italia SLR Boost SuperFlow L Carbon Keramic Rail |
| Seatpost | Fox Transfer Factory Kashima Dropper, 31.6mm |
| Pedals | Available to be purchased separately |
| Motor | Shimano EP8-RS |
| UI/Remote | Shimano E7000 switch unit |
| Battery | Orbea RS Internal 360Wh |
| Wiring Harness | Custom Specialized harness |
| Accessories | Orbea RS Charger (36V-2A), FOX Kabolt Boost axle |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
