Orbea Terra H40 Gravel Bike 2022

£1,899.00
MSP £1,999.00 Save 5%

Select a colour and size to view stock availability

Orbea
Terra H40 Gravel Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1465802

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

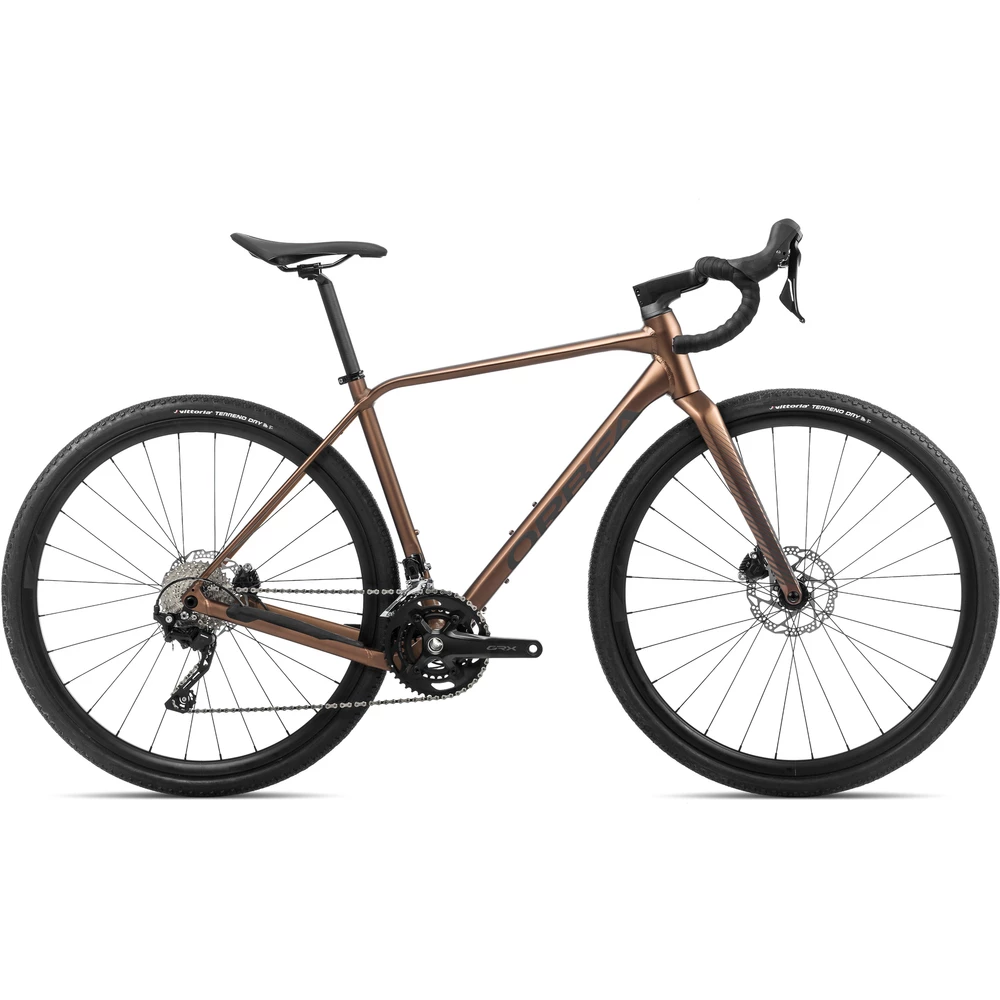

Orbea Terra H40 Gravel Bike 2022

Matching value with performance, the Orbea Terra H40 Gravel Bike features a hydroformed and triple-butted aluminium frameset for durability across all terrain. Although less exotic than the more premium carbon editions, the aluminium frame is exceptionally lightweight and features confidence-inspiring geometry to offer versatility across a multitude of surfaces. Lively and fast, the frame is rigid for rapid acceleration, and the carbon fork damps vibration to reduce fatigue on longer rides.

Designed to eliminate chainslap for a near-silent ride, the GRX 10-speed drivetrain features a rear derailleur with an integrated stabiliser mechanism, providing additional chain security on rough terrain. Hydraulic disc brakes offer phenomenal stopping power and excellent modulation, while the Orbea Ready GR wheels utilise Shimano hubs for proven, reliable performance. 38c Vittoria tyres enhance comfort and traction when riding on looser surfaces, and the flared handlebars feature a wider width to improve stability.

Highlights

  • Versatile gravel-specific geometry
  • Orbea hydroformed, triple-butted aluminium frame is lightweight and responsive
  • Full carbon fork damps vibration to reduce fatigue on rough terrain
  • Wide tyre clearance allows the use of different tyre widths to suit the terrain
  • Integrated mudguard mounts offer all weather protection
  • 10-speed Shimano GRX groupset is reliable and supplies excellent chain retention
  • Shimano RX400 hydraulic disc brakes offer powerful stopping power

Technical Specification

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8" - 1,5", BB 68mm – BSC English, thru-axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27.2mm seat tube, MMS system
Fork Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts, thru-axle 12mm x 100m, thread M12xP1.5, MMS system
Headset FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB bearings
Stem Orbea OC1 31.8mm interface -6º
Handlebar Orbea OC1 All Road, reach 80mm, drop 125mm, flare 12º
Front Brake Shimano RX400, hydraulic disc
Rear Brake Shimano RX400, hydraulic disc
Brake Levers Shimano RX400, hydraulic disc
Front Derailleur Shimano GRX RX400
Rear Derailleur Shimano RD-RX400, 10-speed
Shift Levers Shimano ST-RX400, 10-speed
Cassette Shimano Tiagra HG-500 11-34t, 10-speed
Crankset Shimano GRX RX600-10, 30x46 teeth chainrings
Chain KMC X10
Front Wheel Ready GR, 700c
Rear Wheel Ready GR, 700c
Front Tyre Vittoria Terreno Dry Gravel G2.0 TNT, 700x38c, tubeless-ready
Rear Tyre Vittoria Terreno Dry Gravel G2.0 TNT, 700x38c, tubeless-ready
Saddle Selle Royal Seta RS
Seatpost Orbea OC2 27.2 Offset 20
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.
