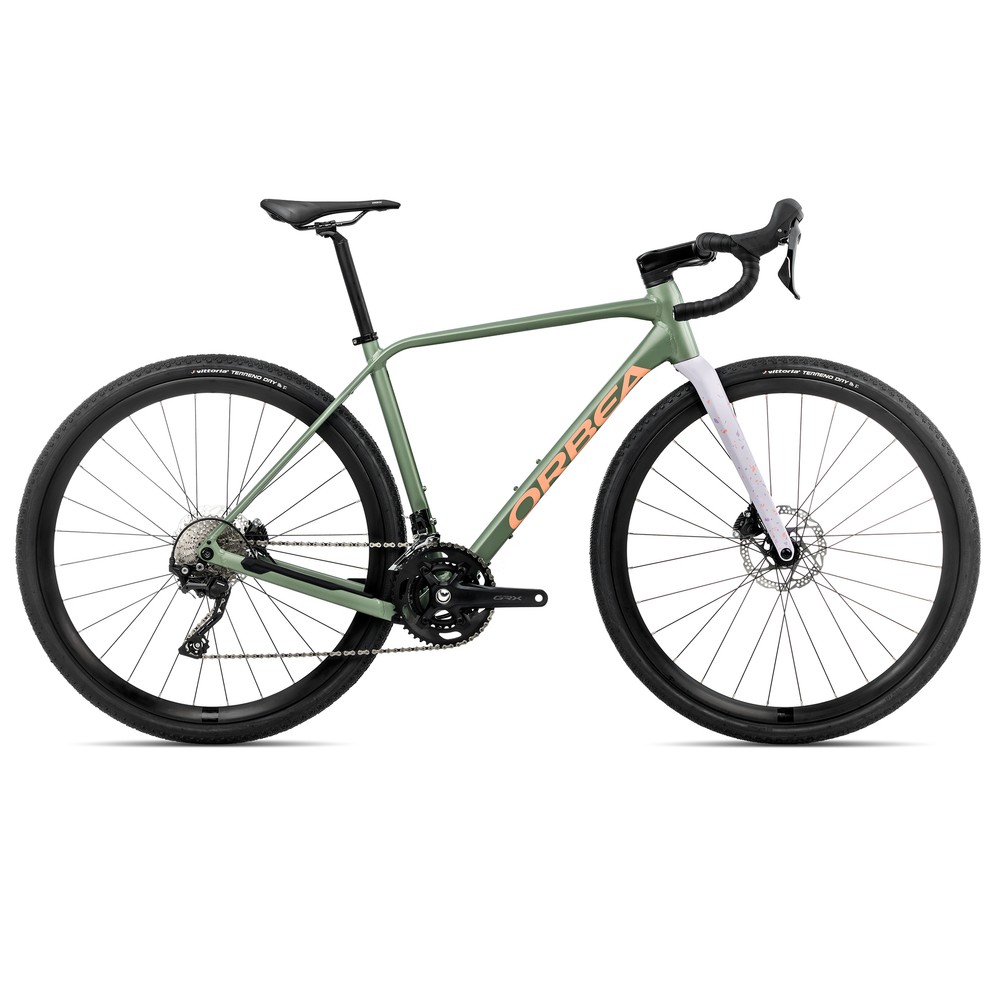

Orbea Terra H40 Gravel Bike
Crafted specifically for gravel terrain, Terra stands out as a purpose-built adventure machine, distinct from repurposed road or mountain bikes. It invites you to infuse comfort into your road ventures, explore the hidden trails, or extend your journeys overnight. The Orbea Terra H40 gravel bike design ensures readiness for the vast world of exploration alongside you.
Orbea Terra H40 Design
The Orbea Terra Hydro disc frame, featuring hydroformed triple-butted aluminum and Thru Axle 12mm x 142mm rear, coupled with the full carbon Orbea Terra ICR fork, offers responsive handling and stability. Equipped with a Shimano GRX drivetrain and hydraulic disc brakes, including the RX600-10 crankset and RX400 shifters, Terra ensures smooth performance on varied terrain. Alloy tubeless wheels with Vittoria Terreno Dry Gravel tires further enhance its capabilities, making Terra an ideal companion for your gravel adventures.
Technical Specification
| Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Drivetrain Crankset | Shimano GRX RX600-10 30x46t |
| Shifters | Shimano ST-RX400 |
| Cassette | Shimano Tiagra HG-500 11-34t 10-Speed |
| Rear Derailleur | Shimano RD-RX400 |
| Front Derailleur | Shimano GRX RX400 |
| Chain | KMC X10 |
| Cockpit Handlebar | OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 |
| Stem | OC Road Performance RP21, -6º |
| Brakes Brakes | Shimano RX400 Hydraulic Disc |
| Brakes Configuration Wheels | Alloy, Tubeless, 700c, 21c |
| Tyres | Vittoria Terreno Dry Gravel 700x38c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
| Components Seatpost | SP 0.2 Carbon, 27.2mm, Setback 20 |
| Saddle | Prologo Akero AGX STN size 155mm |
| Accessories Mudguard Handlebar Tape | Orbea Eva |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
