Description

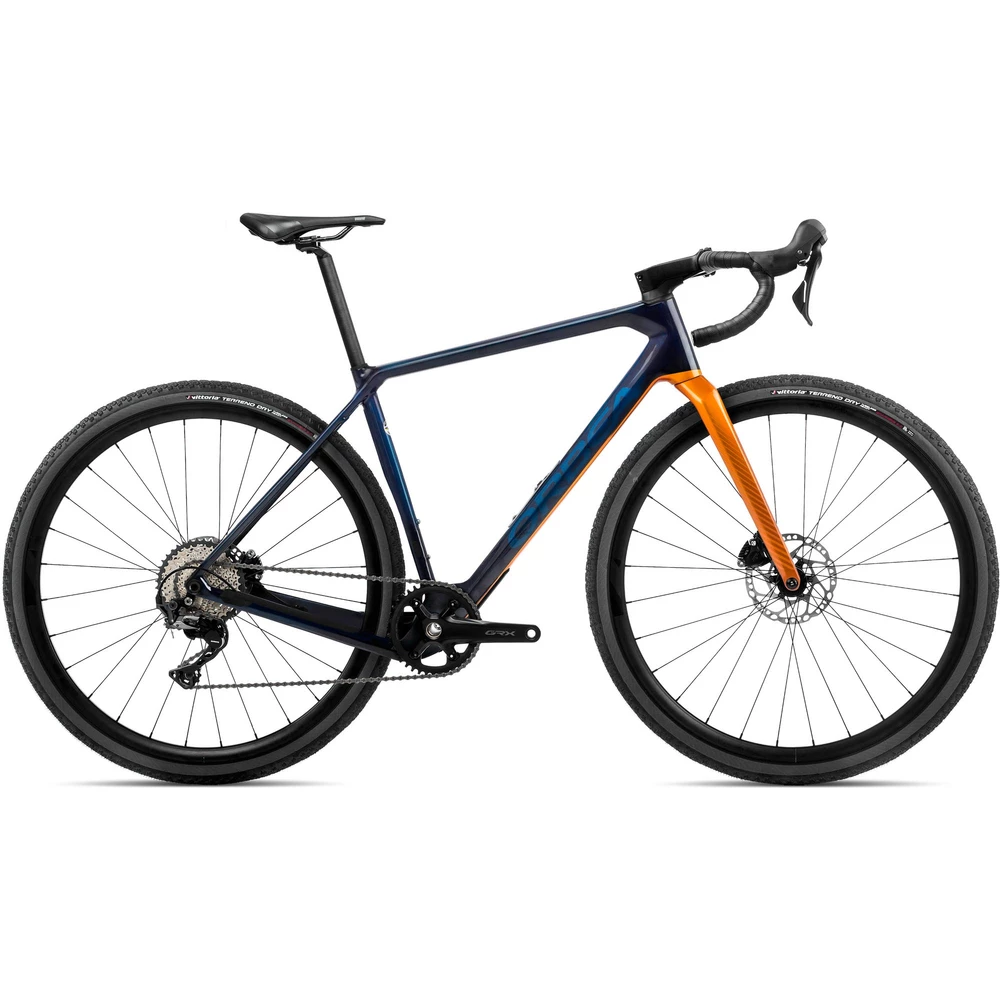

Orbea Terra M30 TEAM 1X Gravel Bike 2022
Featuring a 1x Shimano GRX drivetrain for reliable performance and chain retention, the Orbea Terra M30 TEAM 1X Gravel Bike is a fast and fun choice for off-road adventures. Stiff and responsive, the monocoque carbon frame construction is exceptionally lightweight, without being overly harsh on rough terrain. Asymmetric chainstays grant room for up to a 44t single chainring setup, while the tidy internal cable routing keeps the aesthetics on point, highlighting the clean, angular lines of the frame.
Wide tyre clearance provides room for multiple wheel and rubber options, with this model coming equipped with a 700x38c setup to damp harsh vibrations and offer plush comfort. The gravel-specific geometry draws inspiration from the Orbea road and mountain bike product lines, delivering a confident, unwavering ride character on challenging trails.
The high-quality Orbea wheels are clad with Vittoria Terreno gravel tyres, promoting grip on looser surfaces, and the flared handlebar provides pinpoint control and handling. Powerful Shimano disc brakes boost confidence when riding in poor weather conditions, and the wide 11-40t gear range excels across all gradients.
Highlights
- Versatile gravel-specific geometry
- The Orbea monocoque carbon frameset is light, precise and durable
- Optimised frame tube shapes offer stiffness, compliance and comfort across any surface
- Wide tyre clearance allows the use of different tyre widths to suit the terrain
- Size-specific frame tube sections and a finely tuned geometry grant control and balance across dirt tracks, gravel paths and roads
- 1x Shimano GRX groupset is reliable and supplies excellent chain retention
- Single front chainring configuration is reliable and convenient
- Shimano RX400 hydraulic disc brakes offer powerful stopping power
Technical Specification
| Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, power meter compatible, thru-axle 12mm x 142mm rear, thread M12x2 P1, Internal Cable Routing, EC/DC compatible |
| Fork | Orbea Terra OMR carbon disc fork, full carbon steerer |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | Orbea OC RP10 Road Performance ICR, -8º, IFC02 Computer mount interface |
| Handlebar | Orbea OC GR30 Gravel, Reach 80mm, Drop 125mm, Flare 12°, with Di2 hole |
| Front Brake | Shimano RX400, hydraulic disc |
| Rear Brake | Shimano RX400, hydraulic disc |
| Brake Levers | Shimano RX400 |
| Rear Derailleur | Shimano RX812 GS, 11-speed |
| Shift Levers | Shimano ST-RX600, 11-speed |
| Cassette | Shimano CS-M7000, 11-40t, 11-speed |
| Crankset | Shimano GRX RX600, 40t |
| Chain | Shimano HG 601 |
| Front Wheel | Ready GR, 700c |
| Rear Wheel | Ready GR, 700c |
| Front Tyre | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c, tubeless-ready |
| Rear Tyre | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c, tubeless-ready |
| Saddle | Prologo Akero AGX STN, size 155mm |
| Seatpost | Orbea OC2, carbon, 27.2mm, 20mm offset |
| Pedals | Available to be purchased separately |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
