Description

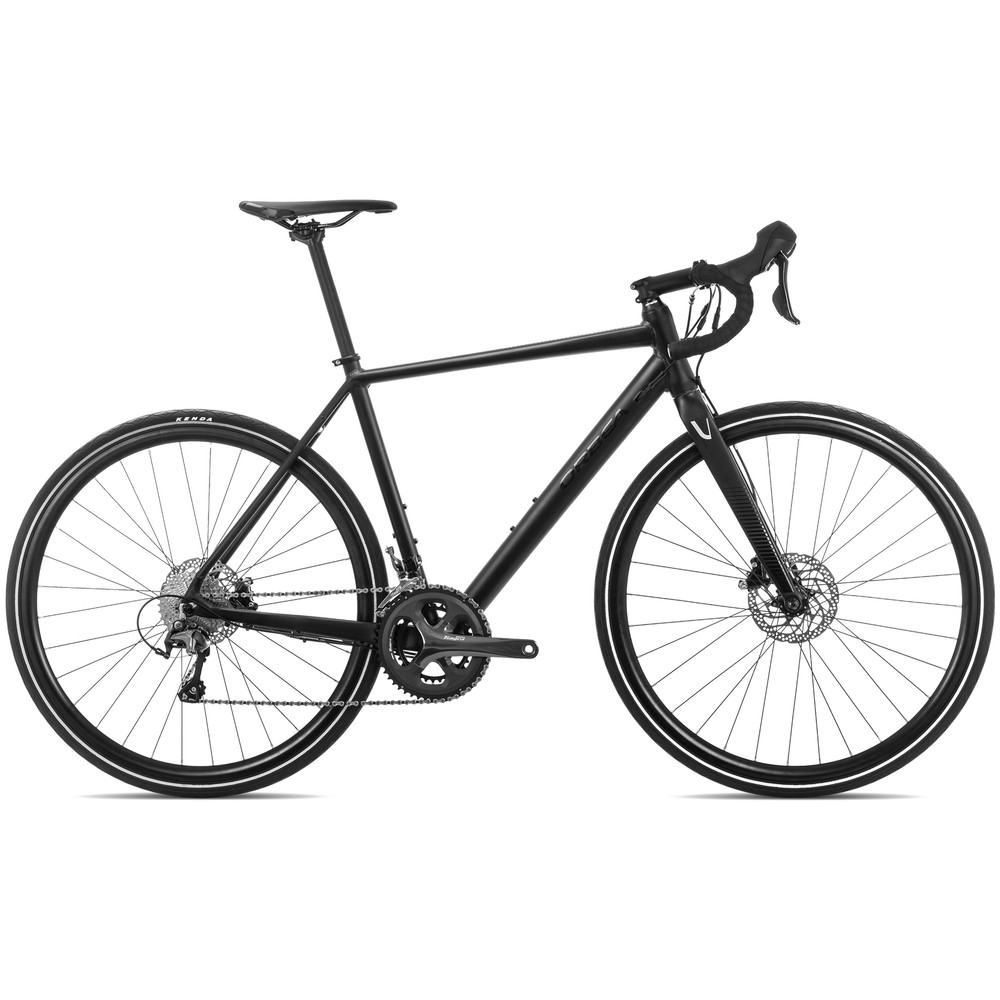

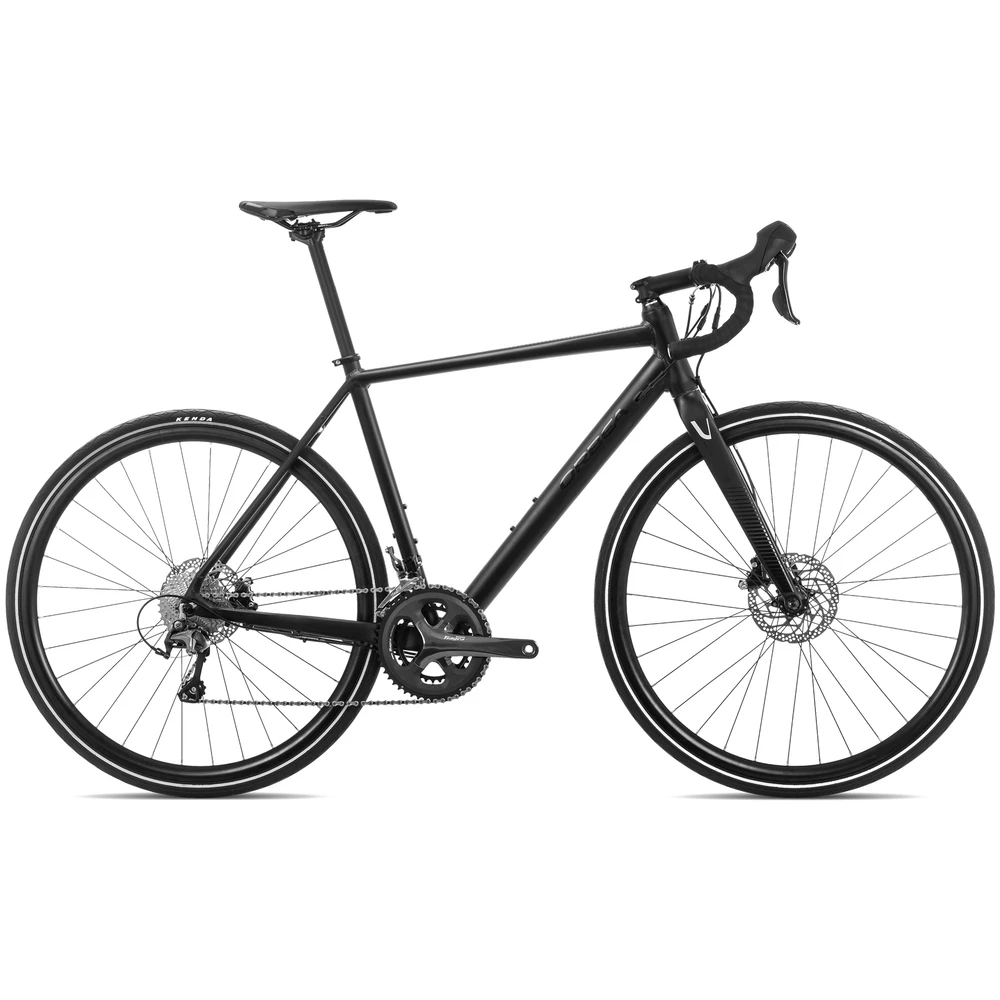

Orbea Vector Drop Disc Road Bike 2020
The hugely versatile Orbea Vector Drop Disc Road Bike will be as at home on the city streets as it is in the park or on quiet country lanes. It pairs a lightweight alloy frame with a carbon fork, and the combination brings predictable handling, durability and a smooth ride. Built up with Shimano Tiagra 10-speed components, you get both precise shifting and predictably powerful hydraulic braking for all-weather stopping. There even reflectivity on the Kenda tyre walls for added visibility night and day, and if you require an even more practical setup, you can add mudguards and a luggage rack using the included mounts.
Highlights
- Lightweight alloy frame
- Balanced Sport Geometry
- Internal cable routing
- Mudguard and rack compatible
- Shimano Tiagra 10-speed components and hydraulic disc brakes
- Orbea Airline Corsa Disc wheels and Kenda K1098 32c clincher tyres
- Please note: Spec is as listed, images are for illustration of colourway only
Technical Specification
| Frame | Orbea Urban Speed, aluminium 6000, Orbea Tube Shaping, flat mount disc brake, 135x9 QR, carrier and mudguard compatible, 700x40C maximum tyre width, inner cable routing |
| Fork | Orbea Speed 400mm carbon flat mount |
| Headset | 1-1/8” semi-integrated |
| Handlebar | Orbea OC1 Road, reach 80mm, drop 125mm, width 420mm |
| Stem | Orbea OC-II, 100mm |
| Front Brake | Shimano Tiagra 4770 hydraulic disc |
| Rear Brake | Shimano Tiagra 4770 hydraulic disc |
| Brake Levers | Shimano Tiagra ST-4770 |
| Front Derailleur | Shimano Tiagra 4700 |
| Rear Derailleur | Shimano Tiagra 4700 GS 10-speed |
| Shift Levers | Shimano Tiagra ST-4770, 10-speed |
| Cassette | Shimano Tiagra HG-500, 11-32t, 10-speed |
| Crankset | Shimano Tiagra 4700 34x50t, crank length - 170mm (XS-M); 172mm (L); 175mm (XL) |
| Chain | KMC X10 |
| Front Wheel | Orbea Airline Corsa Disc, 700X19c, clincher |
| Rear Wheel | Orbea Airline Corsa Disc, 700X19c, clincher |
| Front Tyre | Kenda K1098 700x32c reflective tape, clincher |
| Rear Tyre | Kenda K1098 700x32c reflective tape, clincher |
| Saddle | Selle Royal Asphalt GR |
| Seatpost | Alloy 27.2, offset 0 |
| Pedals | N/A |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
