Orbea Vibe H10 EQ Electric Hybrid Bike 2021

★★★★★ ★★★★★
(0)
£2,999.00

From only £112.46 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Orbea
Vibe H10 EQ Electric Hybrid Bike 2021
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1292592

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

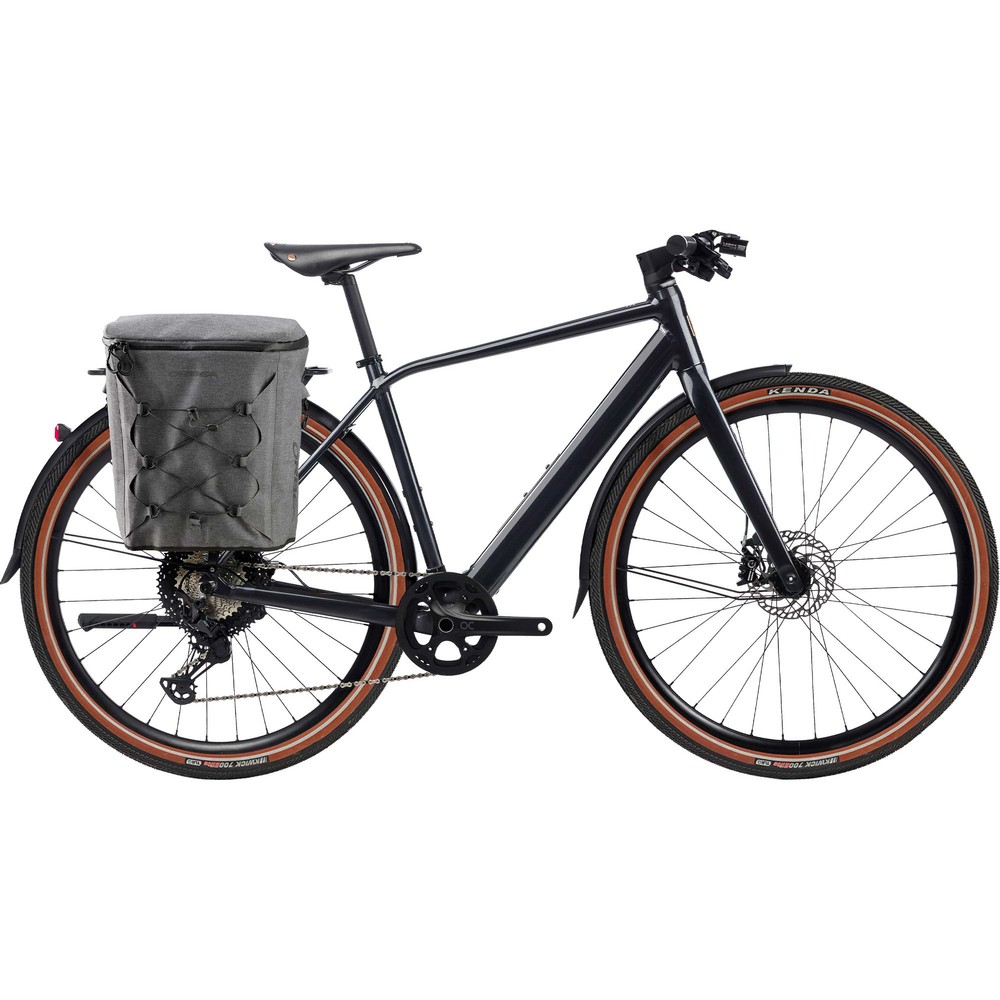

Orbea Vibe H10 EQ Electric Hybrid Bike 2021

Fully equipped for anything the city can throw at it, the Orbea Vibe H10 EQ Electric Hybrid Bike focuses on style and ease of use. By using the Ebikemotion X35 Plus motor and slim 248Wh battery, the lines are sleek and mimic that of a manual bike. Easy to live with, the bikes low weight makes it perfect for daily use, ideal for the fast pace of modern life. Revolutionary features ensure this bike is up to the task right out the box, and include integrated lighting, three levels of power assistance, and a pannier rack and mudguards fitted as standard.

The Ebikemotion X35 Plus motor is mounted at the rear hub and delivers 40Nm of torque to help support you up the steepest hills. The compact design could be easily mistaken for an analogue bike, with the 248Wh battery being integrated into the downtube. The 248Wh capacity on offer is more than enough to get you from A to B around town, balancing overall weight with longevity to find a middle-ground ideal for hybrid-style riding. The low battery weight provides a ride character not dissimilar to a standard hybrid, with sharp, precise handling keeping you in control. For longer journeys, an aftermarket range extender is available to boost your riding range.

Whether on the commute or riding for leisure, this EQ edition has you covered with a wide range of accessories. Fitted with matching mudguards and a pannier rack, it is ideal for trips to work, and even comes with an OC side bag, which features a laptop sleeve, waterproof fabrics, and is backpack convertible. A chainstay-mounted stand is highly useful, and Brooks grips and saddle add a touch of class. The integrated lights draw power from the main battery, and an additional Leyzne POWER STVZO PRO E115 front light supplies 310 lumens of power - perfect for enhancing visibility in low light conditions, or for when the street lamps turn off.

The slick iWoc TRIO remote allows you to cycle through power modes without leaving the handlebar, and the powerful Magura MT5 E-STOP hydraulic brakes are designed for the extra weight of an electric bike. A Shimano 12-speed drivetrain provides a wide gear range, perfect for a range of gradients, and the SunRace cassette is highly durable to prevent wear.

Highlights

  • Unisex mid-style frame design
  • This EQ edition features mudguards, a pannier rack, pannier side bag, Leyzne lighting, Knog OI classic bell, and a built in stand as standard
  • Integrated frame lighting
  • Lightweight internal Ebikemotion 248Wh battery
  • Ebikemotion X35 hub motor system
  • Minimalist and integrated design to mimic the look of a manual bike
  • Torque Simulation Algorithm to mirror the effort you put in, with a max torque of 40Nm
  • Near drag-free pedalling when the motor is not in use
  • Discreet iWOC TRIO handlebar remote
  • 12-speed Shimano XT/Deore groupset for smooth shifting
  • Powerful hydraulic Magura MT5 E-STOP disc brakes
  • Brooks saddle and grips

Battery Specifications

  • Maximum Assist: 250w / 40Nm torque
  • Motor Weight: 2.1kg
  • Battery Power: 248wh

Technical Specification

Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135x9 QR, flat mount disc, 700x45 maximum tyre clearance, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and mudguard compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, mudguard compatible
Headset Orbea Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea OC1 31.8mm interface -6º
Handlebar Orbea Alloy 31.8mm 12mm Rise 700mm
Grips Brooks Comfort Cambium 130mm
Front Brake Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Rear Brake Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Brake Levers Magura MT5 E-STOP
Rear Derailleur Shimano XT M8100 SGS Shadow Plus 12-speed
Shift Levers Shimano Deore M6100 12-speed
Chain KMC X12
Cassette SunRace CSMZ80 11-51t 12-Speed Metalic E-bike
Crankset Orbea OC 42t, with chainguard
Front Wheel Blackjack Ready GR
Rear Wheel Blackjack Ready GR
Front Tyre Kenda K1052 700x45C Reflective type TLR, clincher
Rear Tyre Kenda K1052 700x45C Reflective type TLR, clincher
Saddle Brooks Cambium C19 275x184
Seatpost Orbea Alloy 27.2, offset
Pedals Available to be purchased separately
Motor Ebikemotion X35 Plus 25kmh
Ui/Remote Ebikemotion iWoc TRIO
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Accessories Integrated lights front and rear, additional Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens front light, Lezyne FENDER STVZO rear light, Ursus Mooi R90 rear alloy adjustable bike stand, Knog OI Classic bell, CURANA Apollo 55mm mudguard, Orbea Vibe rear luggage carrier (maximum weight 15kg)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Orbea Vibe H10 EQ Electric Hybrid Bike 2021 Sizing
