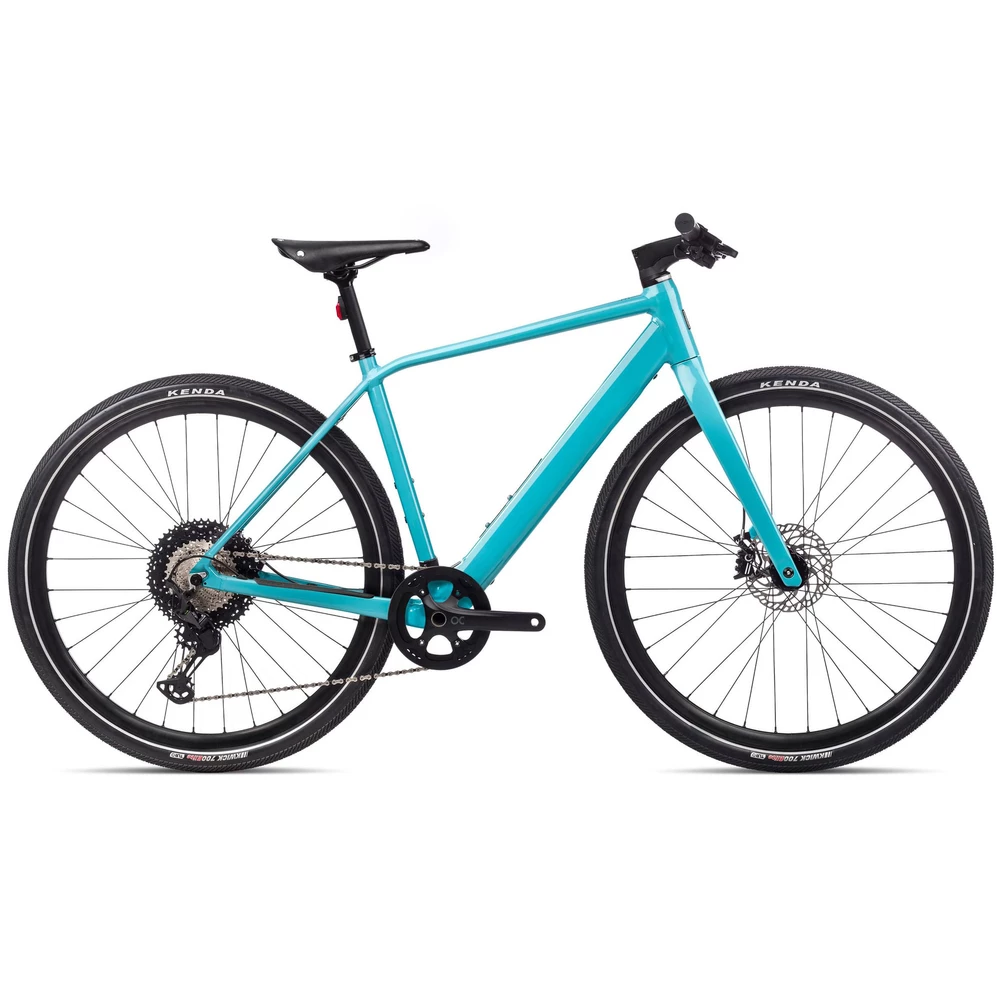

Orbea Vibe H10 EQ Electric Hybrid Bike 2023
Innovation meets urban functionality with our latest transportation concept - the Orbea Vibe H10 EQ Electric Hybrid Bike. Designed to seamlessly integrate into your lifestyle, the Vibe is not just a machine but a sophisticated accessory that complements your sense of style without overshadowing it. Lightweight, sleek, and reliable, it effortlessly maneuvers through city streets and can be easily stored in apartments or workplaces.
Built on our Enough Energy concept, the Vibe offers a minimalist design with integrated components, delivering a riding experience that prioritizes the sensation of "bike" over bulky "e" components. The Orbea Urban Geometry ensures a comfortable and secure ride, with an upright position for better vision and balance, and responsive steering without feeling overly fast. For added convenience, connect your smartphone to the EBikeMotion app and access system information, ride details, and turn-by-turn GPS navigation with fully offline maps right from the handlebars.
The Vibe H10 EQ is equipped with integrated cabling for a sleek appearance and a slimline 248Wh battery discreetly nestled into the downtube. Controlled via the Mahle iWoc TRIO remote, the Mahle X35 Plus motor in the rear hub provides assistance up to 15.5mph / 25kph, while the four-piston MT5 E-STOP hydraulic brakes ensure efficient stopping power. With a 12-speed Shimano XT mix drivetrain for crisp shifting, reflective Kenda tires with a puncture-resistant strip, and ergonomic Brooks touchpoints, the Vibe H10 EQ offers both style and performance for discerning commuters and leisure riders alike.
Browse our range of Orbea electric hybrid bikes today.
Highlights
- Integrated frame lighting
- Lightweight internal Mahle 36V/6.9A 248Wh ANT+ battery
- Mahle X35 Plus hub motor system
- Minimalist and integrated design to mimic the look of a manual bike
- Near drag-free pedalling when the motor is not in use
- Discreet Mahle iWoc TRIO handlebar remote
- 12-speed Shimano XT/Deore groupset for smooth shifting
- Powerful hydraulic Magura MT5 E-STOP disc brakes
- Brooks saddle and grips
Battery Specifications
- Maximum Assist: 250w / 40Nm torque
- Battery Power: 248wh
Technical Specification
| Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135x9 QR, flat mount disc, 700x45 maximum tyre clearance, 1" 1/2 semi headset, 41x86.5 Pressfit BB, carrier and mudguard compatible |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, long mudguard compatible |
| Headset | Orbea Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | Orbea-approved alloy forged, -6º, ICR |
| Handlebar | Orbea-approved alloy 31.8mm, 12mm rise, 700mm |
| Grips | Brooks Comfort Cambium 130mm |
| Front Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Brake Levers | Magura MT5 E-STOP |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus 12-speed |
| Shift Levers | Shimano Deore M6100 12-speed |
| Chain | KMC X12 |
| Cassette | SunRace CSMZ80 11-51t 12-speed metallic e-bike |
| Crankset | Orbea-approved 42t, with chainguard |
| Front Wheel | Orbea-approved alloy, tubeless, 700x21c, 32H |
| Rear Wheel | Orbea-approved alloy, tubeless, 700x21c, 32H, Mahle motor hub X35 Plus |
| Front Tyre | Kenda K1052 700x45C Reflective type TLR, clincher |
| Rear Tyre | Kenda K1052 700x45C Reflective type TLR, clincher |
| Saddle | Brooks Cambium C19 283x140 |
| Seatpost | Orbea Alloy 27.2, setback 20mm |
| Pedals | VP-537 Black |
| Motor | Mahle motor hub X35 Plus, 250w, 40Nm |
| Remote | Mahle iWoc TRIO |
| Battery | Mahle 36V/6.9A 248Wh ANT+ |
| Charger | Mahle X35 |
| Accessories | Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50 / Lezyne FENDER STVZO 11 lumens rear light / Knog OI Classic bell |
| Electric assisted speed limit | 15.5mph / 25kph |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
Orbea Vibe H10 Electric Hybrid Bike 2023 Sizing
