Pinarello Gan 105 Disc Road Bike 2020

★★★★★ ★★★★★

Select a colour and size to view stock availability

Find My Size
Gan 105 Disc Road Bike 2020

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1027688

With an asymmetric Toray T600 carbon fibre frameset, the Pinarello Gan 105 Disc Road Bike is clearly related to the grand tour dominating F-series.

Designed to offer an enjoyable ride over long hours in the saddle, the geometry is slightly more relaxed and the carbon less stiff. Shimano's best-value groupset takes care of your shifting and hydraulic disc brakes, while a set of Mavic Aksium Disc wheels provide a reliable and lightweight ride.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports cycle to work scheme
Cycle to Work Scheme

Cyclescheme can save you up to 39% on a bike and accessories. Visit our Cycle to Work Scheme page to learn more and claim.

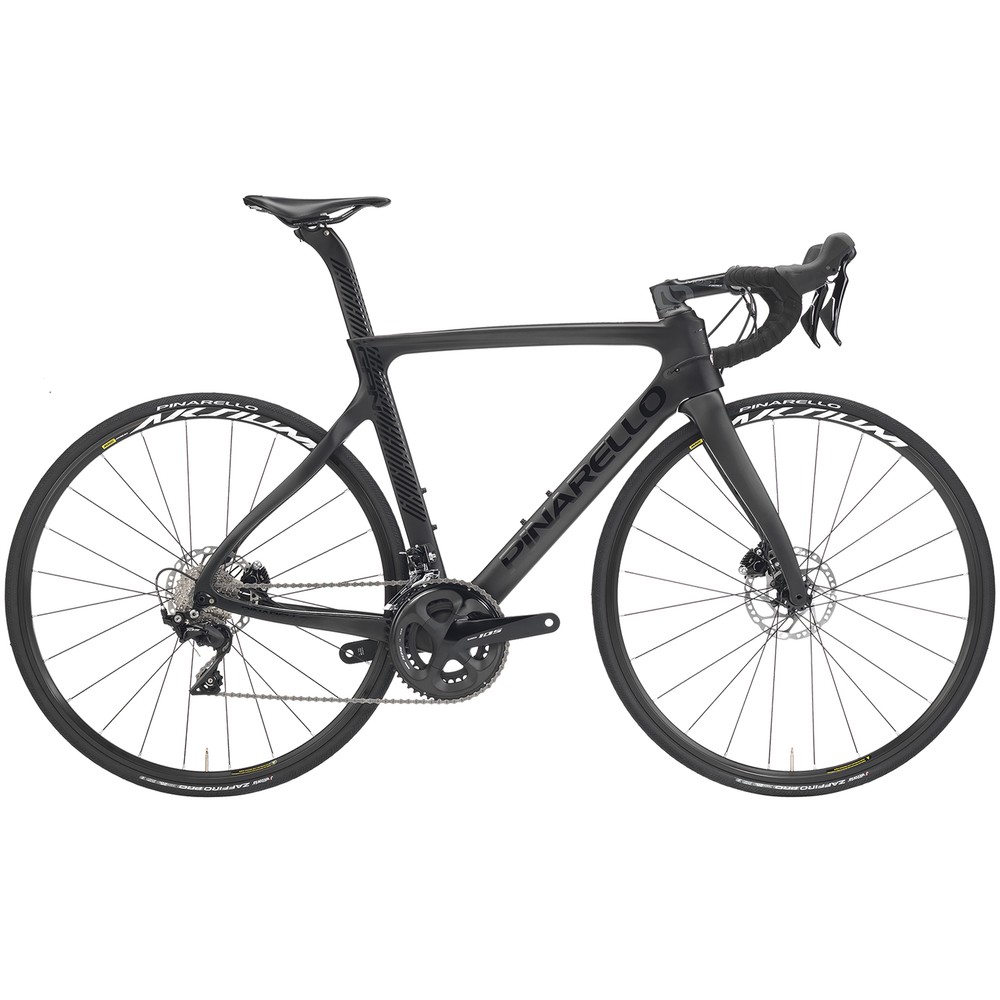

Pinarello Gan 105 Disc Road Bike 2020

The Pinarello Gan 105 Disc Road Bike is the perfect option for riders who want to go far, fast. The frameset design is derived from the infamous grand tour winning F8 Dogma, with an asymmetric layout to boost power transfer and stiffness in the right areas. However, the key difference here is that this bike is designed for more comfort over distance. The geometry is slightly more relaxed, and the T600 carbon fibre layup is more compliant while offering extra durability.

Shimano supplies the groupset, in the very capable 105 R7020 range of components. Trickle-down technology seems to be a theme with this bike, and for a fraction of the cost of Dura-Ace, you can get comparable performance with only a slight weight penalty. The 11-speed shifting is crisp while the hydraulic brakes offer superb modulated stopping power in any conditions.


  • T600 carbon fibre frame is compliant and lightweight for long-distance comfort
  • Onda carbon fibre fork provides light and responsive steering
  • Aerodynamic design in the FlatBack tube shapes
  • Shimano 105 R7020 Disc groupset provides excellent 11-speed shifting
  • Hydraulic disc brakes for unrivalled stopping modulation
  • Mavic Aksium Disc wheelset

Technical Specification

FRAME Pinarello Gan T600 carbon fibre, asymmetric, Think2 System with E-Link™, ICR™ Internal Cable Routing, Drop in Bearing System 1” 1/8 - 1”1/2, Italian threaded bottom bracket, FlatBack Profile aerodynamic tubing, UCI Approved, clearance for 25mm tyres
FORK Pinarello Gan Onda carbon fibre
STEM MOST Tiger Alu F-Series
FRONT BRAKE Shimano 105 R7020
REAR BRAKE Shimano 105 R7020
BRAKE LEVERS Shimano 105 R7020
FRONT DERAILLEUR Shimano 105 R7000
REAR DERAILLEUR Shimano 105 R7000, 11-speed
SHIFT LEVERS Shimano 105 R7020, 2x11-speed
CASSETTE Shimano 105 R7000 11-28t
CRANKSET Shimano 105 R7000 50/34t
FRONT WHEEL Mavic Aksium Disc, 700c clincher
REAR WHEEL Mavic Aksium Disc, 700c clincher
FRONT TYRE Vittoria Rubino Pro 700x25c, clincher
REAR TYRE Vittoria Rubino Pro 700x25c, clincher
SEATPOST Pinarello Gan
PEDALS Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.

Pinarello Gan 105 Disc Road Bike 2020 Sizing
