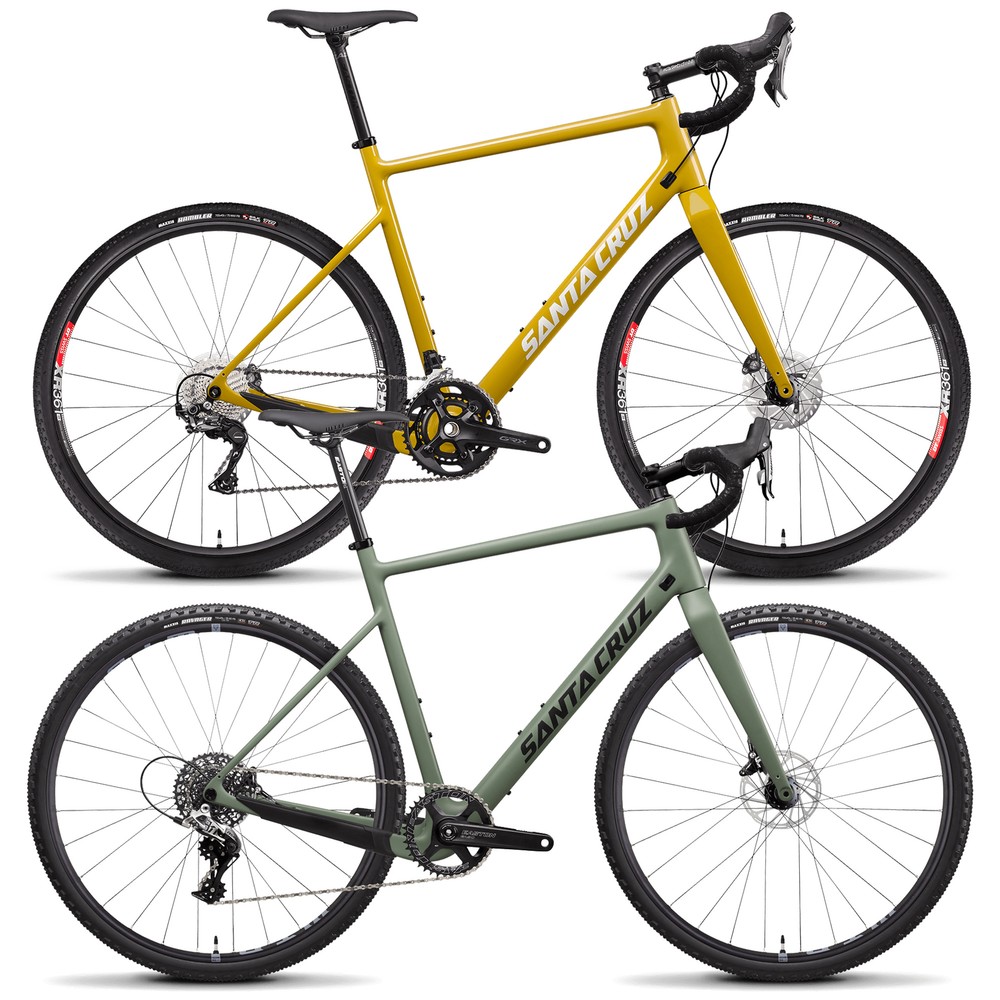

Santa Cruz Stigmata Carbon CC GRX Gravel Bike 2020
Santa Cruz resurrected their CX offering in 2015 and since then it has developed many guises. The Santa Cruz Stigmata Carbon CC GRX Gravel Bike has had a little injection of MTB into its DNA to create a new spin on a cyclocross bike. A CX bike for the new challenges, whether that be off-road, gravel, adventure; your choice. To prove the point, shortly after its launch, the Stigmata was ridden to success at the legendary Three Peaks CX race.
Some features you would expect to find; internally routed cables/disc brakes, ample tyre clearance and thru-axles are the norm but Santa Cruz wanted to offer more. They did keep some of the firm favourites such as a threaded bottom bracket, but then added a few fresh twists; mudguard mounts and three bottle cage mounts so you have more options as how much luggage you take or where you go. Adventure riding has grabbed the interest as the boundaries have been pushed further, so bigger tyres can be fitted as frame clearance will allow for up to 700 x 45mm or 650b x 2.1" tyres. The bike comes with Shimano's gravel groupset option, GRX, for the drivetrain and hydraulic disc brakes, with a 2x setup including an 11-34T cassette to make sure the adventure really can go anywhere.
Using the knowledge gained from the carbon layup process that produced the Highball range, the Stigmata benefits from a stiff frame with assured handling and off-road manners. The geometry has been tweaked so the bike doesn't feel stretched out when you're spending hours in the saddle and the frame sizes will now comfortably fit riders from 5'3" upwards. The wheelset is DT Swiss hubs, rims and spokes and shod with Maxxis Rambler 700 x 40c tyres, and Easton finishing kit. All in all, you've got quite a bike.
- Carbon CC frame
- Shimano GRX Flat Mount hydraulic disc brakes
- DT Swiss alloy wheelset
- Easton handlebar, stem and seatpost
- Shimano GRX 11-speed drivetrain
- Threaded bottom bracket, Shimano Ultegra
- Three water bottle mounts
- Lifetime warranty on all Santa Cruz bikes
|Frame||Santa Cruz Carbon CC|
|Headset||Cane Creek 40 IS Integrated Headset|
|Bottom Bracket||Shimano Ultegra BB|
|Stem||Easton EA90 Stem|
|Handlebar||Easton EA70 AX flare bar|
|Grips||Velo Bar Tape|
|Front Brake||Shimano GRX Flat Mount hydraulic disc brakes|
|Rear Brake||Shimano GRX Flat Mount hydraulic disc brakes|
|Brake Rotors||Shimano RT80 Ice-Tech Centre Lock 160mm|
|Front Derailleur||Shimano GRX Braze-On 11-speed|
|Rear Derailleur||Rear Derailleur|
|Shift Levers||Shimano GRX 810 11-speed|
|Cassette||Shimano Ultegra HG800 11-34t 11-speed|
|Crankset||Shimano GRX 11-speed 48/31 - 170mm (52), 172.5mm (54-56), 175mm (58-60)|
|Chain||Shimano SLX M7000 11-speed|
|Front Tyre||Maxxis Rambler, 700x40c, clincher|
|Rear Tyre||Maxxis Rambler, 700x40c, clincher|
|Saddle||WTB Silverado Team Saddle|
|Seatpost||Easton EC70 27.2 Zero Offset 350mm|
|Accessories||Water Bottle Mounts|
|Manufacturers claimed weight||8.26kg / 18.2lbs|
|Sealant||Stan's Sealant, Tubeless ready|
