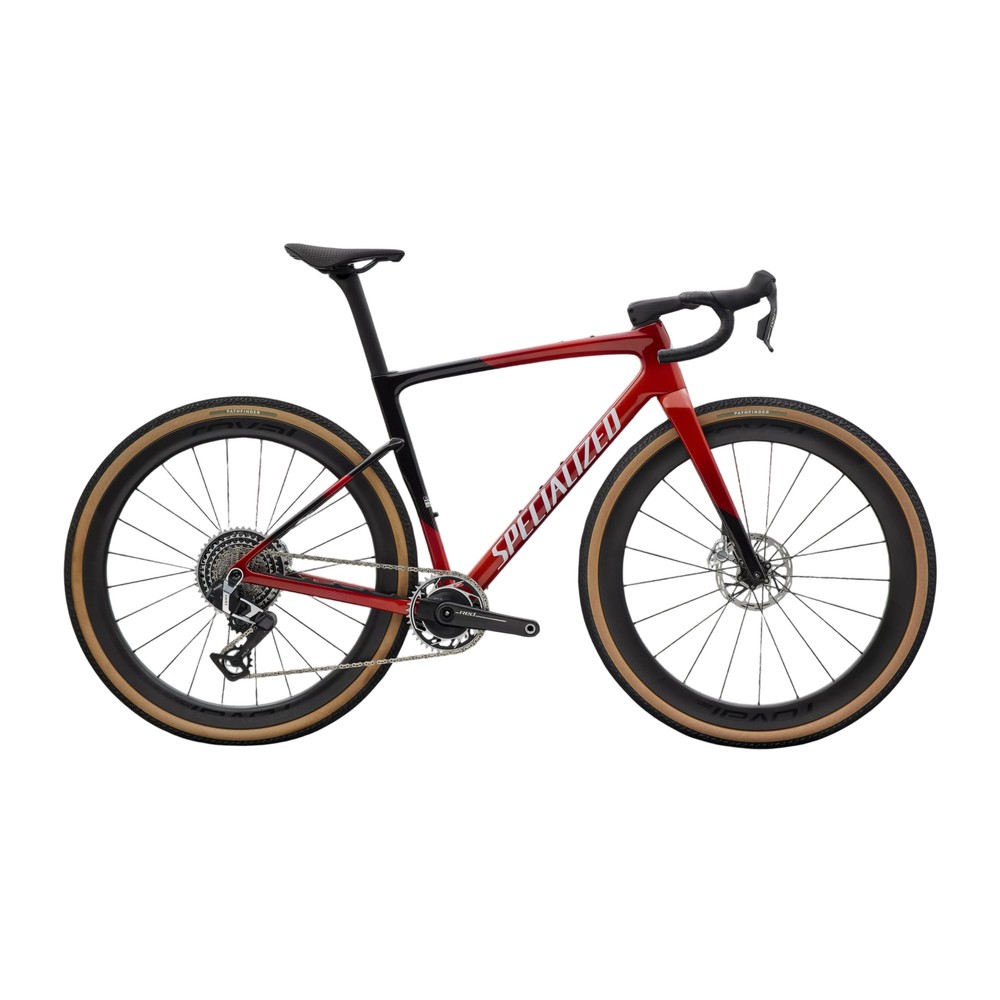

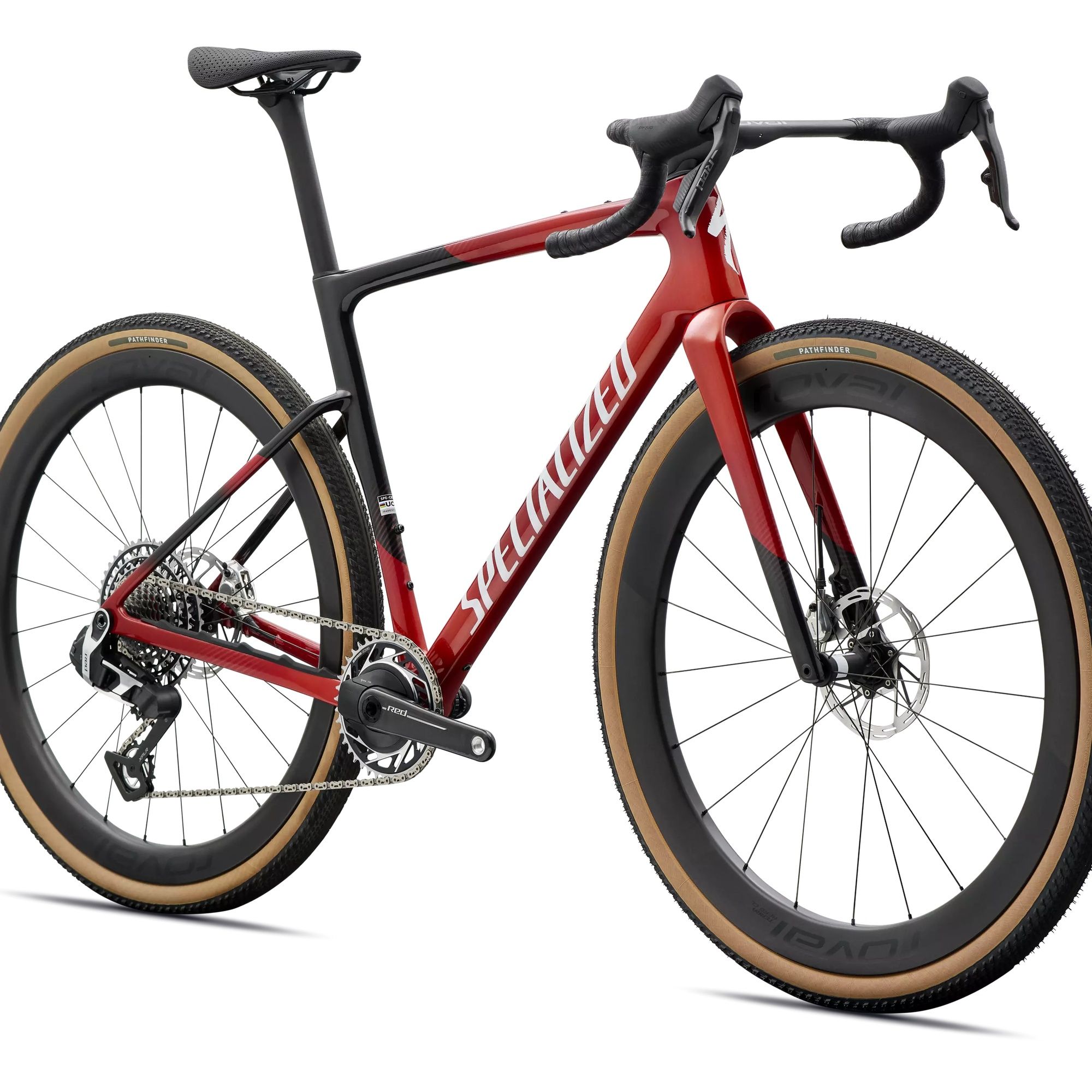

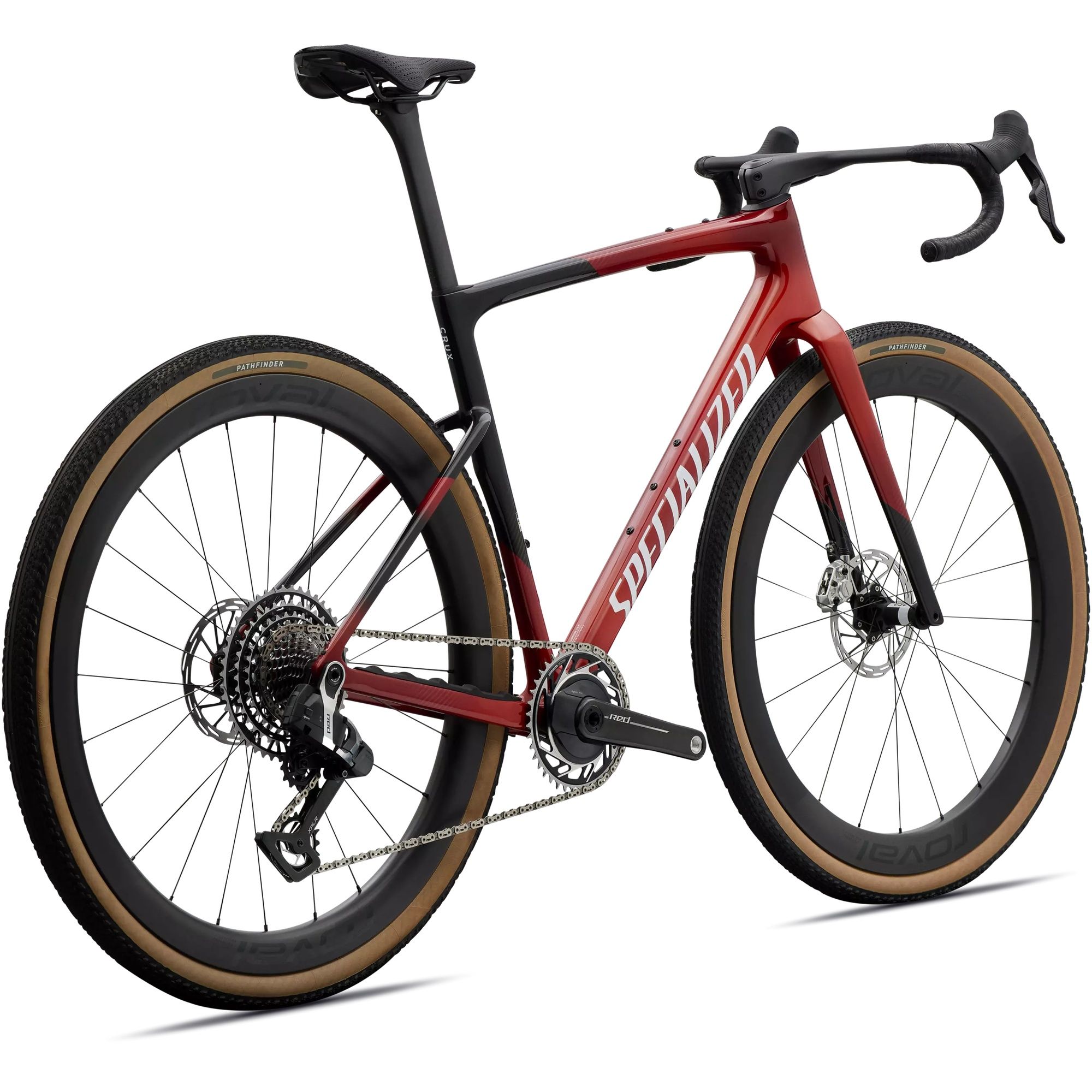

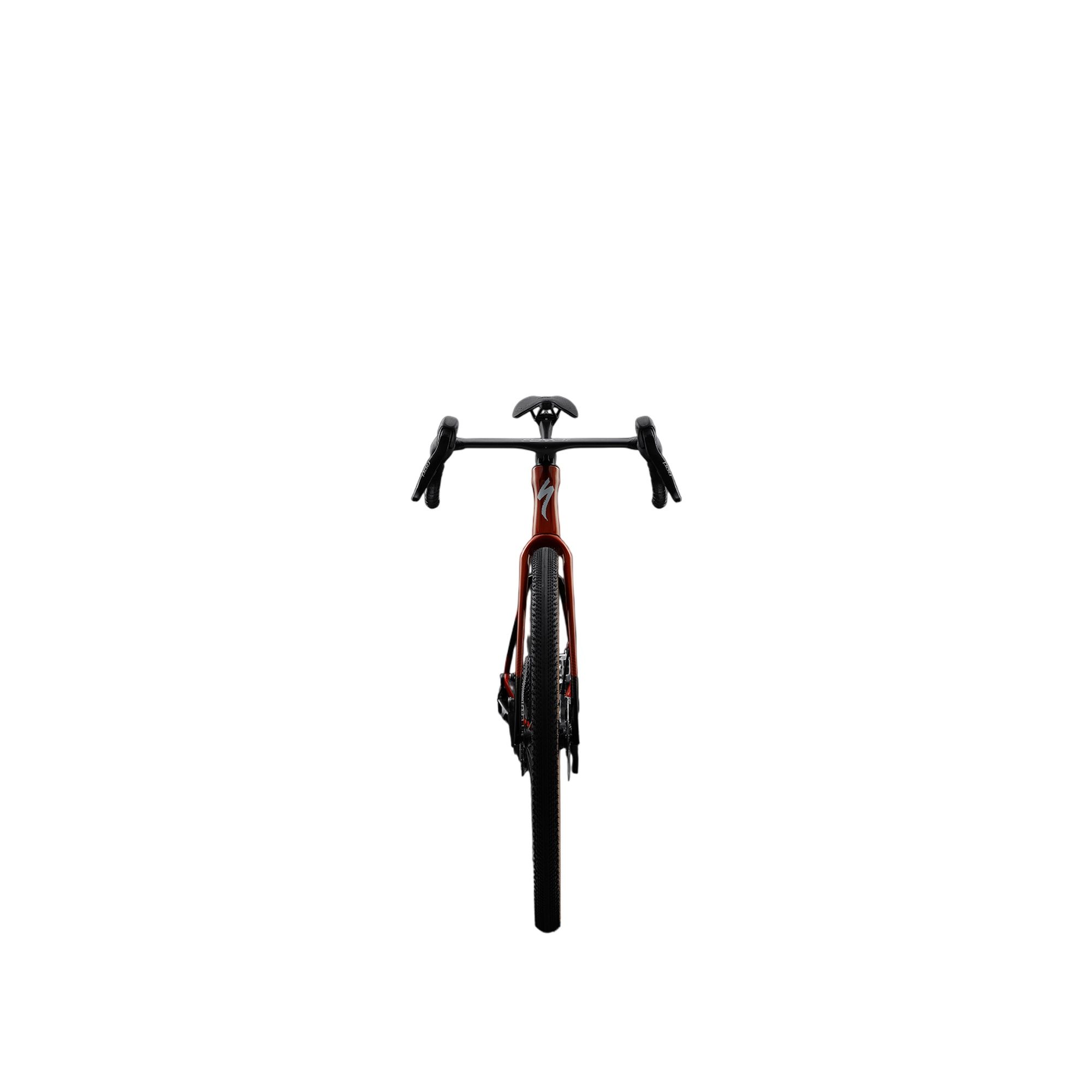

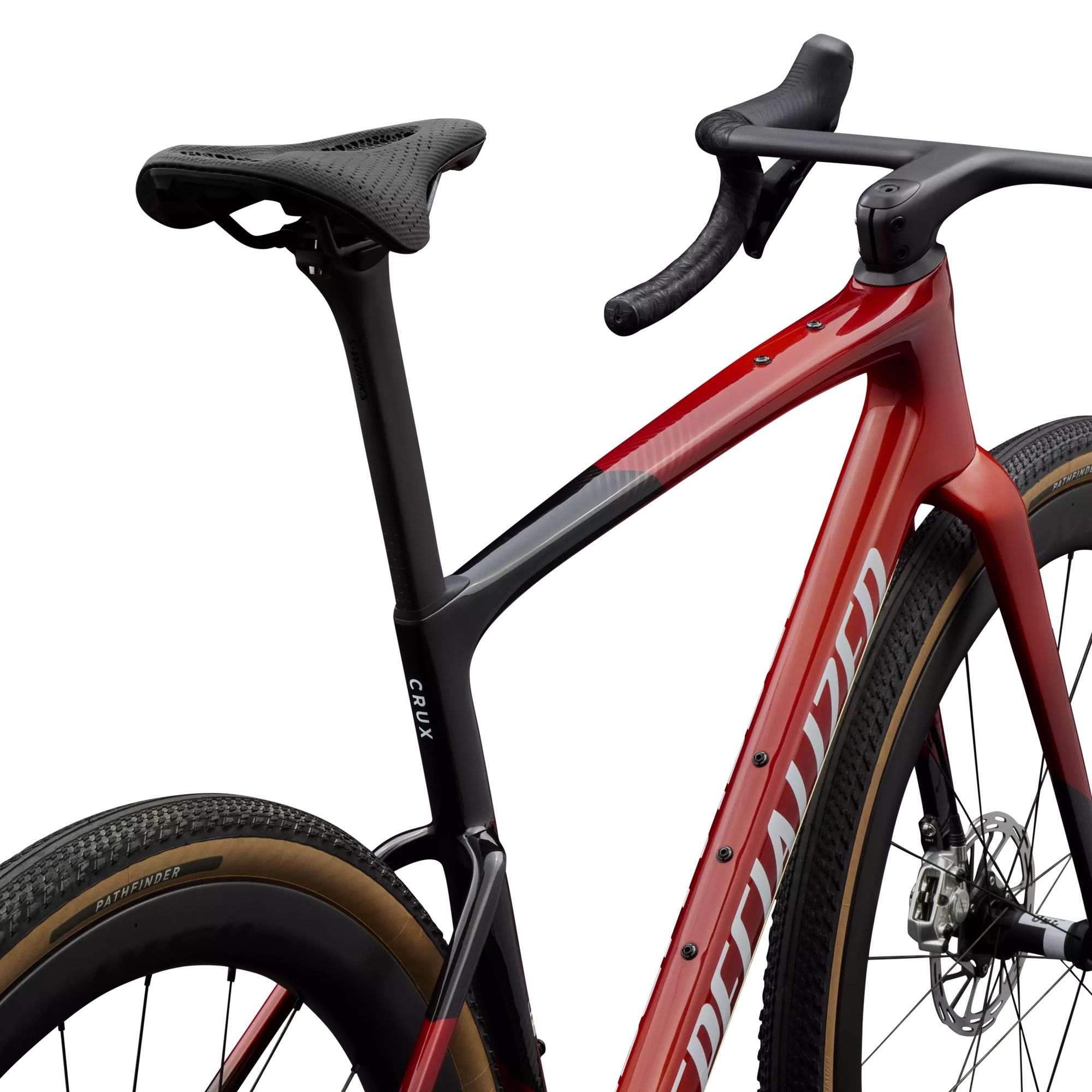

Specialized Crux 5 S-Level Axs Gravel Bike
The Crux 5 S-Level gravel bike is engineered for the competitive cyclist who seeks the perfect equilibrium between elite-tier performance and rugged durability. Utilising a FACT 10r carbon frame that tips the scales at 897 grams, this machine provides a remarkably stiff and responsive platform for explosive accelerations. At a total weight of 7.7 kilograms, it remains one of the lightest gravel bikes in its class, ensuring that every ounce of energy you expend is translated into upward momentum. This bike is built on the philosophy that true speed is found in the intersection of low mass and high efficiency, making it an ideal choice for riders who want to dominate long-distance events without the fragility of ultra-lightweight specialty builds.
Professional Aerodynamics and Integration
Despite its off-road pedigree, the Crux 5 S-Level borrows heavily from world-class road technology to minimise drag across varied terrain. The inclusion of the Roval Terra integrated cockpit ensures a clean frontal profile, tucking cables away from the wind and providing a streamlined aesthetic that matches its performance. Paired with Roval Terra CL wheels, the bike maintains exceptional stability in crosswinds while offering the aerodynamic benefits necessary to sustain high speeds on flat, exposed gravel sectors. These components work in unison to deliver a lower real-world time to finish, validated by professional riders who require a bike that stays fast even when the course gets grueling.
Precision Shifting and Refined Handling

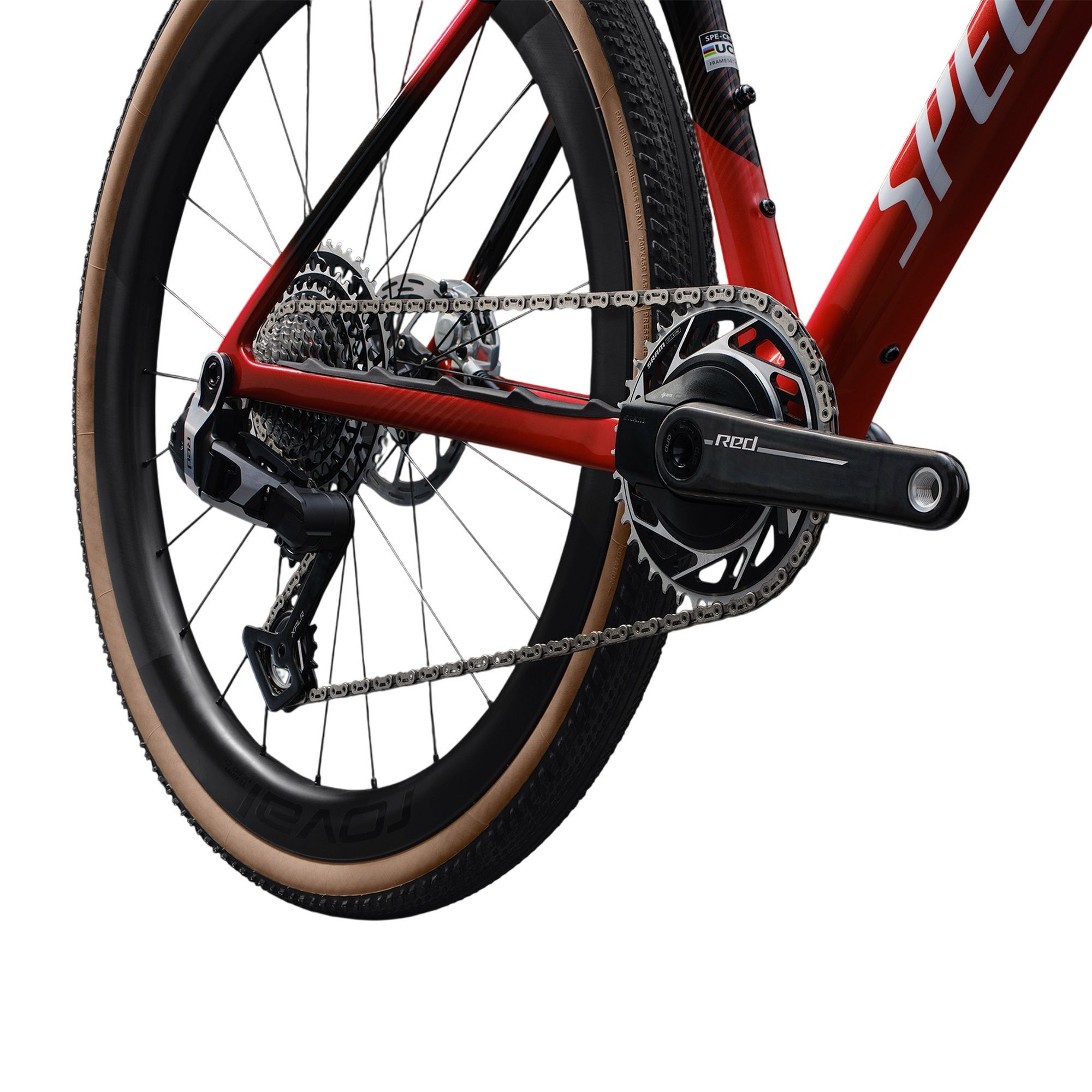

Equipped with the top-tier SRAM RED XPLR drivetrain, the Crux 5 S-Level offers a premium shifting experience that is both wireless and instantaneous. The wide-range gearing is specifically optimised for gravel racing, allowing you to find the perfect cadence whether you are navigating a technical climb or sprinting for the finish line. The handling is designed to be intuitive and sharp, mimicking the legendary Tarmac to ensure you can carve through corners with total confidence. By combining this surgical precision with high-performance componentry, the S-Level provides a race-ready package that handles the transition from smooth gravel to chunky trails with unparalleled poise.
Technical Specification

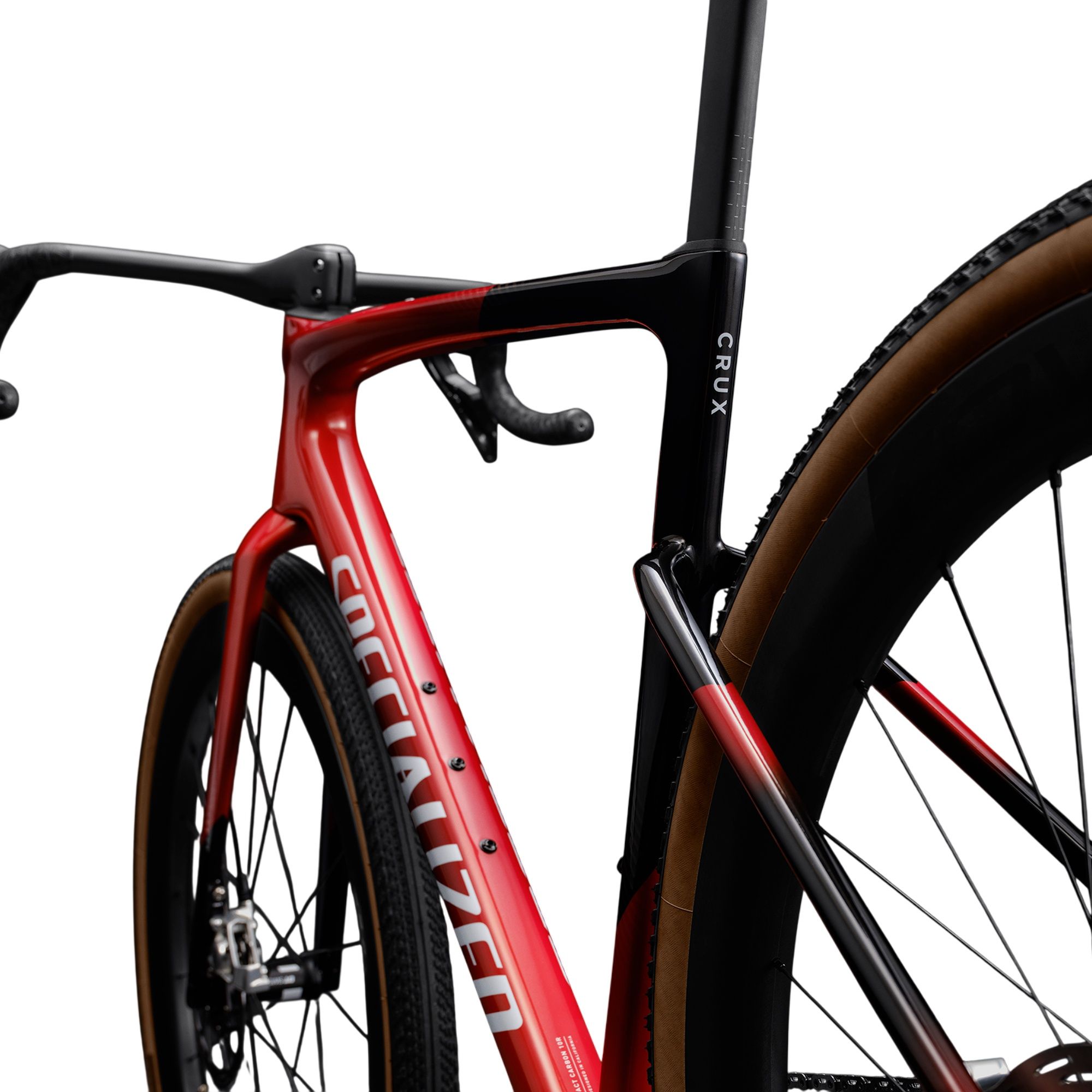

| Frame | Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Tape | Supacaz Super Sticky Kush |

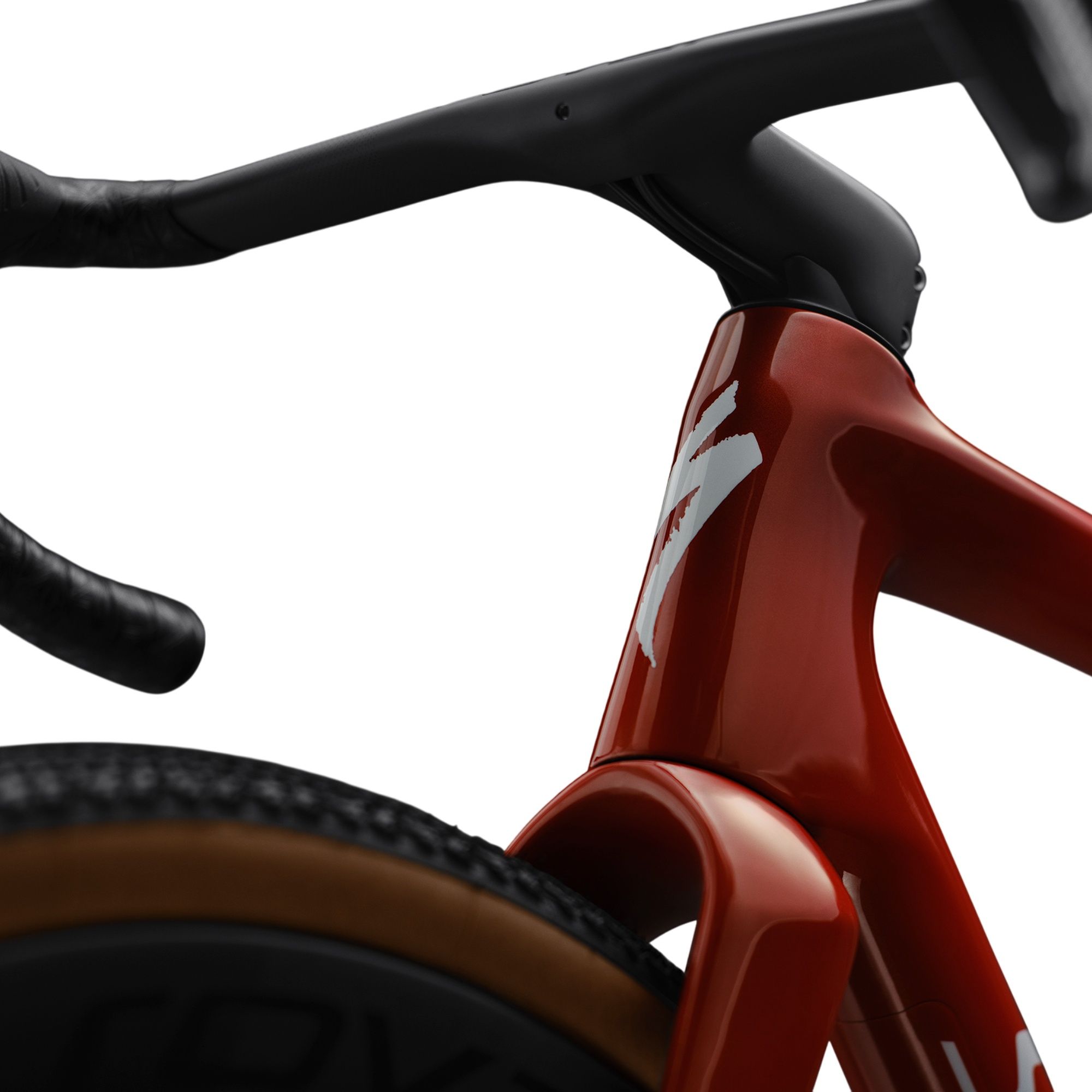

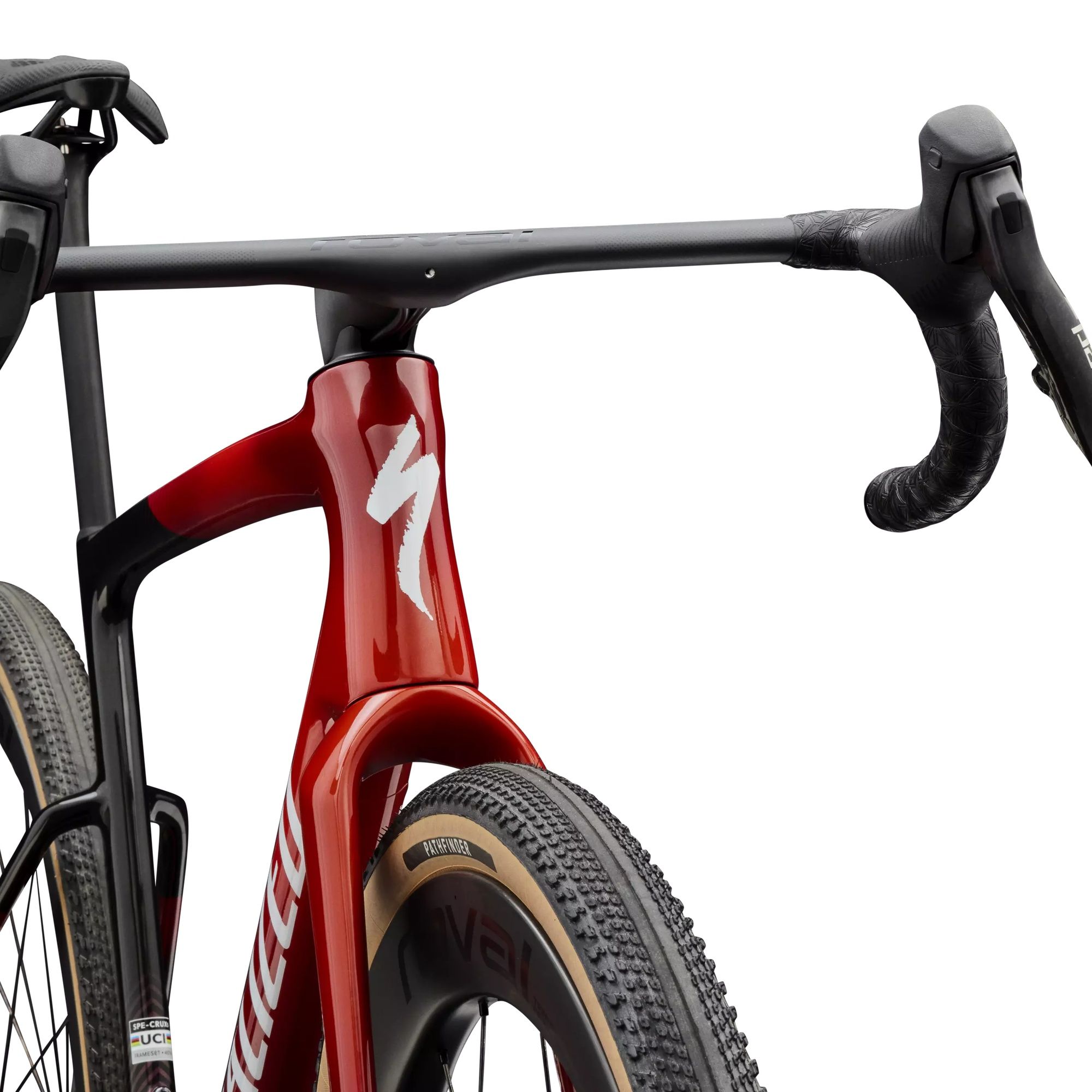

| Handlebar/Stem | Roval Terra Cockpit, Integrated Bar/Stem |
| Front Brake | SRAM RED E1, hydraulic disc |
| Rear Brake | SRAM RED E1, hydraulic disc |
| Rear Derailleur | SRAM RED AXS XPLR E1, 13-speed |
| Shift Levers | SRAM RED AXS E1, hydraulic disc |
| Cassette | SRAM RED XPLR E1, 13-speed, 10-46t |
| Crankset | SRAM RED XPLR E1, Quarq power meter, 40t |
| Bottom Bracket | Ceramic Speed BB Alpha, BSA DUB |
| Chain | SRAM RED E1 |
| Front Wheel | Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes |
| Rear Wheel | Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes |

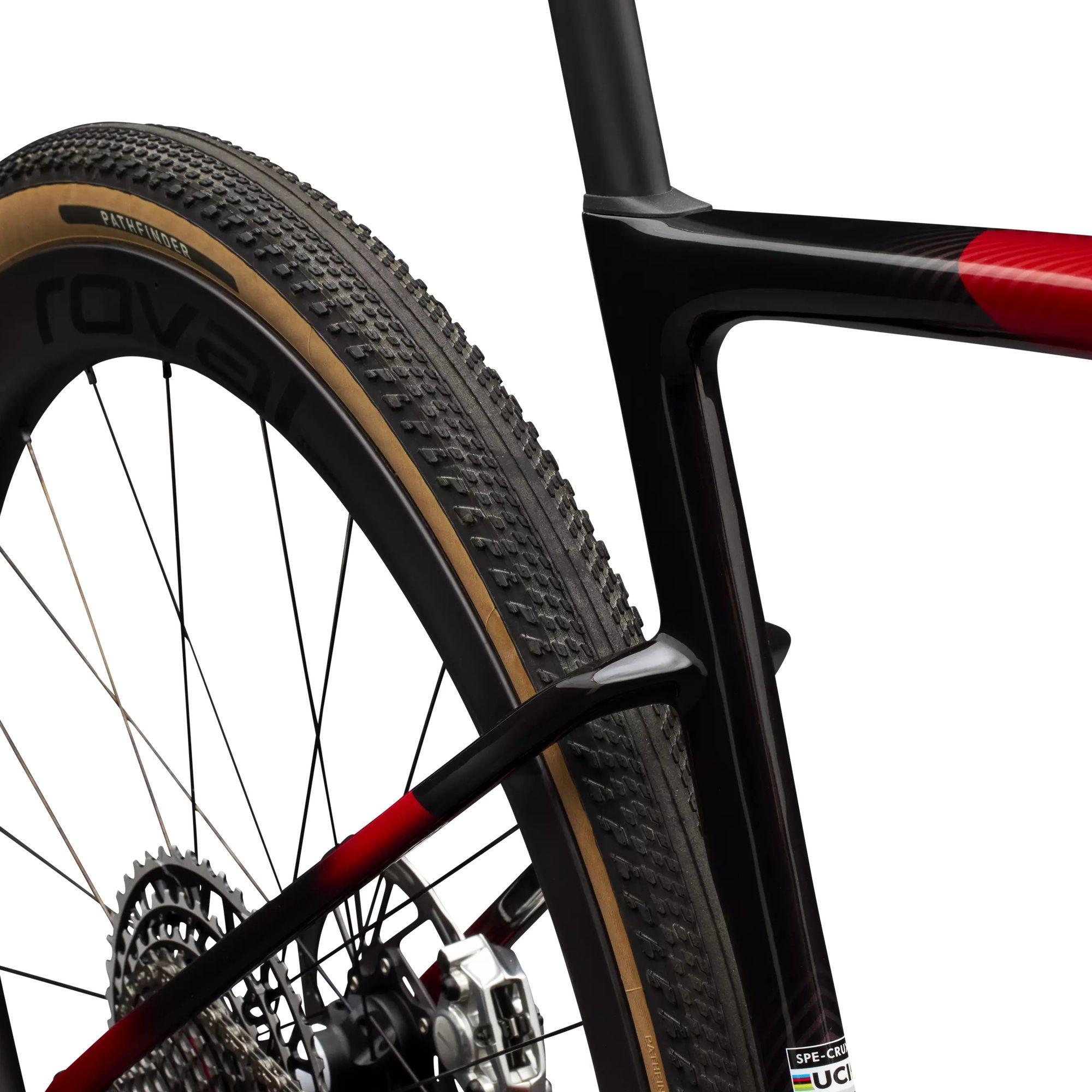

| Front Tyre | Pathfinder 700x45, Tubeless Ready |
| Rear Tyre | Pathfinder 700x45, Tubeless Ready |
| Inner Tubes | 700x32x50mm, 60mm Presta valve |
| Seat Post; S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp | |
| Seat Binder | Integrated Wedge |
| Saddle | S-Works Power with Mirror |
| Weight | 7.7 kg (Size |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
