Description

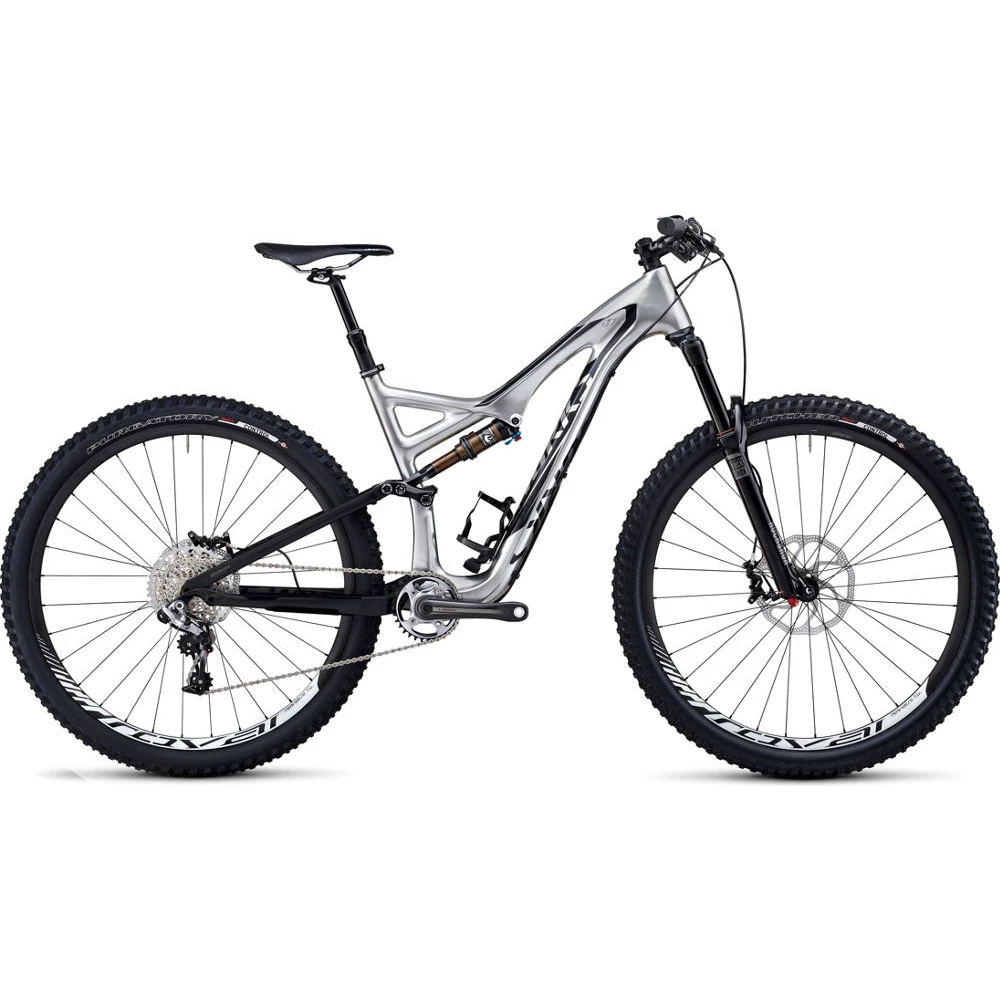

Specialized S-Works Stumpjumper FSR Carbon Evo Mountain Bike 2014
- FACT 9m carbon FSR frame with slacker, lower EVO 29 geometry, 135mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the meanest trail 29er out there
- FOX Float CTD Factory shock with Boost Valve, Kashima coating and AUTOSAG features 3 compression settings: Climb, Trail and Descend with Trail and rebound adjust
- 750mm wide alloy handlebars paired with new 140mm-travel RockShox Pike RCT3 fork delivers optimal stiffness and control for precise handling
- Lightweight Roval Traverse SL 29 carbon All-Mountain wheelset, with DT Swiss internals and spokes, 15mm thru-axle, and 142mm rear hub spacing for durable, lightweight, and tubeless-ready performance
- 2Bliss Ready Specialized Butcher and Purgatory Control 29 2.3" tyres for premium control on challenging trails
- Avid X0 Trail World Cup hydraulic disc brakes with four-piston callipers deliver powerful stopping performance with a lightweight trail-friendly package.
- SRAM XX1 11-speed drivetrain's single chainring setup works with SRAM XX1 10-42 cassette for premium shifting and a huge gear range and outstanding chain retention
- All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximise climbing and descending performance
| FRAME | FACT 9m carbon front triangle, 29" EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel |
| SWAT | Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology |
| REAR SHOCK | Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and reb adj., 195x46mm |
| FORK | RockShox Pike RCT3 29, Solo Air spring, tapered alloy steerer, comp, lockout, reb, and threshold adj., 15mm thru-axle, 140mm travel |
| HEADSET | 1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings |
| STEM | Syntace F109, 6-degree rise, 31.8mm clamp |
| HANDLEBARS | Specialized XC mini-riser, alloy, 750mm wide, 10mm rise, 10-backsweep, 6-upsweep, 31.8mm |
| GRIPS | Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness |
| FRONT BRAKE | Custom Avid X0 Trail World Cup, 4-piston calliper, steel backed metallic pad, S/M: 180mm, Others: 200mm rotor |
| REAR BRAKE | Custom Avid X0 Trail World Cup, 4-piston calliper, steel backed metallic pad, S/M: 160mm rotor, Others: 180mm rotor |
| FRONT DERAILLEUR | - |
| REAR DERAILLEUR | SRAM XX1 Type 2, 11-speed, mid cage |
| SHIFT LEVERS | SRAM XX1, 11-speed, carbon trigger, w/ MatchMaker clamp |
| CASSETTE | SRAM XX1, 11-speed, 10-42 |
| CHAIN | SRAM XX1, 11-speed, hollow plates/pins, PowerLink |
| CRANKSET | S-Works OS carbon, custom SRAM XX1 32T chainring, S: 170mm, Others: 175mm |
| CHAINRINGS | 32T |
| BOTTOM BRACKET | PF30, OS press-in bearings, sealed cartridge |
| PEDALS | Resin Test Ride |
| RIMS | Roval Traverse SL 29, carbon disc, hookless bead, 22mm internal width, 32h |
| FRONT HUB | Roval Traverse SL 29, 15mm thru-axle end caps, 32h |
| REAR HUB | Roval Traverse SL 29 142 , DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 32h |
| SPOKES | DT Swiss Super Comp, 2.0/1.65/1.8 stainless |
| FRONT TYRE | Specialized Butcher Control, 2Bliss Ready, 29x2.3", foldable aramid bead, dual-compound, 60TPI |
| REAR TYRE | Specialized Purgatory Control, 2Bliss Ready, 29x2.3", foldable aramid bead, dual-compound, 60 TPI |
| INNER TUBES | Ultralight PV |
| SADDLE | Body Geometry Henge Expert, Ti rails, 143mm |
| SEATPOST | Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel |
| SEAT BINDER | 7050 hard anodised alloy, single bolt, 34.9mm |
Technical Specification
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
