Description

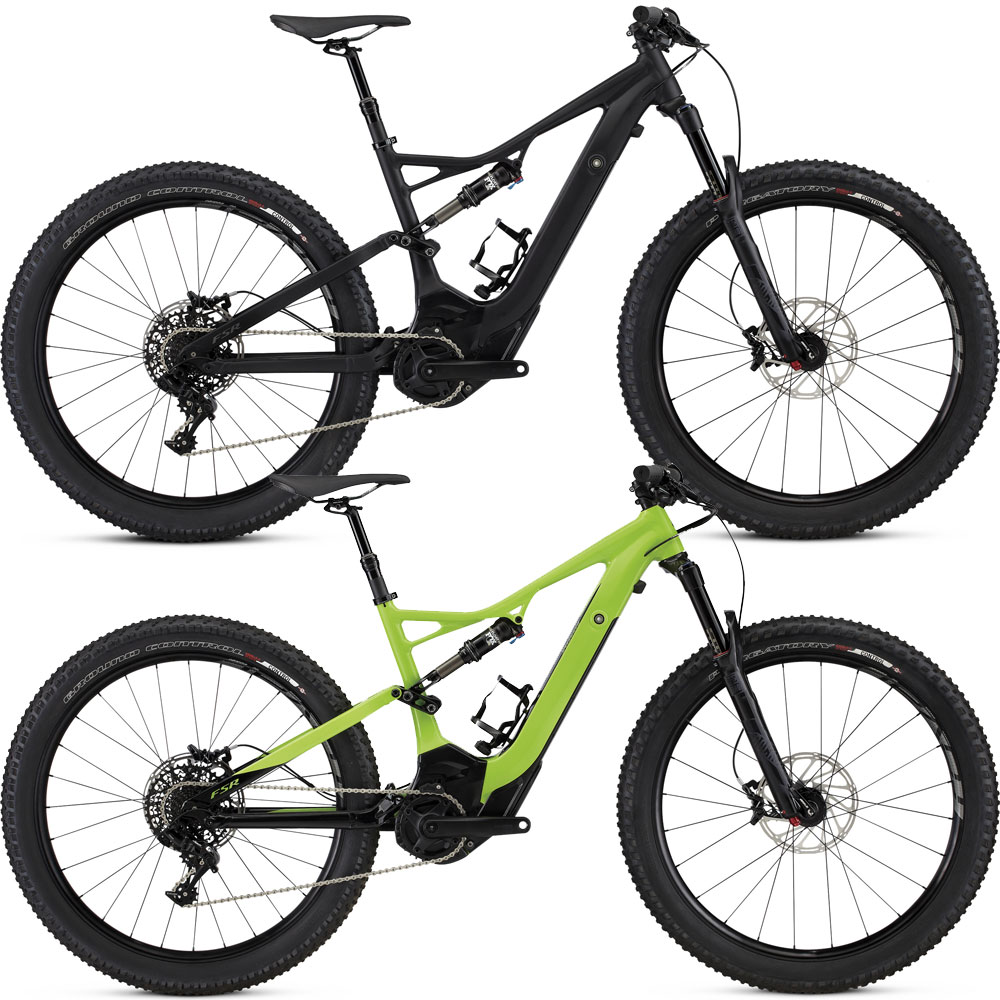

Specialized Turbo Levo FSR Comp Disc Electric Mountain Bike 2017
With a RockShox Yari RC at the helm soaking up all the big hits, SRAM Guide R brakes controlling the intense speed and a custom LEVO battery giving a smooth, powerful boost for climbing technical terrain, the Specialized Turbo Levo FSR Comp Disc Electric Mountain Bike 2017 has a pedigree within the world of power assisted mountain biking.
The frame is constructed with Specialized’s M5 Premium Aluminium and features their Trail Geometry for enhanced control and confidence when out exploring the trails. This construction is durable, consistent and perfect for testing yourself over a wide variety of terrain. Backed up by a RockShox Yari RC front fork that provides 140mm of plush, smooth travel, this bike means you’ll be riding in greater comfort and taking on more testing terrain in no time.
A FOX FLOAT Performance rear shock increases comfort when out riding, but also keeps the rear end pinned to the floor for greater control thanks to its rebound adjustment. Of course, when things do get a bit fast, you’ll be thankful Specialized went to the trouble of integrating SRAM Guide R hydraulic disc brakes into the Turbo Levo FSR Comp 6Fattie.
These brakes modulate heat efficiently and inspire confidence on the descents, ensuring you get the same powerful braking at the top of your run as you do at the bottom. Specialized Purgatory 650b x 3.0” tyres command the intense grip of the Turbo Levo, allowing you to descend at higher speeds than you would on a standard 2.2” mountain bike tyre and they also allow you to flow over bigger obstacles such as rock and root gardens that would otherwise see you taking a much wider line.
SRAM’s GX 11-speed derailleur offers the wide range of gearing you need to climb when out mountain biking, and when used with the custom LEVO battery, no climb will seem unconquerable.
Features
- The frame was constructed from Specialized’s M5 Premium Aluminium, which is equal parts strong, lightweight and incredibly responsive. The design of the frame itself revolves around Specialized’s Trail Geometry that includes all of their trail hallmarks, like a low-slung bottom bracket, roomy top tube, and ultra-short chainstays. Cable routing is all internal, including that of the Command Post IR, while the battery and motor are fully integrated into the down tube.
- RockShox Yari RC fork features a 15x110mm Maxle Ultimate thru-axle, a Solo Air™ spring, and 140mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.
- SRAM Guide R brakes offer the most adjustability and power in their class. They feature a four-piston design, which leads to a respectable overall weight and consistent modulation.
Image shown for representation of colourway only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.
Technical Specification
| FRAME | Specialized M5 Premium Aluminium, Trail Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 140mm of travel |
| FORK | RockShox Yari RC 29/27.5+, Solo Air spring, adjustable compression and rebound, 15x110mm Maxle Ultimate thru-axle, 51mm offset, 140mm travel |
| REAR SHOCK | FOX FLOAT Performance, Rx Trail Tune, AUTOSAG, DPS damper, rebound and 3-position compression adjust, 197x47.6mm |
| STEM | Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise |
| HANDLEBAR | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width |
| FRONT BRAKE | SRAM Guide R, hydraulic disc, metallic pads, Guide S4 4-piston caliper, 200mm rotor |
| REAR BRAKE | SRAM Guide R, hydraulic disc, metallic pads, Guide S4 4-piston caliper, 200mm rotor |
| BRAKE LEVERS | SRAM GX, 11-speed, trigger |
| FRONT DERAILLEUR | N/A |
| REAR DERAILLEUR | SRAM GX, long cage, 11-speed |
| SHIFT LEVERS | SRAM GX, 11-speed, trigger |
| CASSETTE | SRAM XG-1150, 11-speed, 10-42t |
| CRANKSET | N/A |
| FRONT WHEEL | Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h |
| REAR WHEEL | Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| FRONT TYRE | Specialized Purgatory, GRID casing, 650bx3.0", 60TPI, Aramid folding bead, 2Bliss Ready, clincher |
| REAR TYRE | Specialized Purgatory, GRID casing, 650bx3.0", 60TPI, Aramid folding bead, 2Bliss Ready, clincher |
| SADDLE | Specialized Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm |
| SEATPOST | Specialized Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S |
| PA USER INTERFACE/REMOTE | Integrated Trail display, 10-LED battery display, Mission Control iOS/Android App |
| PA BATTERY | Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67 |
| PA CHARGER | Custom charger, 42V4A w/Rosenberger plug |
| PA WIRING HARNESS | Custom harness w/ Rosenberger plug |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
