Trek Domane AL 5 Disc Road Bike 2022

★★★★★ ★★★★★

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1237036

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

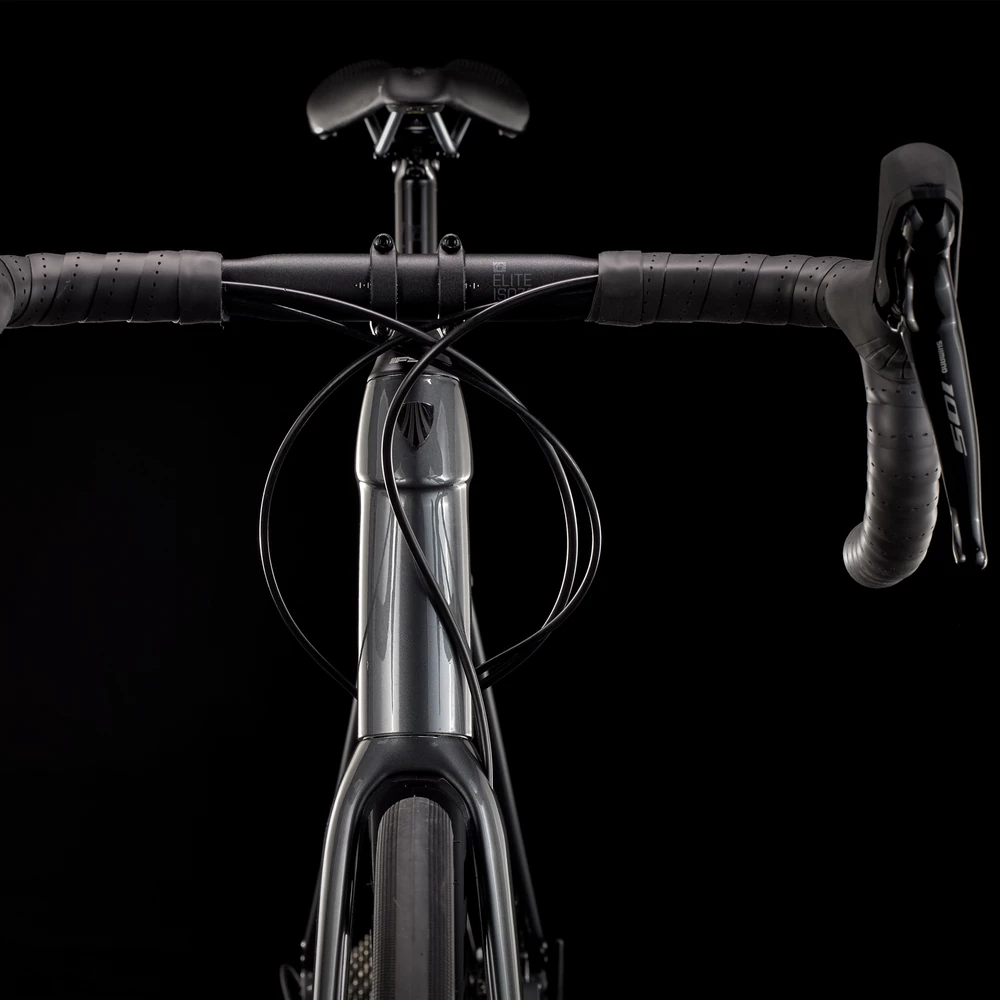

Trek Domane AL 5 Disc Road Bike 2022

Marrying a strong alloy frame, carbon fork and reliable performance components, the Trek Domane AL 5 Disc Road Bike is fast, light and comfortable. IsoSpeed technology is incorporated into the fork and helps to smooth out vibrations coming up from the road, preventing excess fatigue. Endurance Geometry is a little less aggressive than race geometry, allowing you to ride all day without any compromises on speed. The tubing itself has been designed to be more aerodynamic than its predecessor and, alongside hidden cable routing, minimises drag. There's clearance for wider tyres - up to 38c - so you can set up the bike for mixed terrains and venture further off the tarmac, while the mudguard mounts allow you to get ready for all weather conditions.

The Shimano 105 11-speed groupset balances reliability and performance well, with shifting incredibly smooth and precise up and down the cassette. Hydraulic discs take care of braking, no matter the conditions. Compatible with the DuoTrap S sensor (purchased separately), you can collect speed and cadence data from your rides and transfer it to a compatible smartphone for analysis. Rolling on Bontrager tubeless-ready wheels, make the conversion from a tube-type setup and benefit from faster rolling, more comfort and the elimination of potential pinch flats.


  • Trek 100 Series Alpha Aluminium frame with hidden cables
  • The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won't fatigue as quickly
  • Endurance Geometry
  • Setting your wheels up as tubeless reduces the overall weight of your bike and the chance you’ll get a flat
  • Bigger tyre clearance (up to 38c) lets you run wider tyres for more traction and stability on trails and other light gravel roads
  • DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
  • Shimano 105 11-speed compact drivetrain
  • Shimano 105 hydraulic disc brakes

Technical Specification

Frame Trek 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S compatible, flat mount disc, 142x12 thru-axle
Fork Trek Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100mm thru-axle
Headset FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Bottom Bracket Shimano RS500, 68mm, threaded external
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7-degree
Handlebar Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop
Bar Tape Bontrager Supertack Perf
Front Brake Shimano 105 hydraulic disc
Rear Brake Shimano 105 hydraulic disc
Brake Levers Shimano 105 R7020, 11-speed
Front Derailleur Shimano 105 R7000, 31.8mm clamp
Rear Derailleur Shimano 105 R7000, long cage, 34T maximum cog, 11-speed
Shift Levers Shimano 105 R7020, 11-speed
Chain Shimano 105 HG601, 11-speed
Cassette Shimano 105 HG700-11, 11-34, 11-speed
Crankset Shimano 105 R7000, 50/34 (compact)
Front Wheel Bontrager alloy, sealed bearing, Centre Lock disc, 100x12mm thru-axle hub / Bontrager tubeless-ready, 24-hole, 21mm width, Presta valve rim
Rear Wheel Bontrager alloy, sealed bearing, Centre Lock disc, Shimano 11-speed freehub, 142x12mm thru-axle / Bontrager tubeless-ready, 24-hole, 21mm width, Presta valve rim
Front Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c, clincher
Rear Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c, clincher
Saddle Bontrager P3 Verse, steel rails, 145mm width
Seatpost Bontrager alloy, 27.2mm, 8mm offset
Pedals Available to be purchased separately
Manufacturer Claimed Weight 10.23kg / 22.55lbs (size 56)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
