Trek Emonda ALR 4 Disc Road Bike 2020

★★★★★ ★★★★★
(2)
£1,400.00

From only £105.00 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Trek
Emonda ALR 4 Disc Road Bike 2020

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1136725

Trek’s Émonda ALR 4 Disc Road Bike is a great way into the impressive handling Émonda range without breaking the bank.

The hydroformed aluminium frame uses Invisible Weld technology to match the svelte aesthetic of carbon and the 10-speed Tiagra groupset includes hydraulic disc brakes for extra wet-weather confidence when descending.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

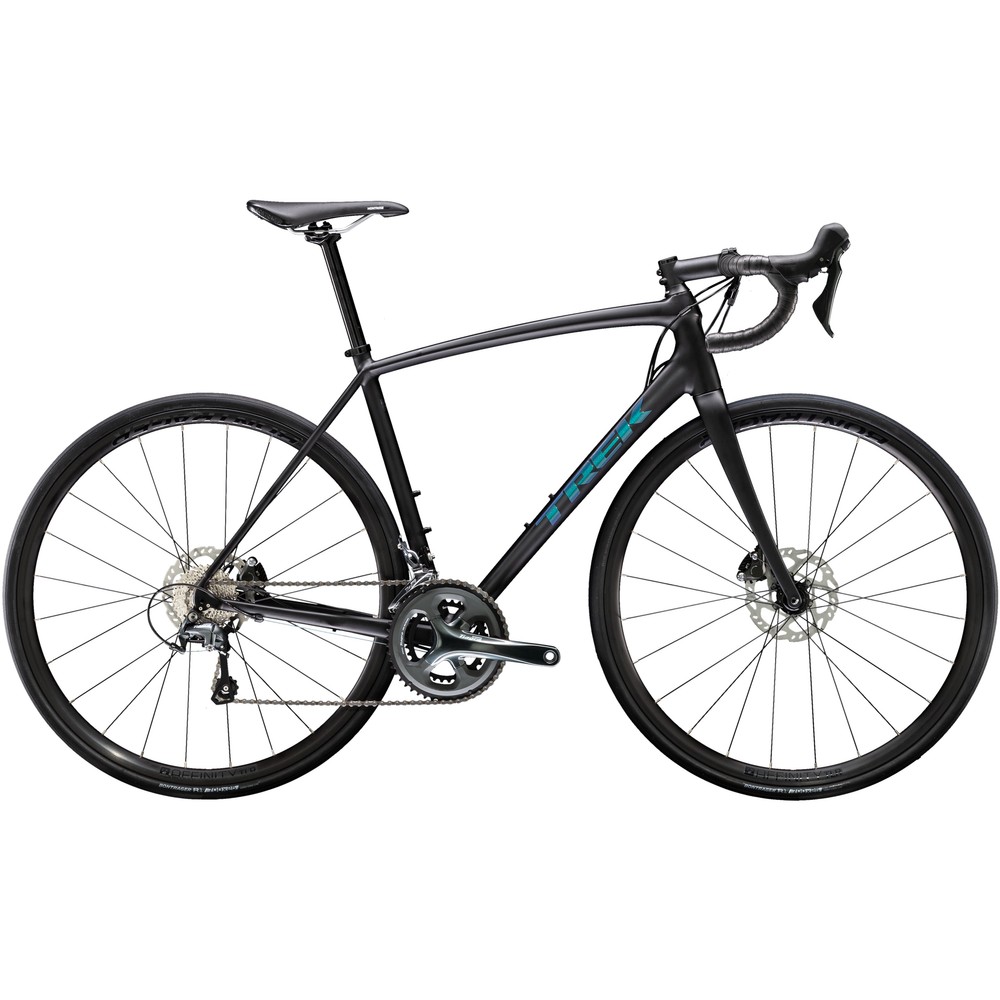

Trek Emonda ALR 4 Disc Road Bike 2020

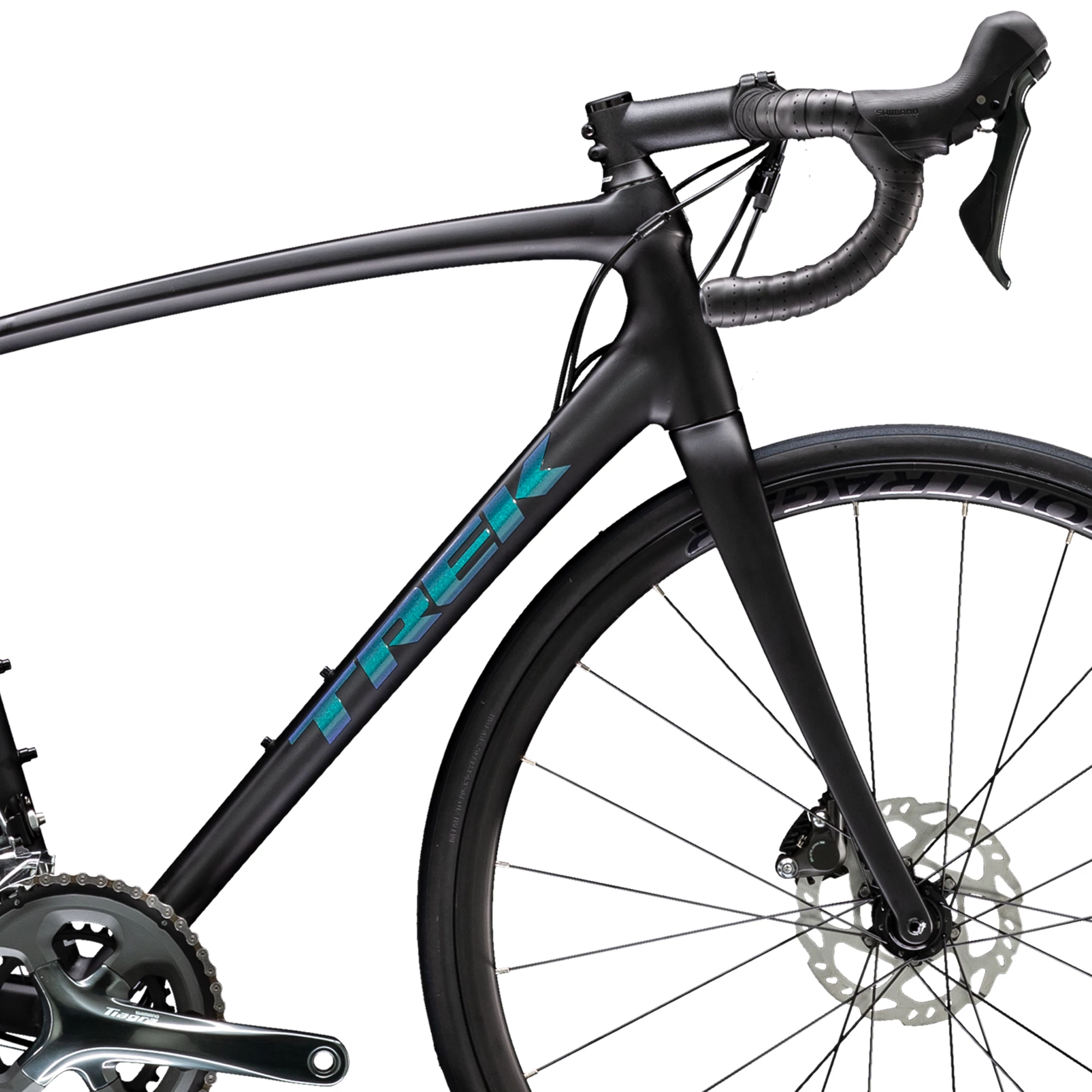

The Émonda ALR 4 Disc Road Bike from Trek might use an aluminium frame rather than a carbon one, but the DNA is clear to see and feel, with the geometry matching that of its more expensive brethren. Designed to make climbing as much fun as descending and at a very reasonable price, the Émonda uses 300 Series Alpha aluminium that has Invisible Weld technology in order to produce a finish which is as sleek as carbon. The aesthetic is aided by the Control Freak internal routing which keeps the cables hidden and also lowers drag.

The Tiagra 10-speed groupset includes hydraulic disc brakes which provide a consistent, all-weather response and also give more clearance around the frame and fork for bigger tyres. Bontrager supply the quality finishing kit which includes a Blendr compatible stem, enabling the use of their innovative range of lights and mounts which keep the handlebar free from clutter.

Features

  • Ultralight 300 Series Alpha Aluminum frame with Invisible Weld technology
  • Trek Émonda SL full carbon fork
  • Shimano Tiagra 4700 10-speed mechanical groupset
  • Shimano Tiagra 4700 hydraulic disc brakes
  • Blendr compatible stem for a clutter-free cockpit

Technical Specification

FRAME Trek Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru-axle
FORK Trek Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru-axle
STEM Bontrager Elite, 31.8mm, Blendr compatible, 7 degree
HANDLEBAR Bontrager Comp VR-C, alloy, 31.8mm
FRONT BRAKE Shimano Tiagra R4770 hydraulic disc
REAR BRAKE Shimano Tiagra R4770 hydraulic disc
BRAKE LEVERS Shimano Tiagra R4720, 10-speed
FRONT DERAILLEUR Shimano Tiagra 4700, braze-on
REAR DERAILLEUR Shimano Tiagra 4700, long cage, 10-speed
SHIFT LEVERS Shimano Tiagra R4720, 10-speed
CASSETTE Shimano Tiagra HG500, 12-28, 10-speed
CRANKSET Shimano Tiagra 4700, 50/34
FRONT WHEEL Bontrager Affinity Disc tubeless-ready rim with Centre-Lock, alloy sealed bearing hub clincher
REAR WHEEL Bontrager Affinity Disc tubeless-ready rim with Centre-Lock, alloy sealed bearing hub clincher
FRONT TYRE Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x25c clincher
REAR TYRE Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x25c clincher
SADDLE Bontrager Montrose Comp
SEATPOST Bontrager Approved, alloy, 27.2mm, 8mm offset
CLAIMED MANUFACTURER WEIGHT 9.4 kg size 56
WEIGHT LIMIT 125kg, bicycle, rider and cargo

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Trek Emonda ALR 4 Disc Road Bike 2020 Sizing
