Trek Emonda SL 5 Disc Road Bike 2023

£3,250.00

Select a colour and size to view stock availability

Trek
Emonda SL 5 Disc Road Bike 2023
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1650997

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

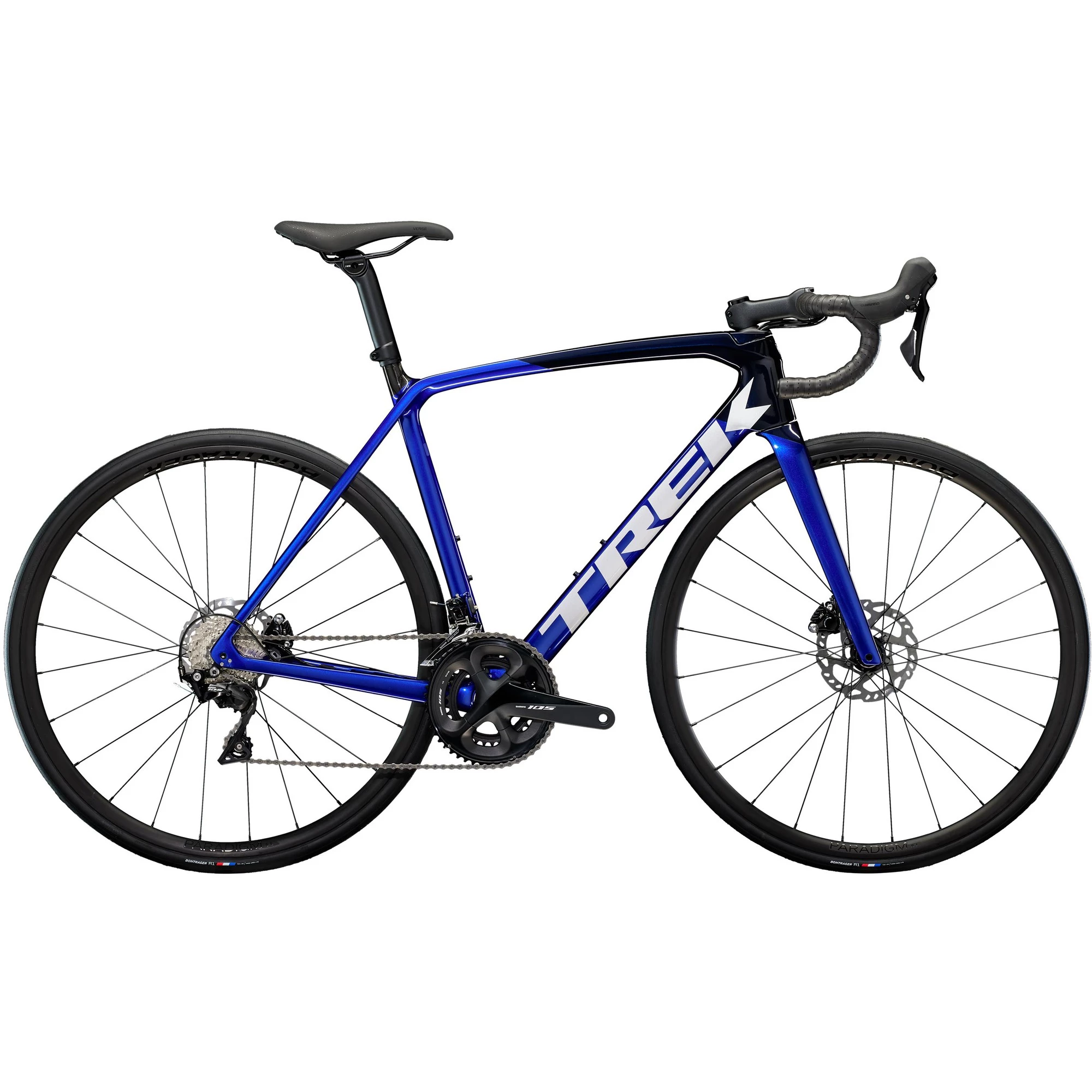

Trek Emonda SL 5 Disc Road Bike 2023

The Trek Emonda SL 5 Disc Road Bike combines a high-performance Ultralight 500 Series OCLV Carbon frameset with Shimano's ever-reliable 105 11-speed components to create a great value package. The frame itself features aerodynamic tubes to cut drag and has an H1.5 Race Fit to put the rider in a fast yet still comfortable position. Fast on the flats and the climbs, the bike delivers a balanced ride quality and stable yet lively handling and is as well suited to crit races as it is to gran fondos in the mountains.

A full Shimano 105 groupset brings dependable 2x11-speed shifting across the wide gear range, and powerful hydraulic disc braking that's effective in all conditions, wet or dry. Bontrager's Paradigm SL wheels are strong, durable and roll smooth and fast. They're fitted with R1 Hard-Case Lite tyres in a 28mm width to bring extra comfort, and they offer good resistance to punctures and excellent grip.

Highlights

  • Trek Ultralight 500 Series OCLV Carbon frame and fork
  • Aerodynamic tube shaping makes this Trek's fastest Émonda SL platform ever – on flats and climbs alike
  • H1.5 race geometry
  • Shimano 105 11-speed delivers reliable, smooth shifting
  • Powerful flat-mount Shimano hydraulic disc brakes
  • Internal cable routing
  • Bontrager Paradigm SL tubeless-ready wheels
  • Maximum tyre clearance: 28mm

Technical Specification

Frame Trek Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 12x142mm thru-axle
Fork Trek Ultralight 500 Series OCLV Carbon internal brake routing, flat-mount disc, 12x100mm thru-axle
Bottom Bracket Praxis, T47 threaded, internal bearing
Stem Bontrager Elite, 31.8 mm, Blendr-compatible, 7°, length - 70mm (47) / 80mm (50) / 90mm (52, 54) / 100mm (56) / 110mm (58-62)
Handlebar Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, width - 38cm (47, 50) / 40cm (52) / 42cm (54-58) / 44cm (60, 62)
Bar Tape Bontrager Supertack Perf tape
Front Brake Shimano 105 R7070 hydraulic disc / Shimano SM-RT70, Center Lock, 160mm rotor
Rear Brake Shimano 105 R7070 hydraulic disc / Shimano SM-RT70, Center Lock, 160mm rotor
Brake Levers Shimano 105 R7020 (54-62) / Shimano 105 R7025, short-reach lever (47-52)
Front Derailleur Shimano 105 R7000, braze-on
Rear Derailleur Shimano 105 R7000, short cage, 30T maximum cog, 11-speed
Shift Levers Shimano 105 R7020 (54-62) / Shimano 105 R7025, short-reach lever (47-52), 11-speed
Chain Shimano 105 HG601, 11-speed
Cassette Shimano 105 R7000, 11-30, 11-speed
Crankset Shimano 105 R7000, 50/34, crank length - 165mm (47) / 170mm (50, 52) / 172.5mm (54-58) / 175mm (60, 62)
Front Wheel Rim - Bontrager Paradigm SL, tubeless-ready, 24-hole, 21mm width, Presta valve / hub - Bontrager alloy, sealed bearing, Center Lock disc, 100x12mm thru-axle
Rear Wheel Rim - Bontrager Paradigm SL, tubeless-ready, 24-hole, 21mm width, Presta valve / hub - Bontrager alloy, sealed bearing, Center Lock disc, Shimano 11-speed freehub, 142x12mm thru-axle
Front Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28c, clincher
Rear Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28c, clincher
Saddle Bontrager P3 Comp, short nose, width - 155mm (47-52) / 145mm (54-62)
Seatpost Bontrager alloy seat mast cap, 6061 alloy, 10mm offset, short length (47-54) / tall length (56-62)
Pedals Available to be purchased separately
Maximum Weight 125kg / 275lbs (combined weight of bicycle, rider and cargo)
Manufacturer Claimed Weight 8.87kg / 19.55lbs (56)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Trek Emonda SL 5 Disc Road Bike 2023 Sizing
