Description

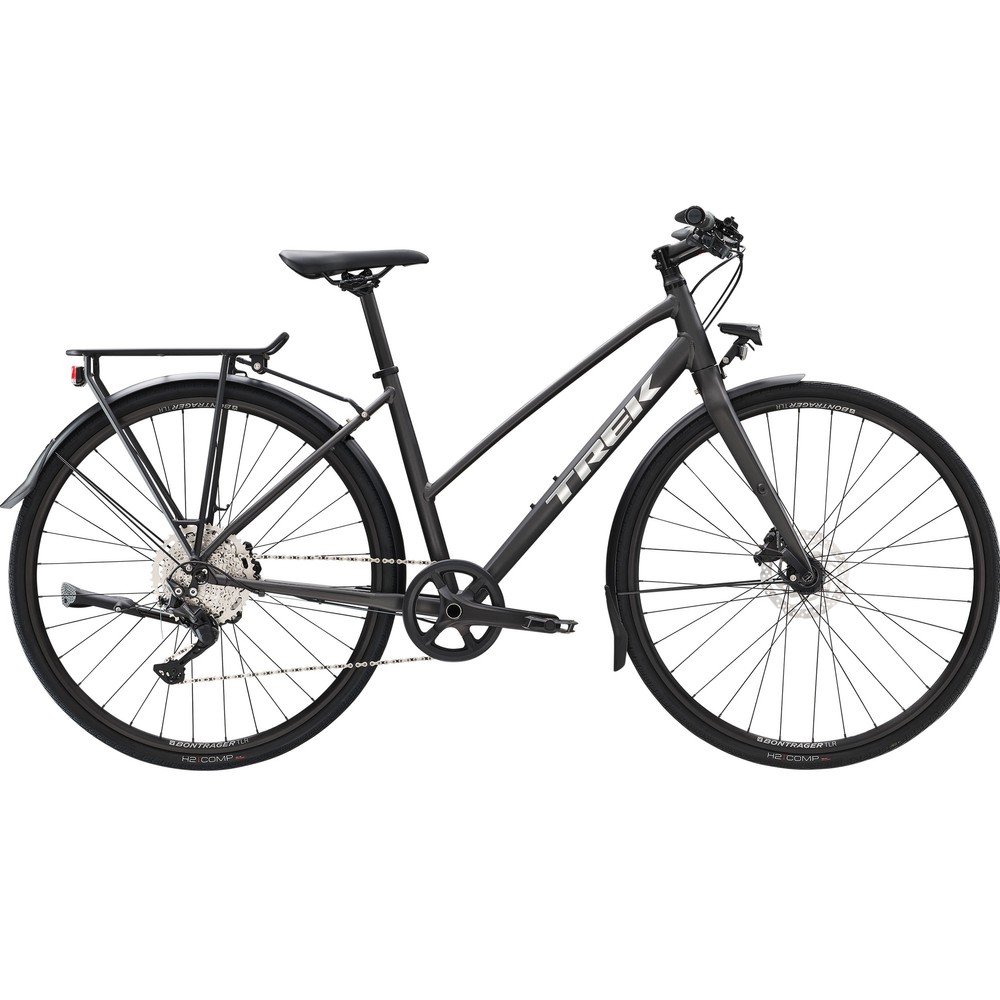

Trek FX 3 Disc Equipped Stagger Hybrid Bike 2022
Trek's FX 3 Disc Equipped Stagger Hybrid Bike is both suited to commuting through compact city streets as well as to longer weekend rides thanks to the array of accessories it features. The stagger frame geometry is easier to mount and dismount and is constructed from aluminium, with the addition of a carbon fork creating an overall lightweight steed.
Shimano provides the groupset, with the shifting from Deore delivering smooth and fast performance and the hydraulic disc brakes delivering confidence-inspiring stopping power in all conditions. The Bontrager's H2 tyres are durable and wide enough for comfort and feature an integrated layer to offer puncture protection, while the reflective strip provides added visibility in low light.
The bike is supplied with a kickstand, rack, and mudguards to keep undesirable debris off the bike and yourself. It also comes with a battery-powered front light and rechargeable rear light, ensuring safety during the day and at night.
Highlights
- Step-through frame format with a comfortable, composed geometry
- The 1x drivetrain gives you all the gears for different topography
- It comes equipped with lights, mudguards and a rear rack, so you're ready to ride right from the start
- Puncture-resistant tyres with strong tubeless-ready wheels
- Carbon front fork
- Wide range 11-46 cassette
- Vibration absorbing handlebars with ergonomic grips
Technical Specification
| Frame | Trek Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5mm QR |
| Fork | Trek FX Carbon, rack and mudguard mounts, flat-mount disc, 405mm axle-to-crown, ThruSkew 5mm QR |
| Stem | Bontrager alloy, 31.8mm clamp, Blendr-compatible, 7 degrees, length 90mm (S, M), 100mm (L) |
| Headset | 1-1/8" threadless, sealed cartridge bearings |
| Handlebar | Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, width 600mm (S, M), 660mm (L) |
| Grips | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
| Front Brake | Shimano MT201 hydraulic disc, flat-mount, Shimano RT26 160mm rotor |
| Rear Brake | Shimano MT201 hydraulic disc, flat-mount, Shimano RT26 160mm rotor |
| Brake Levers | Shimano MT201 hydraulic disc |
| Rear Derailleur | Shimano Deore M5120, long cage |
| Shift Levers | Shimano Deore M4100, 10-speed |
| Chain | KMC X10, 10-speed |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Crankset | Trek-Diamant Prowheel alloy, 40T narrow-wide ring, length 170mm (S, M), 175mm (L) |
| Front Wheel | Bontrager approved tubeless-ready disc, 32-hole, 14g stainless steel spokes, Hub - Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Rear Wheel | Bontrager approved tubeless-ready disc, 32-hole, 14g stainless steel spokes, Hub - Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Front Tyre | Bontrager H2 Hard-Case Lite, wire bead, 30TPI, 700x32c clincher |
| Rear Tyre | Bontrager H2 Hard-Case Lite, wire bead, 30TPI, 700x32c clincher |
| Saddle | Bontrager H1 |
| Seatpost | Bontrager alloy, 27.2 mm, 12mm offset, 330mm length |
| Pedals | Bontrager City pedals / Wellgo C157, boron axle, plastic body |
| Weight Limit | 136kg (bike, rider and cargo) |
| Accessories | Spanninga Solo front light, AXA Greenline 35, USB rechargeable rear light, Kickstand, Eurofender Snello mudguards and Trek rear rack |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
