Description

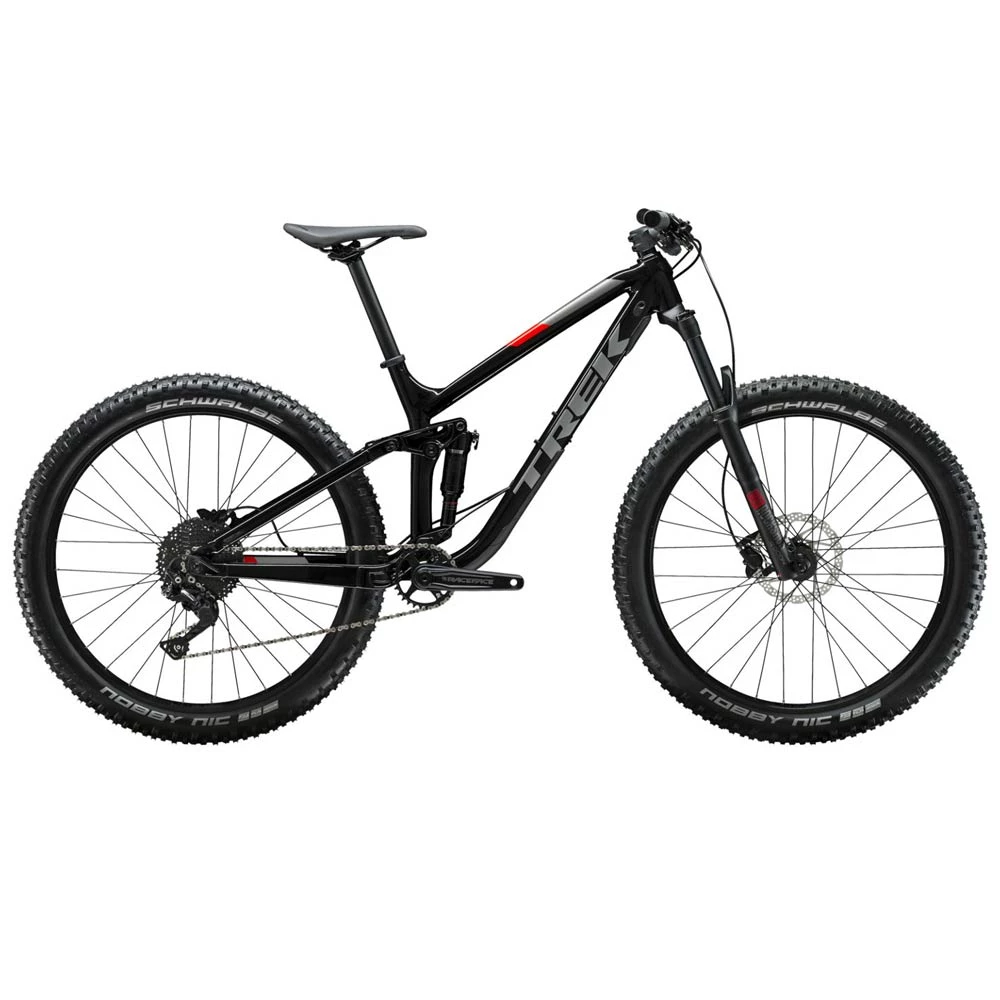

Step up to more confident trail riding with the Trek Fuel EX 5 27.5" Plus Disc Mountain Bike. With 140mm travel RockShox Recon RL suspension at the front and 130mm travel RockShox Deluxe RL rear for tackling rock gardens, technical descents and even small drop-offs, there will be few trail obstacles that stand in your way. Mid-fat 2.8" Schwalbe tyres will feel pinned to the trail or the lip of the berm when descending at pace and will have traction for pushing on and carrying momentum into sharp climbs as well. With the exclusive Mino Link adjustable geometry you can fine-tune the head angle by 1/2 a degree and drop the bottom bracket by up to 10mm to really slacken off the ride, without affecting trail performance or suspension response.

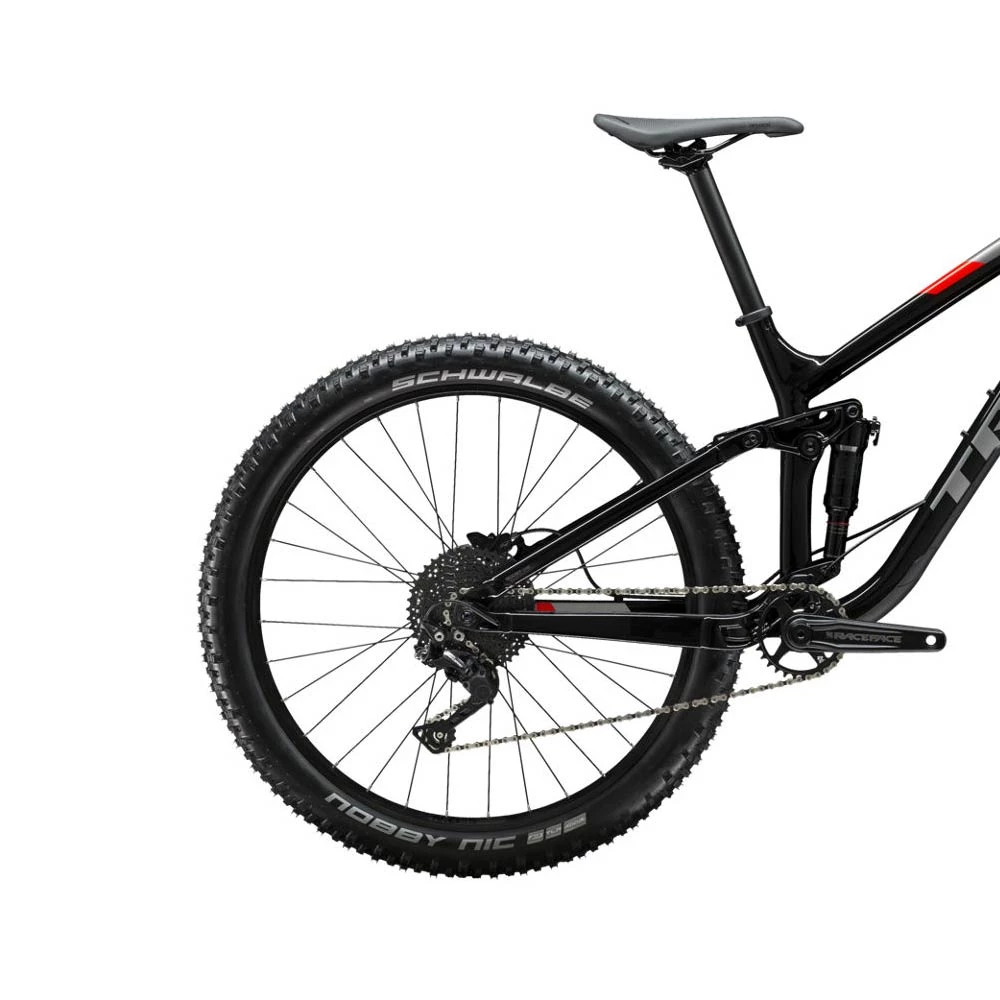

A 1x10 Shimano Deore drivetrain with 30T chainring keeps things simple at the front and an 11-42 cassette will spin up just about any climb or make the ride back up the fire-road to the trailhead nice and easy.
FRAME | Trek Alpha Platinum Aluminium, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, tapered head tube, Mino Link, Control Freak internal routing, downtube guard, PF92, ISCG 05, G2 Geometry, 130mm travel |

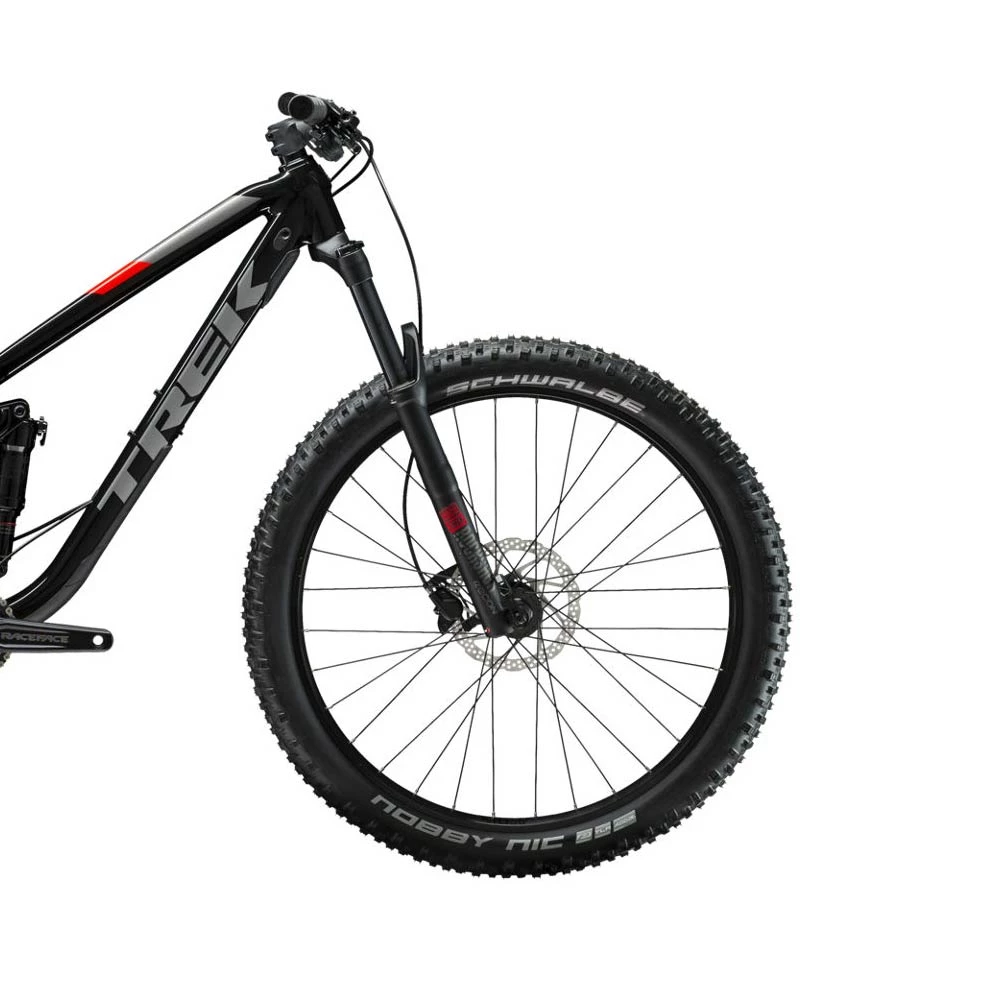

FRONT SUSPENSION | RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, G2 Geometry with 51mm offset, Boost110, 140mm travel |
REAR SUSPENSION | RockShox Deluxe RL, 210x52.5mm, 130mm travel |
STEM | Bontrager Rhythm Comp, 31.8mm clamp, 0-degree |
HANDLEBAR | Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
GRIPS | Bontrager XR Trail Comp, nylon lock-on |
FRONT BRAKE | Shimano MT200 hydraulic disc |
REAR BRAKE | Shimano MT200 hydraulic disc |
BRAKE LEVERS | Shimano |
FRONT DERAILLEUR | N/A |
REAR DERAILLEUR | Shimano Deore M6000, Shadow Plus |
SHIFT LEVERS | Shimano Deore M6000, 10-speed |
CASSETTE | SunRace, 11-42, 10-speed |
CHAIN | KMC X10 |
CRANKSET | Race Face Ride, 30T Cinch (direct mount) |
FRONT WHEEL | Alex MD35, 32-hole double-walled, Bontrager Boost110 hub |
REAR WHEEL | Alex MD35, 32-hole double-walled, Bontrager sealed bearing alloy axle, Boost148 hub |
FRONT TYRE | Schwalbe Nobby Nic Performance, Tubeless Ready, 27.5x2.80˝ |
REAR TYRE | Schwalbe Nobby Nic Performance, Tubeless Ready, 27.5x2.80˝ |
SADDLE | Bontrager Arvada |
SEATPOST | Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset |
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
