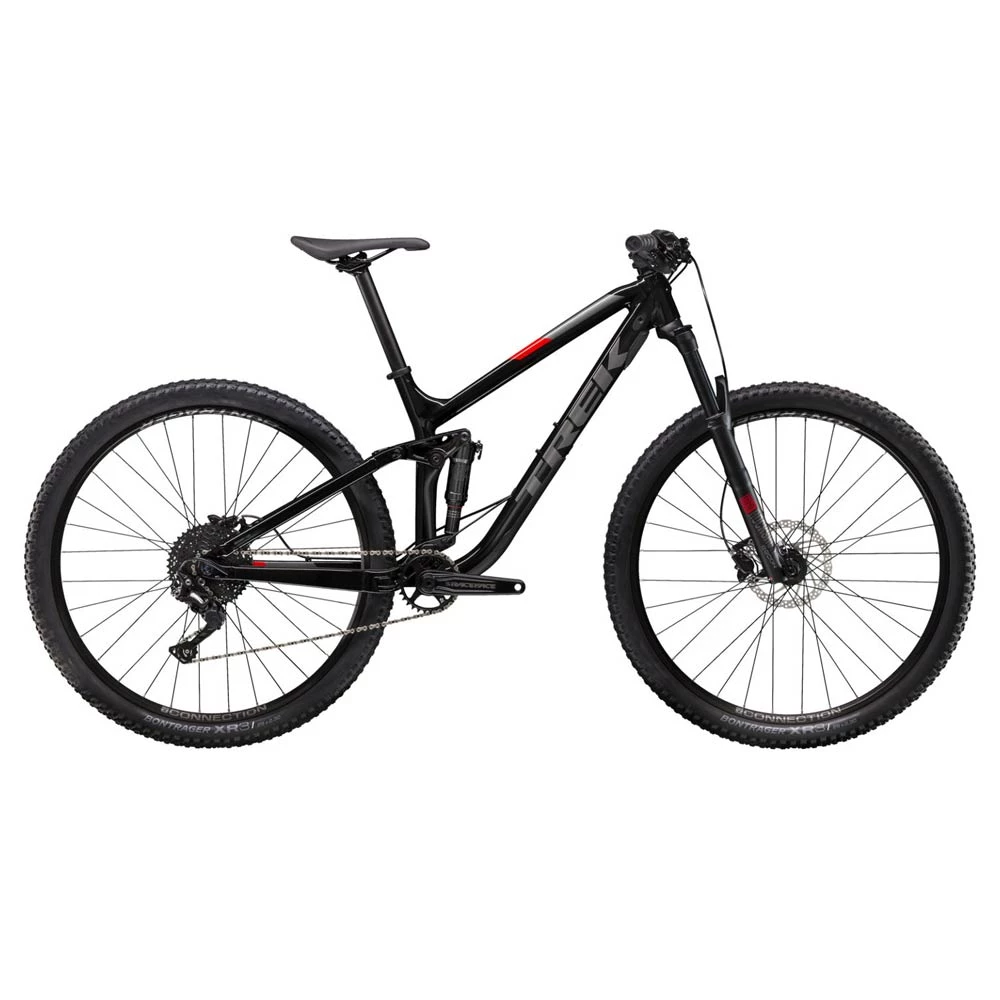

Trek Fuel EX 5 29" Disc Mountain Bike 2019
The momentum and roll-over-anything attitude of Bontrager 29" wheels combine with a lightweight Alpha Platinum Aluminium frame to make the Trek Fuel EX 5 29" Disc Mountain Bike a truly versatile and capable trail machine. The reliable Shimano Deore 1x10 drivetrain will keep the gear shifting sharp and the 11-42 cassette has plenty of range for when you tackle punchy climbs.
140mm RockShox Recon SL front suspension and 130mm RockShox Deluxe RL rear shock will absorb the impact of tough trail obstacles and keep the bike balanced and planted through technical sections or high speed corners, giving you the confidence to shred new lines. With the Mino Link adjustable geometry you can slacken off the head angle and bottom bracket for a lower centre of gravity and even more control at high speed.
Features
- Shimano Deore groupset
- Control Freak cable management and internal routing
- Active Braking Pivot allows suspension to work freely whether you're on or off the brake
- Platinum Trek Alpha Aluminium frame
- 29" Bontrager Connection rims
Technical Specification
| FRAME | Trek Alpha Platinum Aluminium, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, tapered head tube, Mino Link, Control Freak internal routing, downtube guard, PF92, ISCG 05, G2 Geometry, 130mm travel |
| FRONT SUSPENSION | RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, G2 Geometry with 51mm offset, Boost110, 140mm travel |
| REAR SUSPENSION | RockShox Deluxe RL, 210x52.5mm, 130mm travel |
| STEM | Bontrager Rhythm Comp, 31.8mm clamp, 0-degree |
| HANDLEBAR | Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
| GRIPS | Bontrager XR Trail Comp, nylon lock-on |
| FRONT BRAKE | Shimano MT200 hydraulic disc |
| REAR BRAKE | Shimano MT200 hydraulic disc |
| BRAKE LEVERS | Shimano |
| FRONT DERAILLEUR | N/A |
| REAR DERAILLEUR | Shimano Deore M6000, Shadow Plus |
| SHIFT LEVERS | Shimano Deore M6000, 10-speed |
| CASSETTE | SunRace, 11-42, 10-speed |
| CHAIN | KMC X10 |
| CRANKSET | Race Face Ride, 30T Cinch (direct mount) |
| FRONT WHEEL | Bontrager Connection, 32-hole double-walled, Bontrager Boost110 hub |
| REAR WHEEL | Bontrager Connection, 32-hole double-walled, Bontrager sealed bearing alloy axle, Boost148 hub |
| FRONT TYRE | Bontrager XR3, 29x2.30˝ |
| REAR TYRE | Bontrager XR3, 29x2.30˝ |
| SADDLE | Bontrager Arvada |
| SEATPOST | Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset |
| WEIGHT | 14.97 kilos (size 17.5") |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
