Trek Fuel EX 5 Deore 29 Mountain Bike 2020

★★★★★ ★★★★★
(1)
£1,850.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1171569

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

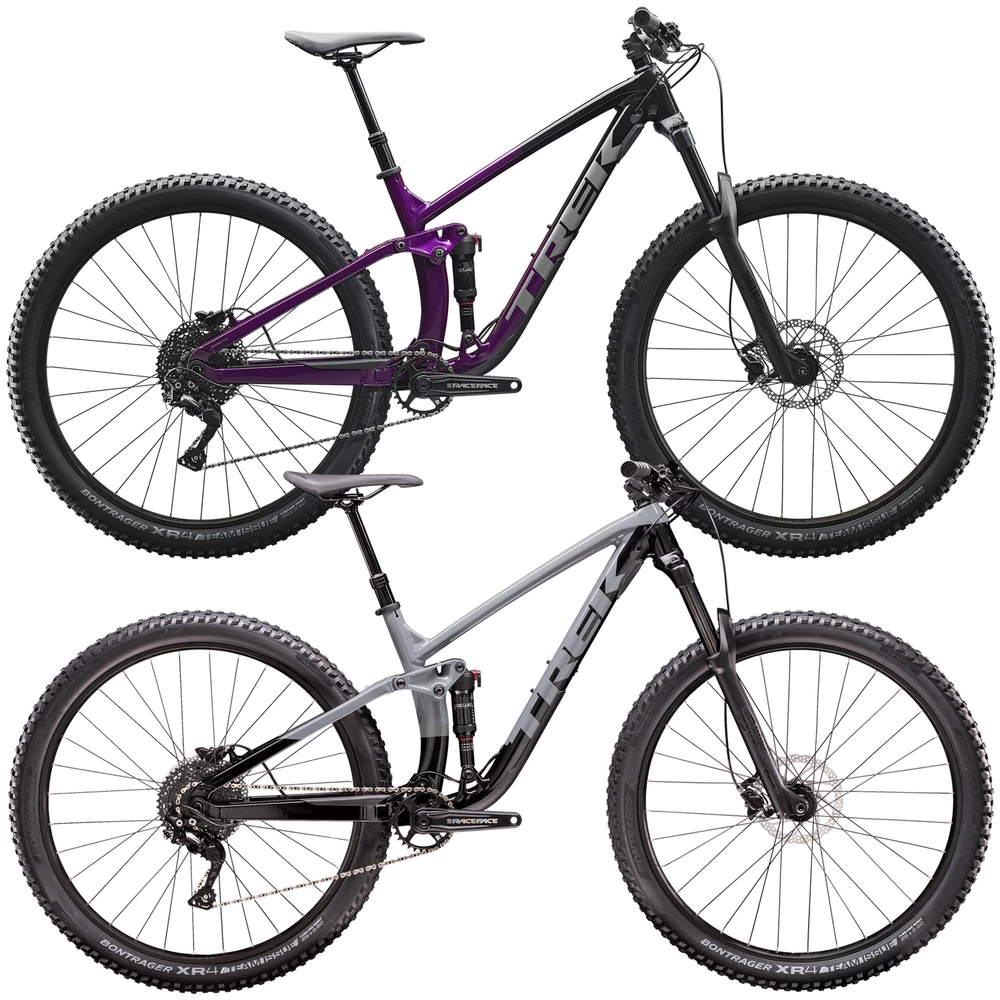

Trek Fuel Ex 5 Deore 29" Mountain Bike 2020

Built to be a versatile and highly capable Mountain Bike, the Trek Fuel EX 5 Deore 29" excels at all kinds of off-road riding thanks to its 130mm travel aluminium full-suspension frame and 140mm RockShox Recon RL Solo Air spring fork. The frame has a RockShox Deluxe Select Plus rear shock which, along with the fork, works to keep the wheels in contact with the terrain and the rider in control, whether that is pedalling uphill, racing downhill or ripping along singletrack. The Mino Link in the rocker allows the geometry to be switched between a steeper and a slacker setting so that it can be tuned to personal preference and the Knock Block system stops the fork crown from hitting the downtube in the event of an accident.

29” wheels help the bike carry speed across rough ground and over obstacles, and both the wheels and the tyres are tubeless-ready for easy conversion. The Shimano Deore 10-speed drivetrain and MT200 hydraulic disc brakes are a fantastic value choice, with brilliant performance and reliability that make them perfect for a bike that is designed to be ridden day after day. There is even a TranzX dropper seatpost so that the saddle can be quickly lowered for greater confidence on steep and technical descents.

Highlights

  • Trek Alpha Platinum Aluminium frame with tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link and Boost, 130mm travel
  • RockShox Deluxe Select Plus rear shock
  • RockShox Recon RL Solo Air spring fork with Motion Control damper, 140mm travel
  • Shimano Deore 10-speed drivetrain
  • Shimano MT200 hydraulic disc brakes
  • Alex MD35 tubeless-ready rims with Formula DC-511 rear hub and Bontrager front hub
  • TranzX JD-YSP18 dropper seatpost

Technical Specification

Frame Trek Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 140mm travel
Rear Suspension RockShox Deluxe Select Plus, 210x55mm
Bottom Bracket Shimano MT500, 92mm, PressFit
Stem Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree
Handlebar Bontrager alloy, 31.8mm, 15mm rise
Brakes Shimano MT200 hydraulic disc
Brake Levers Shimano MT201
Rear Derailleur Shimano Deore M6000, mid cage, 42T max cog, 10-speed
Shift Levers Shimano Deore M6000, 10-speed
Cassette SunRace, 11-42, 10-speed
Chain KMC X10, 10-speed
Crankset Race Face Ride, 30T steel ring, Boost
Front Wheel Formula DC-511, 6-bolt, Boost110, 15mm thru-axle hub with Alex MD35, Tubeless Ready, 32-hole, 35mm width, Presta valve rim
Rear Wheel Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru-axle hub with Alex MD35, Tubeless Ready, 32-hole, 35mm width, Presta valve rim
Tyres Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi 29x2.60" clincher
Saddle Bontrager Arvada, steel rails
Seatpost TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm
Weight Limit 136kg (bike, rider and cargo)
Manufacturer Claimed Weight M - 15.03 kg / 33.14 lbs (with tubes)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
