Trek Fuel EX 8 XT 27.5" Mountain Bike 2020

★★★★★ ★★★★★
(0)
£2,800.00

From only £70.00 per month

0% APR Representative. T&Cs Apply.

Trek
Fuel EX 8 XT 27.5" Mountain Bike 2020
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1172007

The Trek Fuel EX 8 XT 27.5" Mountain Bike has exactly the same chassis and components as the 29" wheeled version, but uses 27.5” wheels on its smaller frame to maintain the same nimble handling as the larger framed bikes.

The Alpha Platinum Aluminium frame has 130mm of travel and features the variable geometry Mino Link rocker, whilst the FOX Rhythm 34 FLOAT EVOL fork and Shimano XT groupset are both well known for their quality, reliability and performance.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics. Click here to see how we’ll deliver your bike or collect in-store.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Click here to learn more and claim.

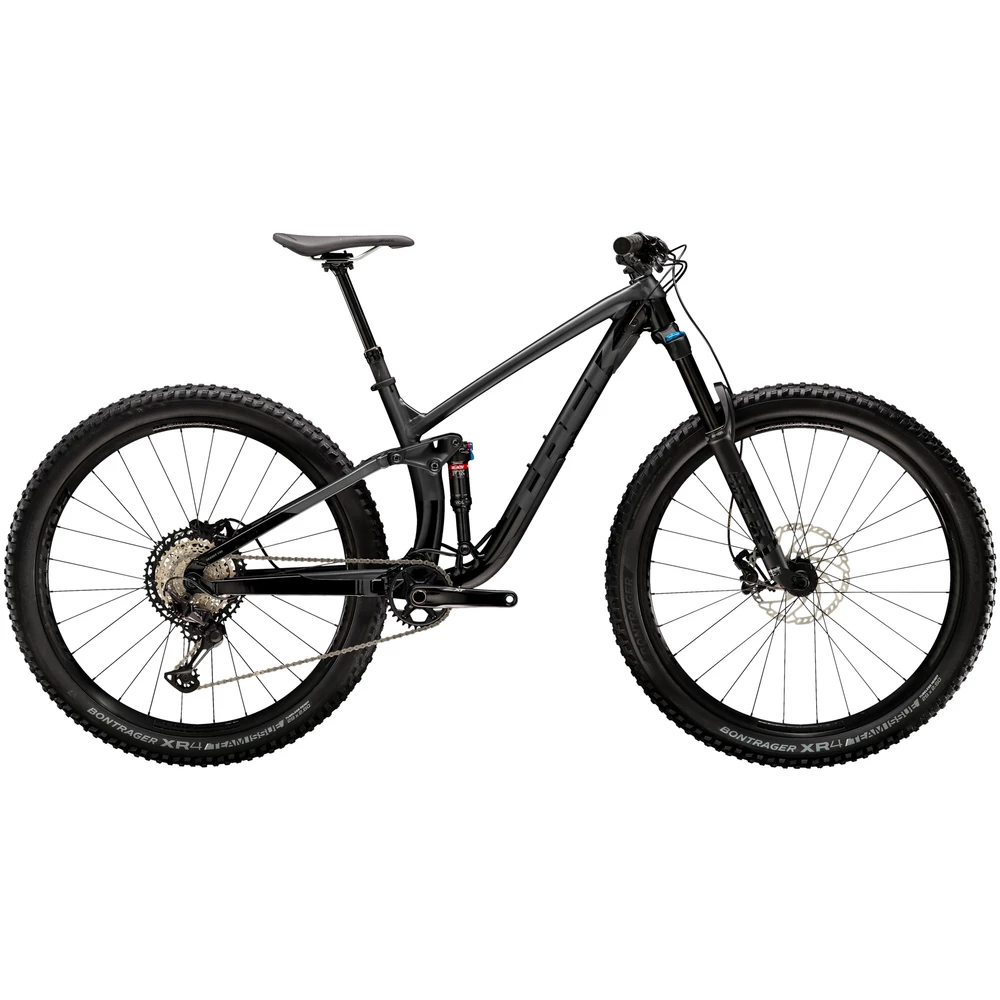

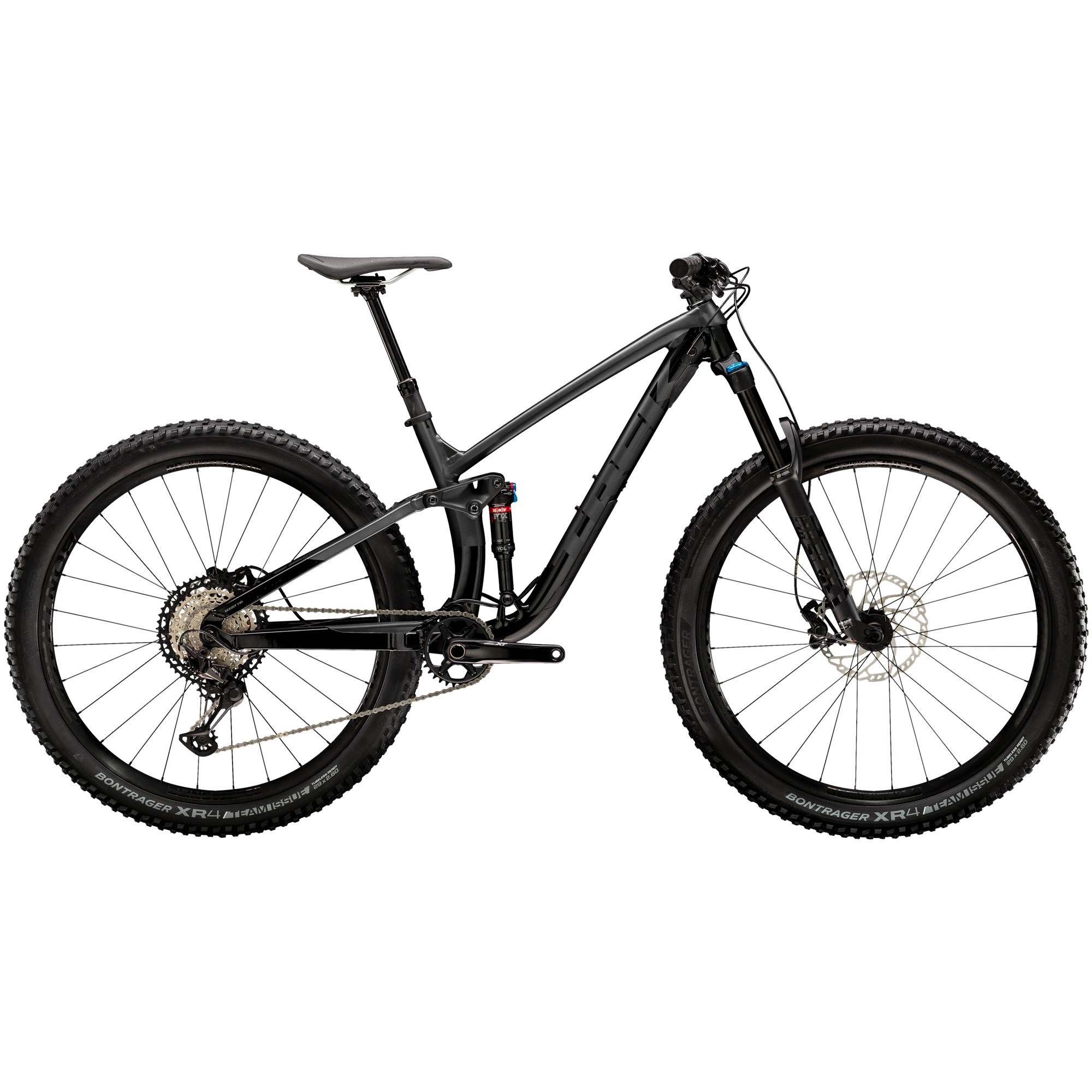

Trek Fuel EX 8 XT 27.5" Mountain Bike 2020

An Alpha Platinum Aluminium frame on the Fuel EX 8 XT 27.5" Mountain Bike offers 130mm of travel from a FOX Performance FLOAT EVOL rear shock and features Trek’s Mino Link rocker chip that can be switched to give an alternative geometry to better suit rider or trail. The Knock Block design prevents the fork crown from hitting the frame in the event of an accident and cables are routed internally for a tidy aesthetic. The front shock is the FOX Rhythm 34 FLOAT EVOL air spring fork with 140mm of travel, with a GRIP damper that increases traction and small bump sensitivity.

27.5” Bontrager Line Comp 30 wheels enable the smaller frame sizes to remain consistent with the larger frames in terms of handling and ride, with Bontrager also supplying the XR4 Team Issue tyres and Line Dropper seatpost. The groupset makes good use of Shimano’s lauded XT range, which offers virtually all the performance of XTR at a more palatable price point, making it ideal for use on a hard-charging all-mountain machine such as this.

Highlights

  • Trek Alpha Platinum Aluminium frame with tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link and Boost
  • FOX Performance FLOAT EVOL rear shock with RE:aktiv Thru Shaft 3-position damper, tuned by Trek Suspension Lab
  • FOX Rhythm 34 FLOAT EVOL air spring fork with GRIP damper, tapered steerer, 44mm offset 140mm travel
  • Shimano XT M8100 12-speed groupset
  • Shimano MT600 hydraulic disc brakes
  • Bontrager Line Comp 30, Tubeless Ready wheels
  • Bontrager Line Dropper seatpost

Technical Specification

Frame Trek Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork FOX Rhythm 34, FLOAT EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
Rear Suspension FOX Performance FLOAT EVOL, RE
Bottom bracket Shimano MT500, 92mm, PressFit
Stem Bontrager Line, 35mm, Knock Block, 0 degree
Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise
Grips Bontrager XR Trail Elite, alloy lock-on
Brakes Shimano Deore M6000 hydraulic disc
Brake Levers Shimano Deore M6000
Rear Derailleur Shimano XT M8100, long cage, 51T max cog, 12-speed
Shift Levers Shimano XT M8100, 12-speed
Cassette Shimano XT M8100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Crankset Shimano XT M8100, 32T alloy ring, Boost
Front Wheel Bontrager Line Comp 30, Tubeless Ready, 6 bolt, Boost110
Rear Wheel Bontrager Line Comp 30, Tubeless Ready, 6 bolt, Boost148
Tyres Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" clincher
Saddle Bontrager Arvada, hollow chromoly rails
Seatpost Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm
Weight Limit 136kg (bike, rider and cargo)
Manufacturer Claimed Weight M - 14.40 kg / 31.75 lbs (with tubes)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools.

To see how you build your new bike once you receive it, please see our bike assembly page here.

Please note all bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Trek Fuel EX 8 XT 27.5" Mountain Bike 2020 Sizing
